Specifications:

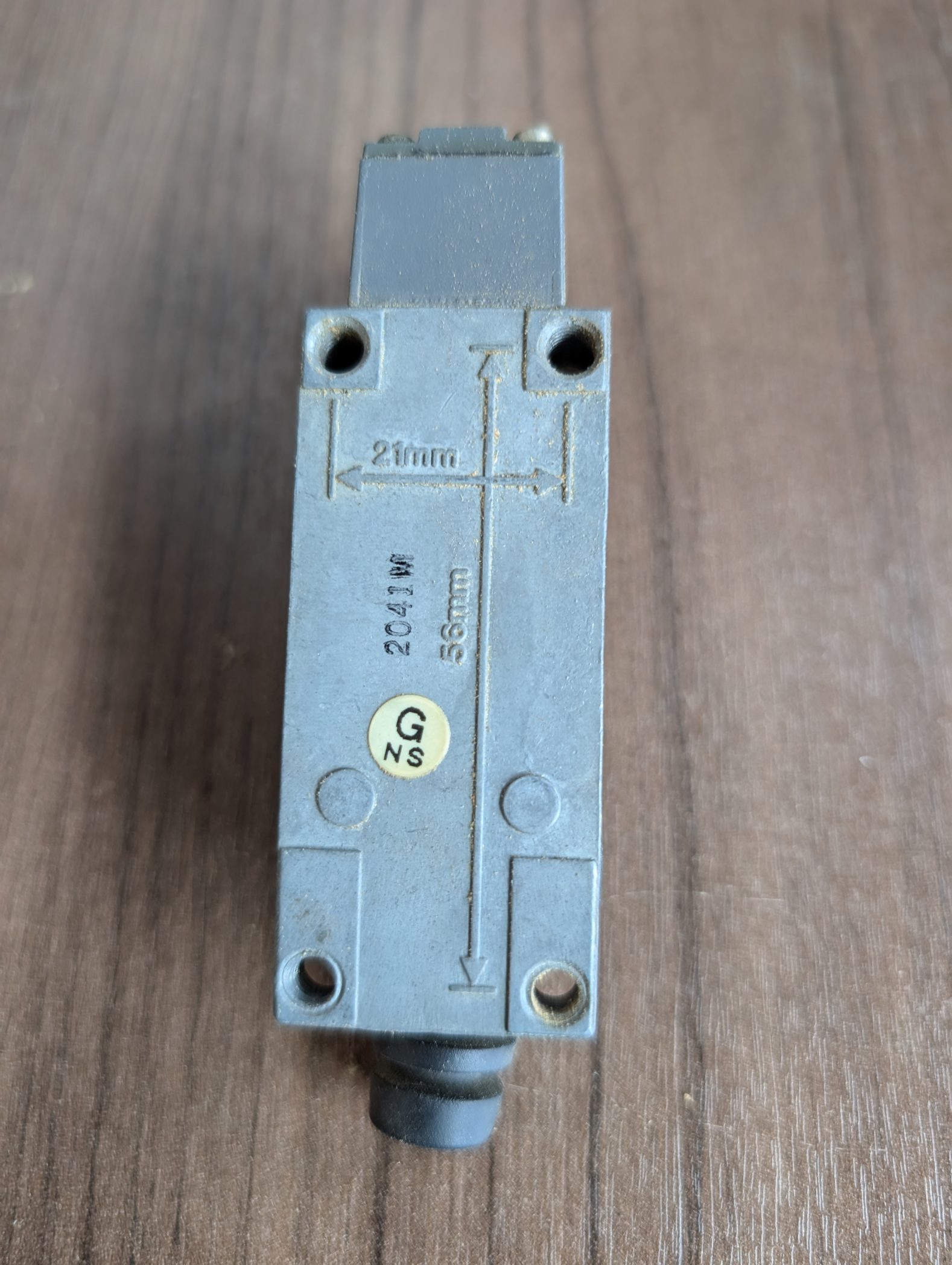

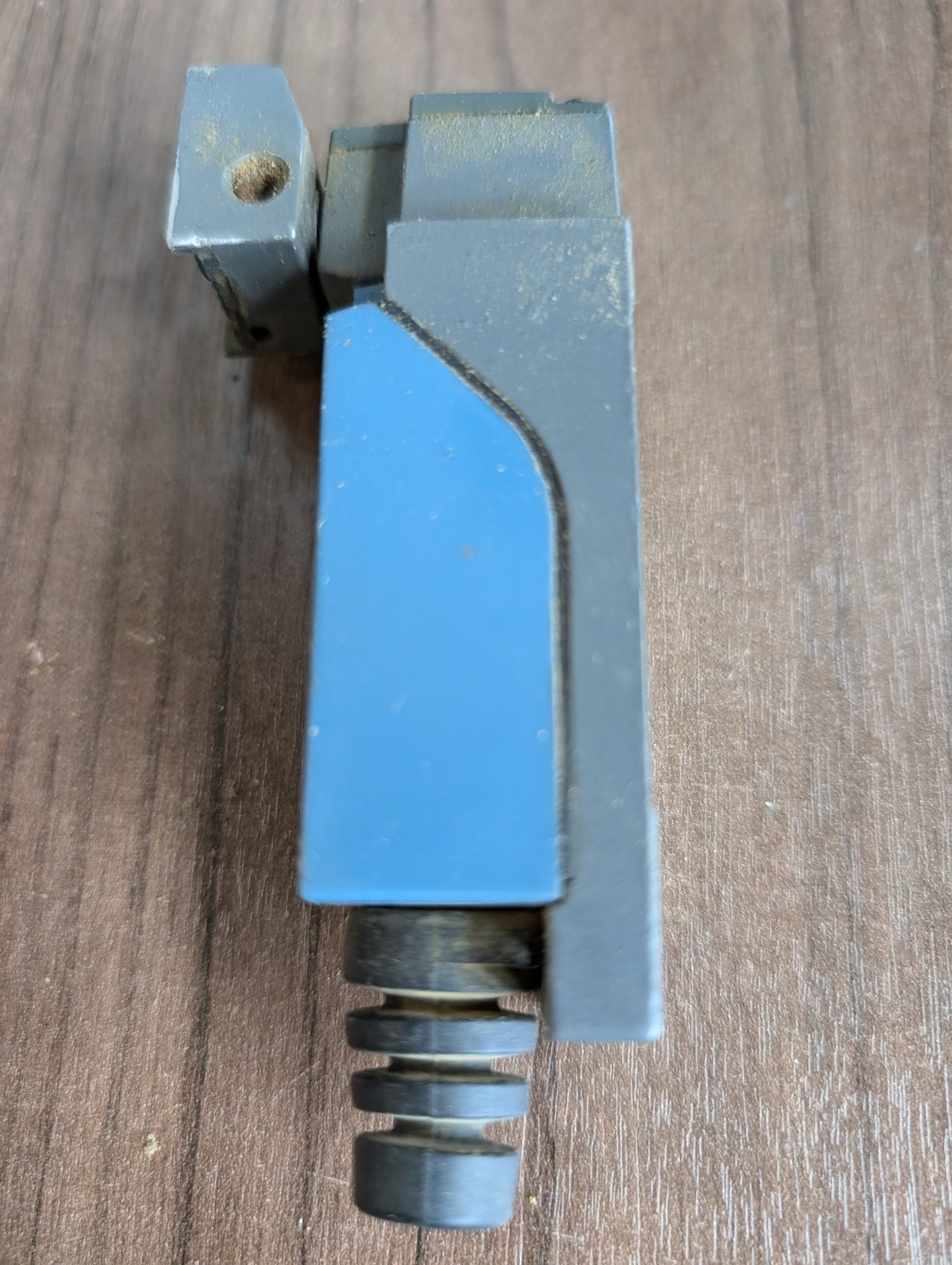

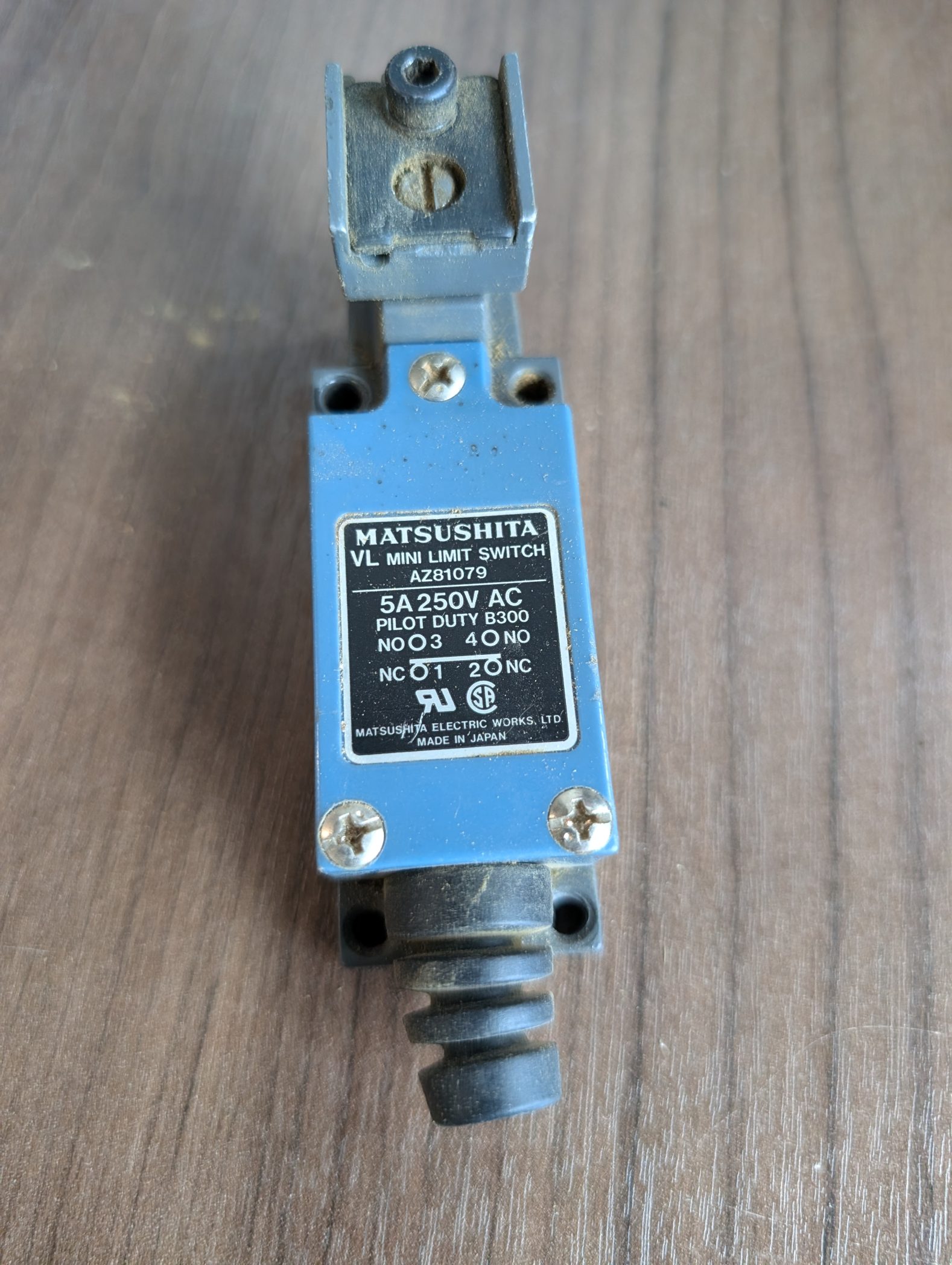

The Matsushita (Panasonic) AZ81079 is a compact vertical mini limit switch featuring a long flexible rod actuator.
- Manufacturer: Matsushita Electric (Panasonic)
- Series: VL (AZ-8 Series Mini Limit Switches)
- Actuator Type: Long Flexible Rod / Adjustable Rod
- Electrical Rating: 5A at 250V AC
- Circuit Configuration: 1 Form A / 1 Form B (SPDT-DB / NO + NC)
- Contact Type: Gold-clad crossbar contacts
- Protection Rating: IP64-rated (dust-proof, water-resistant, oil-resistant)
- Max Operating Frequency: 120 operations per minute
- Operating Temperature Range: -20°C to +60°C
- Standards Compliance: UL, C-UL, RoHS (Note: Discontinued by the manufacturer)
