SKU: 108-174 CAD $419.00

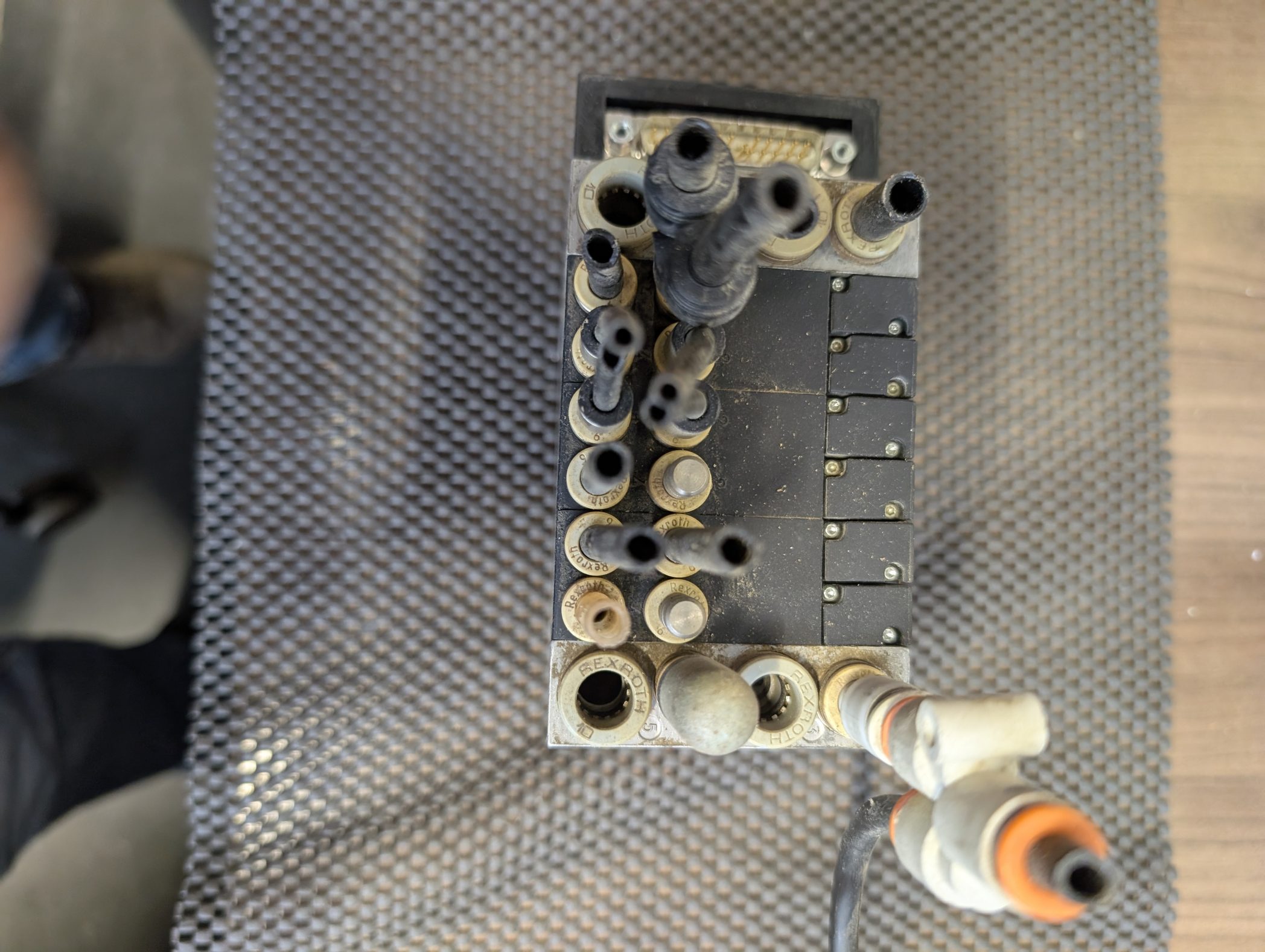

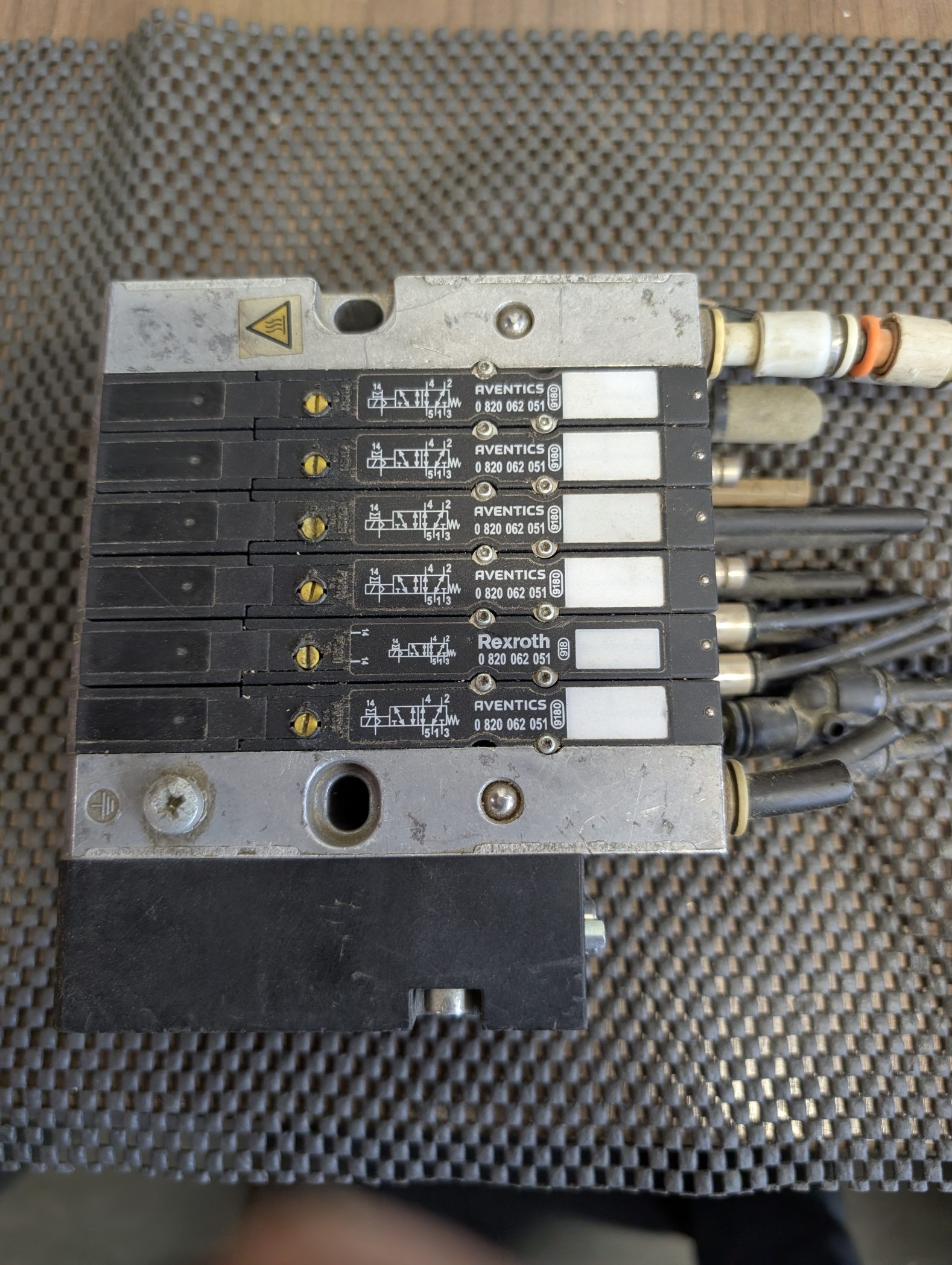

Aventics solenoid Valve Manifold With (6) 0820-062-051 Rexroth Valves

Specifications:

Aventics (by Emerson/Numatics) solenoid valve manifolds are modular pneumatic control systems designed for fast component replacement and flexible fieldbus or wired communication.

2005 / 2035 Series: Compact and full-size modular plug-together units featuring low-wattage DC solenoids (1.0W to 2.5W), NEMA 4/IP65 ratings, and instant valve replacement without disconnecting wires or piping
The AVENTICS 5/2-Directional Valve Series HF04 (Part Number: 0820062051) is a 24V DC double-solenoid valve designed for modular manifold installations with a nominal flow of 400 l/min.
- Switching Principle: 5/2 directional with spring return (double solenoid control)
- Operating Voltage: 24 V DC (0.55 W power consumption)
- Flow Rate: 400 l/min
- Working Pressure: -0.9 to 10 bar [-13 to 145 psi]
- Protection Class: IP65
- Housing Material: Polyamide
- Manual Override: With deten
