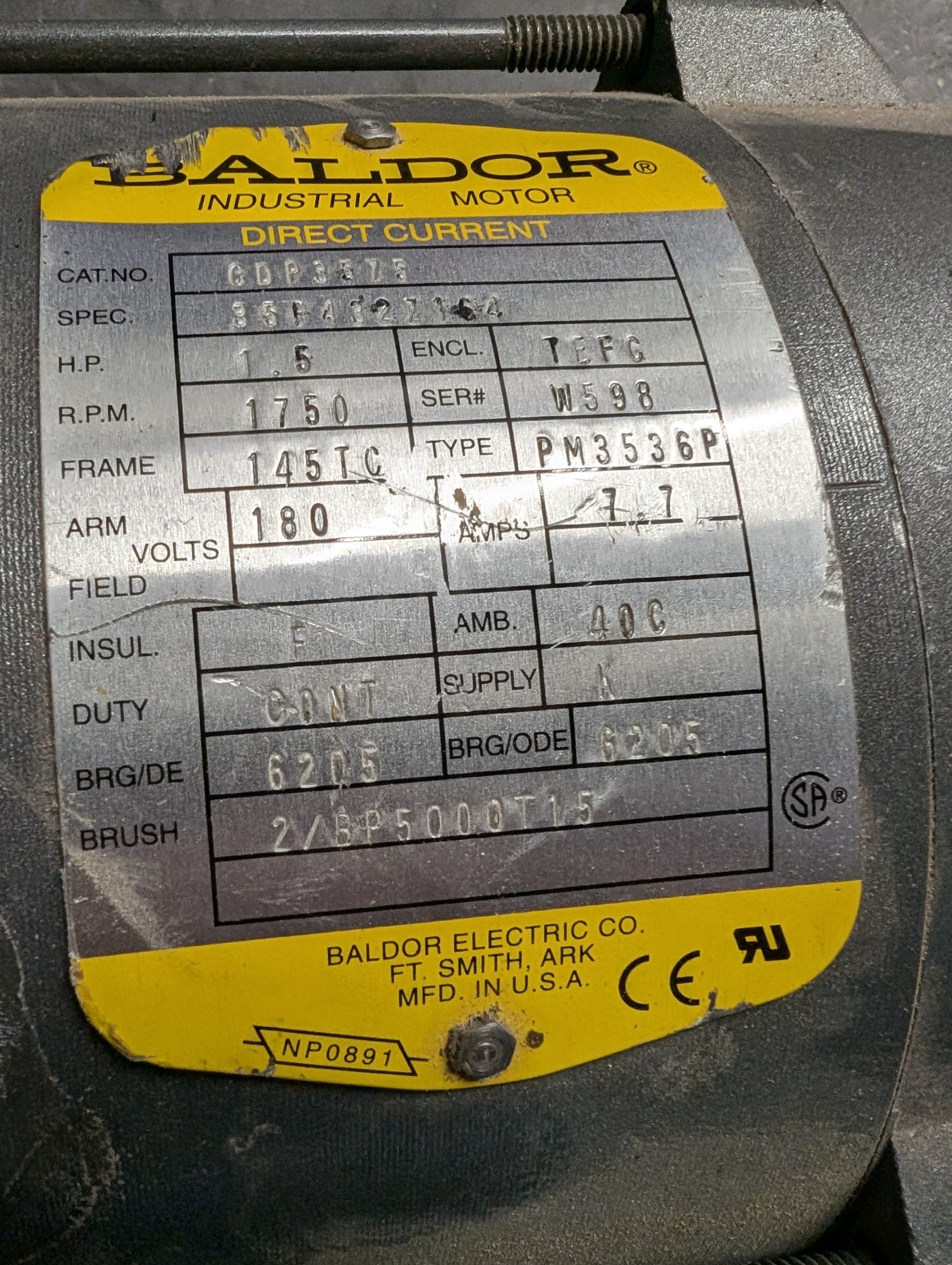

Specifications:

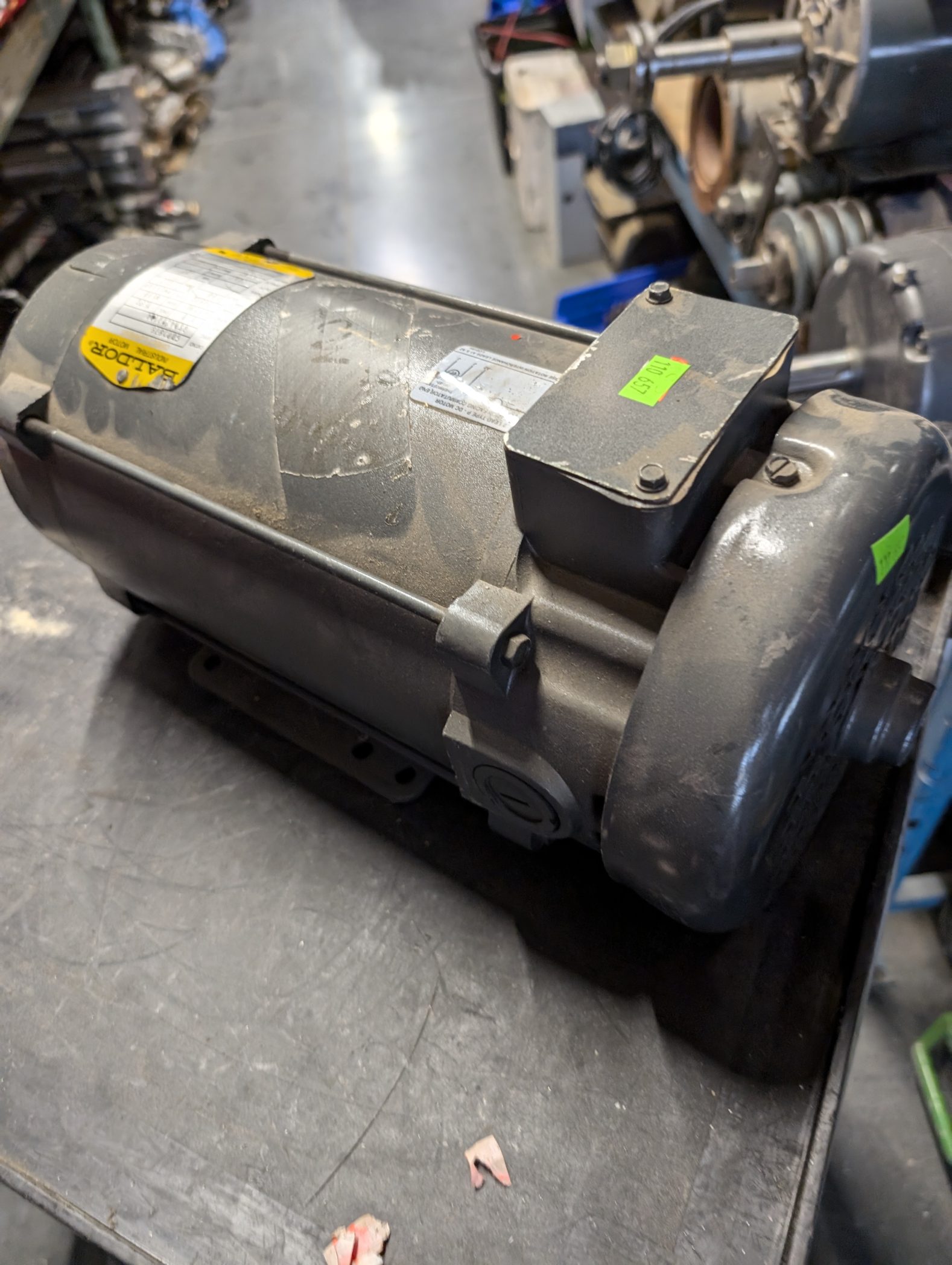

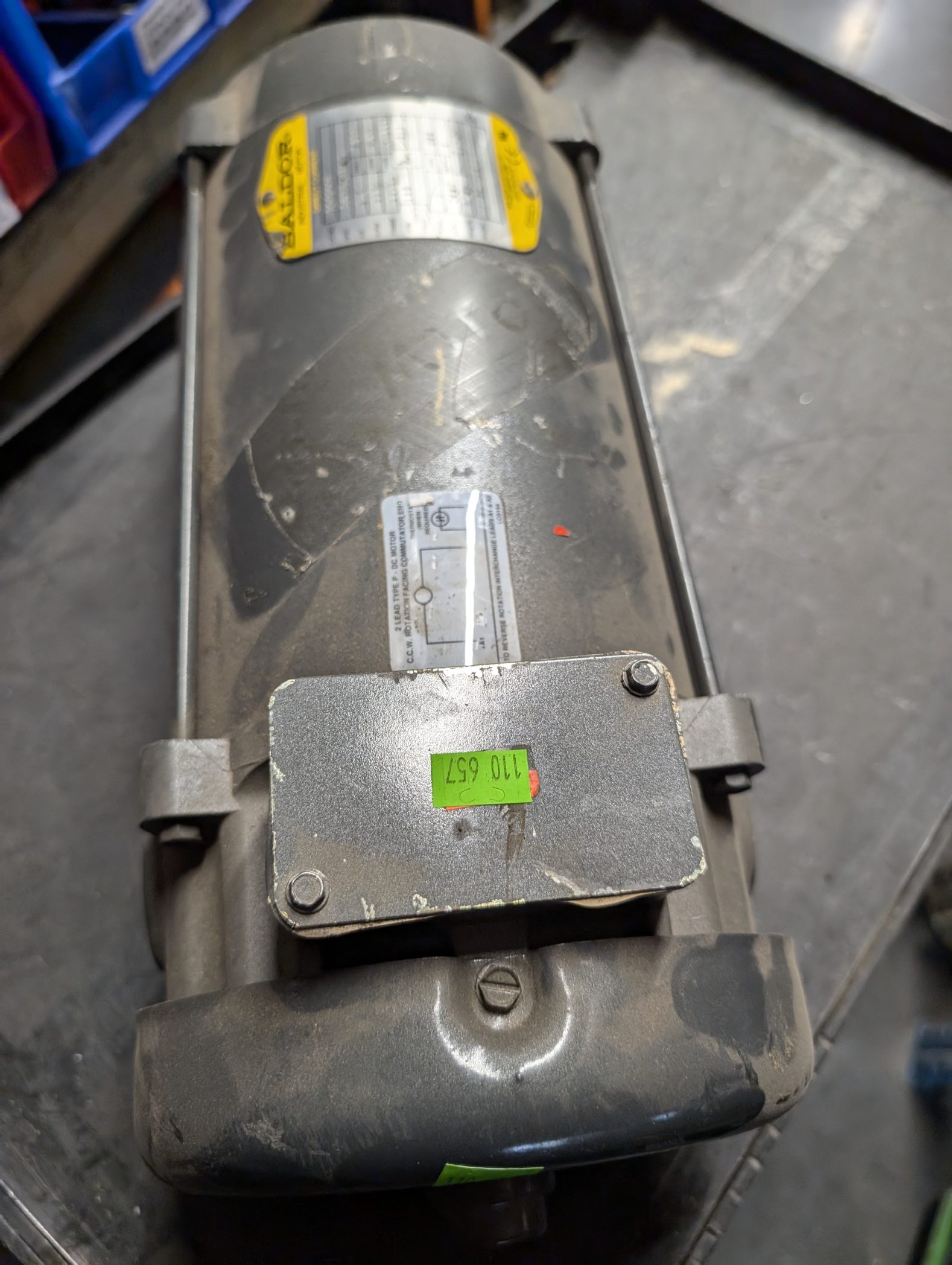

The Baldor CDP3575 is a
1.5 HP permanent magnet direct current (DC) industrial electric motor designed for variable-speed applications such as conveyors, mixers, metering pumps, and packaging machinery.
- Horsepower (HP): 1.5 HP (1.1 kW)
- Armature Voltage: 180 VDC
- Armature Current (Full Load Amps): 7.7 A
- Enclosure Type: TEFC (Totally Enclosed Fan-Cooled)
- NEMA Frame Size: 145TC (C-Face with removable/rigid base)
- Motor Type: 3536P (Permanent Magnet)
- Insulation Class: Class F
- Duty Rating: Continuous (CONT)
- Ambient Temperature: 40 °C (104 °F)
- Bearings: Double-sealed ball bearings (DE: 6205, ODE: 6205)
- Shaft Diameter: 0.875 inches
- Certifications: CE, CSA, UL recognized, RoHS compliant
