Specifications:

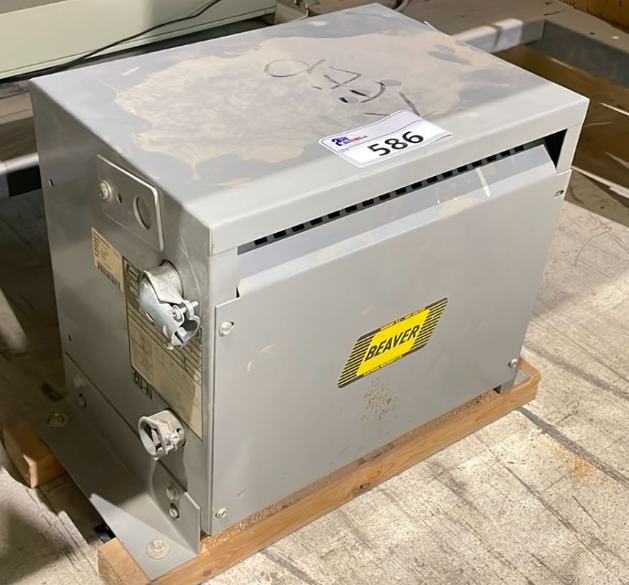

The Beaver RC15JFHBHT (catalog/model variant corresponding to RC15J-F family) is a 15 kVA, 3-phase dry-type autotransformer that steps 600V down to 380V (or vice versa depending on wiring).
- Product Type: Three-phase dry-type autotransformer (Air Cooled)
- Primary Voltage: 600V (Terminals: H1-H2-H3)
- Primary Max Current: 14.4 A
- Secondary Voltage: 380V (Terminals: X1-X2-X3)
- Secondary Max Current: 22.8 A
- Winding Conductor: Copper
- Impedance (% IMP): ~3.0% to 4.0% (ANSI/IEEE)
- Temperature Rise: 130 °C (or 150 °C rating variant depending on exact build)
- Insulation Class: Class 200 (N) / 220 °C
- Basic Impulse Insulation Level (BIL): 10 kV
- Efficiency: ~94.55% (at 35% load)
- Enclosure: NEMA 1 / Type 2 general-purpose indoor ventilated steel enclosure (polyester powder coat finish)
- Approximate Weight: ~130 to 140 lbs (59–63 kg)
- Country of Manufacture: Canada
- Standards & Certifications: CSA Standard C22.2 No. 47 (File No. LR34493), UL Listed (File No. E108255), and ISO 9001 certified.
