    SKU: 110-135 CAD $154.00

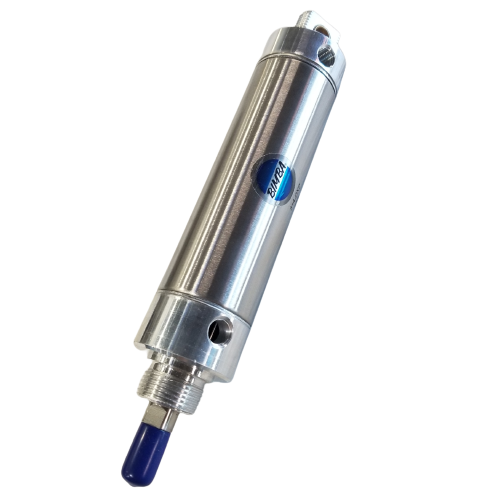

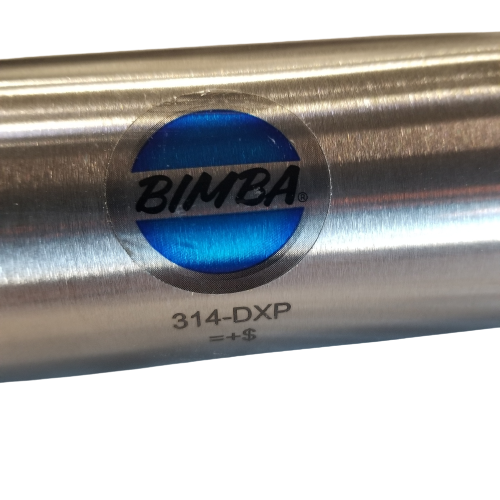

    Bimba 314-DXP Pneumatic Cylinder Brand New

    Used Bimba 314-DXP Pneumatic Cylinder Brand New
    Used Bimba 314-DXP Pneumatic Cylinder Brand New Used Bimba 314-DXP Pneumatic Cylinder Brand New

    Specifications:

    The Bimba 314-DXP is a 2-inch bore, 4-inch stroke double-acting pneumatic air cylinder from the Original Line series.
    • Brand/Series: IMI Bimba Original Line (31 Series)
    • Bore Size: 2 inches
    • Stroke Length: 4 inches
    • Operation: Double-acting, air return
    • Mounting Style: Universal mounting (Double end or rear pivot mounting with bronze pivot bushing)
    • Ports: 2 x 1/4″ NPT threaded ports (both ends)
    • Piston Rod: Stainless steel with 1/2-20 UNF-2A (male) threaded rod and 1-1/4″-12 UNF-2A threaded ends
    • Temperature Range: -20°F to +200°F (-28°C to +93°C)
    • Lubrication: Permanent grease lubricant (no additional service lubrication required)
    • Design: Non-repairable

    Make An Offer
