Pneumatics
/
Solinoids
/

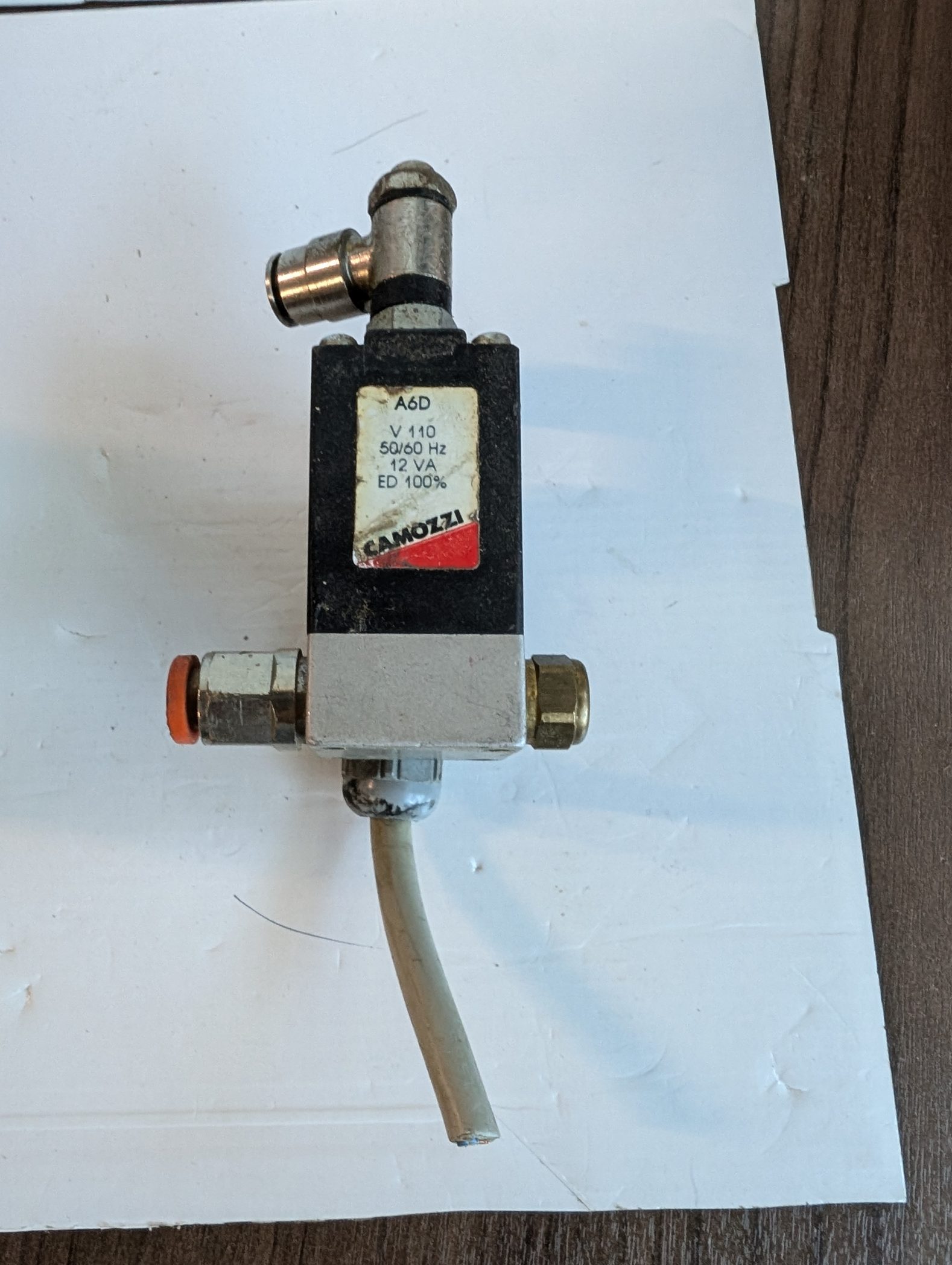

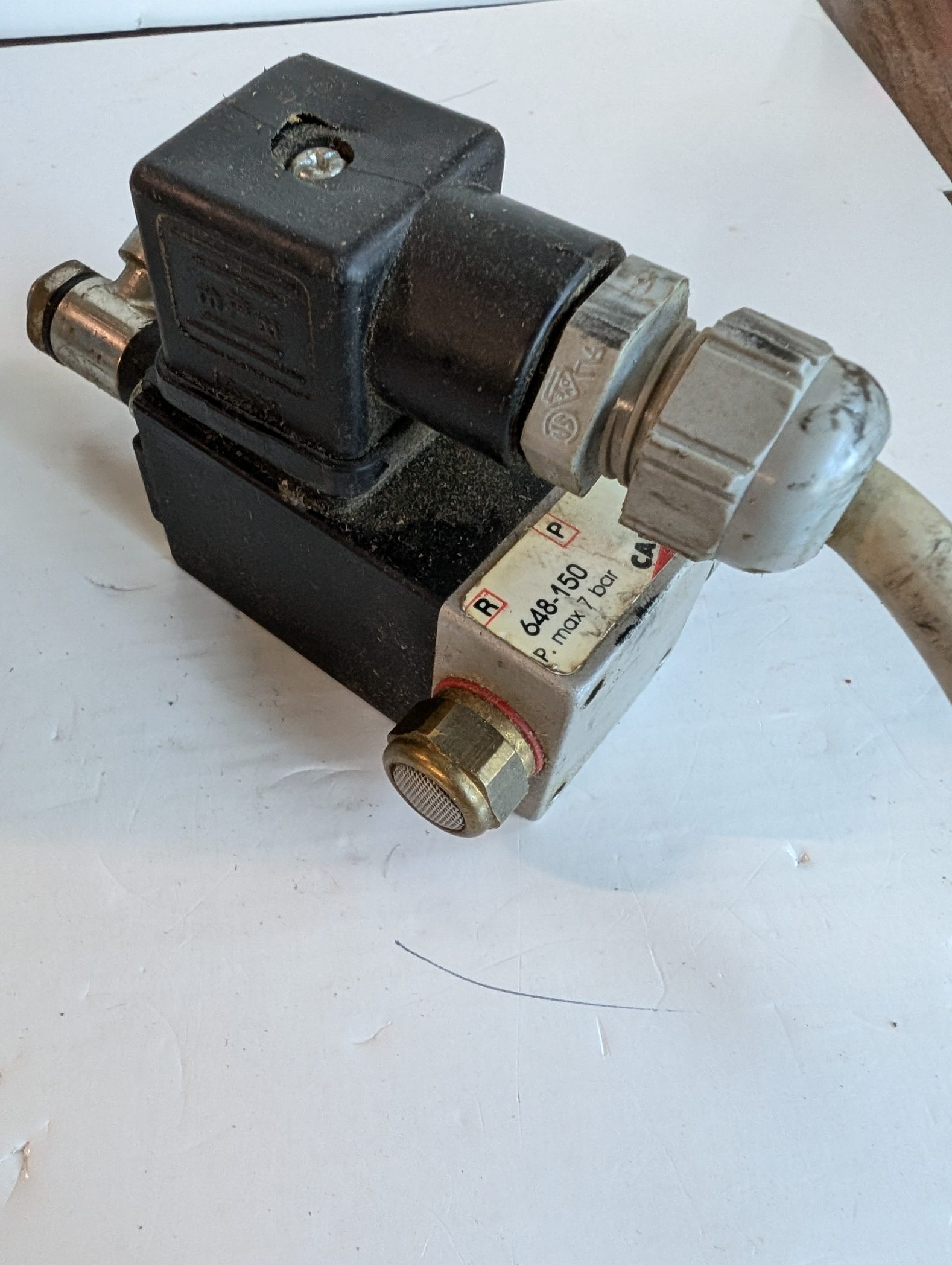

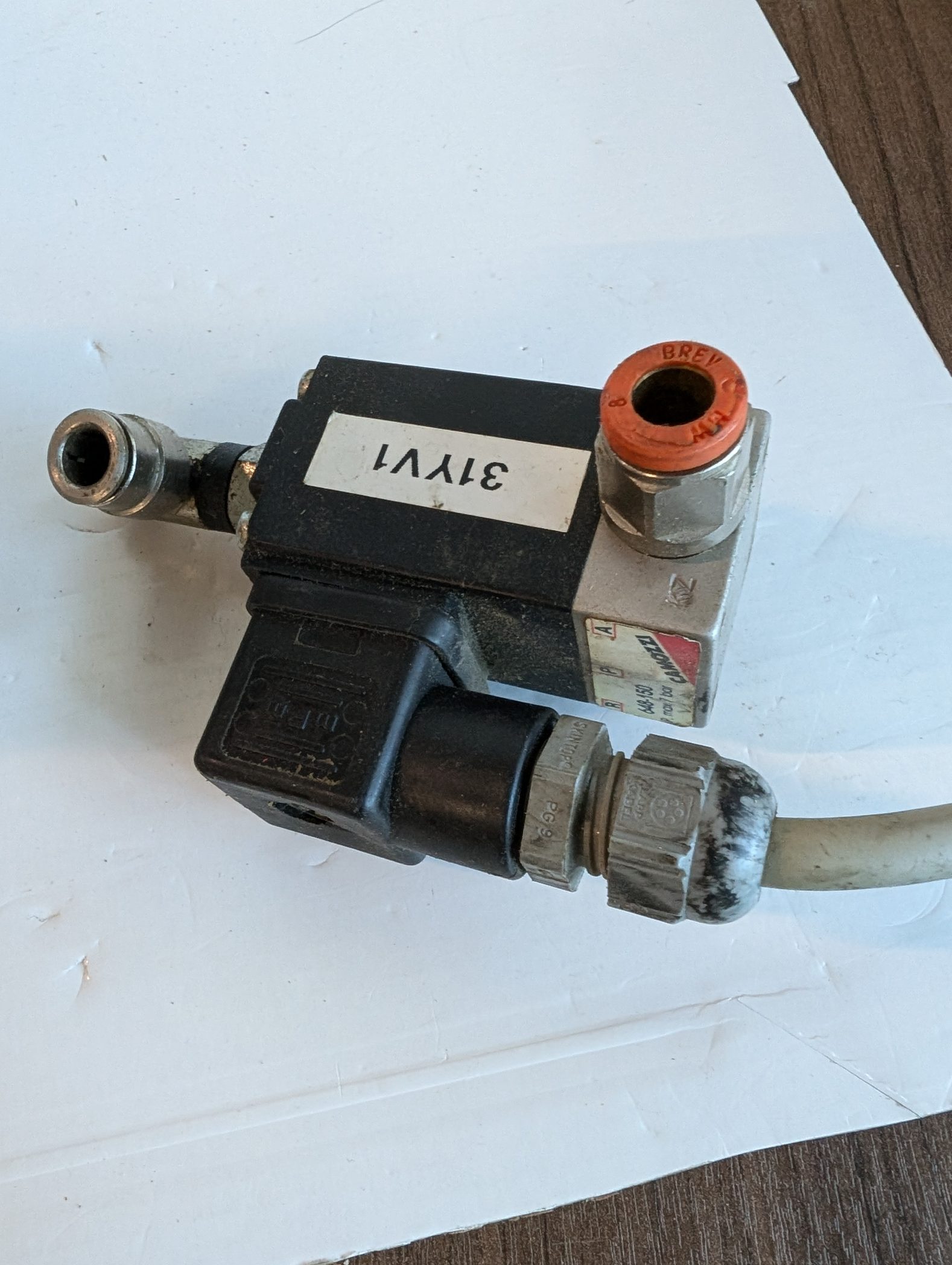

Camozzi A6D Solenoid Valve 3 Way
SKU: 120-746
CAD $
87.63
Camozzi A6D Solenoid Valve 3 Way
Add to cart
Contact Us
Description
Ship Estimate
Specifications:
The
Camozzi A6D
(such as code
600-450-A6D
or
638-150-A6D
) is a
direct-operating 3/2-way normally closed (NC) solenoid valve designed for pneumatic control applications
.
Valve Type:
Direct-acting 3/2-way, Normally Closed (NC)
Voltage Code (A6D):
110 V 50/60 Hz AC
Power Consumption:
12 VA
Connections / Ports:
G1/8 threaded or subbase/manifold mounted (depending on the specific Series 6 model body style like Mod. 600, 638, or 648)
Orifice Diameter:
Typically Ø 2 mm for standard Series 6 G1/8 models
Operating Pressure:
0 to 10 bar (varies slightly by precise configuration)
Nominal Flow Rate:
120 l/min
Reset Type:
Mechanical spring
