Specifications: New In Original Box

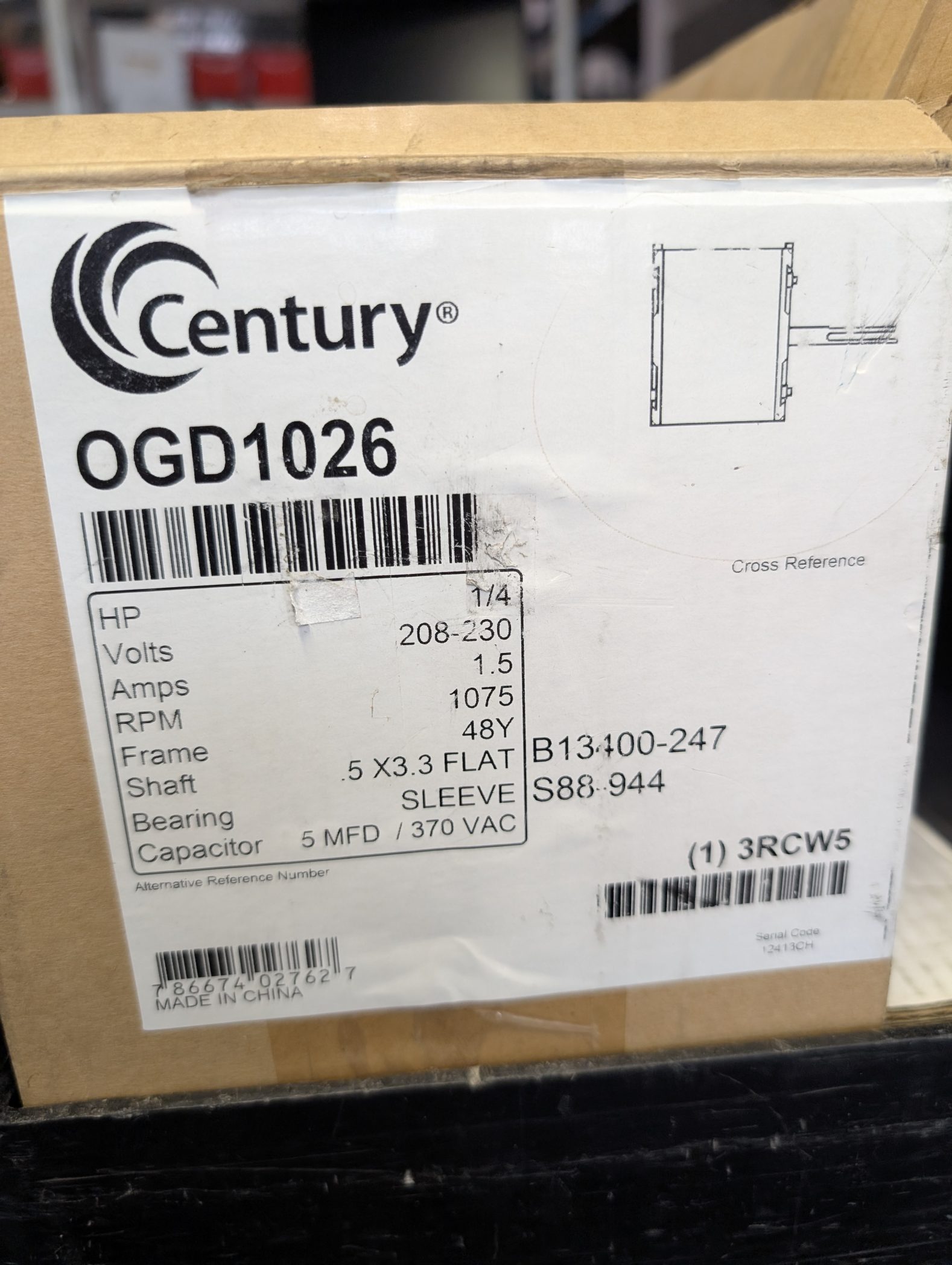

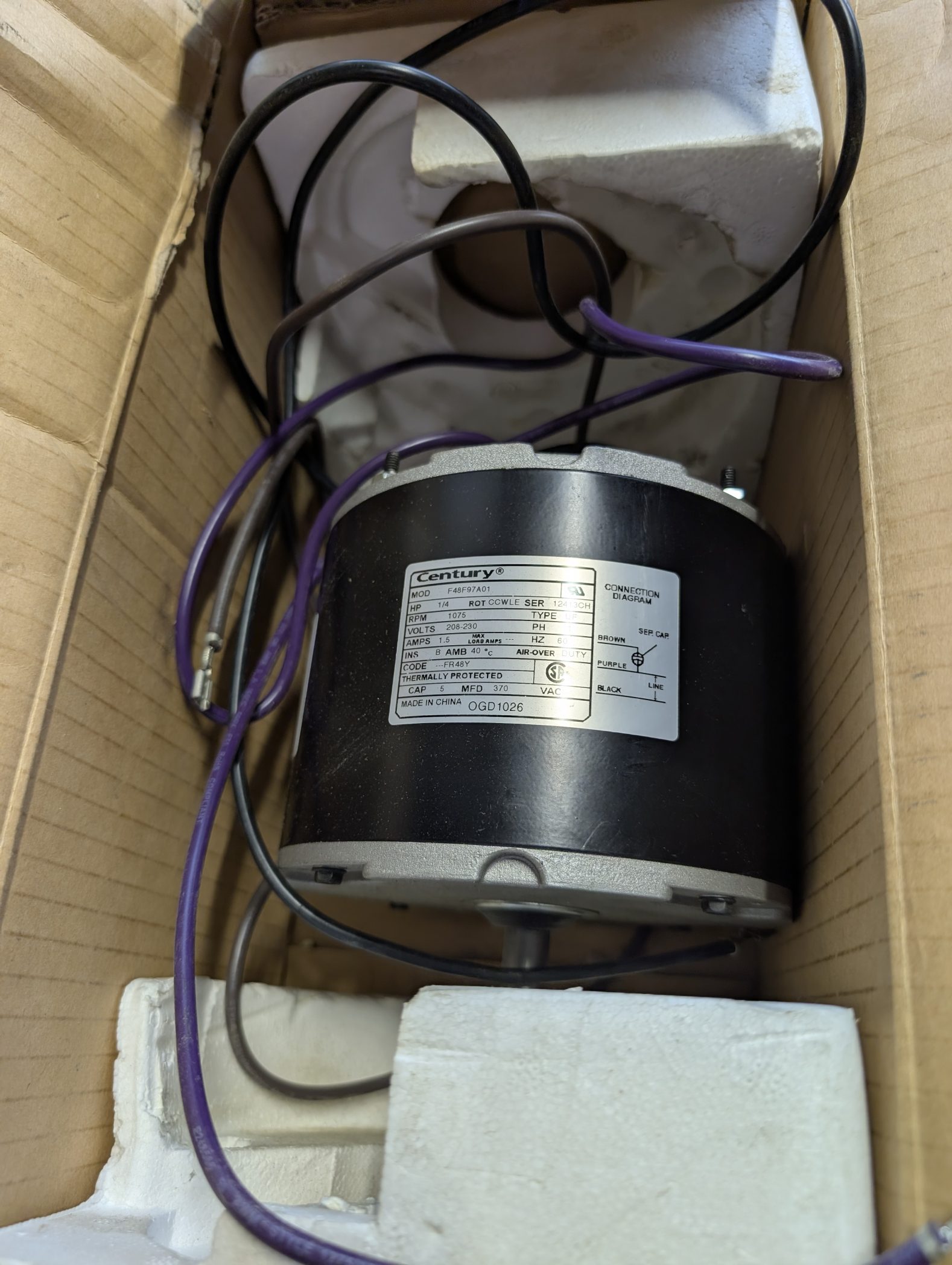

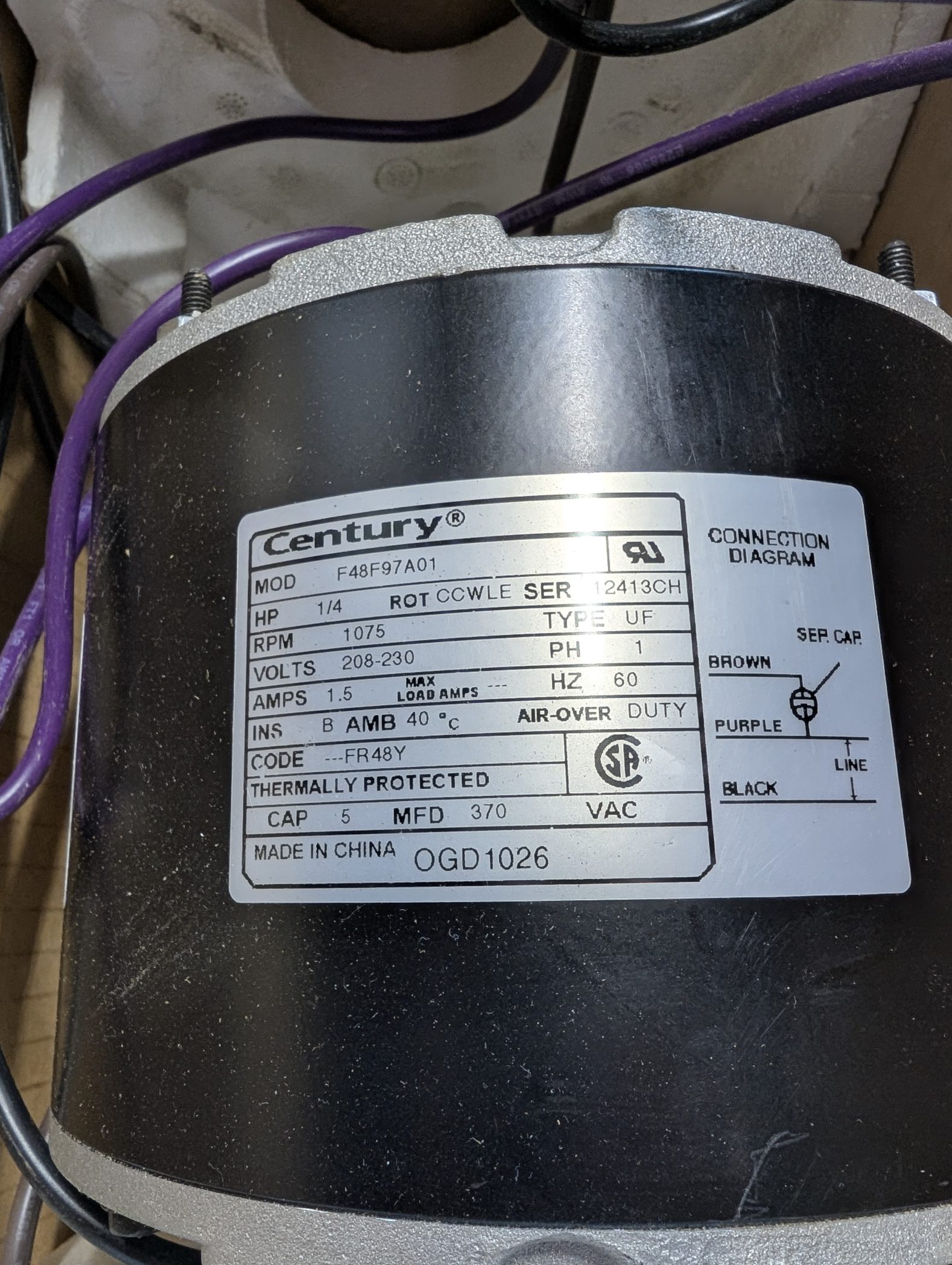

The Century OGD1026 is a 1/4 HP, single-phase HVAC OEM direct replacement condenser fan motor designed to operate at 208-230 volts and 1075 RPM
- Horsepower: 1/4 HP (0.19 kW)
- Frequency: 60 Hz (1 Phase)
- RPM: 1075 RPM (1 Speed, 6 Poles)
- Capacitor Required: 5 MFD / 370 Volt (not included)
- Thermal Protection: Automatic
- Frame Size: 48Y (5.6″ diameter)
- Enclosure Type: TEAO (Totally Enclosed Air Over)
- Bearing Type: Ball / Ball
- Rotation: Counterclockwise Lead End (CCWLE)
- Shaft Dimensions: 1/2″ diameter x 3-1/4″ length with flat
- Mounting: Extended studs (lead end, vertical shaft down)
