Specifications:

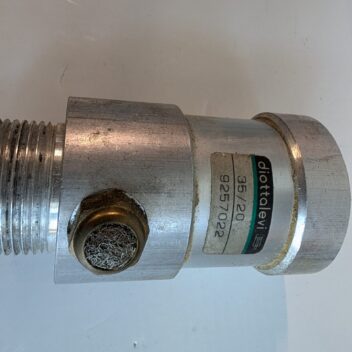

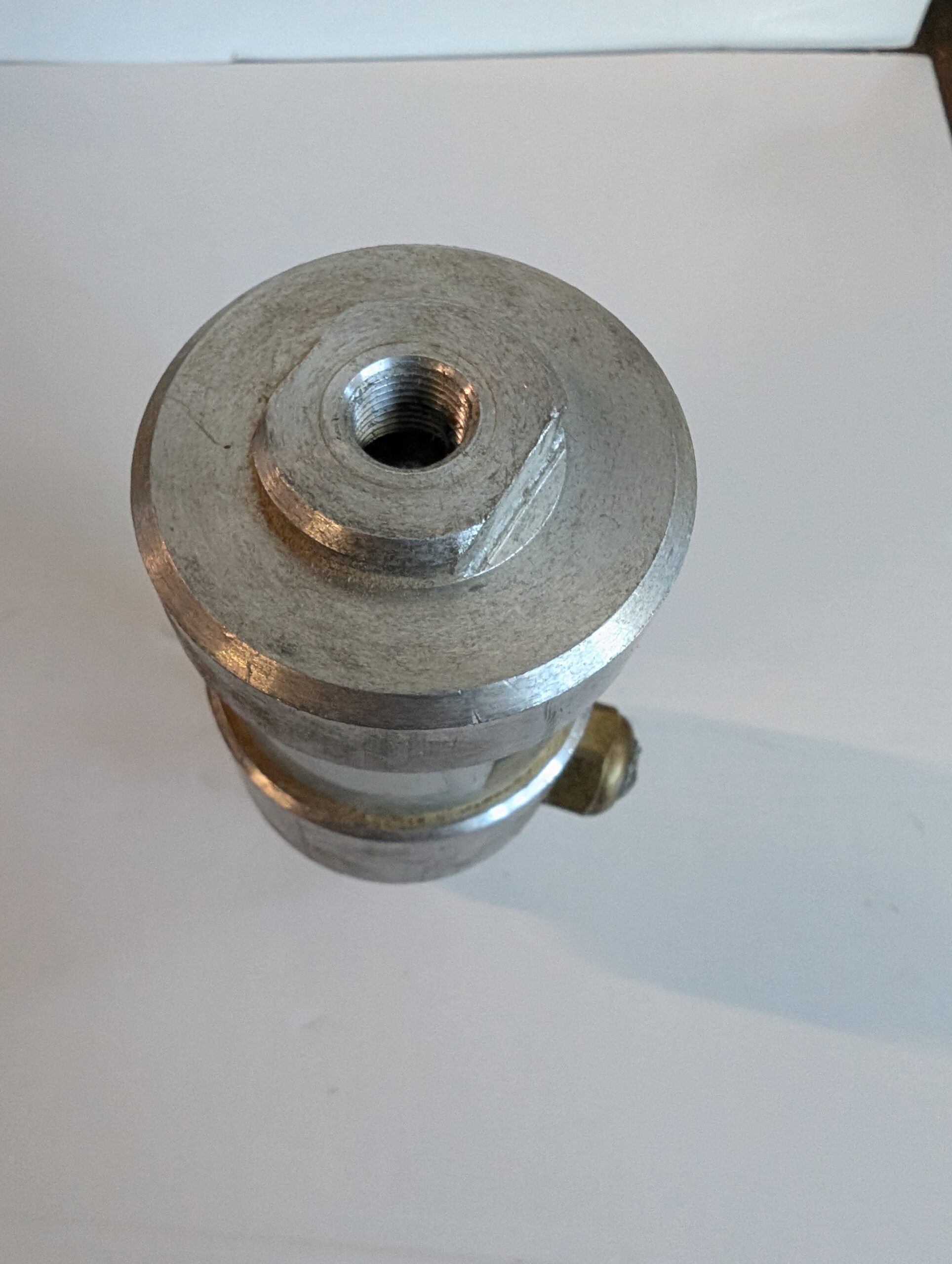

The specifications for a Diottalevi 35/20 pneumatic cylinder correspond to the Italian manufacturer’s Series 300 compact/short-stroke cylinders. In their naming convention, 35 denotes a 35 mm bore (piston diameter), and 20 refers to a 20 mm stroke length.
- Air Attachments / Ports: 1/8″ to 1/4″ thread
- Stroke Tolerance: ±0.8 mm
- Action Types: Available in double-acting or single-acting variants. [1]
- Operating Medium: Filtered air fluid (operates with or without lubrication).
- Maximum Pressure: 12 bar.
- Temperature Range: 0°C to 80°C (down to -20°C if using completely dry air)
