Specifications:

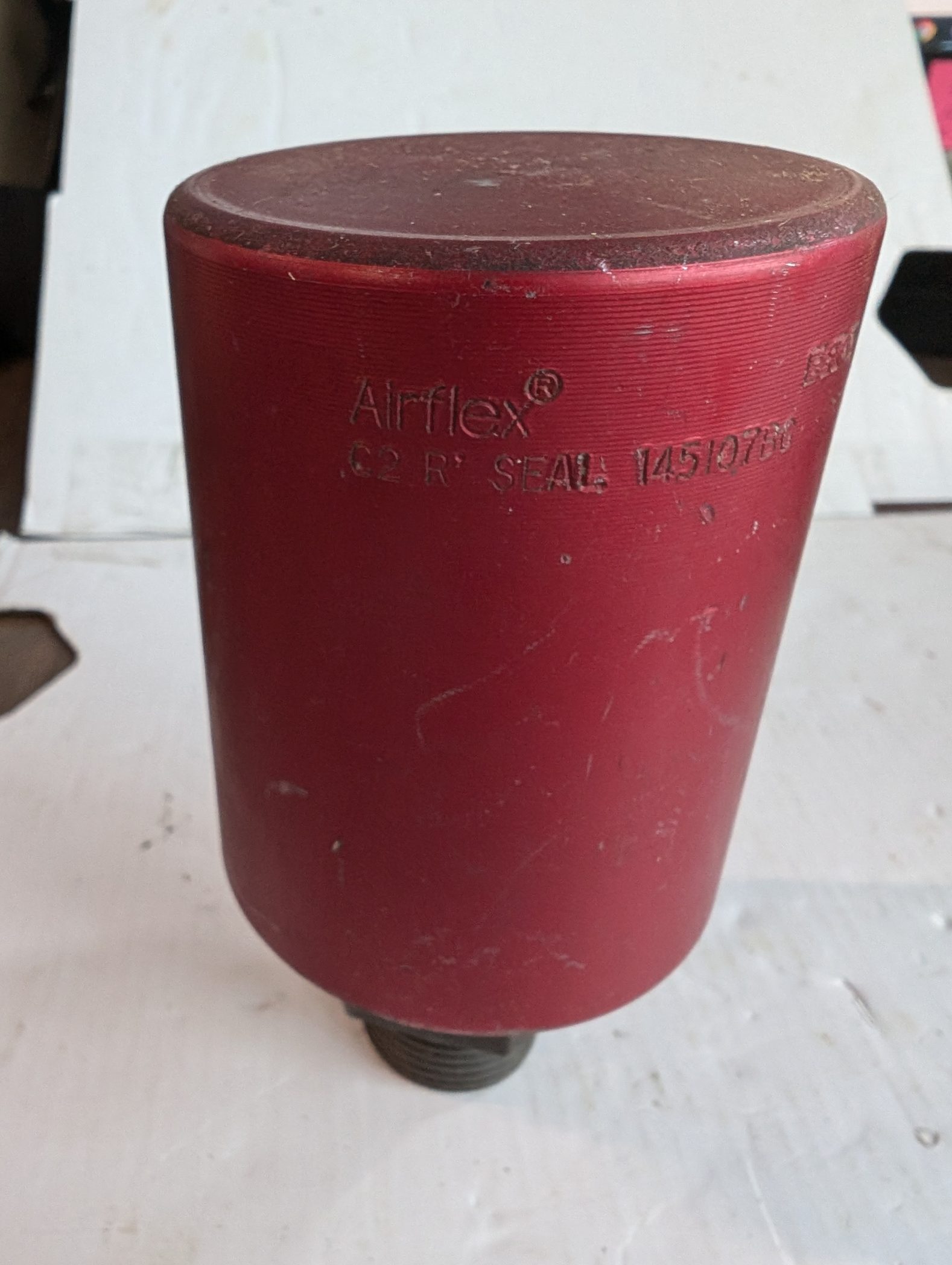

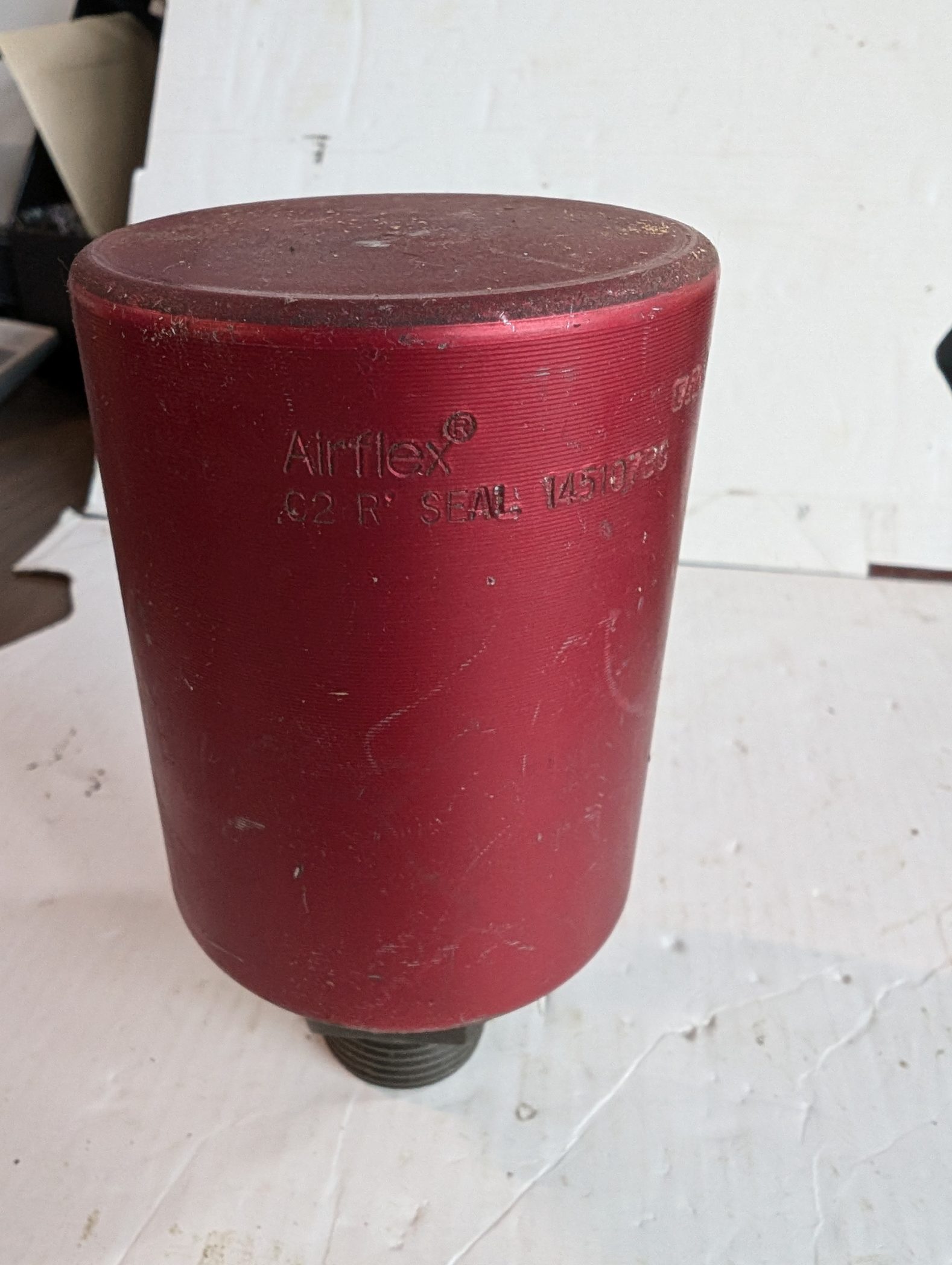

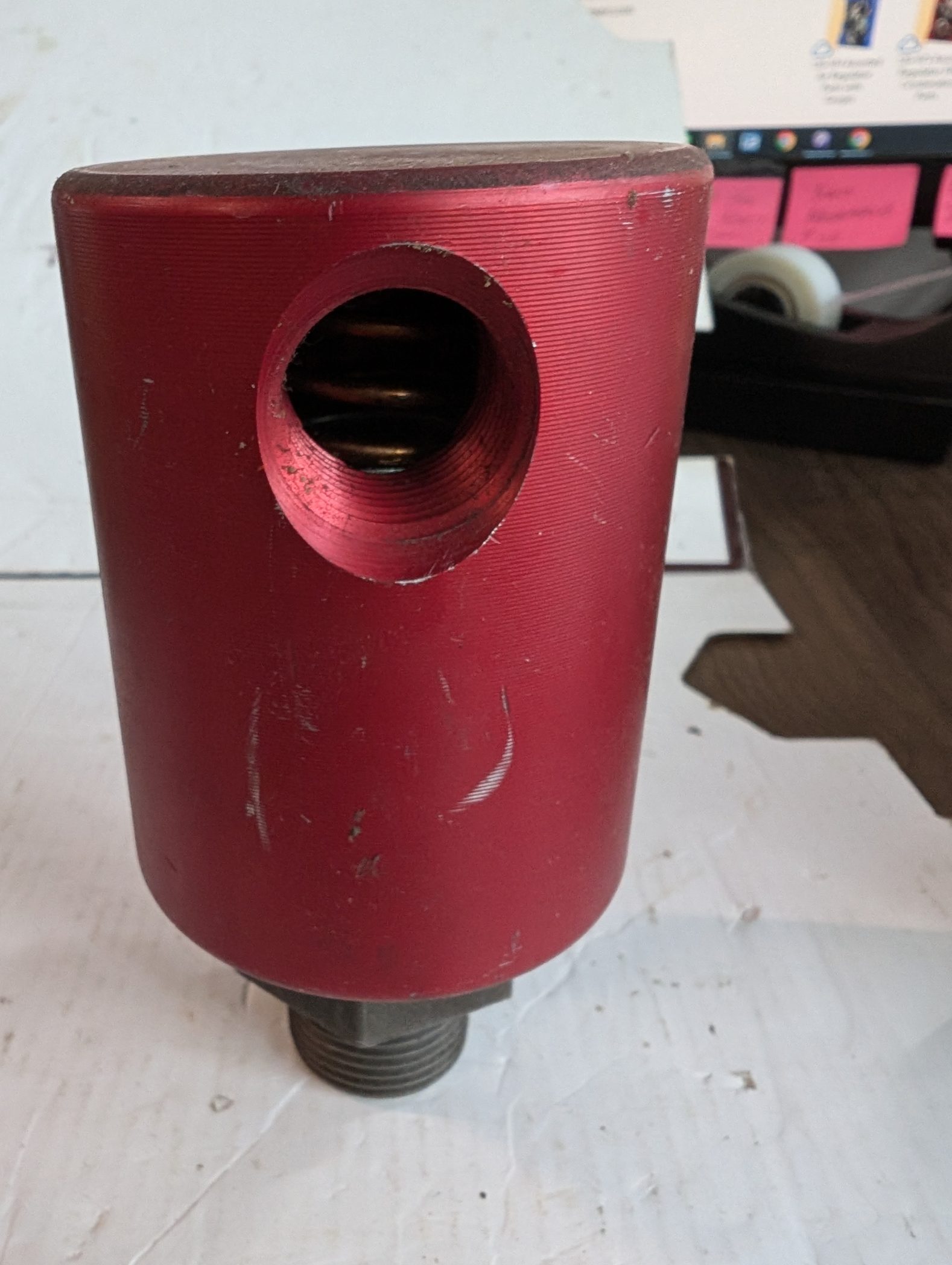

The Eaton Airflex 145107BG is a Size C2 single-passage, self-lubricating rotorseal designed to transfer pressurized air or hydraulic fluids into and out of rotating machinery shafts.
- Manufacturer: Eaton Airflex (now part of Danfoss)
- Series / Size: C2 Series (Single Passage)
- Maximum Pressure: 150 psi (10.3 bar)
- Bore Size: 5/8 inch (15.875 mm)
- Inlet Port Size: 1/2-14 NPT
- Maximum Operating Temperature: 200°F (93.3°C)
- Material: Carbon steel body with OEM-grade elastomer seals
- Weight: 2.0 lbs (0.91 kg)
- Marine Equipment: Propulsion systems and winches
- Industrial Drives: Heavy mechanical power-transmission systems, cranes, and hoisting equipment
- Clutch & Brake Control: Providing airtight pneumatic or hydraulic connections for rotating clutch and brake assemblies
