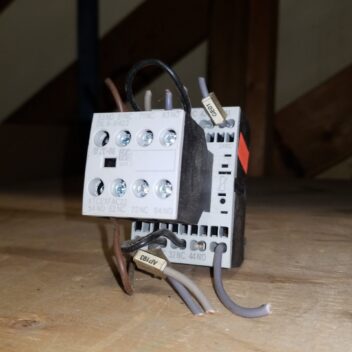

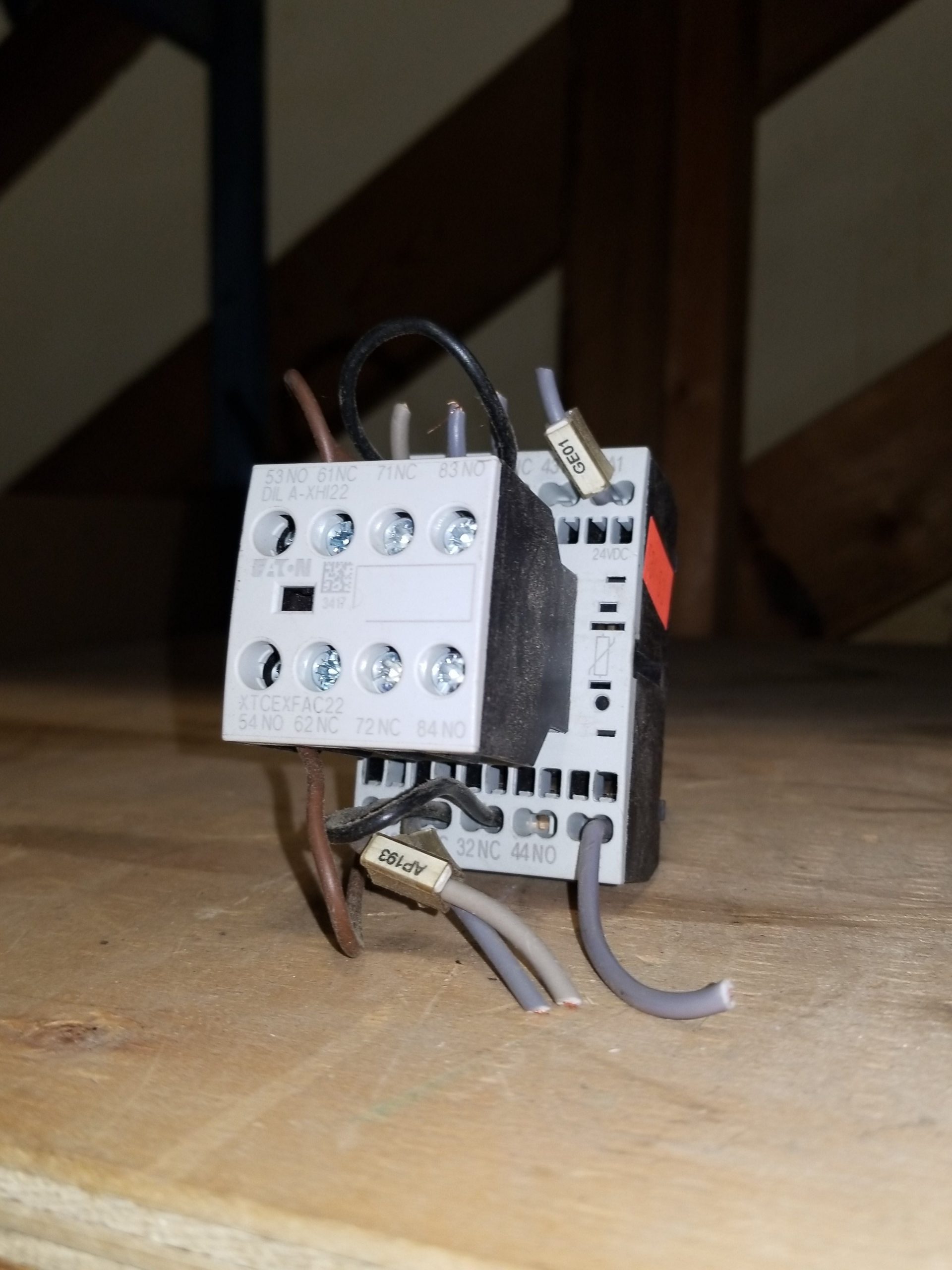

Eaton Moller DIL M15-01 Control Relay with DIl A-XHIC11
Specifications:

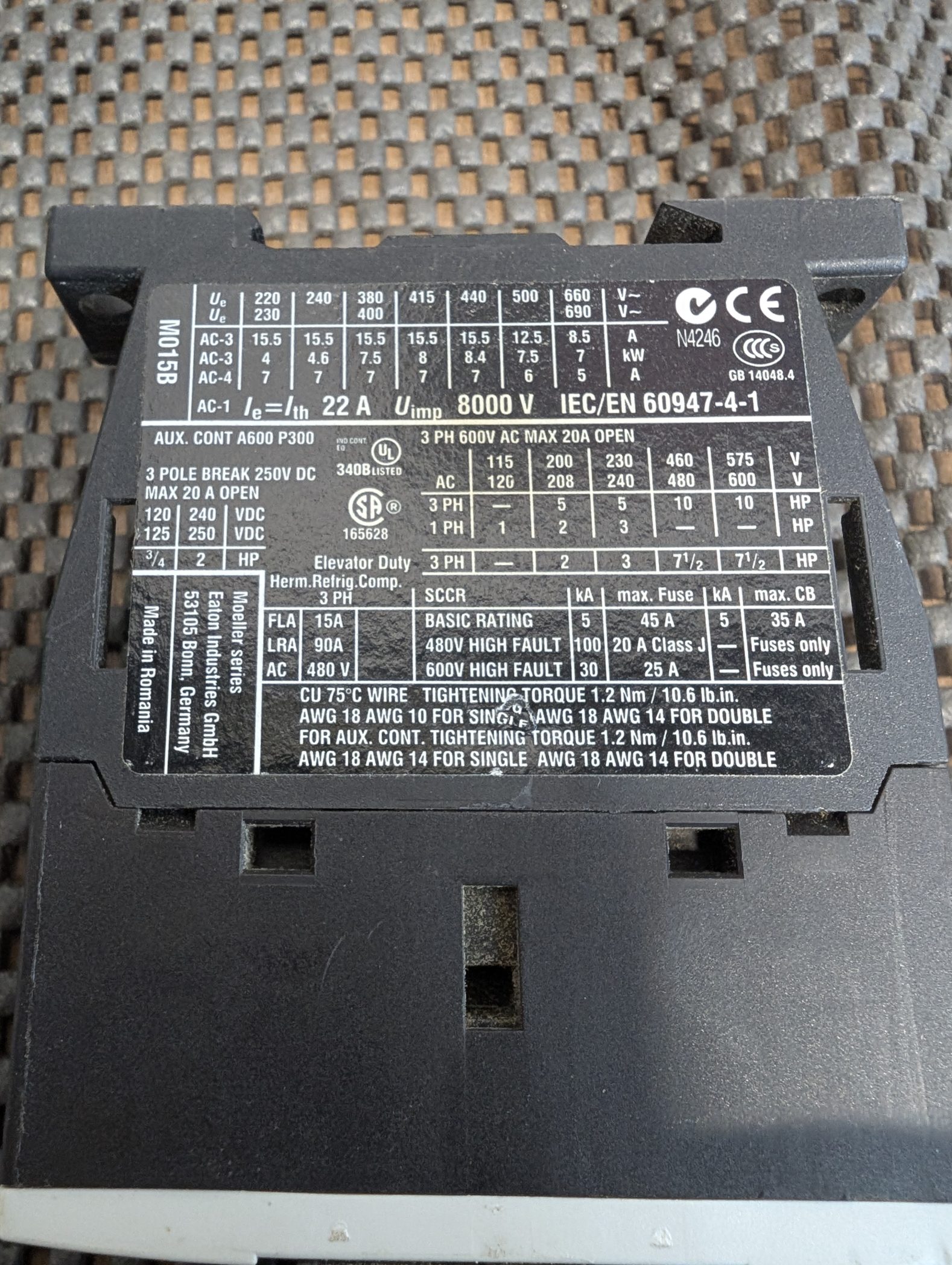

The Eaton Moeller DILM15-01 is a 3-pole industrial power contactor rated for motors up to 7.5 kW (15.5A at 400V AC-3) with one integrated normally closed (NC) auxiliary contact.
Poles: 3 main power contacts (3-pole design).
Auxiliary Contacts: 1 NC contact (indicated by the “-01” suffix).
Current Ratings: 15.5A operational current at AC-3 (400V); 22A resistive load (AC-1).
Power Capacity: 7.5 kW at 380/400V (AC-3).
Insulation Voltage: Up to 690V AC max.
Lifespan: Rated for 10 million mechanical operations

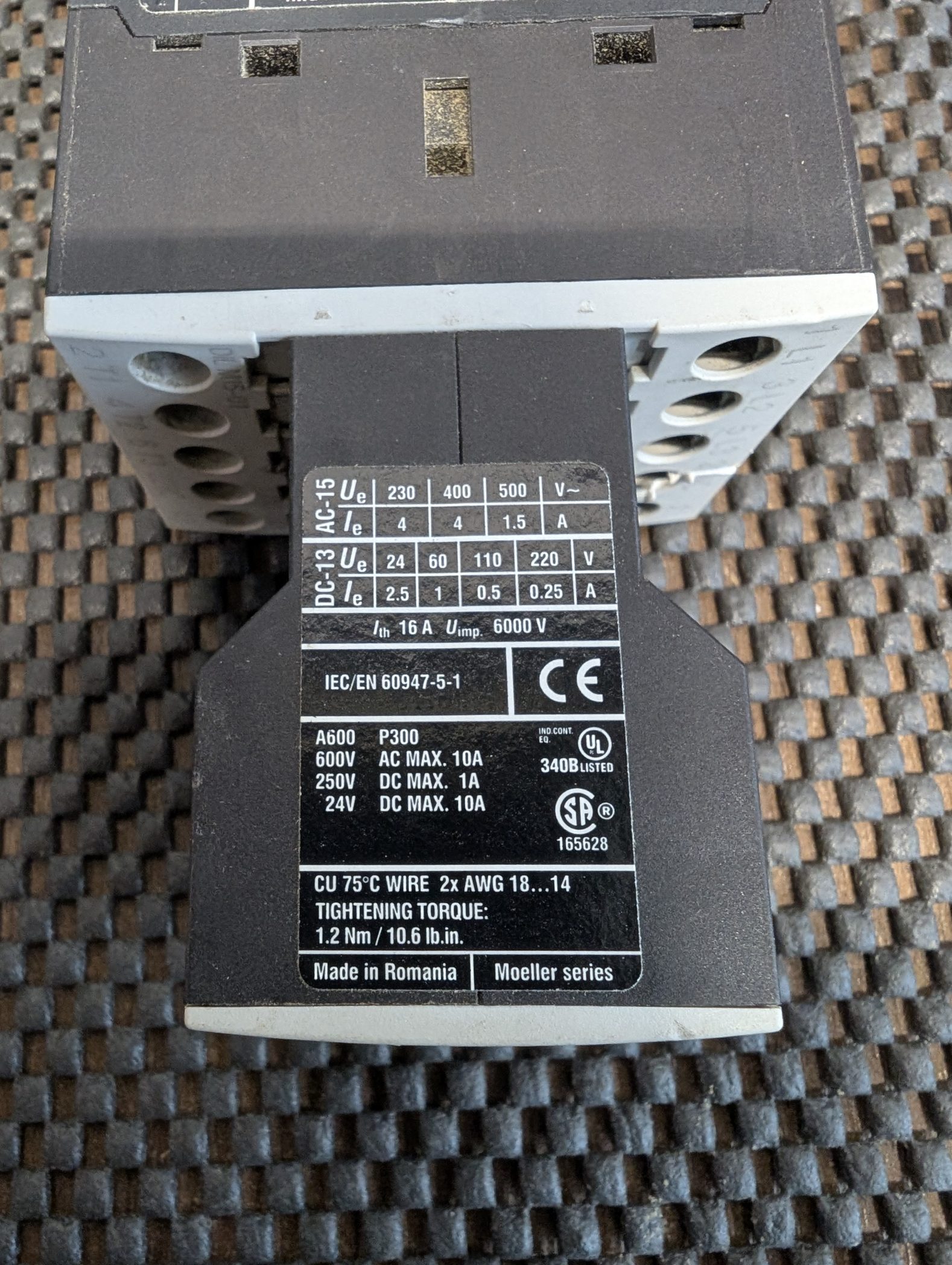

The Eaton Moeller DILA-XHIC11 (part number 276527) is a 2-pole front-mounting auxiliary contact module featuring 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration with spring-loaded terminal connections.
