Specifications:

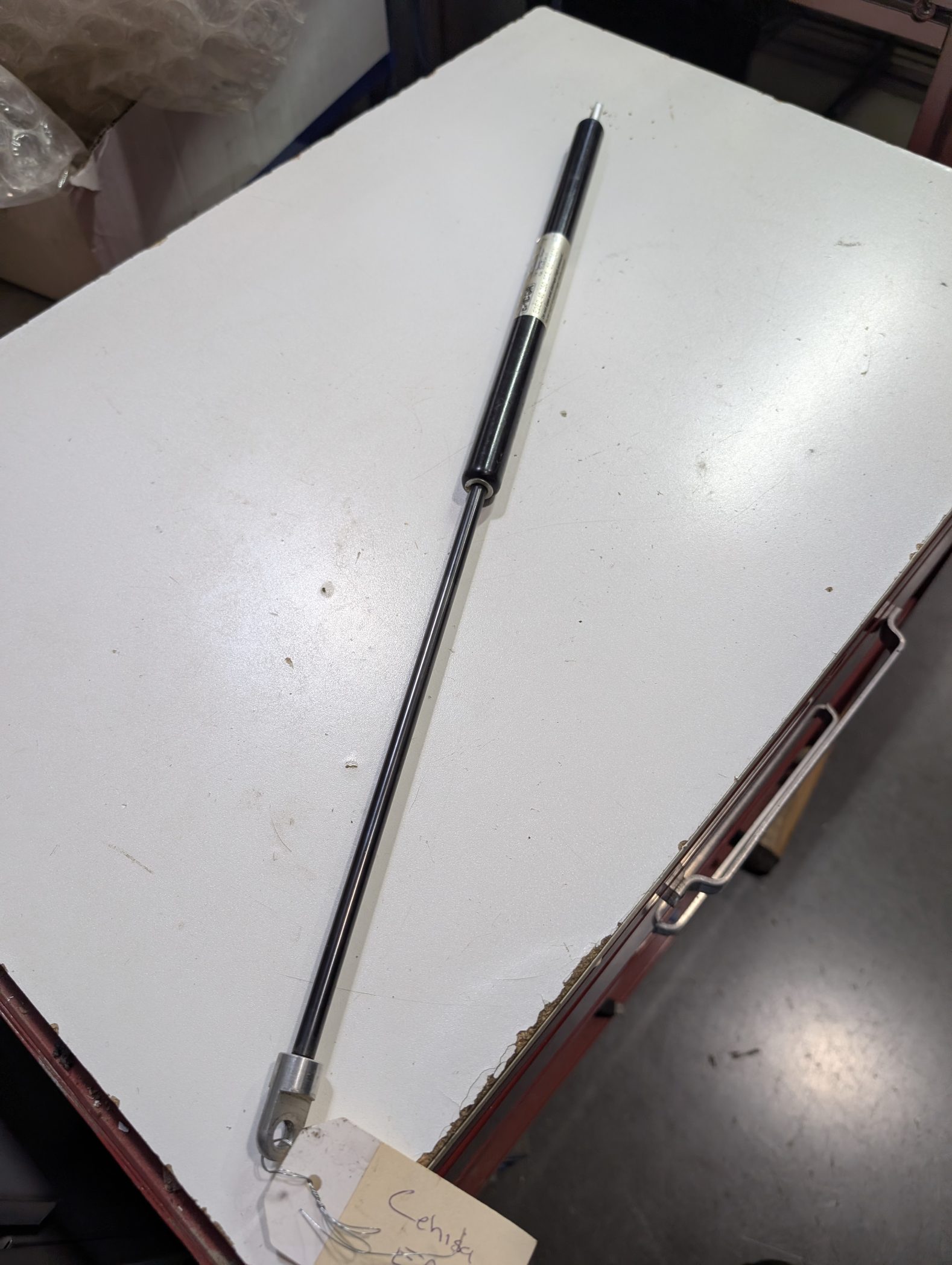

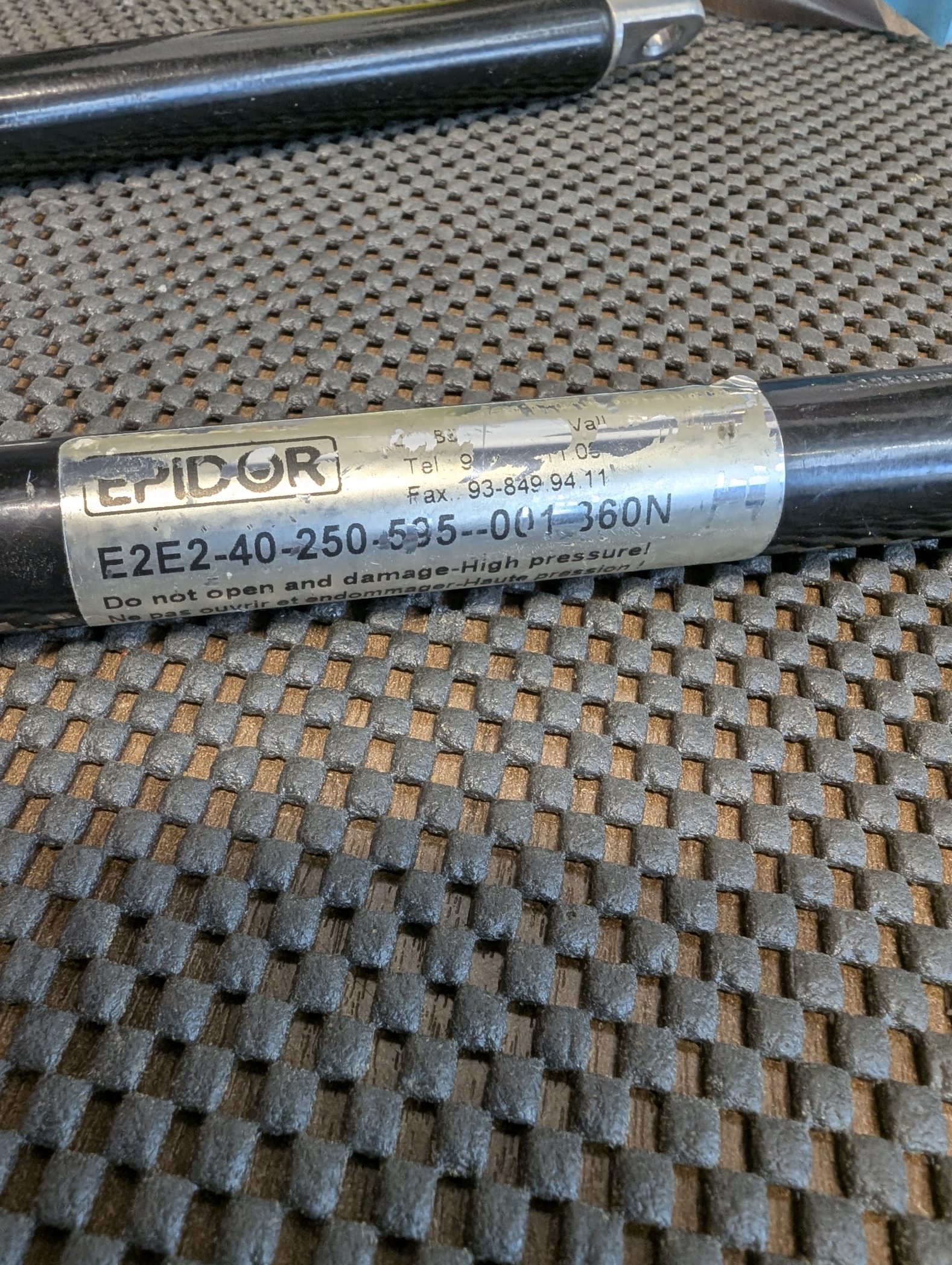

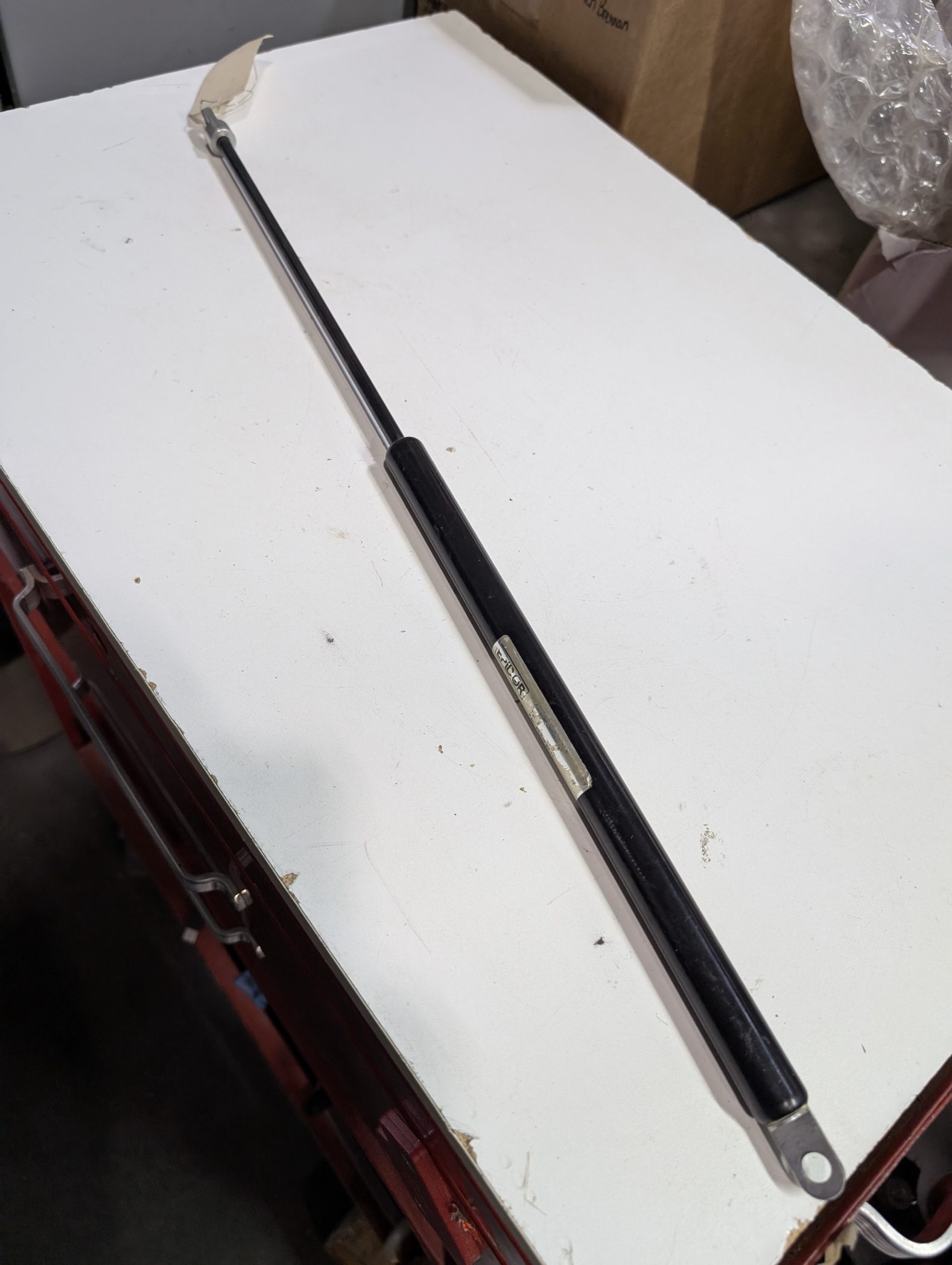

The item Epidor E2E2-40-250-595-001 360N is a high-quality industrial gas spring (often manufactured by Bansbach Easylift and distributed or labeled under the Epidor brand).
- E2E2: Indicates the type of end fittings on both sides of the gas spring (typically meaning it has ball joint / elbow joint connectors on both ends).
- 40: Represents the specific series or cylinder/rod diameter combination.
- 250: The stroke length of the piston (250 mm).
- 595: The total extended length from center-to-center of the fittings (595 mm).
- 001: The specific configuration, material version, or mounting variant code.
- 360N: The extension force calibrated to 360 Newtons.
Key Technical Characteristics
- Gas Fill: Filled with pure, non-flammable, non-toxic nitrogen gas.
- Maintenance-Free: These industrial-grade springs are self-contained and require no lubrication or oiling during their lifecycle.
- Temperature Range: Standard operational limits generally span from -30°C to +80°C
