    SKU: 765-25 CAD $45.00

    Ferraz Shawmut ultrasafe US6J3

    Ferraz Shawmut ultrasafe US6J3
    Ferraz Shawmut ultrasafe US6J3 Ferraz Shawmut ultrasafe US6J3

    Specifications:

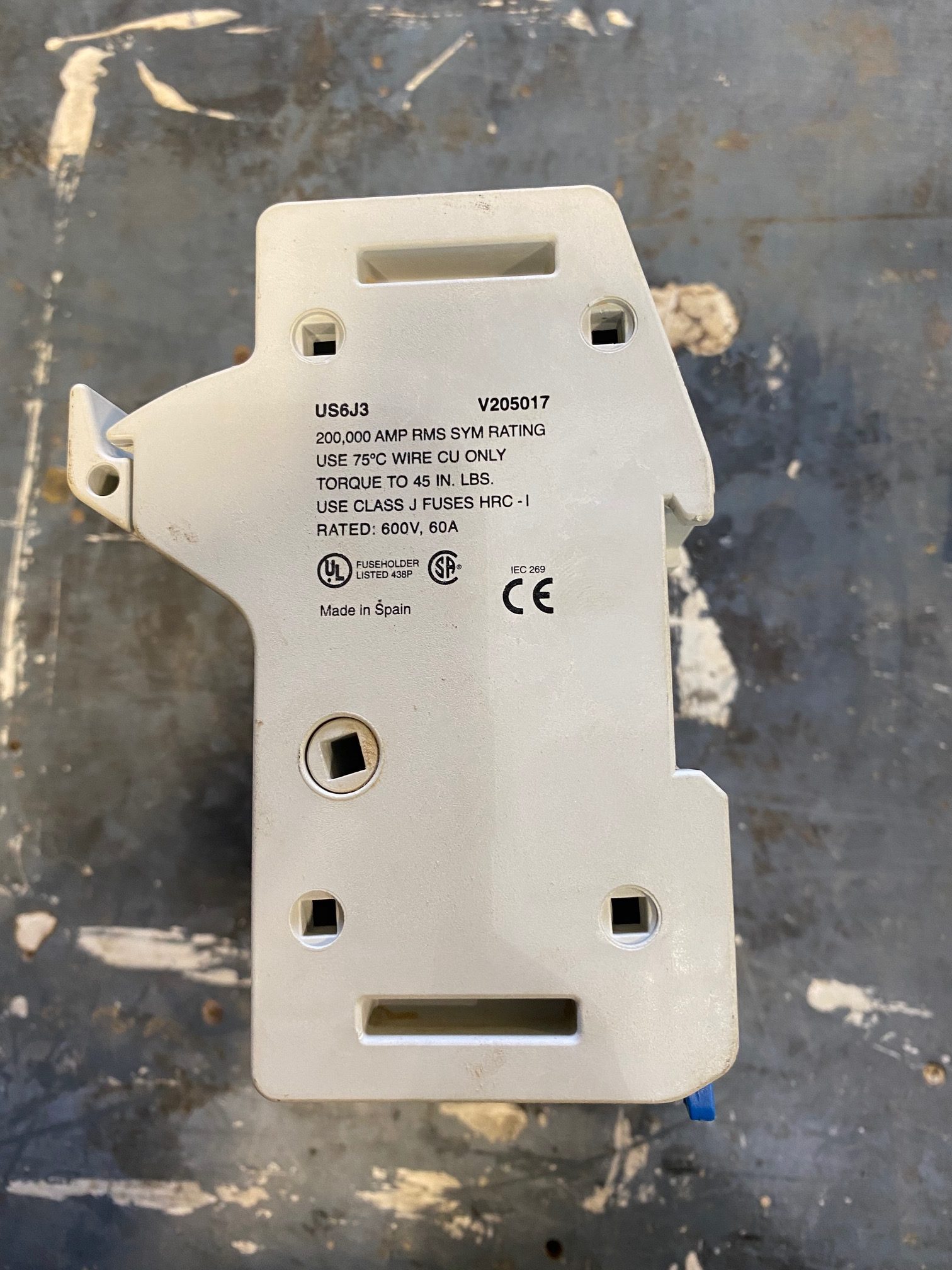

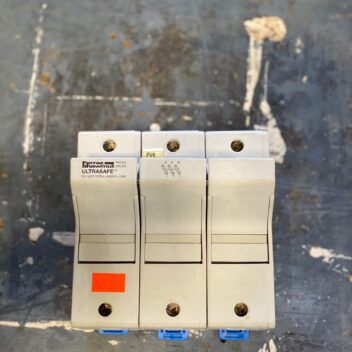

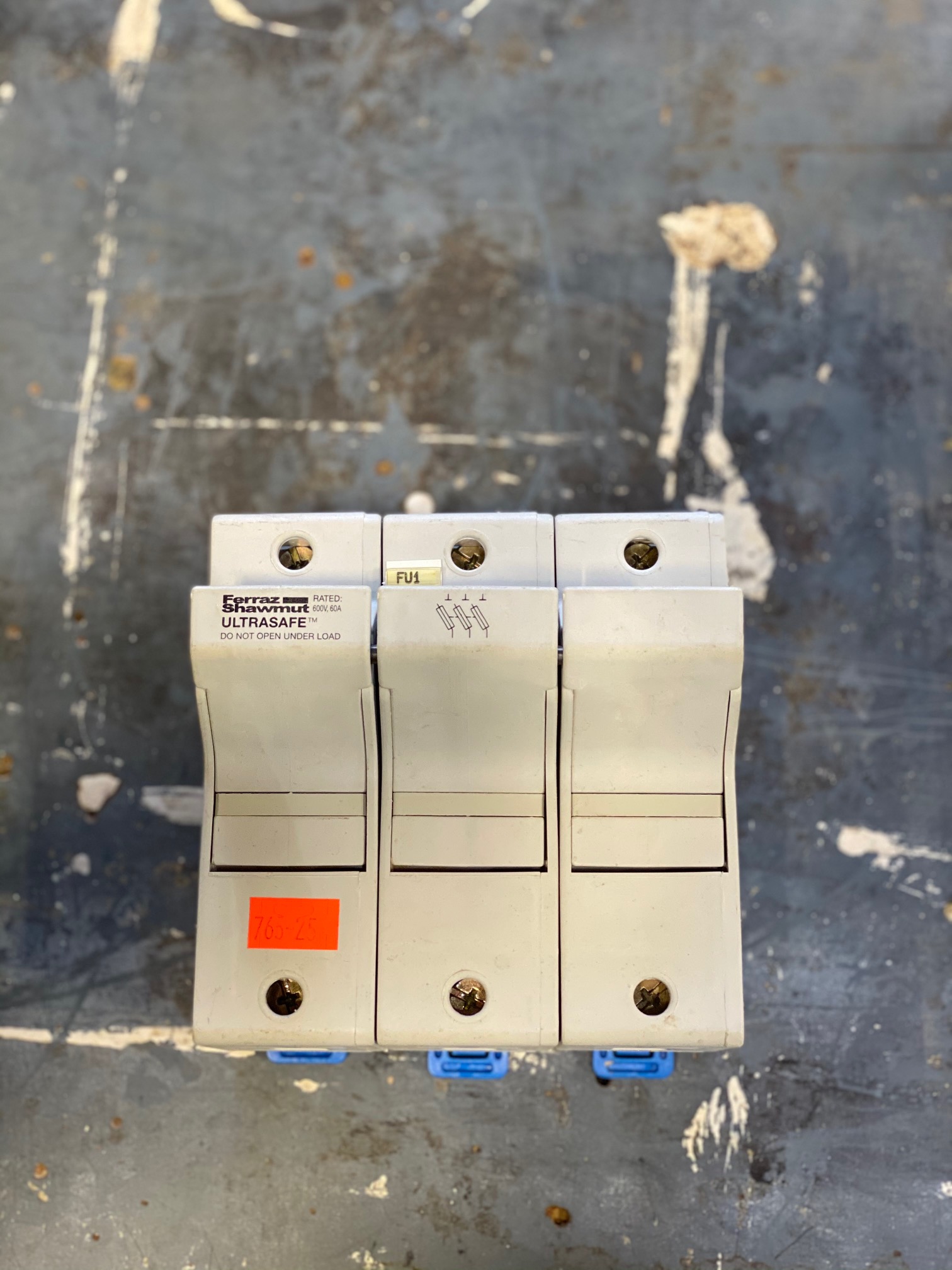

    The Mersen US6J3 (reference number V205017) is a 3-pole UltraSafe modular fuse holder from Mersen (formerly Ferraz Shawmut / Gould) designed for 60A, 600V Class J fuses. It features finger-safe IP20 protection and snaps easily onto a 35 mm DIN-rail.

    Core Specifications
    • Brand: Mersen / Ferraz Shawmut
    • Catalog Number / Model: US6J3
    • Reference Number: V205017
    • Voltage Rating: 600 VAC/VDC
    • Amperage Rating: 60 A
    • Number of Poles: 3-Pole (3P)
    • Fuse Class: Class J
    • Short Circuit Current Rating (SCCR): 200 kA
    • Mounting: 35 mm DIN-rail
    • Wire Range: #14 to #2 AWG (Pressure plate terminals, 45 in-lbs torque
    Weight 1.04 lbs
    Dimensions 4.75 × 5 × 3.5 in
