Specifications:

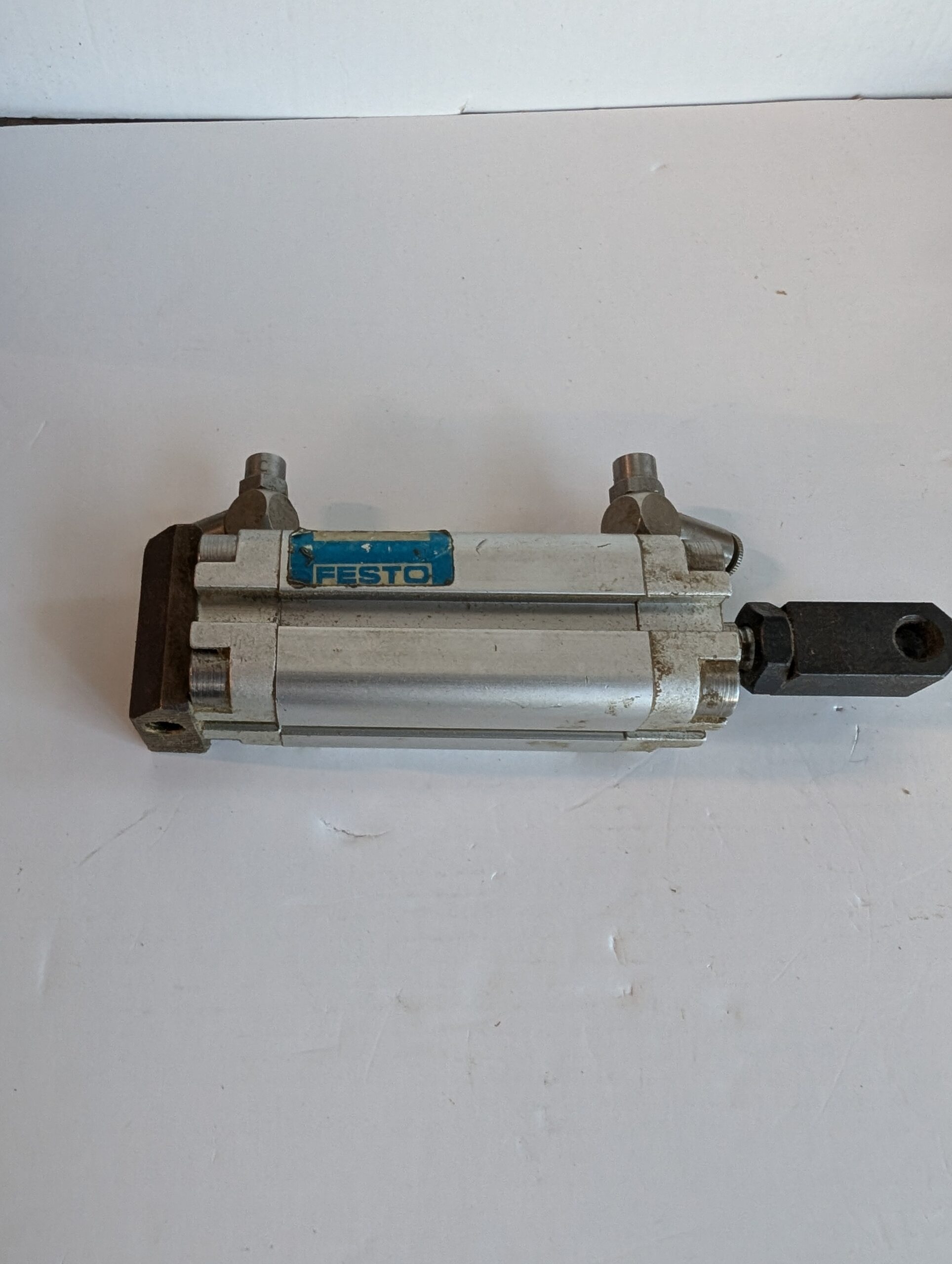

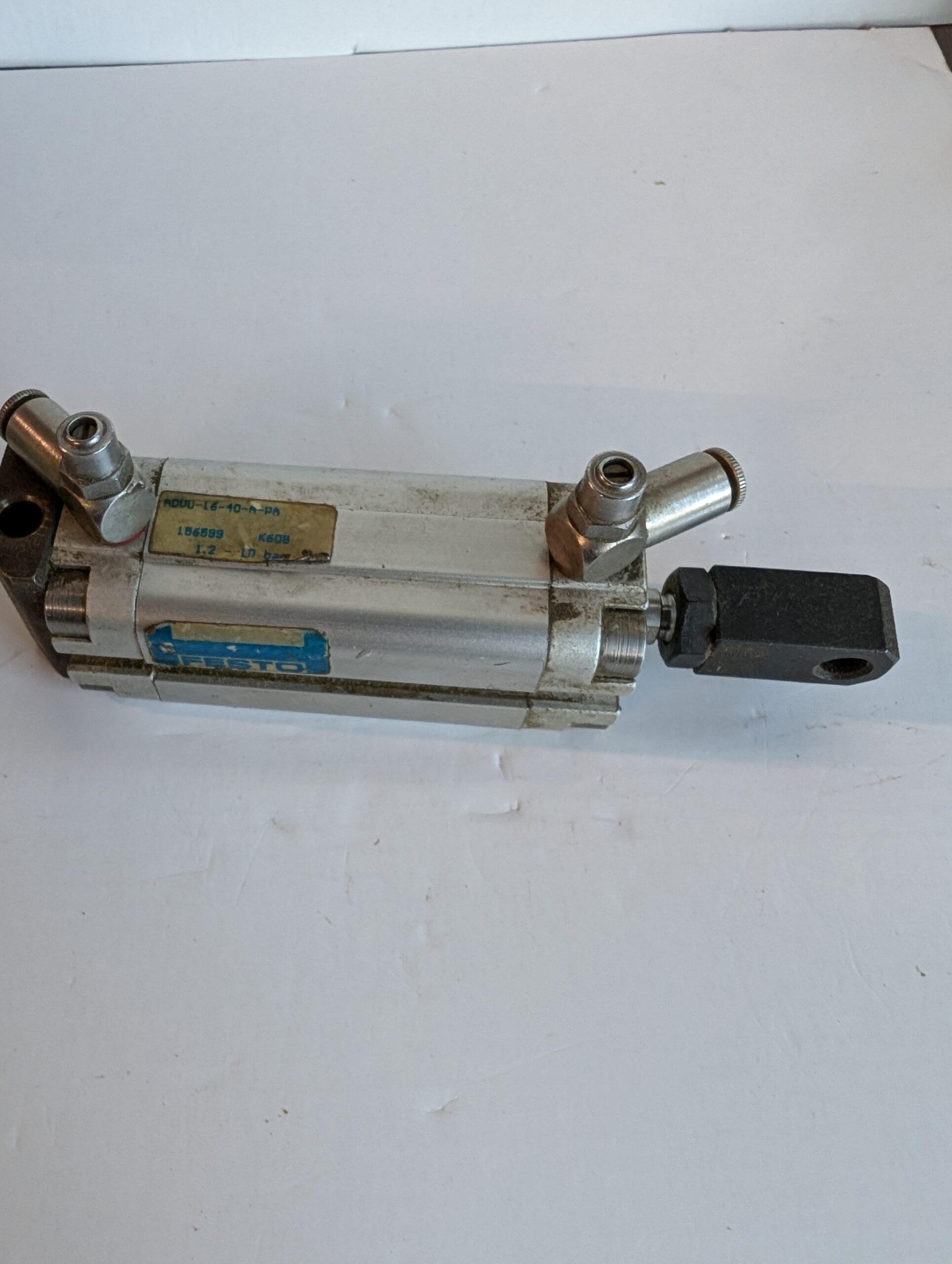

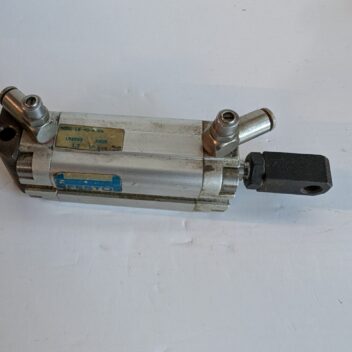

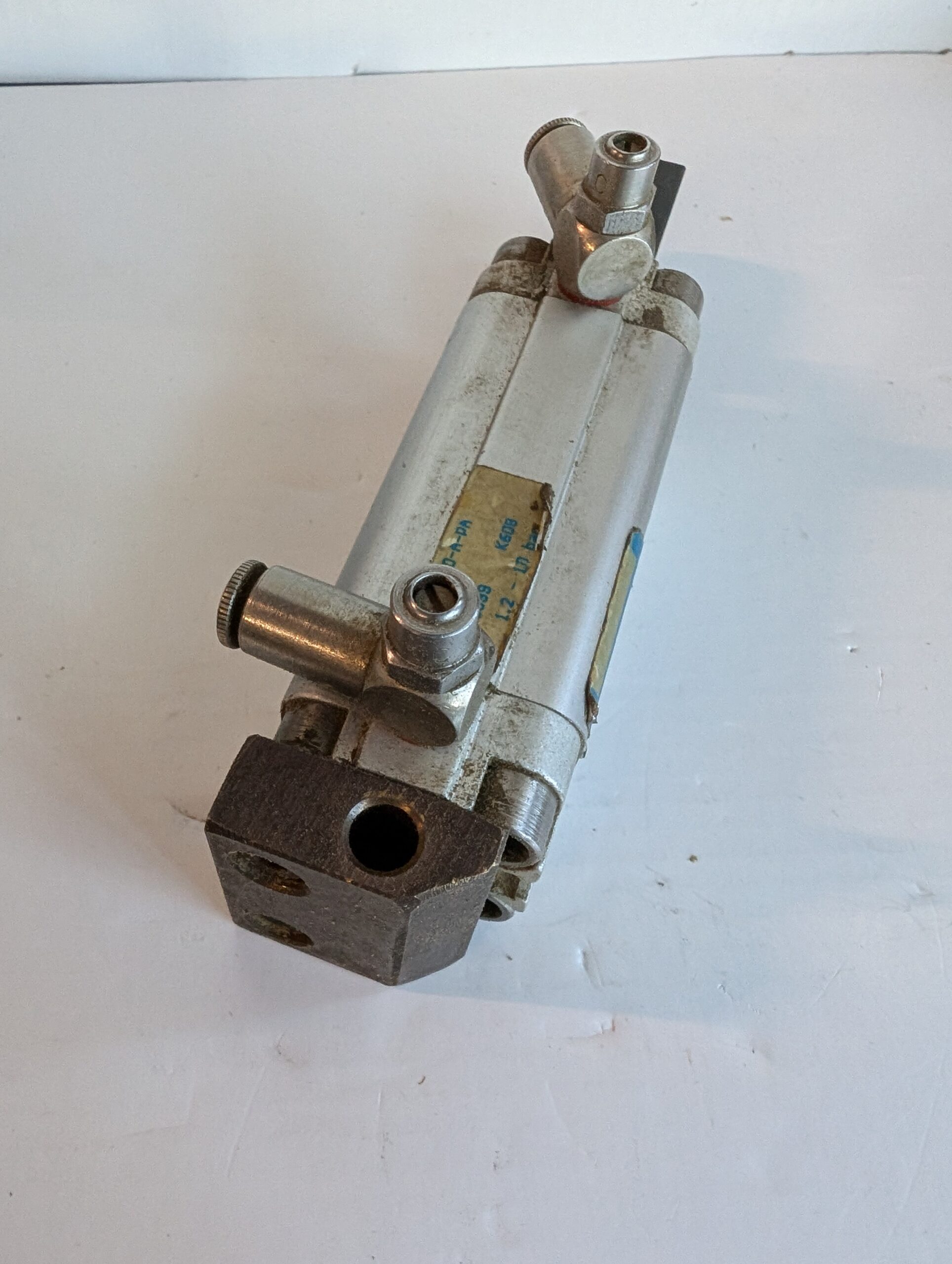

The Festo compact cylinder ADVUL-12-25-P-2 (commonly referenced as ADVUL-12-25-P-A) is a double-acting pneumatic linear actuator featuring a 12 mm bore diameter and a 25 mm stroke.
- Piston Diameter (Bore): 12 mm
- Mode of Operation: Double-acting
- Design/Anti-Rotation: Twist-secured / rotation-resistant via guide rod and yoke plate
- Cushioning: Elastic cushioning rings/plates at both ends
- Position Detection: Magnetic piston for position sensing via proximity switches (such as SMT-8 or SME-8)
Operating and Technical Data
- Operating Pressure: 1.0 to 10 bar (1.5 to 100 bar / min 1.5 bar for certain configurations)
- Theoretical Force (Advancing at 6 bar): 68 N
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient Temperature Range: –20 °C to +80 °C (Basic variant)
