Specifications:

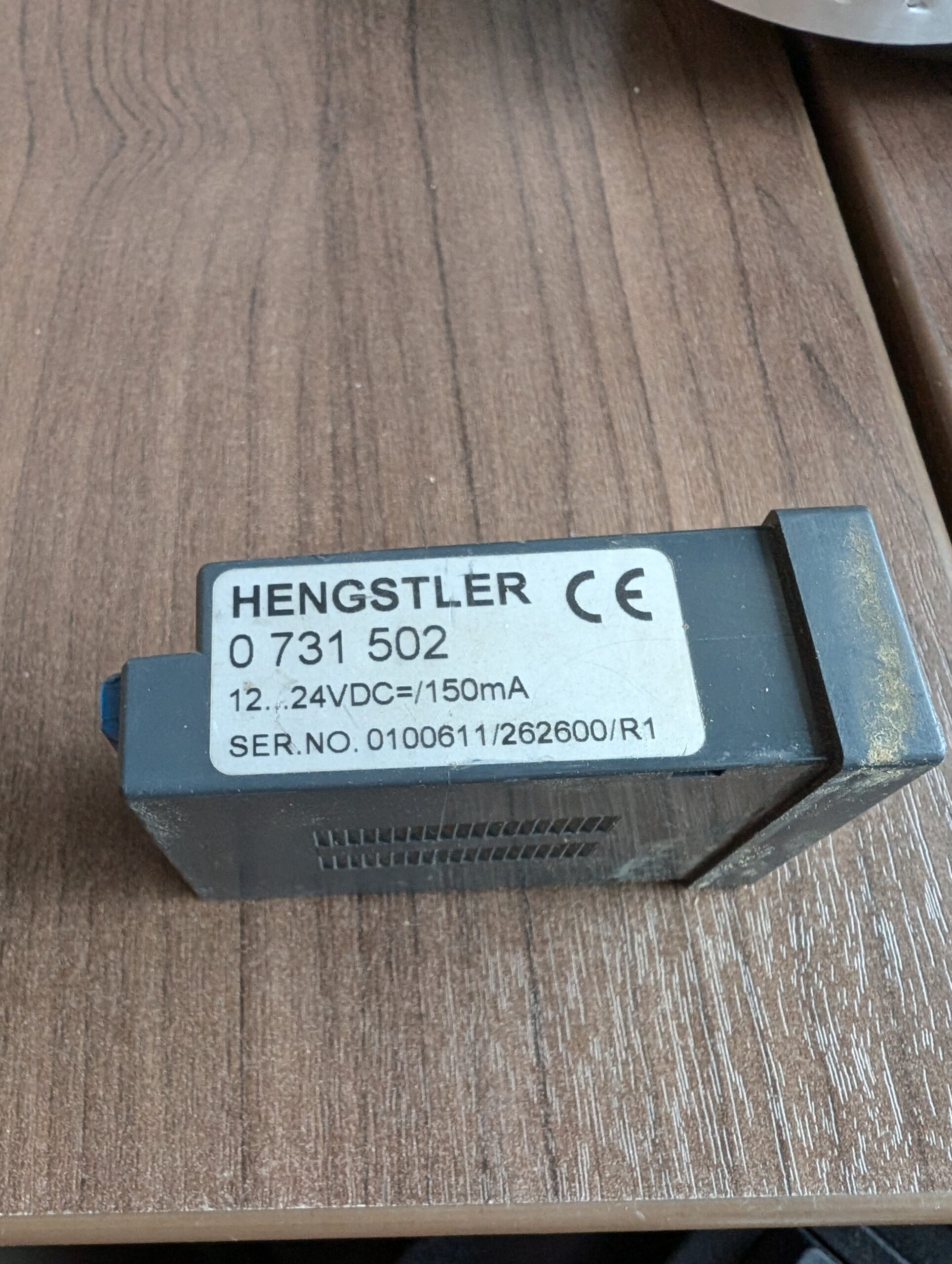

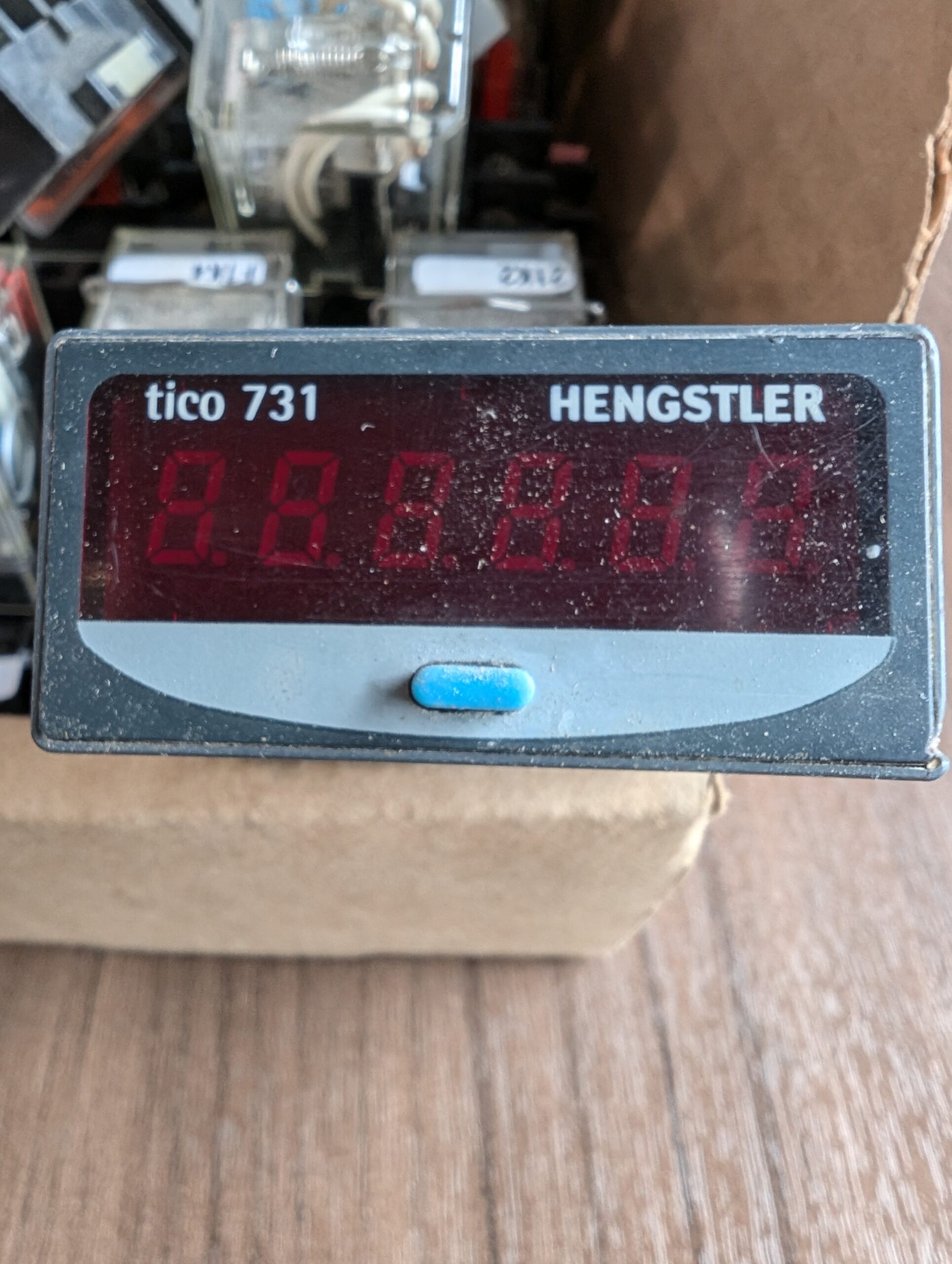

The Hengstler Tico Tachometer 24V (Part No. 0 731 502) is a compact electronic 6-digit LED tachometer from the Tico 731 series designed for panel mounting.
- Display: 6-digit LED display with 7 mm digit height
- Supply Voltage: 12 to 24 V DC
- Max Count Frequency: 7.5 kHz / 30 Hz (programmable)
- Dimensions: 48 mm x 24 mm x 60 mm (panel cutout: 45 mm width)
- Protection Class: IP54 on the front side, IP20 at the terminals
- Operating Temperature: -10°C to +50°C
