Specifications

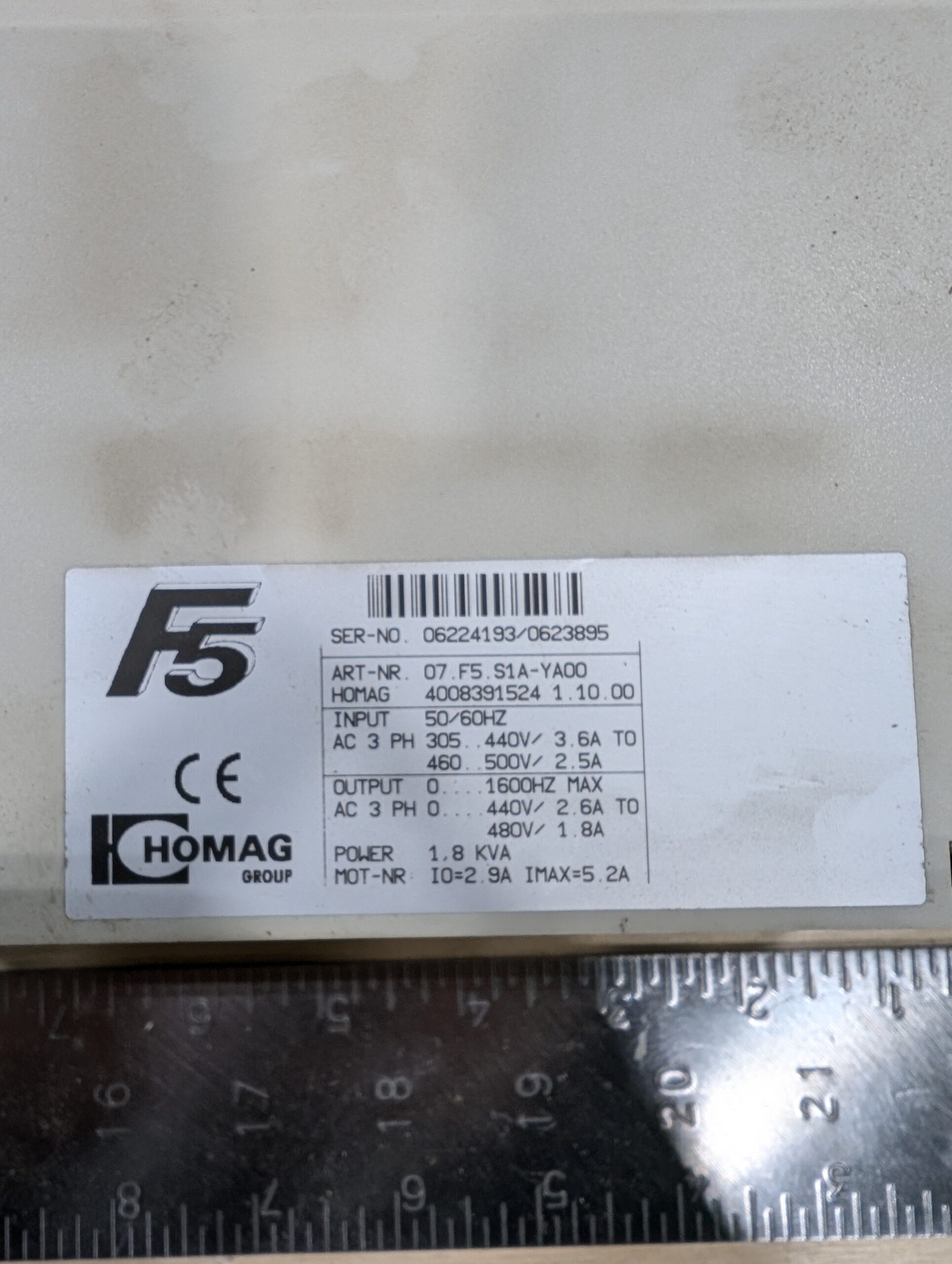

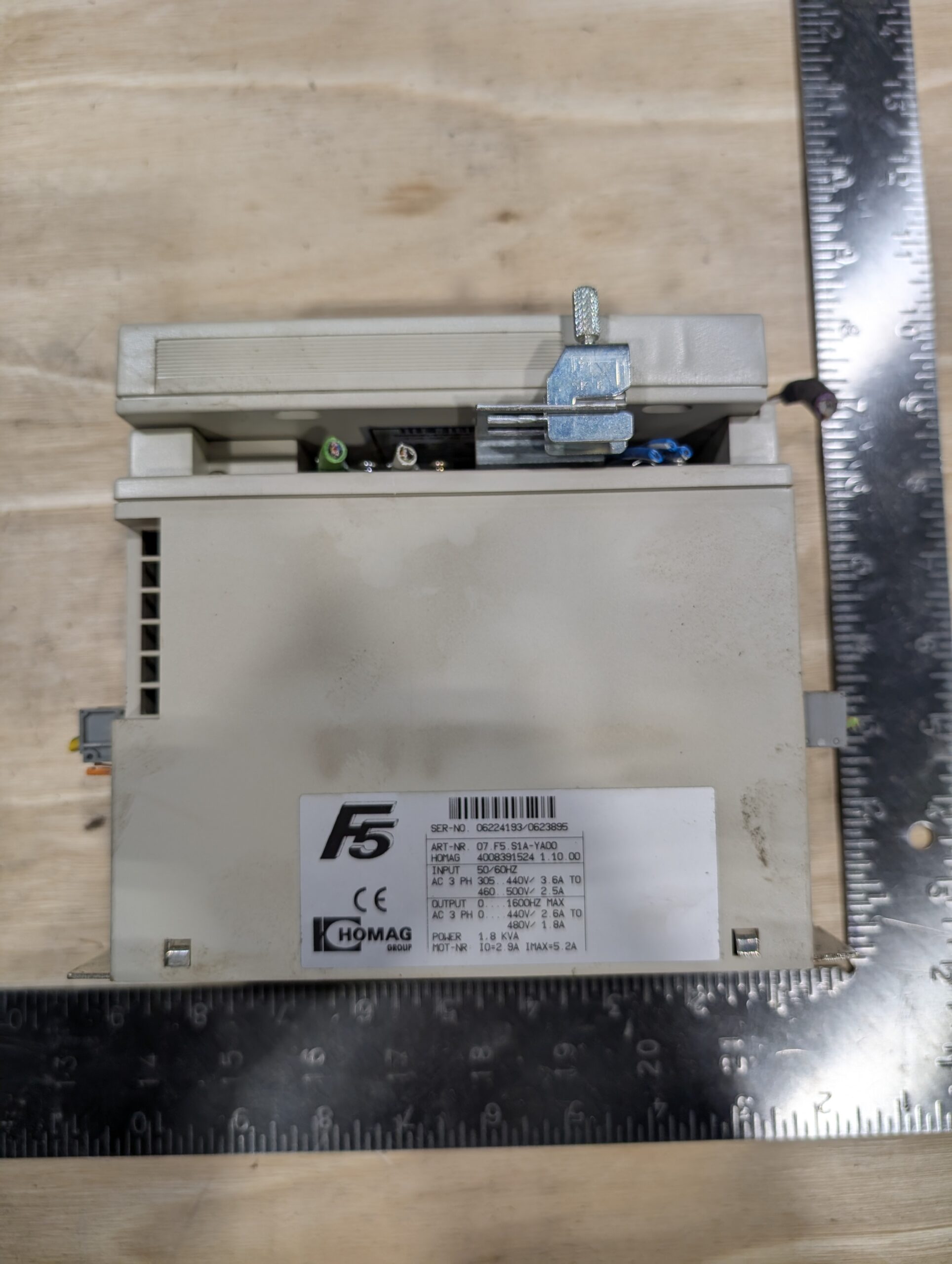

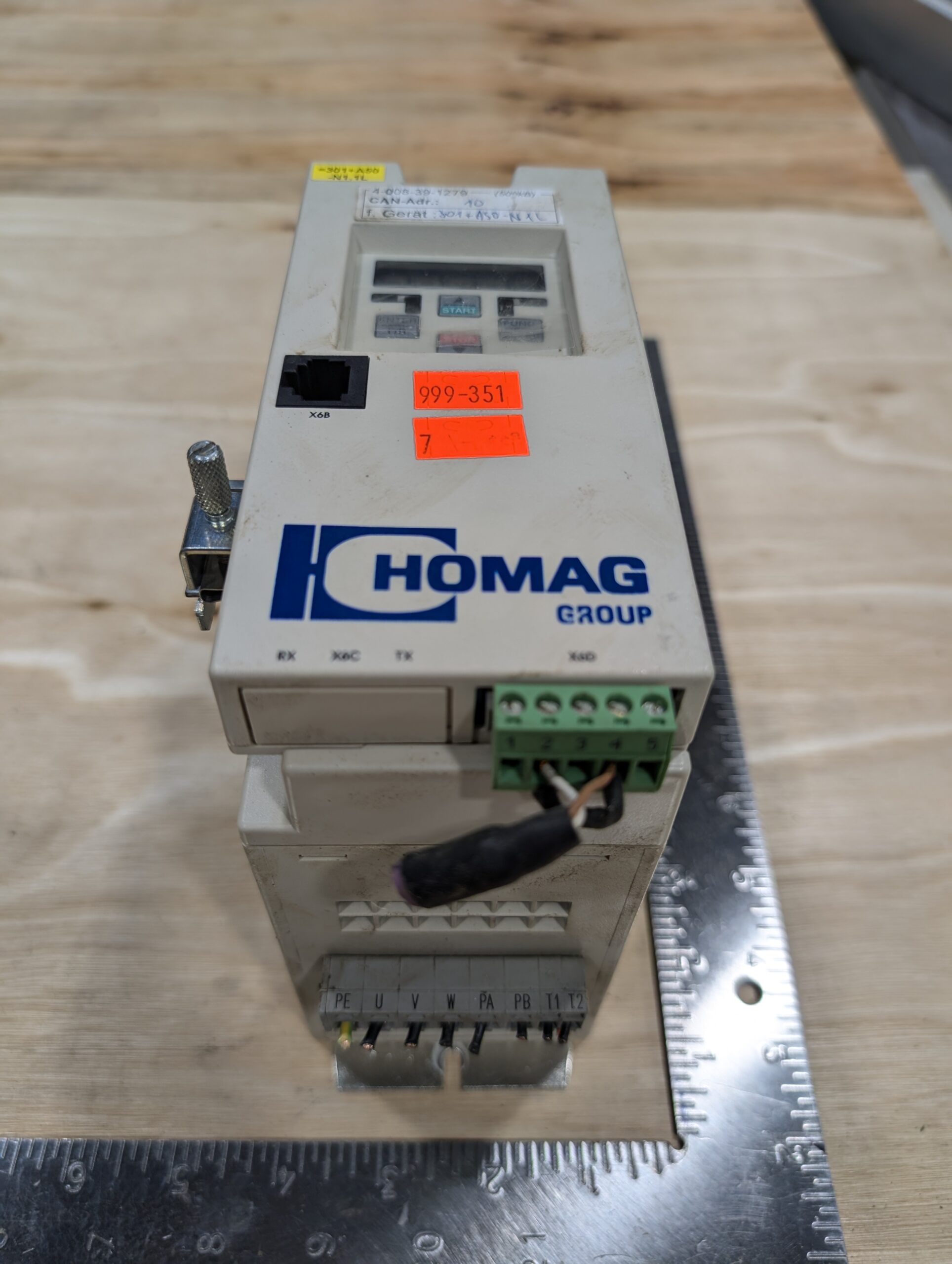

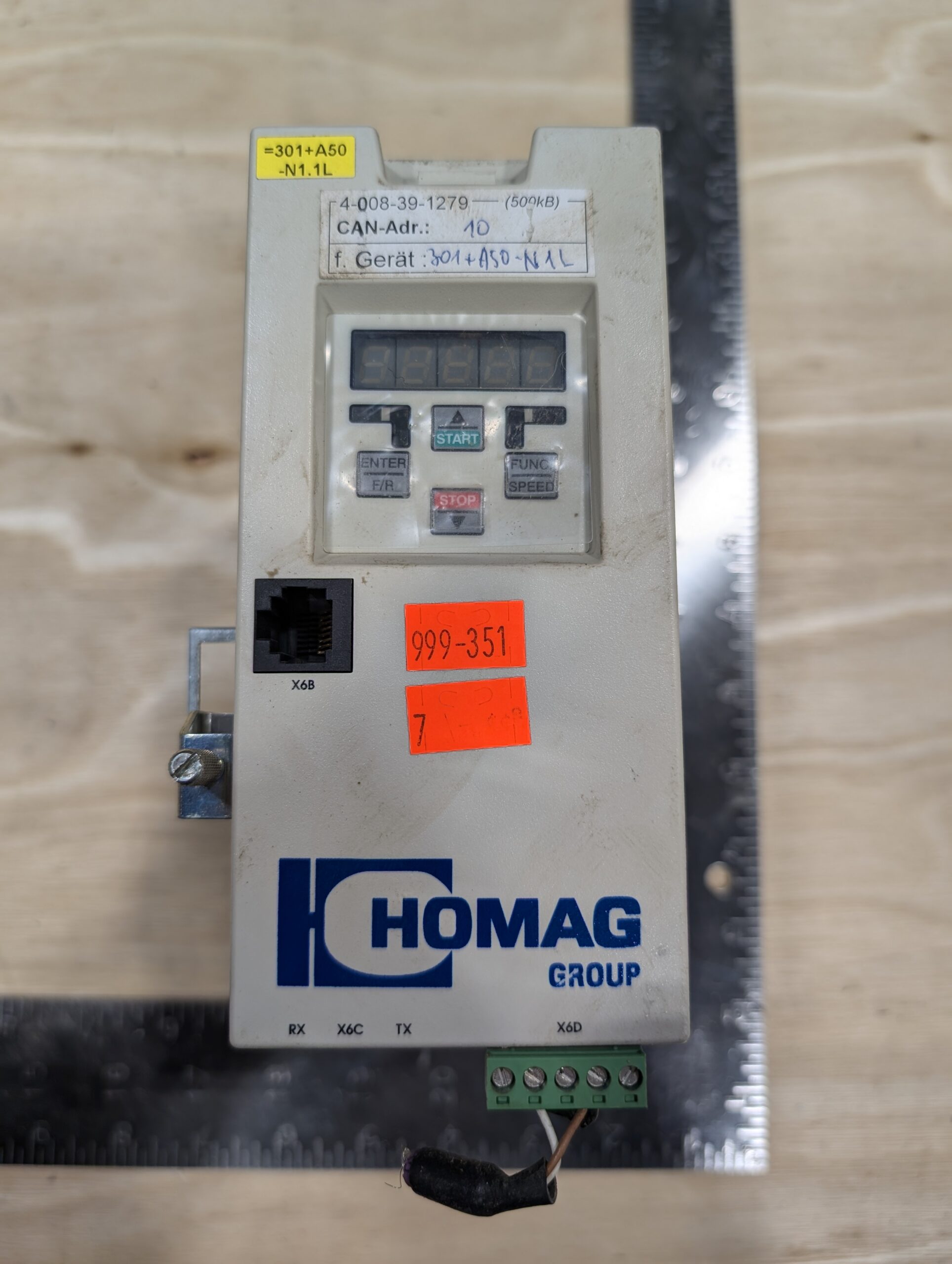

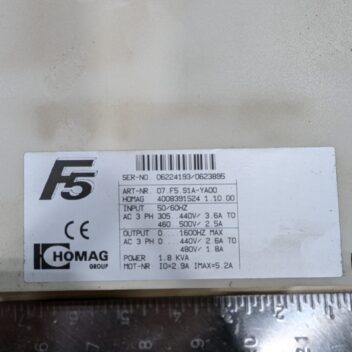

The Homag Inverter 07.F5.S1A-YA00 (manufactured by KEB as part of the Combivert F5 series) is a
0.75 kW, 3-phase frequency inverter designed for Homag woodworking machinery. It handles 400–480V AC input and supports high-frequency output up to 1600 Hz. [
1,
2,
3,
4,
5]
Specifications & Details
- Manufacturer: KEB / Homag Group
- Series: Combivert F5 (Compact/S1 variant)
- Power Rating: 0.75 kW (1.8 kVA)
- Input: 3-Phase, 400–480 VAC (50/60 Hz), ~1.8–2.5 A
- Output: 3-Phase, 0–1600 Hz Max, ~2.5–3.6 A
