SKU: 120-279 CAD $103.53

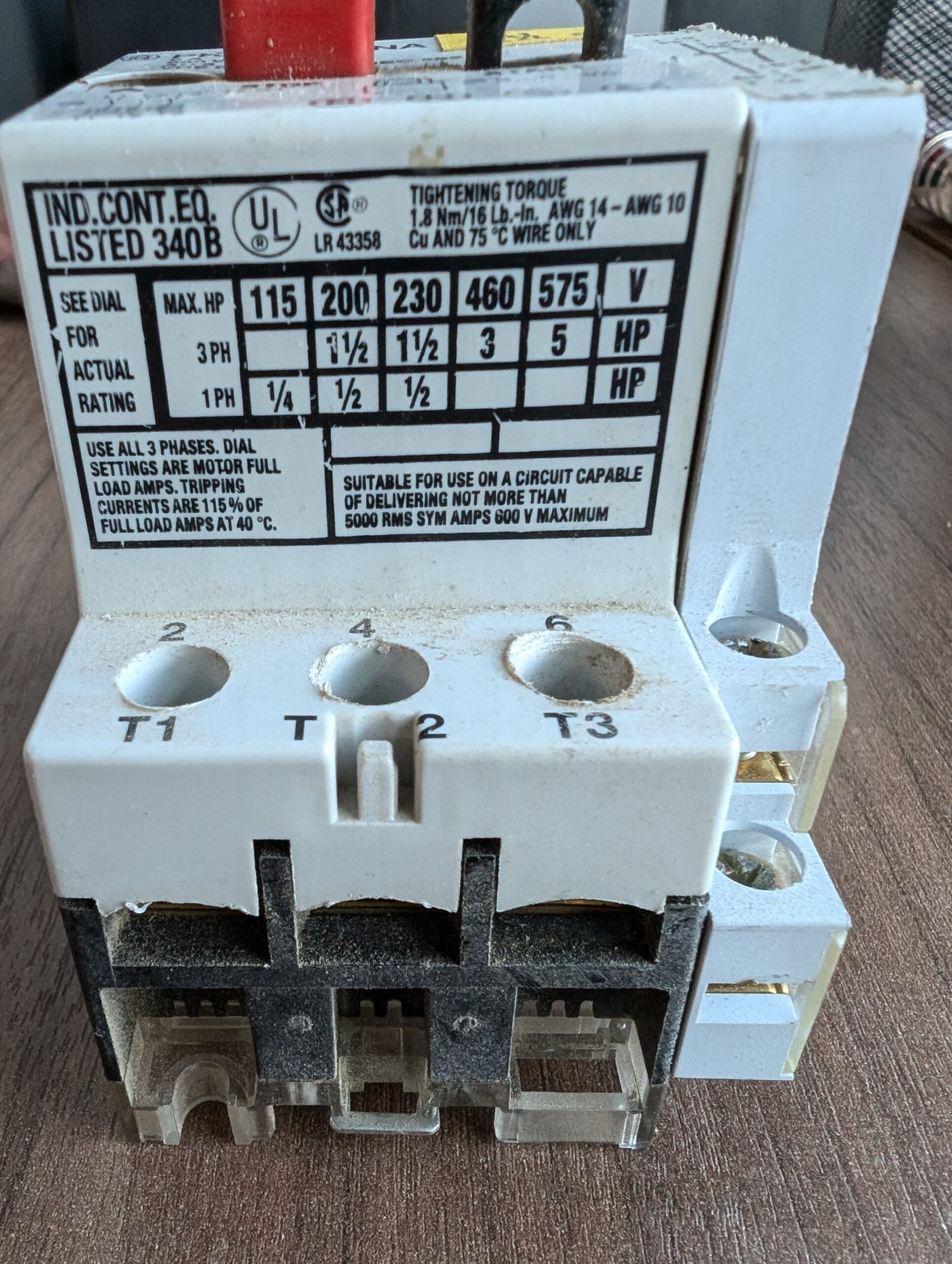

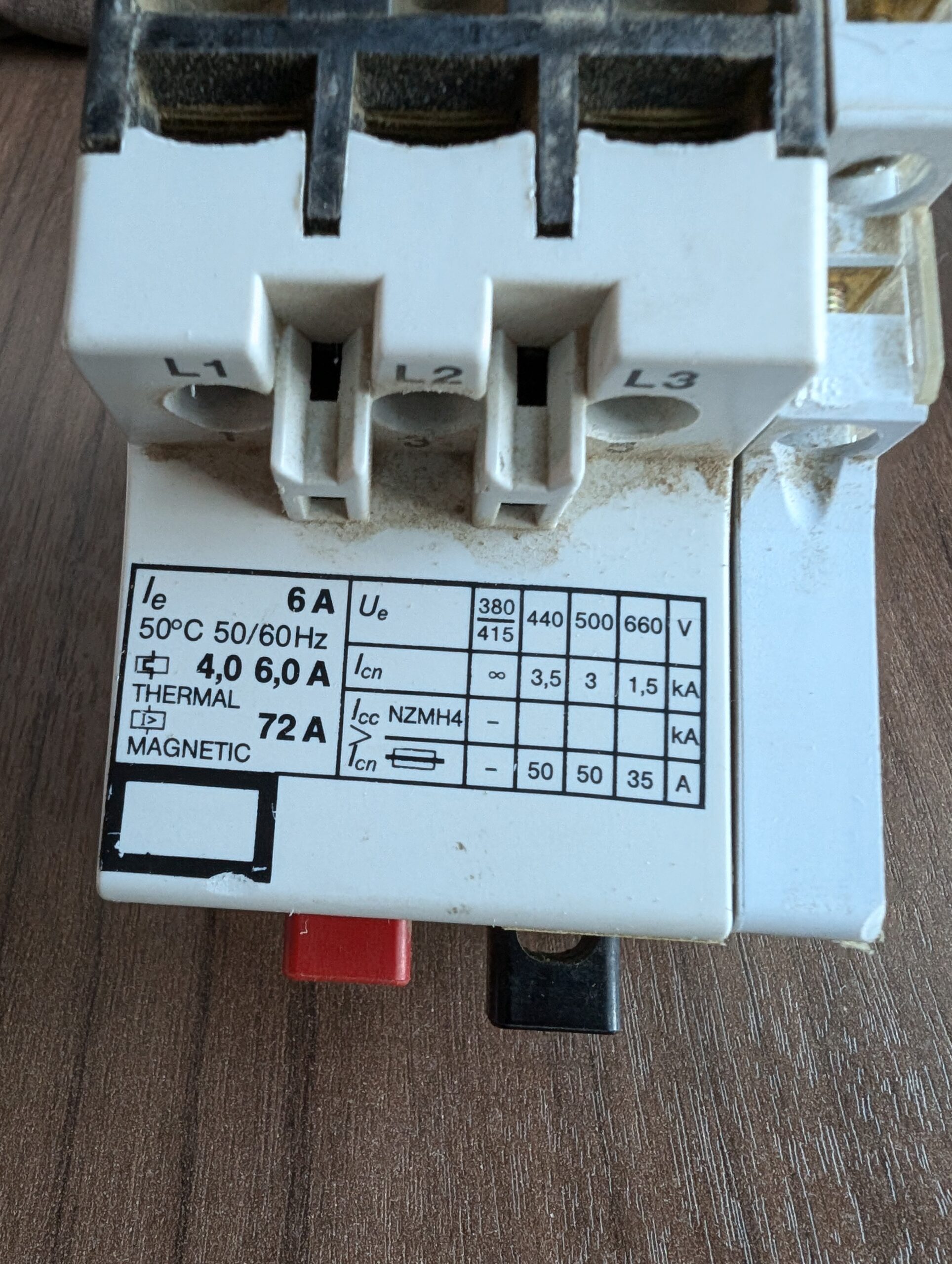

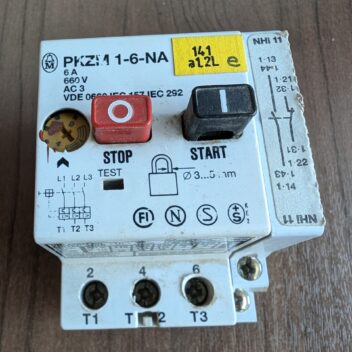

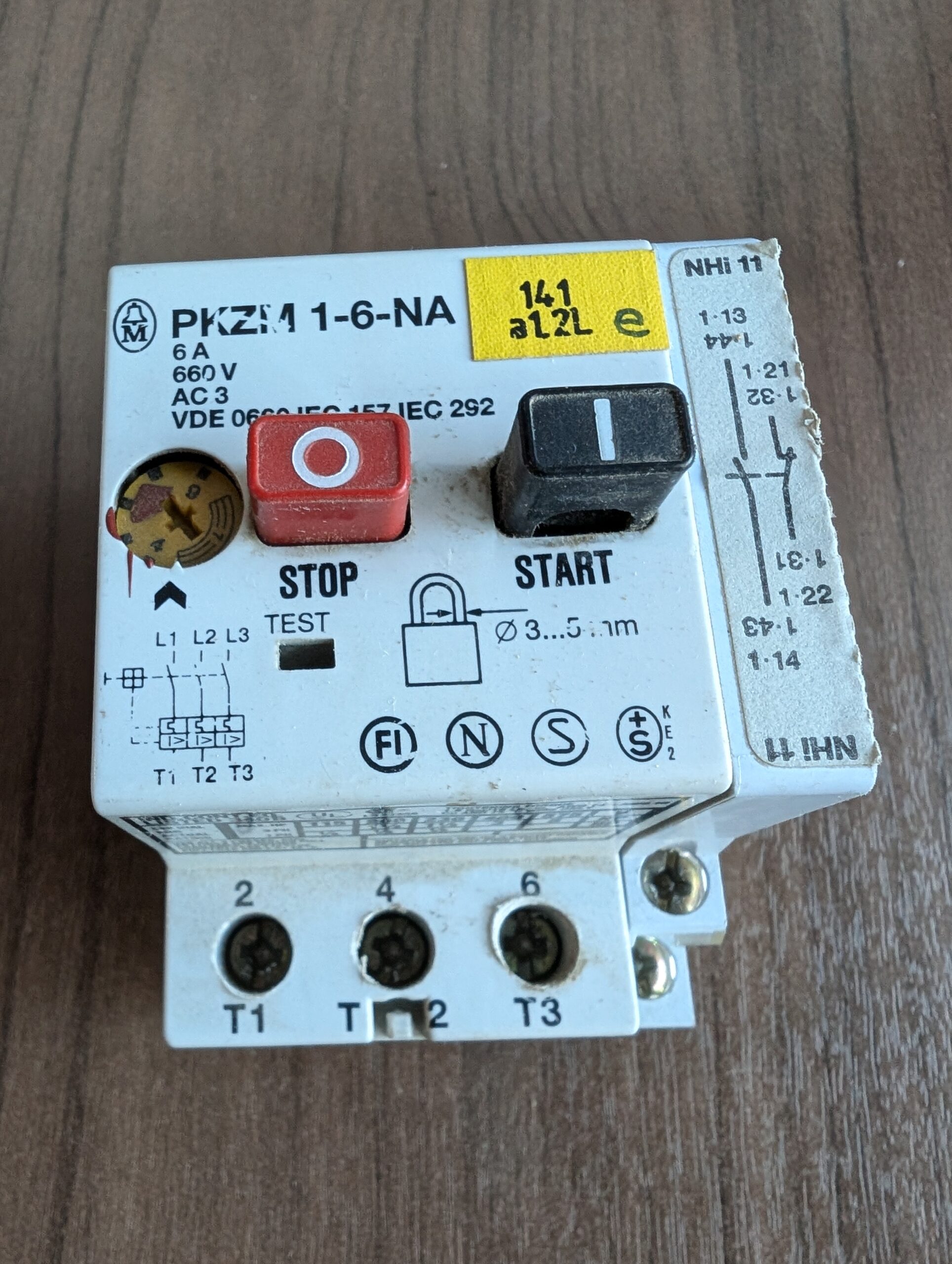

Klockner Moeller PKZM 1-6-NA With NHI11 Aux. Protection

Used Klockner Moeller PKZM 1-6-NA With NHI11 Aux. Protection

Used Klockner Moeller PKZM 1-6-NA With NHI11 Aux. Protection

Used Klockner Moeller PKZM 1-6-NA With NHI11 Aux. Protection

Used Klockner Moeller PKZM 1-6-NA With NHI11 Aux. Protection

Used Klockner Moeller PKZM 1-6-NA With NHI11 Aux. Protection

Specifications:

The Moeller PKZM0-1.6 motor-protective circuit breaker with the NHI11-PKZ0 auxiliary switch is a 3-pole manual motor starter featuring an adjustable thermal overload range of 1.0 A to 1.6 A and an integrated 1 N/O (Normally Open) / 1 N/C (Normally Closed) auxiliary contact block.

Current Range: 1.0 A – 1.6 A (adjustable thermal trip)

Number of Poles: 3 poles

Rated Operational Voltage (\(U_{e}\)): Up to 690 V AC

Rated Uninterrupted Current (\(I_{u}\)): 1.6 A

Magnetic Trip: Fixed at 14 × rated uninterrupted current

Switching Capacity / Breaking Capacity: Up to 150 kA (at 400/440 V AC, application dependent)

Motor Rating: 0.55 kW (at 400/415 V)

Mounting: 35 mm DIN rail or panel mount

Operating Temperature: -25°C to 55°C

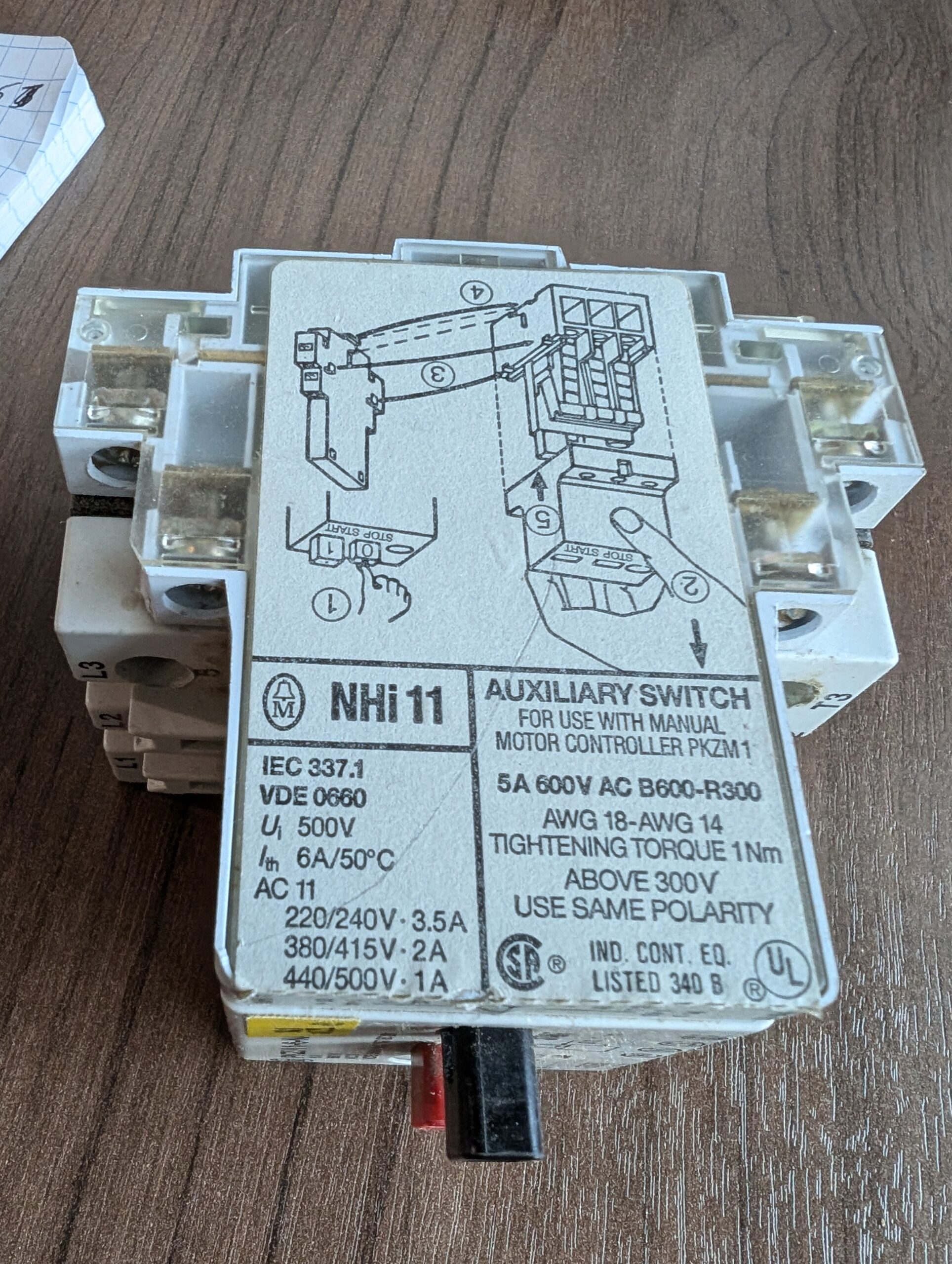

Auxiliary Switch Specifications (NHI11-PKZ0)

Contact Configuration: 1 N/O and 1 N/C (Standard auxiliary contact)

Mounting Position: Retrofits to the right side of the circuit breaker

Max Voltage Rating: 500 V AC / 250 V DC

Rated Operational Current: 3.5 A at 230 V (AC-15), 2 A at 24 V / 400 V

Terminal Type: Screw connection (0.75 – 1.5 mm² / 18–14 AWG)

Electrical Lifespan: 50,000 operationsCertifications: CE, UL 508, CSA, IEC/EN 60947-4-1

Make An Offer
