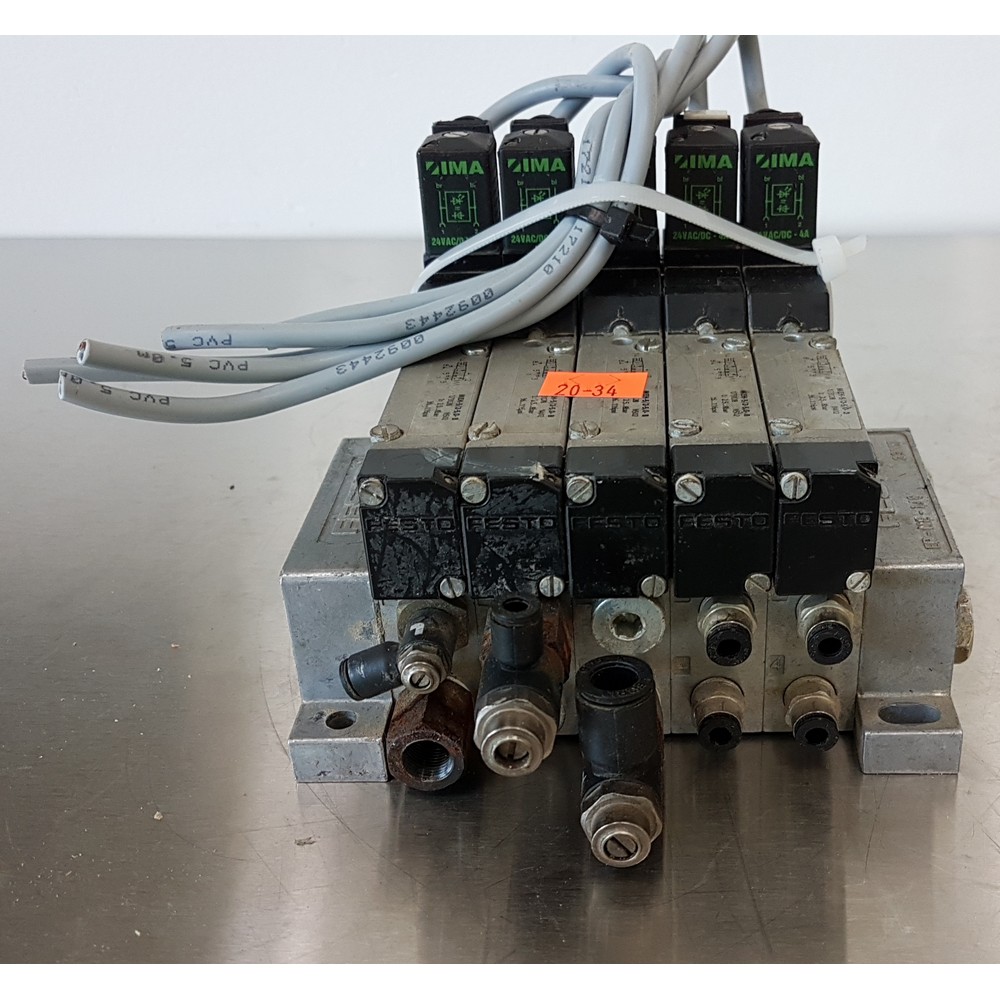

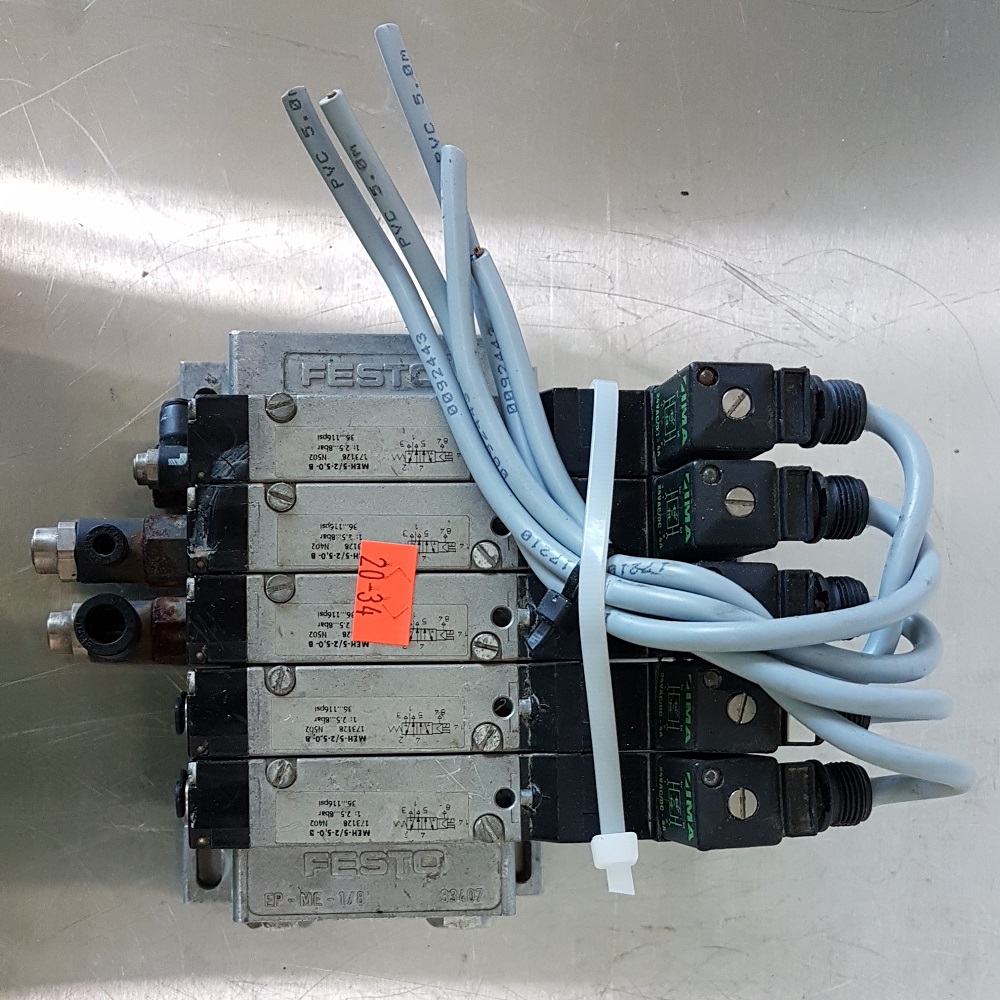

Lot of 5 Festo MEH-5 2-5.0-B Solenoid Valves with Manifold
Specifications
Used/Tested

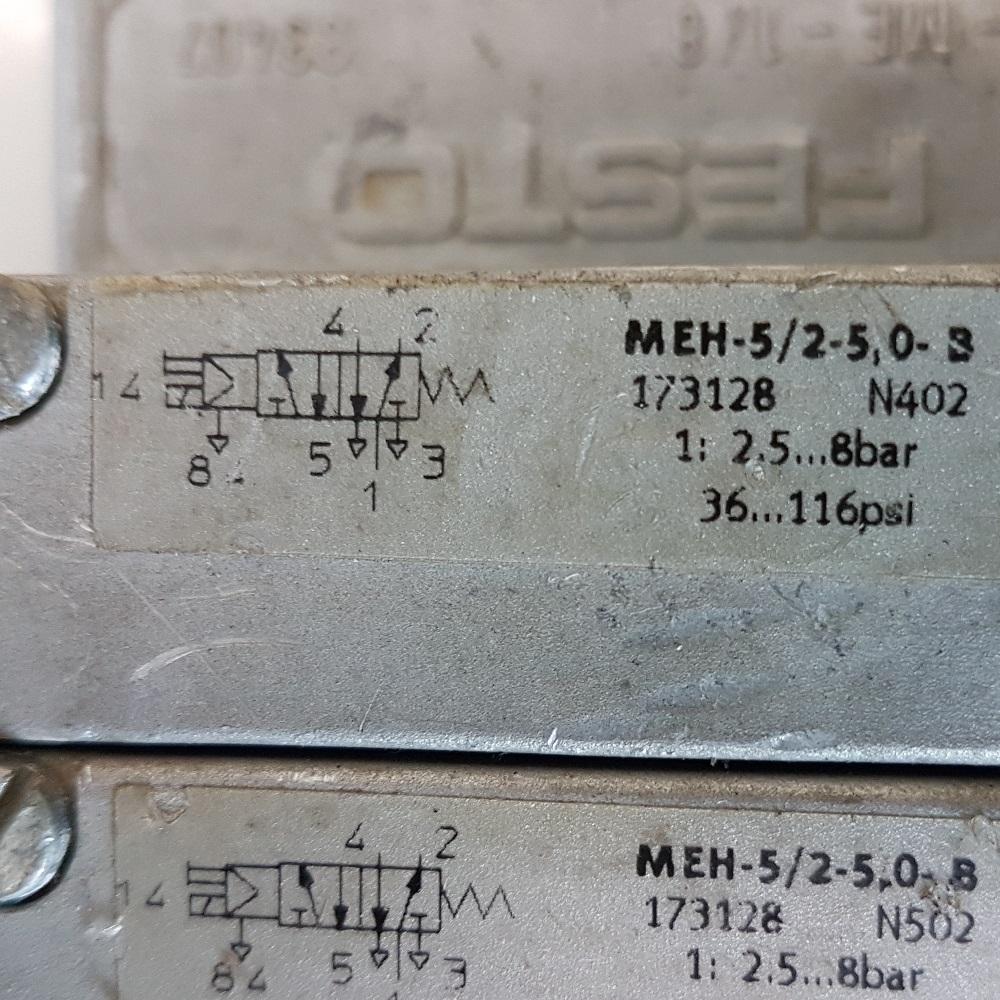

The Festo MEH-5/2-5.0-B (Part Number: 173128) is a 5/2-way monostable pneumatic solenoid valve from the Midi Pneumatic B-series designed for sub-base mounting on a manifold.
According to the official Festo Data Sheet and distributor specifications like Direct Pneumatics, the core technical parameters for each individual unit include:
Valve Function: 5/2-way, monostable (single solenoid, mechanical spring reset/return)
Actuation Type: Electrical / Piloted (internal pilot air supply)
Nominal Size / Diameter: 5.0 mm
Standard Nominal Flow Rate: 700 l/min
Operating / Working Pressure: 2.5 to 8 bar (approx. 36 to 116 psi)
Coil Voltage / Power: 24 V DC, 1.5 W (coil can typically be rotated by 180°)
Width / Grid Dimension: 17.8 mm width per valve on an 18 mm pitch grid
Design Structure: Piston slide / spool valve
Exhaust Function: Throttleable (can be throttled)
Enclosure Protection Class: IP65
Materials: Die-cast aluminum housing with HNBR and NBR seals
