Specifications:

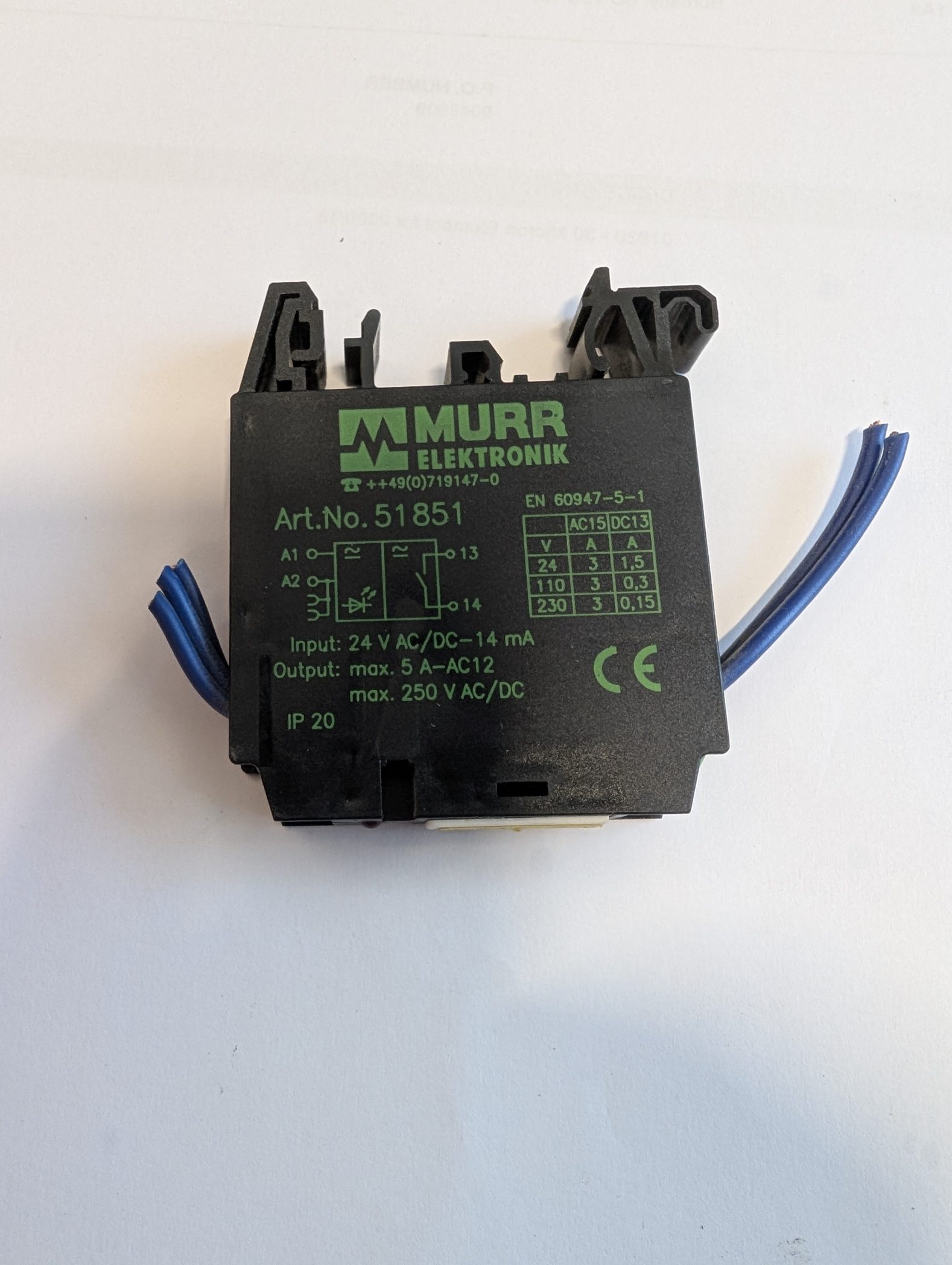

The Murrelektronik GmbH, Oppenweiler 51851 is an RMM interface relay module featuring a 24V AC/DC input, a 5A / 250V AC/DC single normally open (NO) contact output, integrated ground bridge/minus plug link, and screw terminals for DIN rail mounting
Technical Specifications
- Input Voltage: 24 V AC/DC (19.2–30 V AC, 19–30 V DC)
- Max Switching Current: 5 A
- Max Switching Voltage: 250 V AC/DC
- Contact Type: 1 NO (SPST-NO) contact
- Termination: Screw terminals
- Features: Integrated LED status indicator and ground bridge output link
