Specifications:

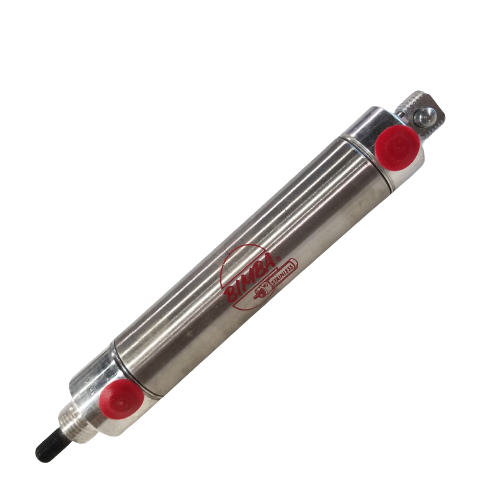

The Bimba 093-DP is a 1-1/16-inch bore, 3-inch stroke double-acting pivot-type pneumatic air cylinder from the Original Line series.
- Series: Original Line (09 Series)
- Action Type: Double-acting, air return (push and pull using air pressure in both directions)
- Mounting Style: Rear pivot mount
- Ports: 2 x 1/8″ NPT threaded pneumatic ports (both ends)
- Piston Rod: Standard blackened carbon steel rod (round style)
- Rod Threads: 5/16-24 UNF-2A (male) threaded rod, 5/16″-24 or 5/8-18 UNF-2A end cap mounting threads
- Temperature Range: -20°F to 200°F (-28°C to 93°C)
- Maximum Pressure: Rated up to 250 psi
- Lubrication: Permanent grease lubricant (no added lubrication needed during service)
- Cylinder Design: Non-repairable, stainless steel body
