Specifications:

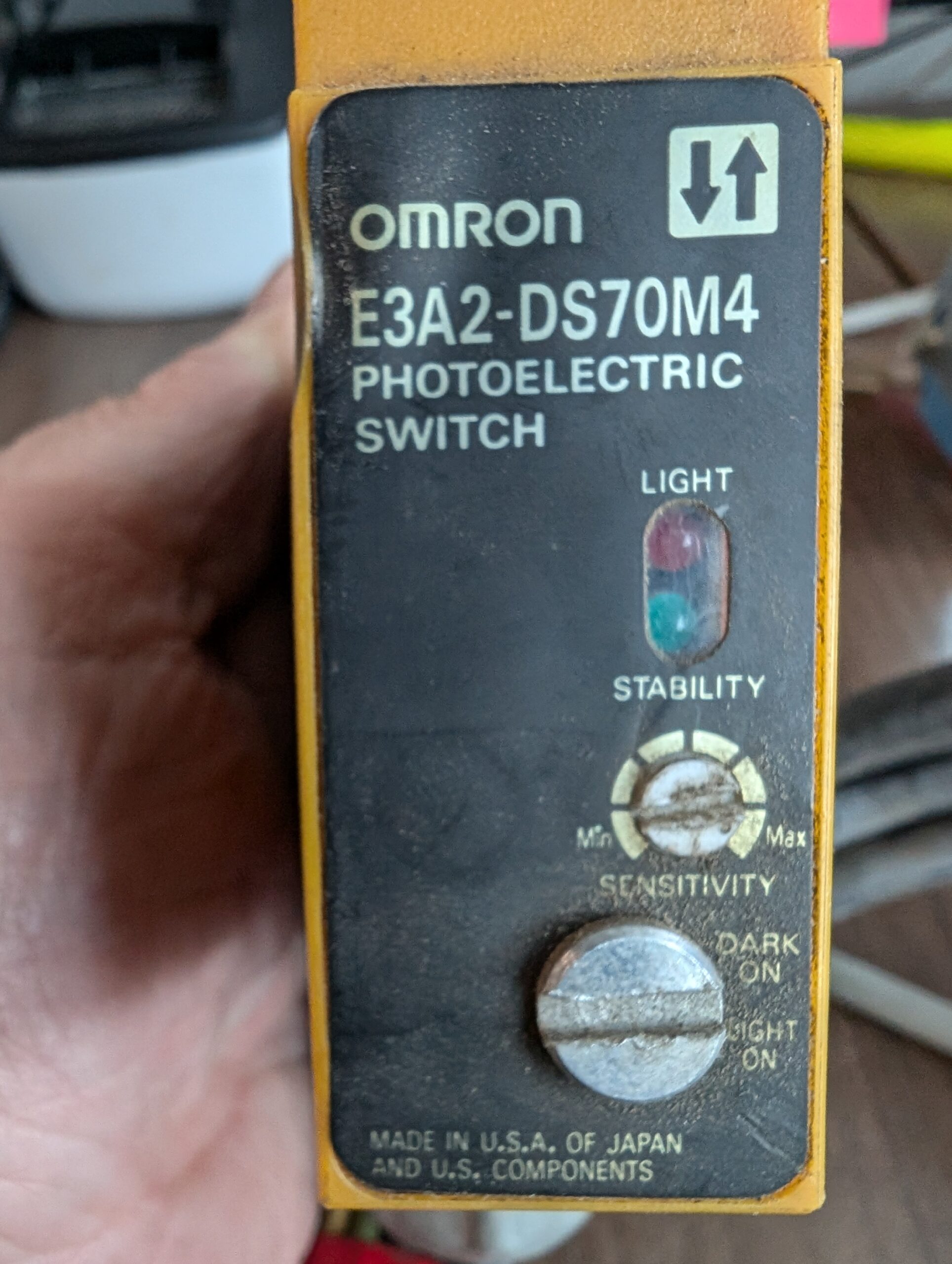

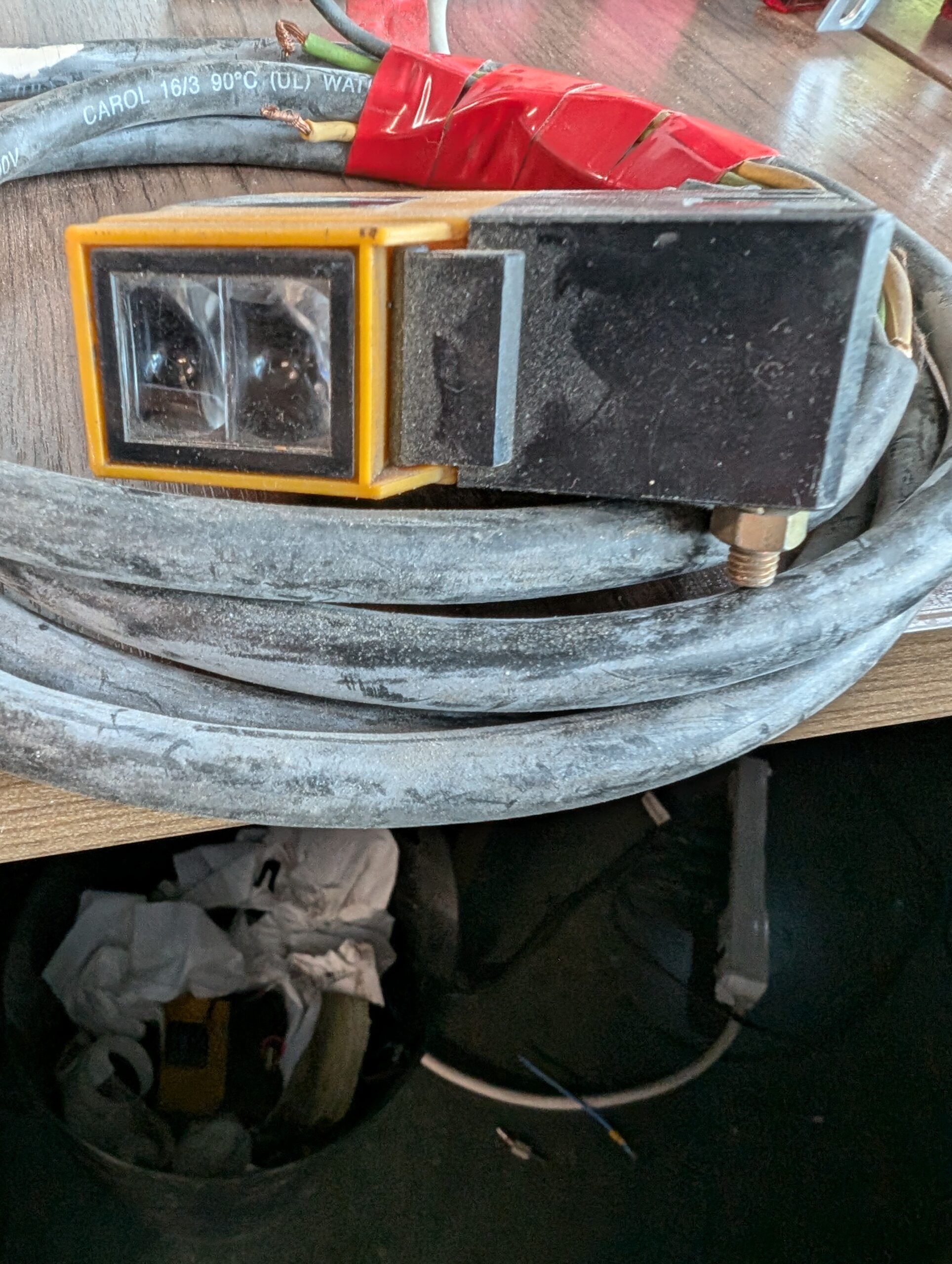

The Omron E3A2-DS70M4 is a diffuse-reflective photoelectric switch featuring a 70 cm sensing distance, wide AC/DC power compatibility, and an SPDT relay output.
- Sensing Type: Diffuse-reflective
- Sensing Distance: 70 cm (700 mm / 27.6 in)
- Supply Voltage: 24 to 240 VAC (50/60 Hz) and 12 to 240 VDC

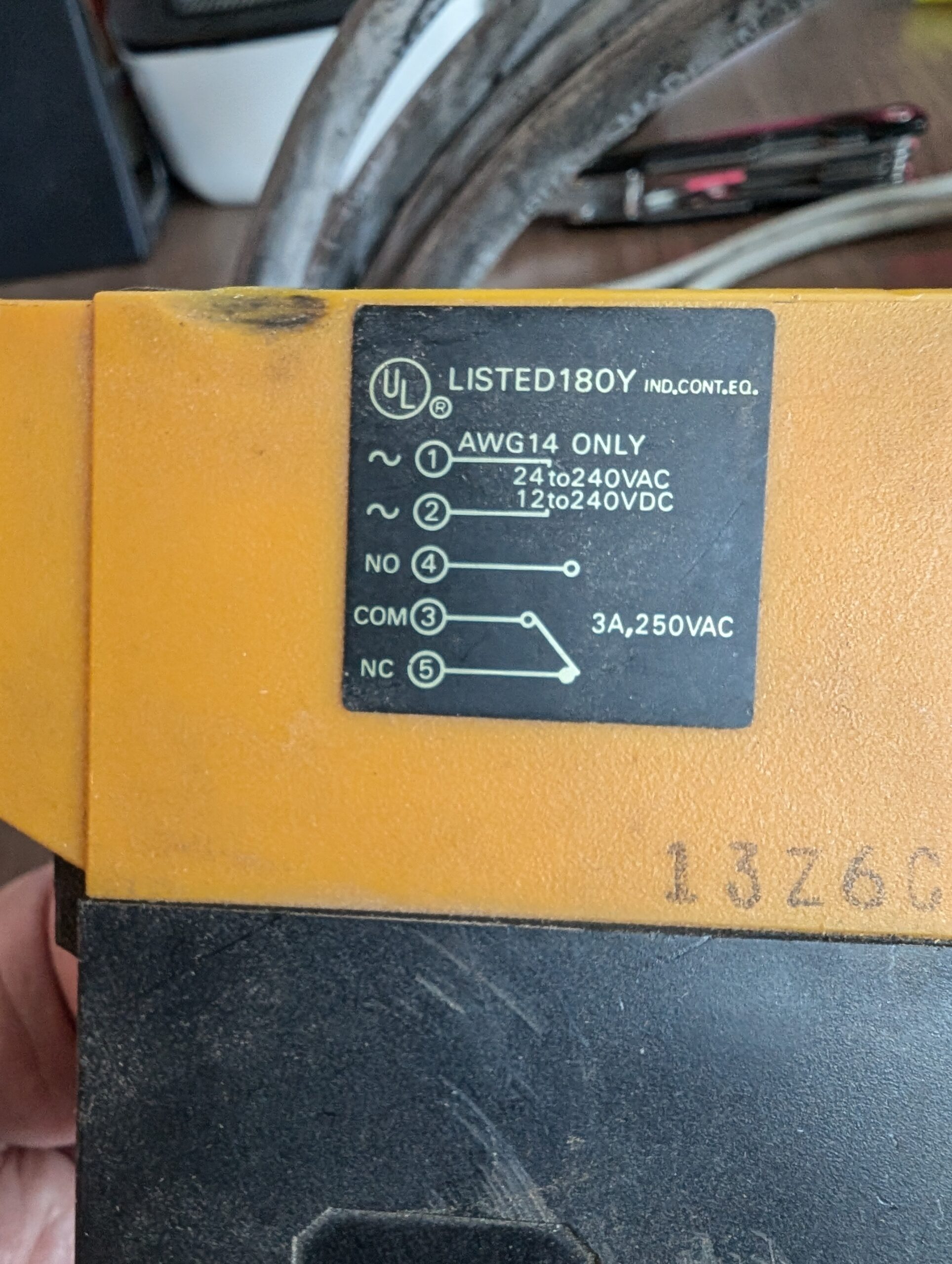

- Output Configuration: Relay SPDT (3A max load current at 250 VAC / 30 VDC resistive)
- Operation Mode: Light-ON / Dark-ON (switch selectable)
- Light Source: Pulse-modulated infrared LED (950 nm)
- Connection Method: Terminal block
- IP Rating: IP66 (dust-tight and protected against powerful water jets)
- Operating Temperature: -25°C to 55°C (-13°F to 131°F
