Specifications:

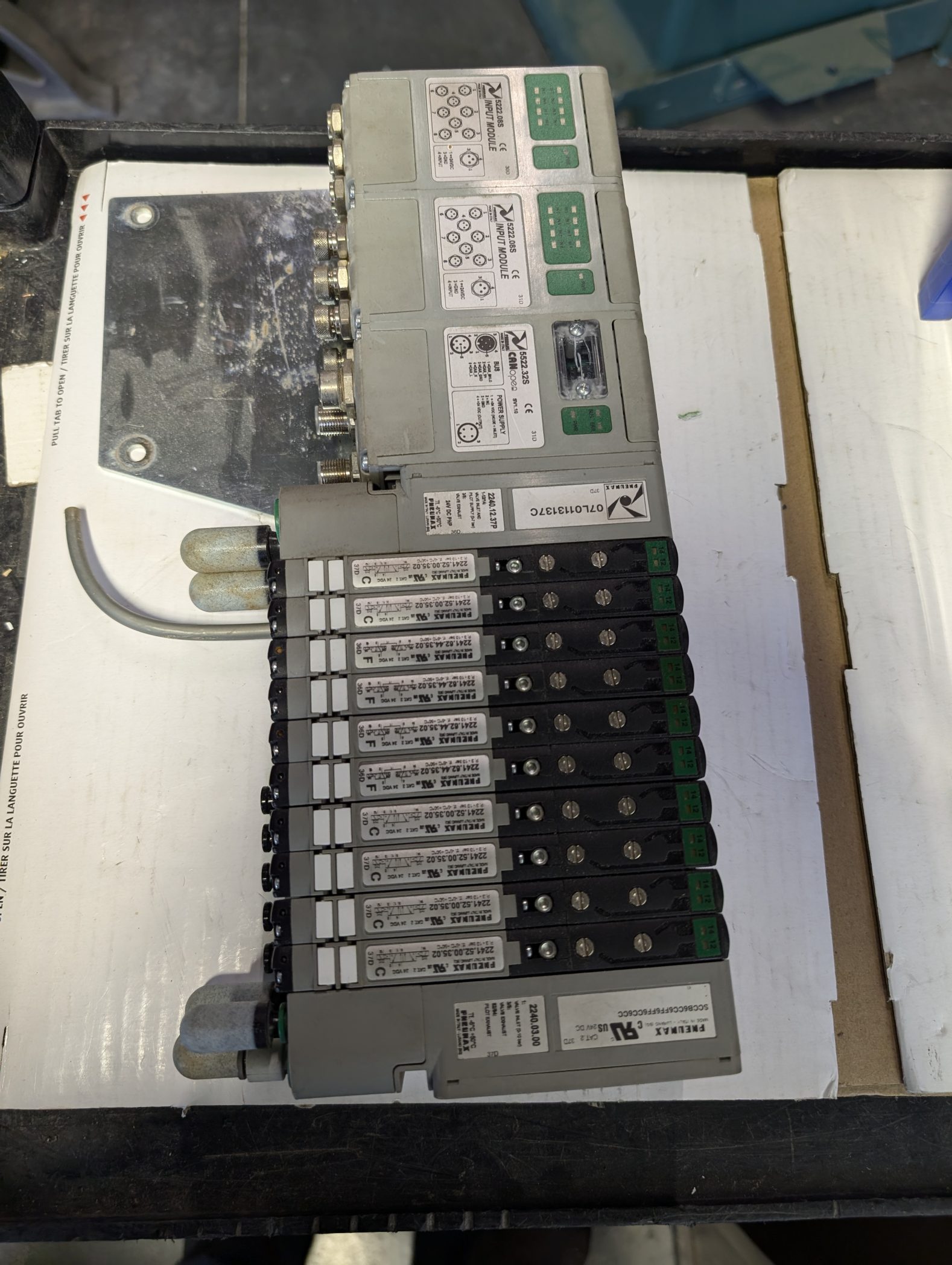

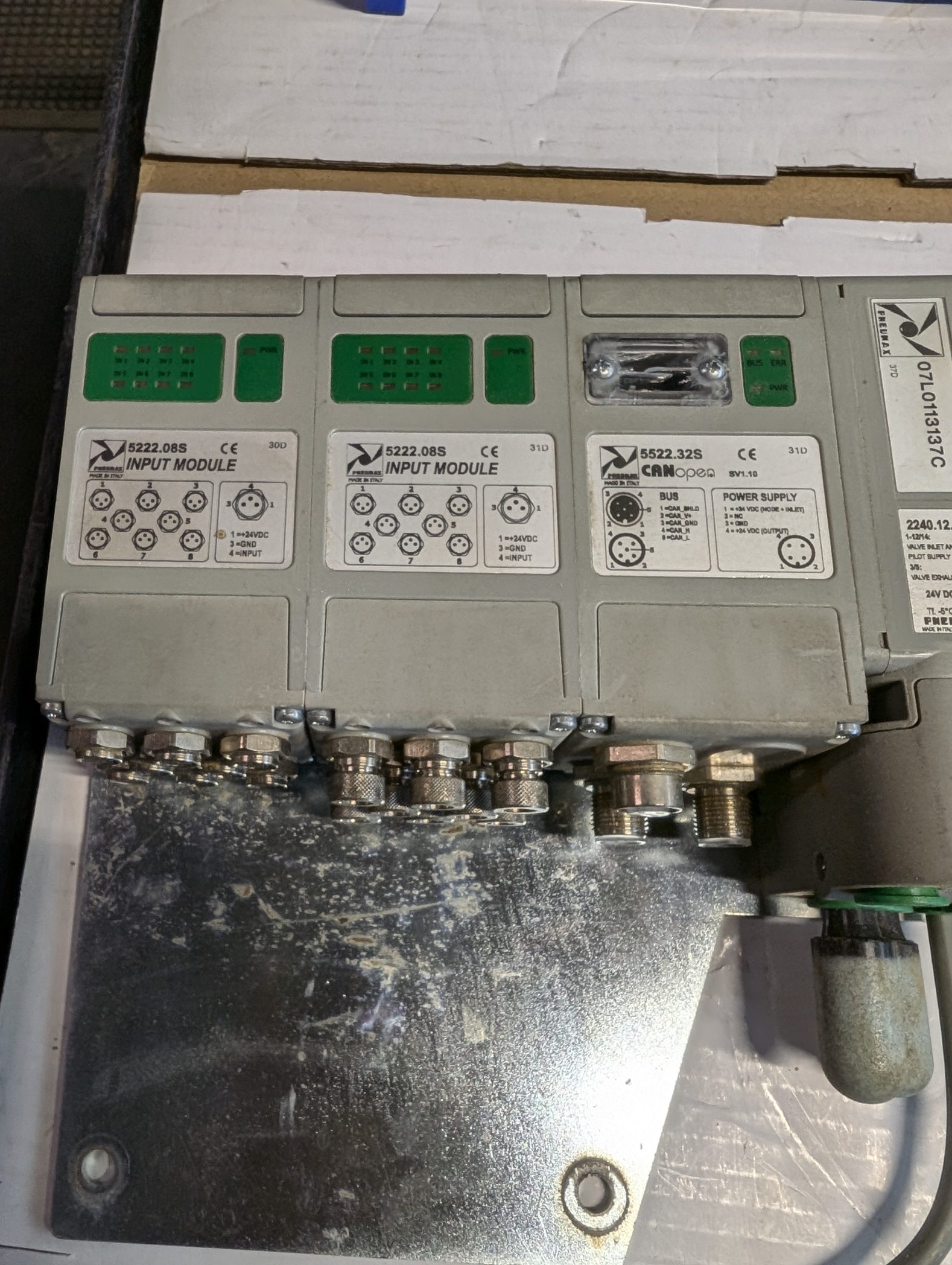

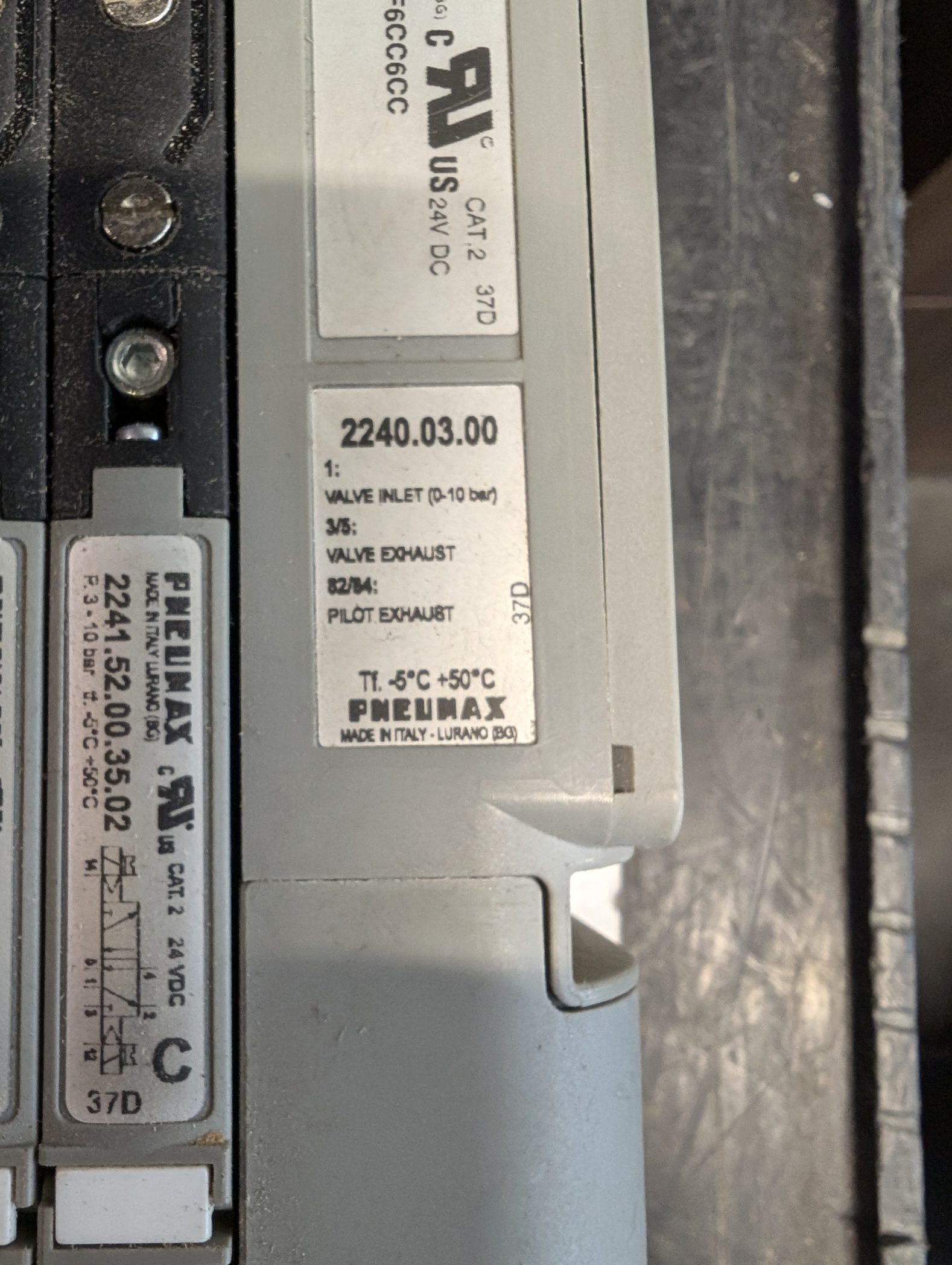

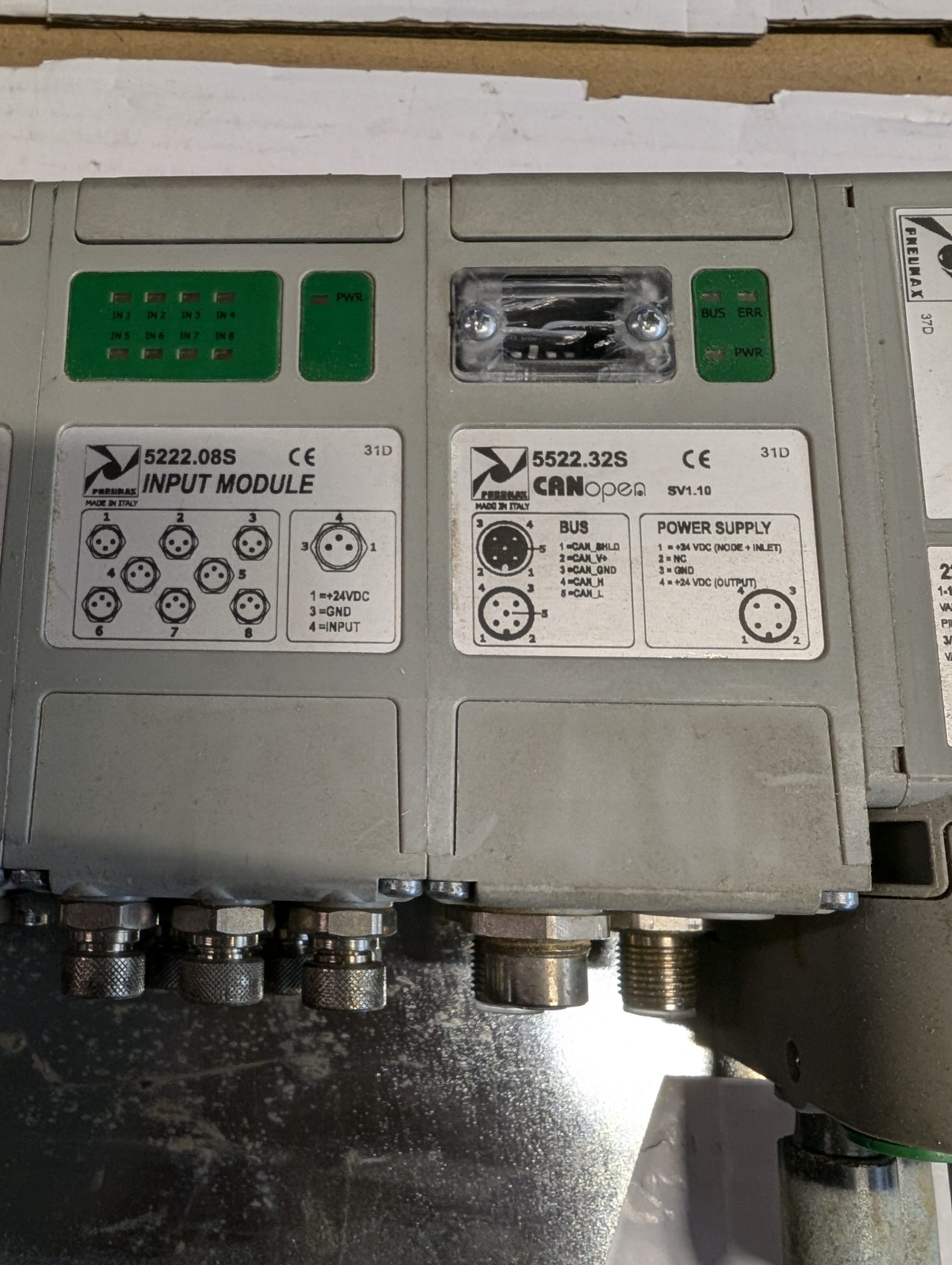

The Pneumax 2530.12.37P is a Left Endplate component used for the assembly of the Series 2500 “OPTYMA-T” (or OPTYMA32-F) solenoid valve manifolds. It serves as a key electrical and pneumatic connection interface on the manifold block.
- Component Type: Left Endplate / Terminal for Electrical Valve
- Version: Self-feeding / Internal Pilot Base (
12) — the pilot valves are internally fed via line 1.
- Electrical Connection Type: 37 Poles PNP D-Sub connector (
37P)
- Fluid Medium: Filtered air (lubrication is not required, but must be continuous if used)
- Working Pressure Range: From vacuum up to 10 bar (3 to 7 bar internal operating pressure range)
- Operating Temperature: -5°C to +50°C
- Port Sizes: Main distribution feed G 3/8″ with pilot exhaust/control at G 1/8″
- Flow Capacity: The overall modular series supports flow rates up to 800 Nl/min
- Signal Management: Capable of handling up to 32 electrical signals (allowing setups for up to 32 monostable or 16 bistable valves)
- Material/Protection: Technopolymer structure rated to IP65 environmental protection
