Specifications:

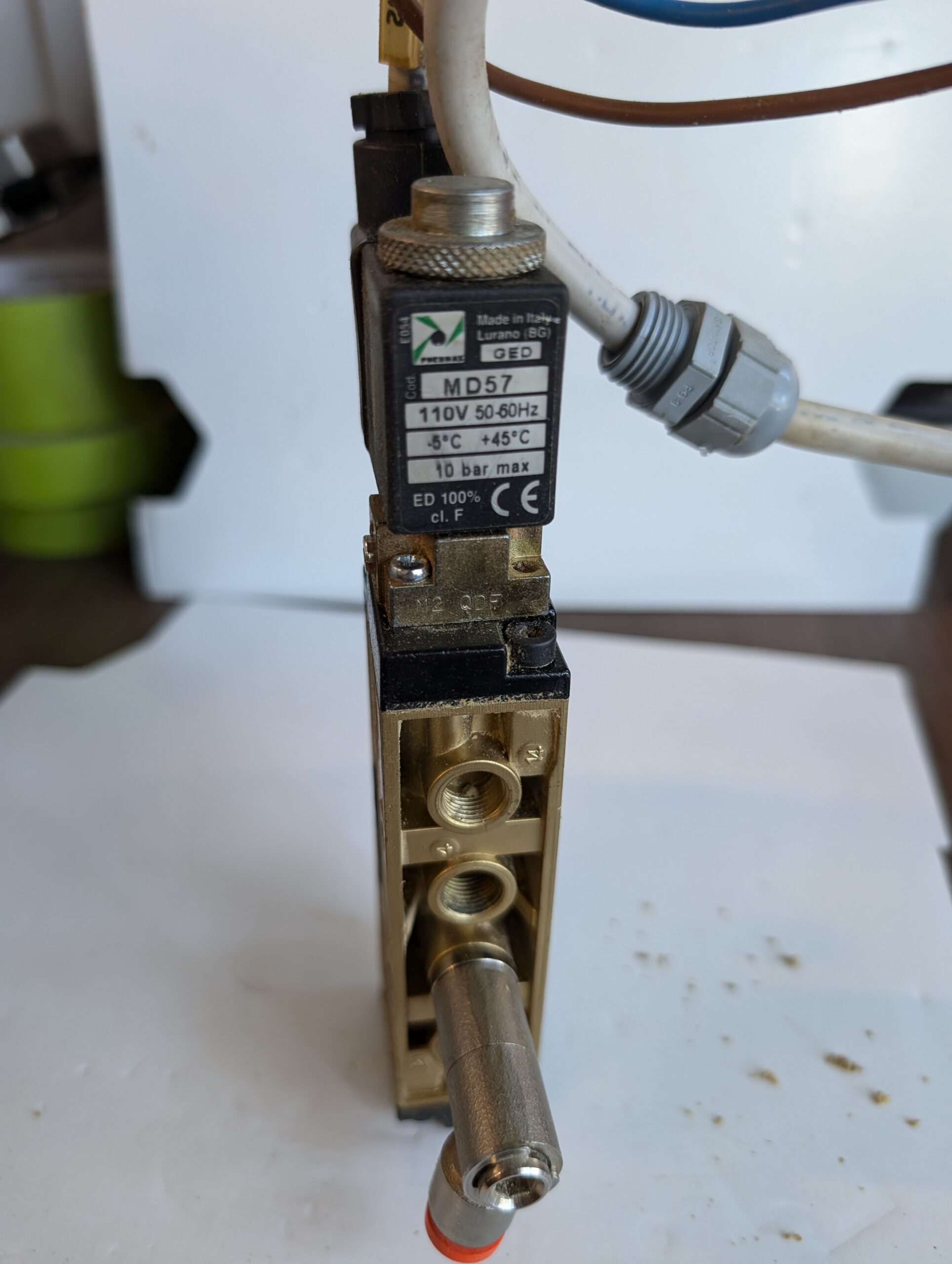

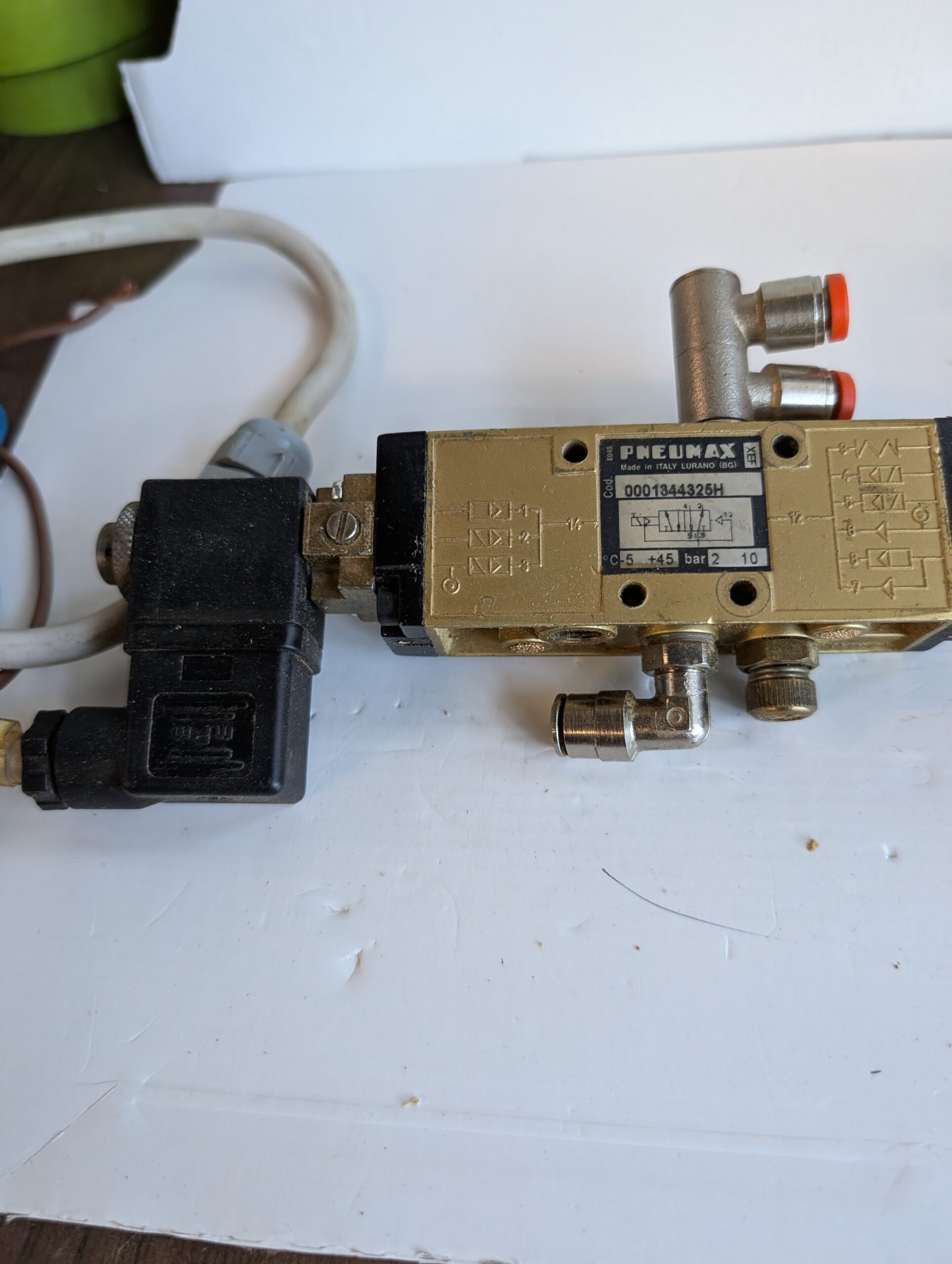

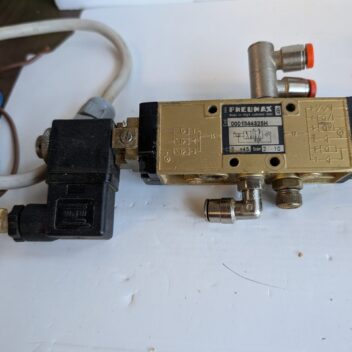

The Pneumax 858-2.52.3.9.M2 Pneumatic Valve with Control Switch is a 5/2-way electromechanically actuated solenoid valve with a spring return from the Pneumax Series 800.
- Manufacturer / Series: Pneumax Series 800 (MB56 coil/operator series)
- Valve Type: 5/2-way (5 ports, 2 positions), Solenoid-Spring (electrically actuated, spring return)
- Working Ports Size: G 1/8″
- Orifice Size / Flow Rate: 6.0 mm orifice; flow rate of approximately 600 Nl/min at 6 bar (Δ p = 1)
- Pressure Rating: Maximum working pressure up to 10 bar (P.Max 10 bar); minimum working pressure of 2.5 bar
- Operating Temperature: -5°C to +50°C
- Voltage: Typically configured for 24V AC/DC (50/60Hz) via the M2-style operator/coil configuration
- Weight: Approximately 0.48 kg (480 grams / ~1.06 to 1.45 lbs)
- Fluid: Filtered and lubricated or non-lubricated compressed air
