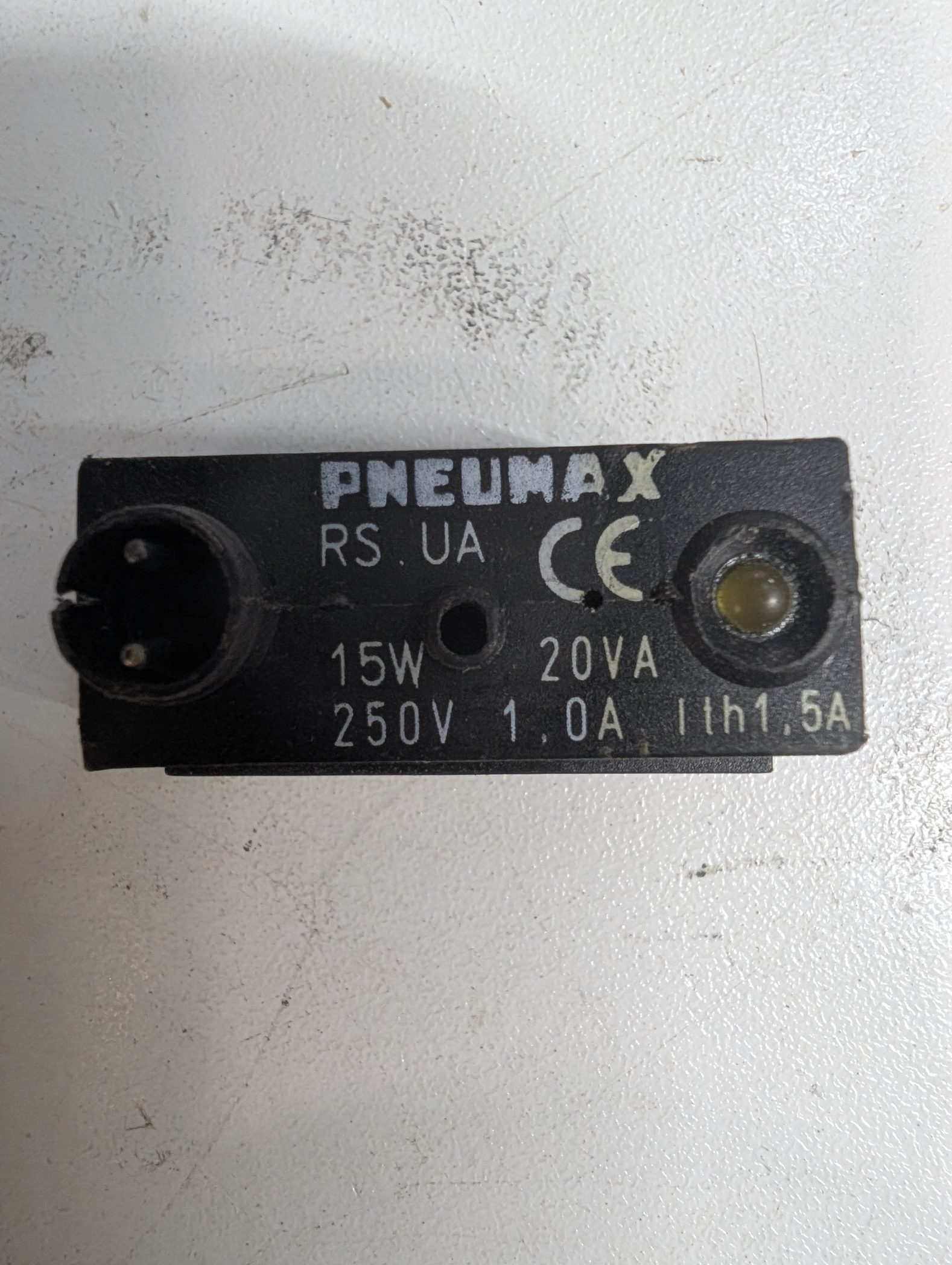

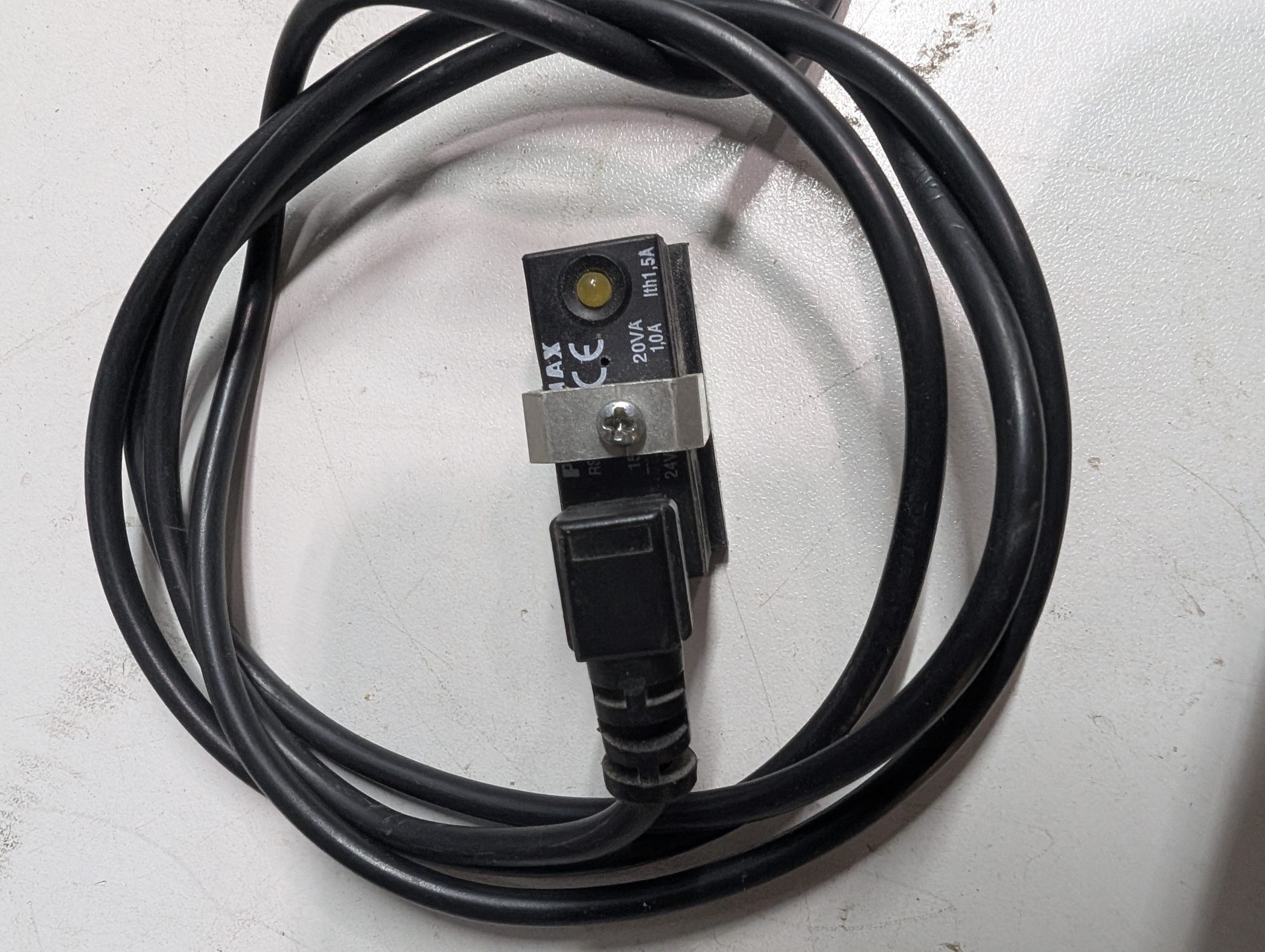

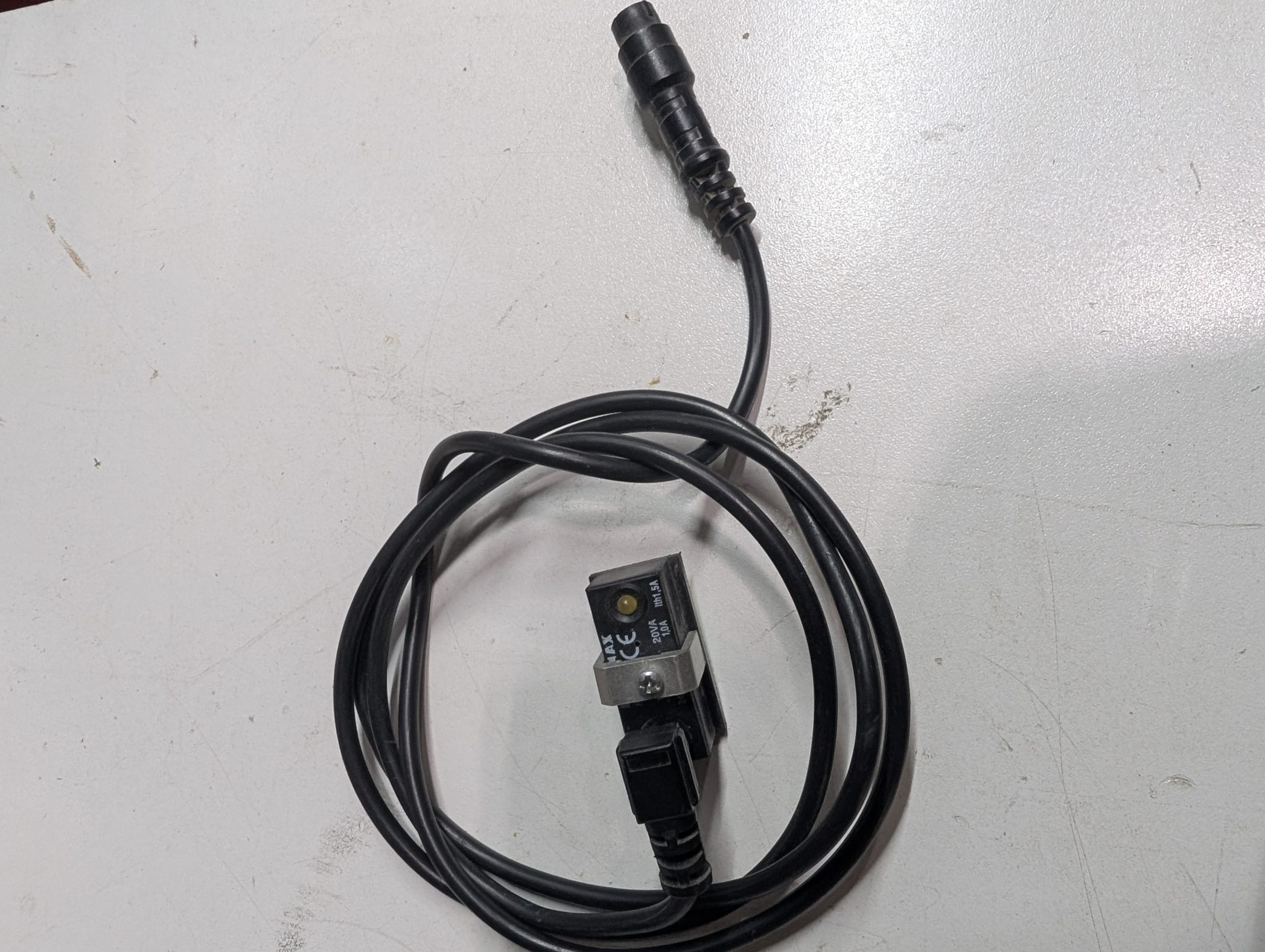

The Pneumax RS.UA magnetic sensor switch is a universal reed-type cylinder switch rated for 12–48VDC (and up to 230VAC) designed for pneumatic automation and position detection.
Model/Series: RS.UA (Universal Reed Sensor)
Switch Type: Magnetic Reed Switch
Contact State: Normally Open (N/O)
Voltage Range (Universal): 12–48 VDC / 3–230 VAC
Max Power Rating: 15W / 20VA
Indicator: Built-in LED status indicator
Wiring / Connection: 3-wire configuration (variants include snap connectors or M8 connectors depending on the specific /1L or RS8 sub-model)
Application: Designed for pneumatic cylinder position monitoring and compatible with in-series assembling
