Specifications:

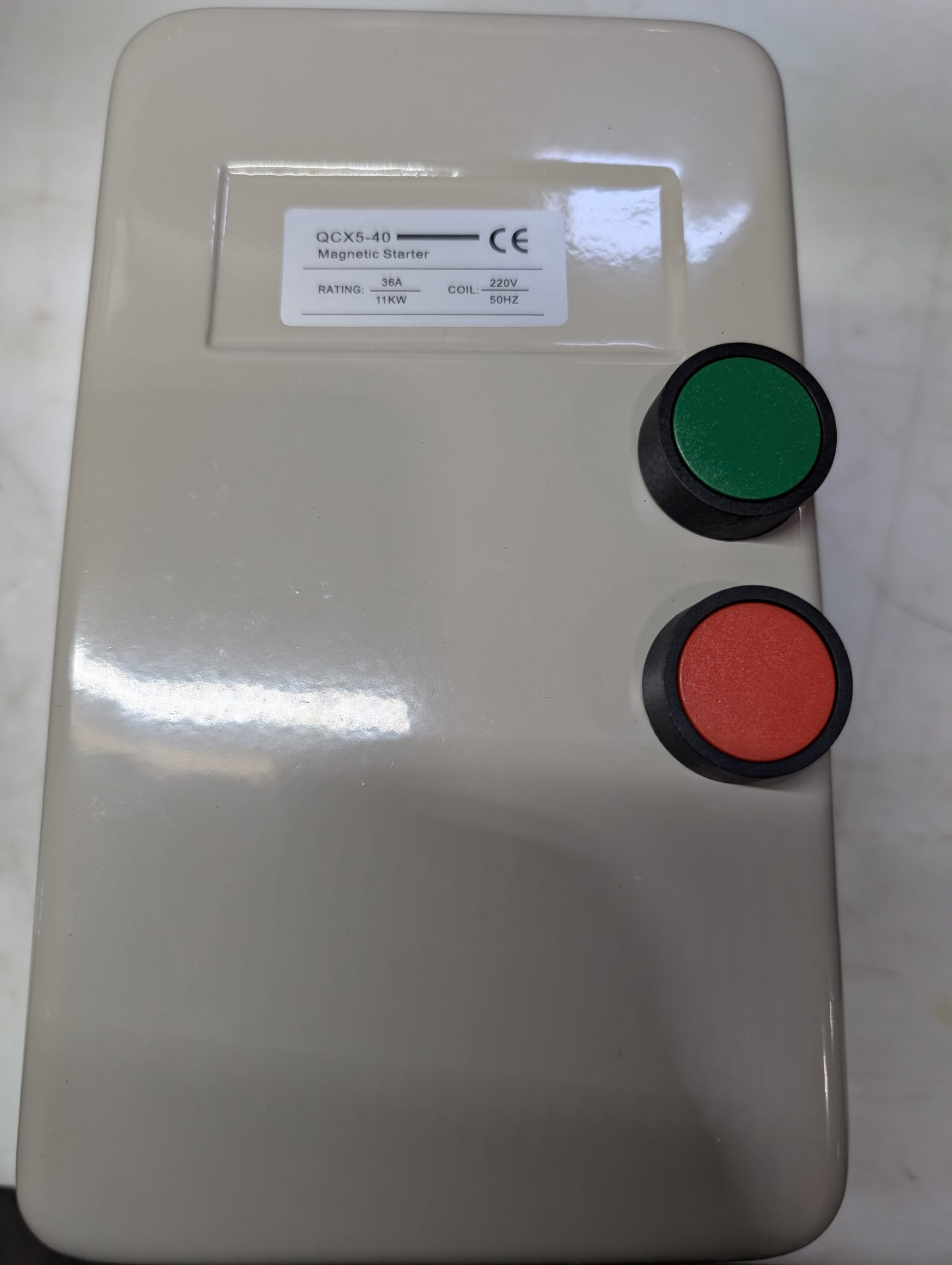

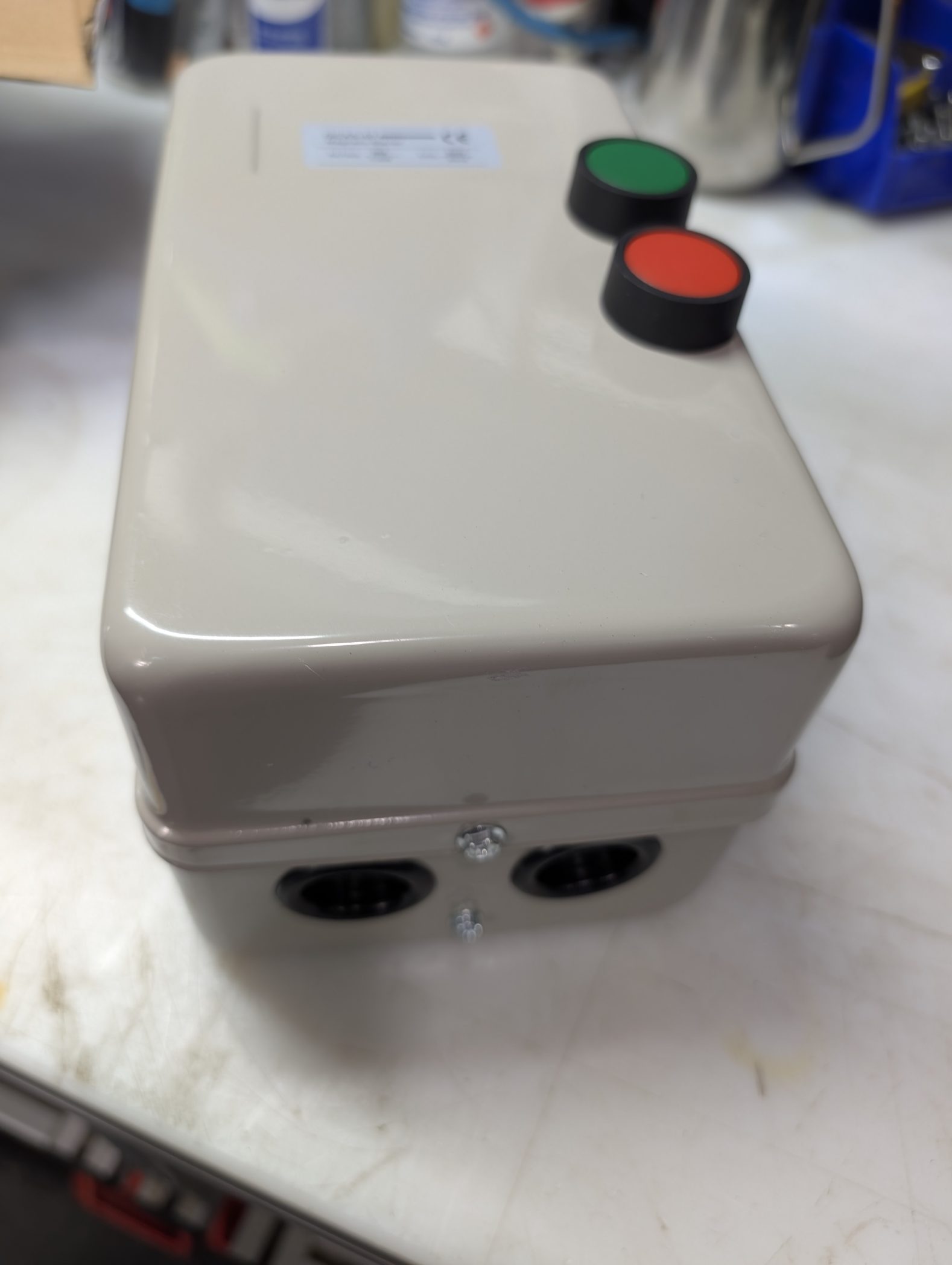

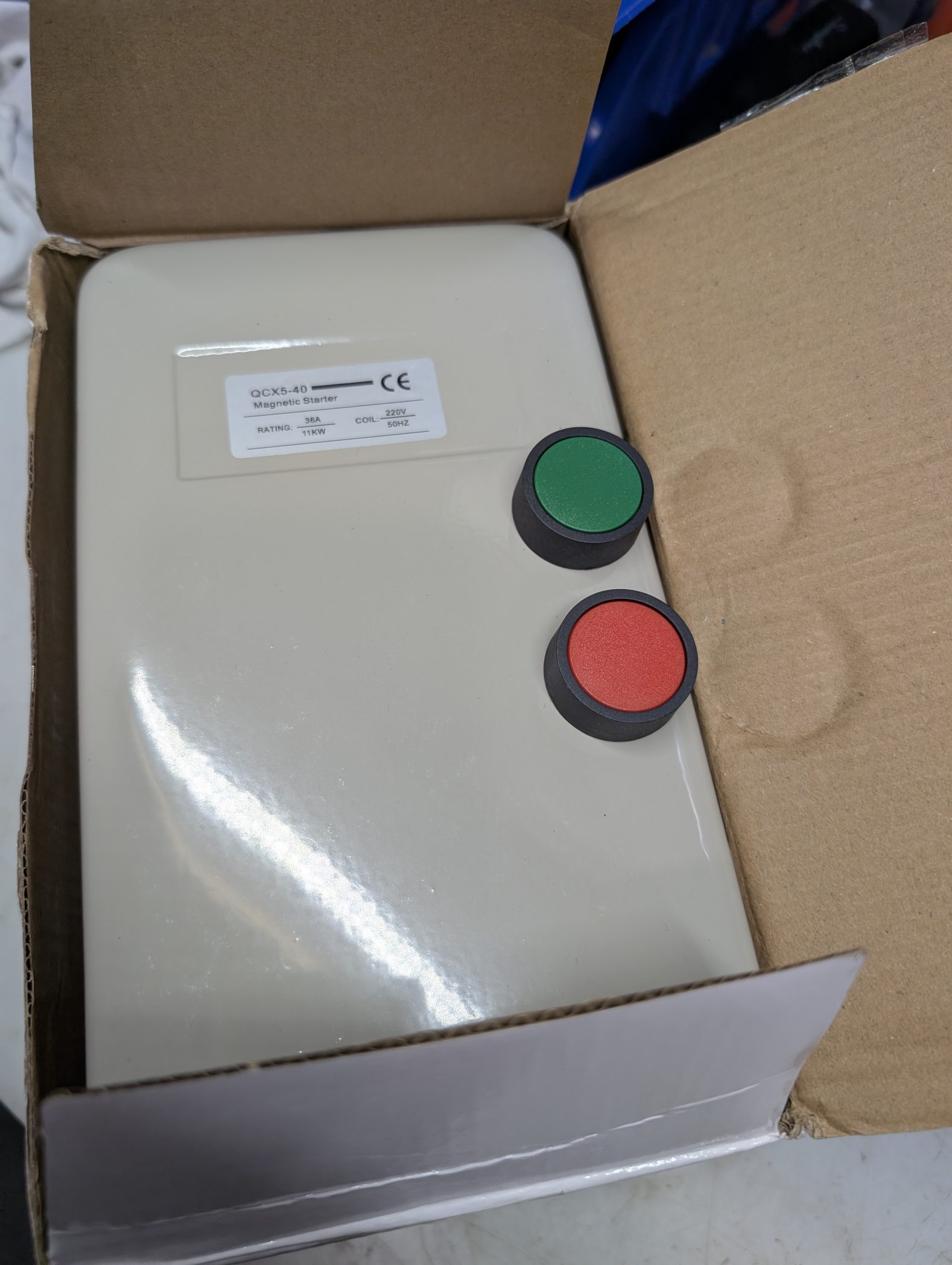

The QCX5-40 15hp Magnetic Starter Switch is
an electromagnetic motor control device designed to safely start, stop, and protect heavy-duty 15-horsepower (11kW) electric motors—frequently used in industrial machinery and large air compressors. It features an integrated thermal overload relay to prevent motor burnout.
Key Specifications & Features
- Horsepower/Power Rating: 15 HP (11 kW)
- Model Type: QCX5-40 Series
- Max Voltage: Up to 660V AC (commonly wired for 220V or 380V applications)
- Core Protection: Built-in thermal overload protection, phase-loss protection (depending on specific sub-model configuration), and low-voltage protection.
- Components: Contains a high-amperage electromagnetic contactor and an adjustable thermal relay with a manual reset button.
