Specifications:

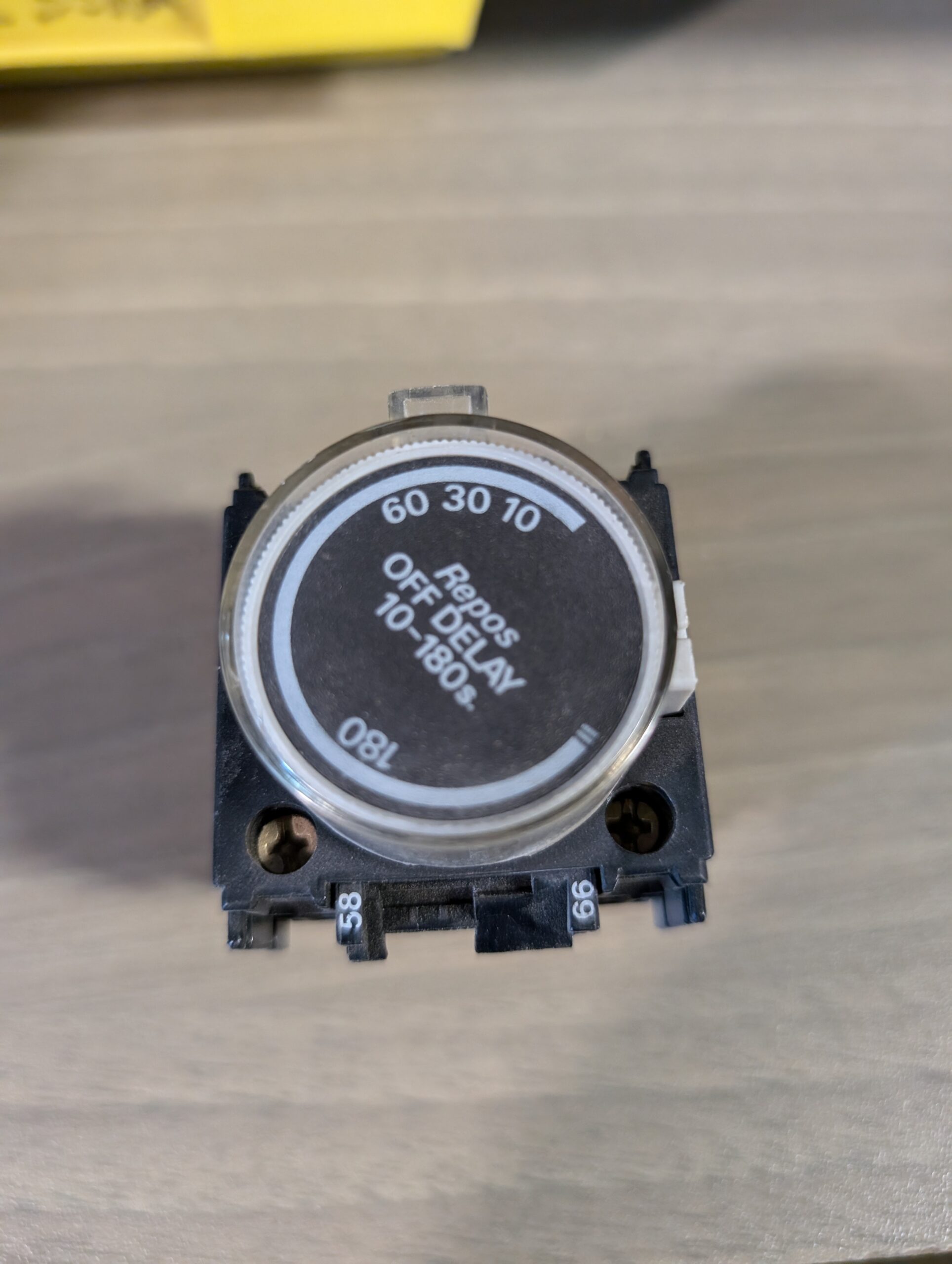

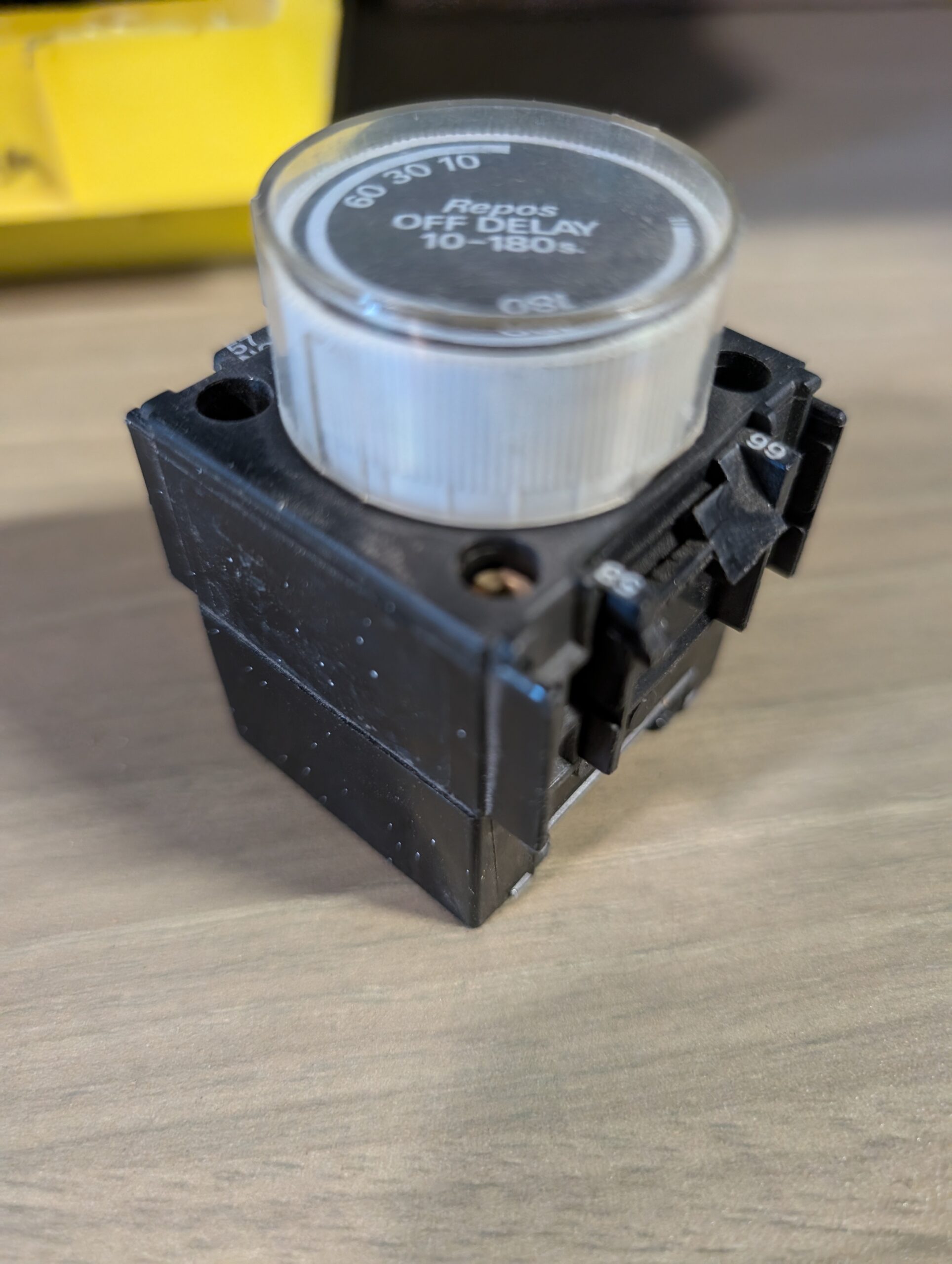

The Schneider Electric LADR4 (from the TeSys Deca / TeSys D line) is a front-mount, off-delay (repos) auxiliary contact block providing a 10 to 180-second time delay range with 1NO + 1NC contacts rated at 10A. It clips directly onto compatible control relays and contactors
Key Specifications
- Function: Off-delay (repos / release delay) timer
- Time Delay Range: 10 to 180 seconds
- Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Rated Operational Voltage: Up to 690V AC
- Thermal Current Rating: 10A
- Mounting: Front clip-on mount
- Terminal Type: Screw clamp terminals
