Rexroth 0822120005 & 0822120007 Dual Pneumatic Cylinders With Bernstein Limit Switch

Specifications:

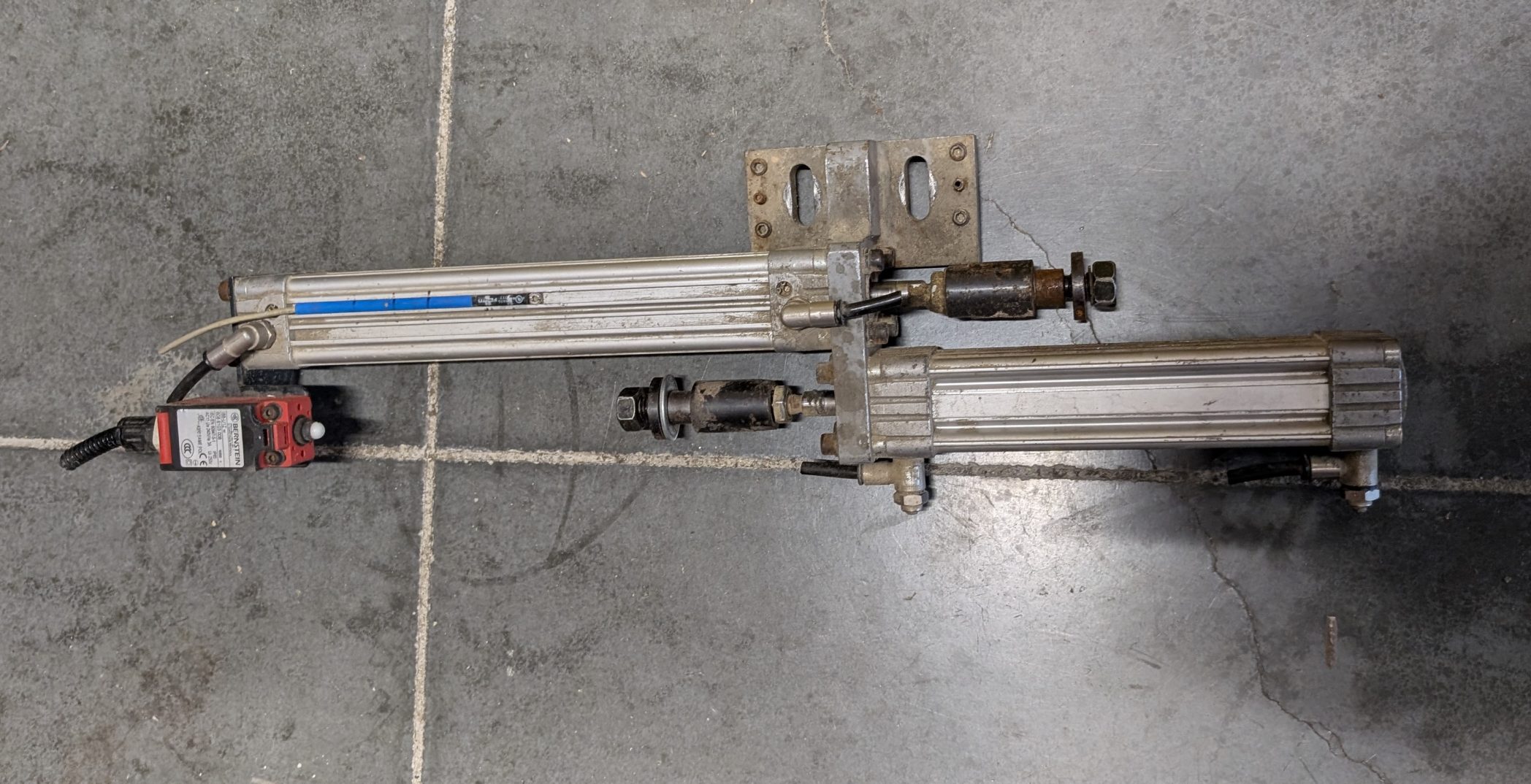

2 Pneumatic Cyliders mounted in oposite directions on tool holder with slow plunger style limit switch

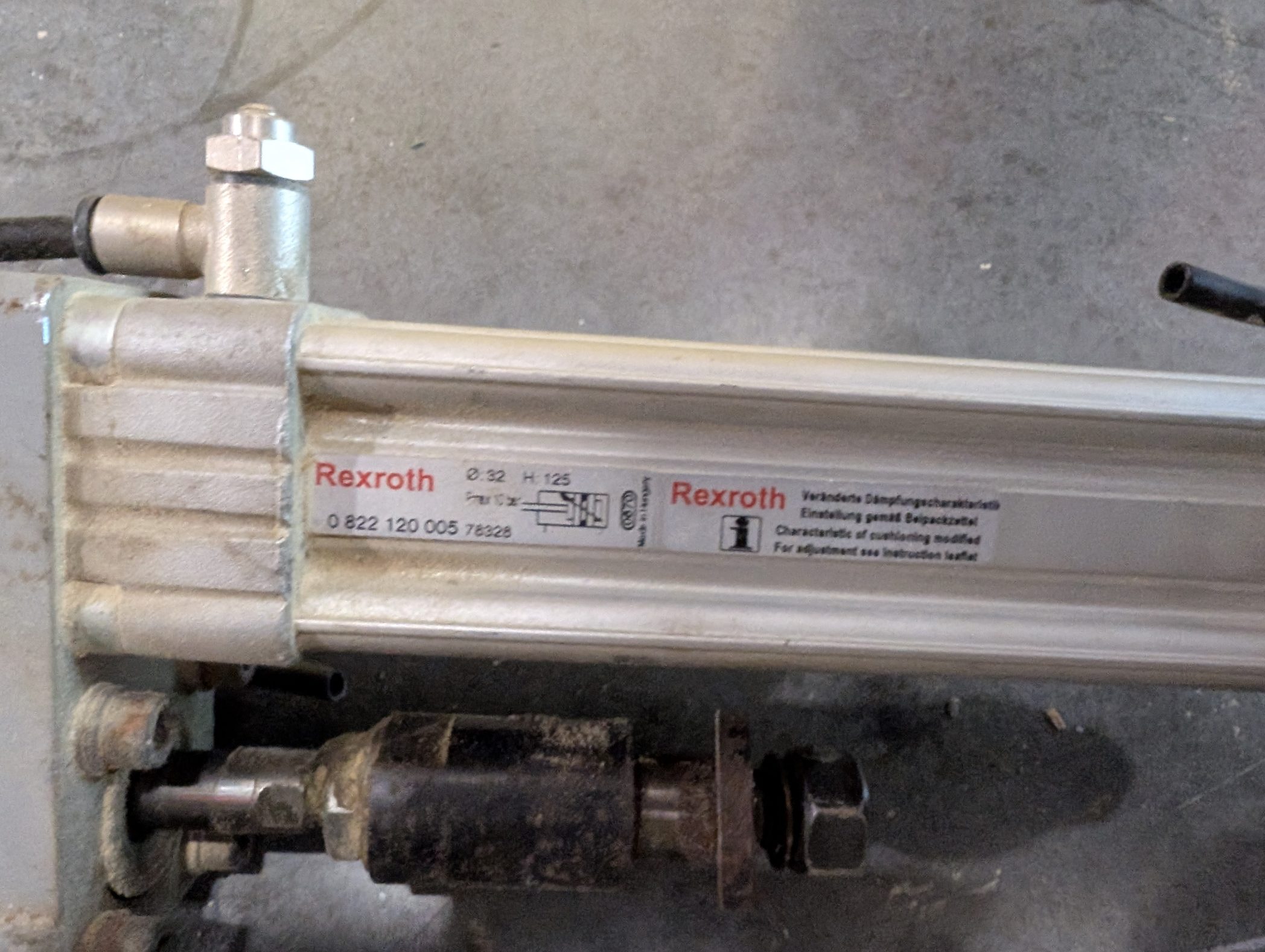

• 0822120005 Cylinder

• PNEUMATIC CYLINDER

• 32 MM BORE

• 125 MM STROKE

• METRIC THREADS

• CUSHIONS

• MAGNET PISTON

• SINGLE ROD

• MALE THREAD

• Description:

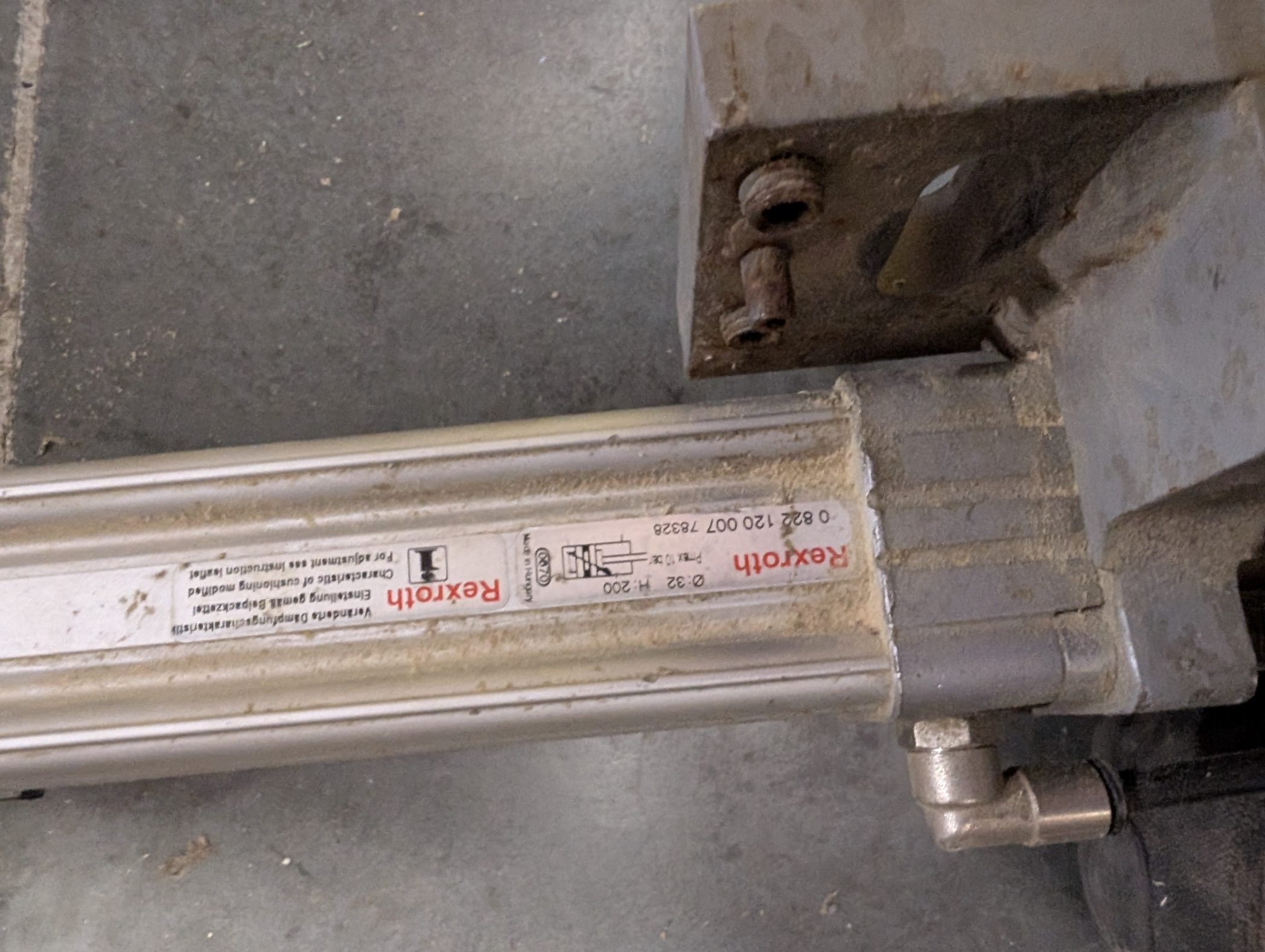

  • 0822120007 Cylinder

  • PNEUMATIC CYLINDER

  • SERIES PRA

  • 200 MM STROKE

  • 32 MM BORE

  • ISO 15552

  • DOUBLE-ACTING

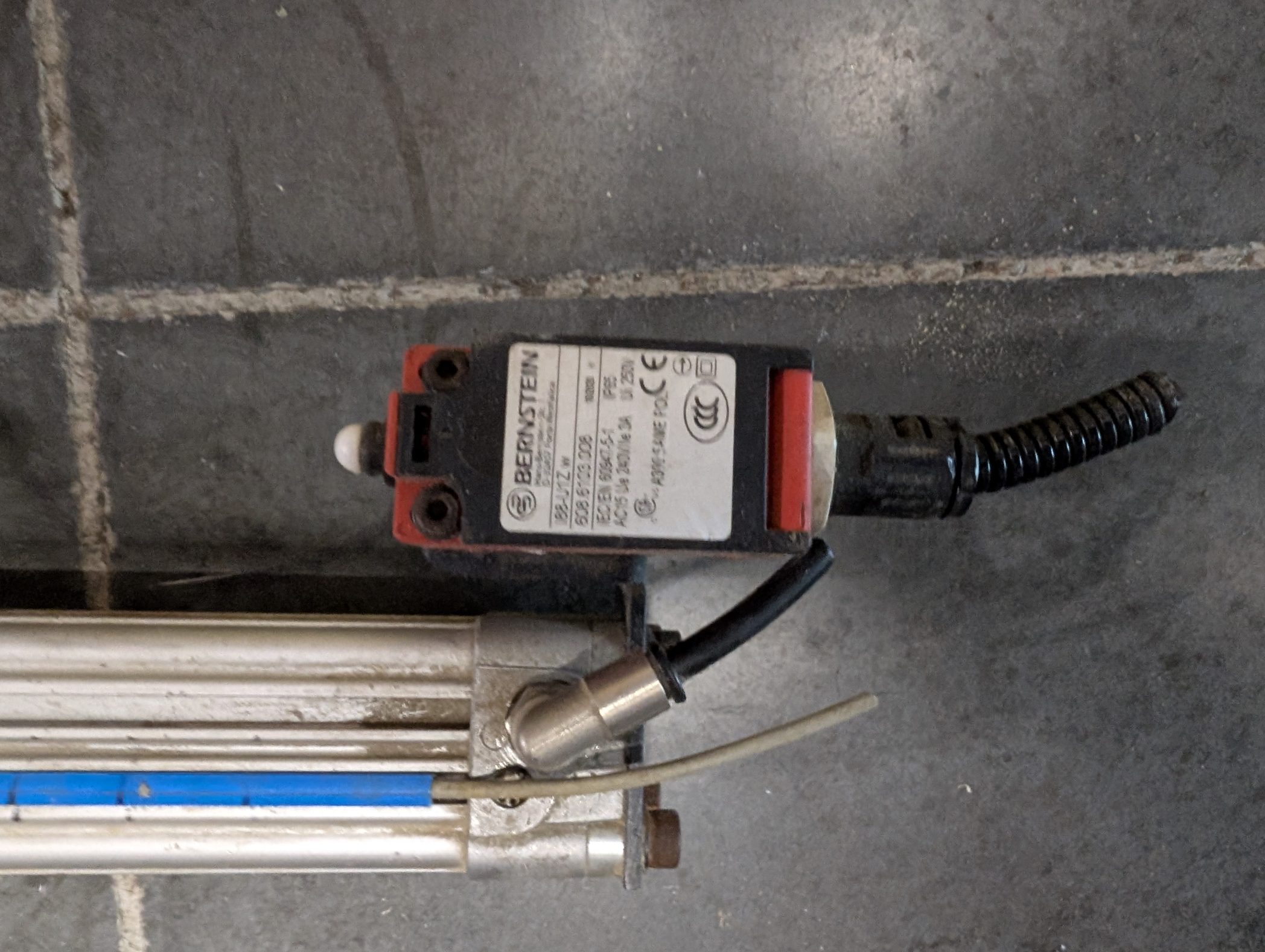

  • The Bernstein I88-U1Z W Limit Switch (Part 608.6103.008) is an enclosed industrial safety and position detection switch featuring a slow-action top plunger actuator.
    • Model/Series: Bernstein I88-U1Z W (I88 Series)

    • Part Number: 608.6103.008

    • Electrical Rating: 10A max, up to 500VAC (AC15 240V/3A, Ui 250V; UL/CSA rated 10A/300V AC)

    • Contact Configuration: 1 NO / 1 NC (Slow make and break, positively driven NC contacts)

    • Actuator Type: Top pin plunger (with yellow tip)

    • Protection Rating: IP65 dust and water resistance

    • Cable Connection: PG11 threaded cable gland entry
