Specifications:

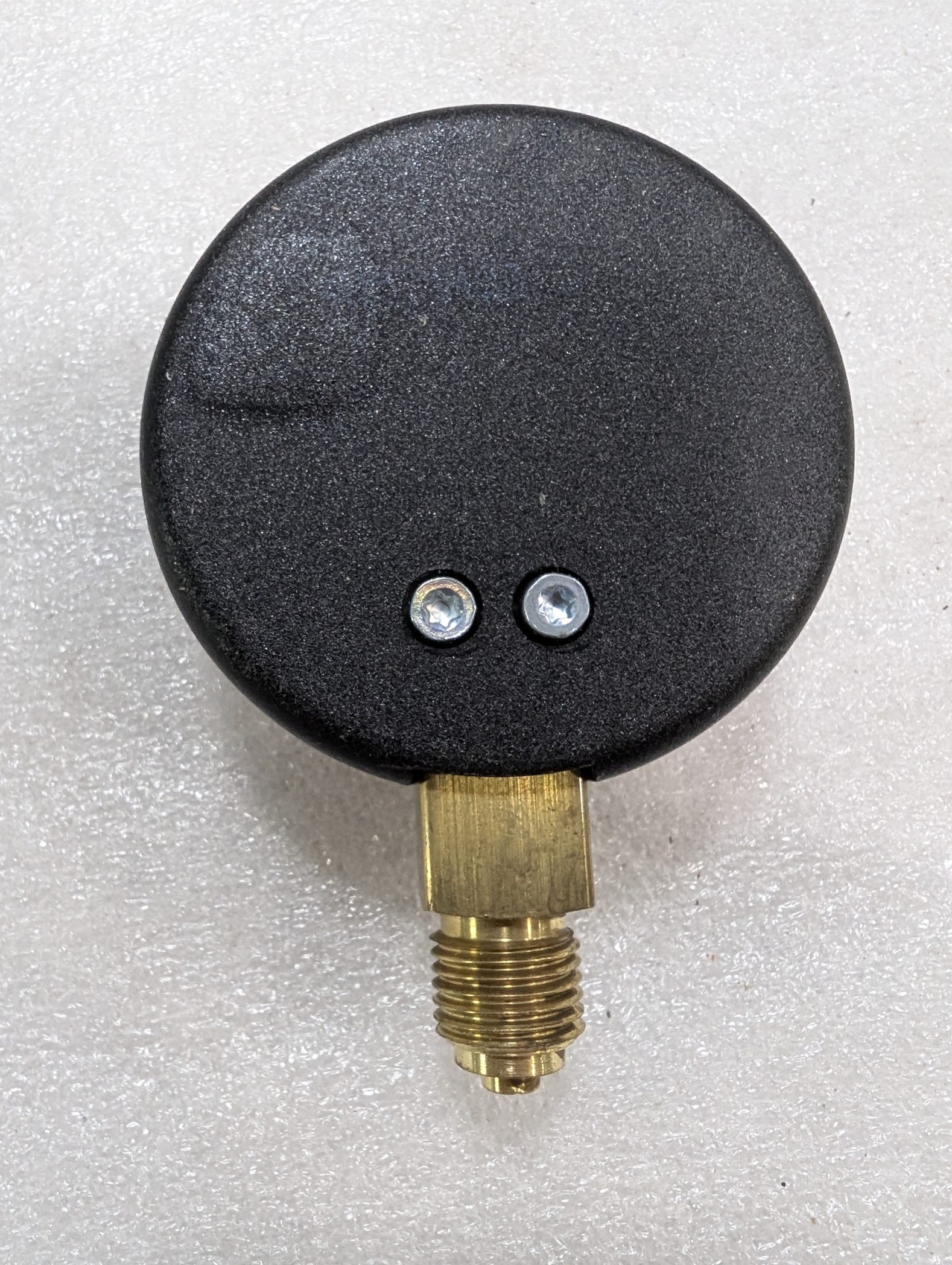

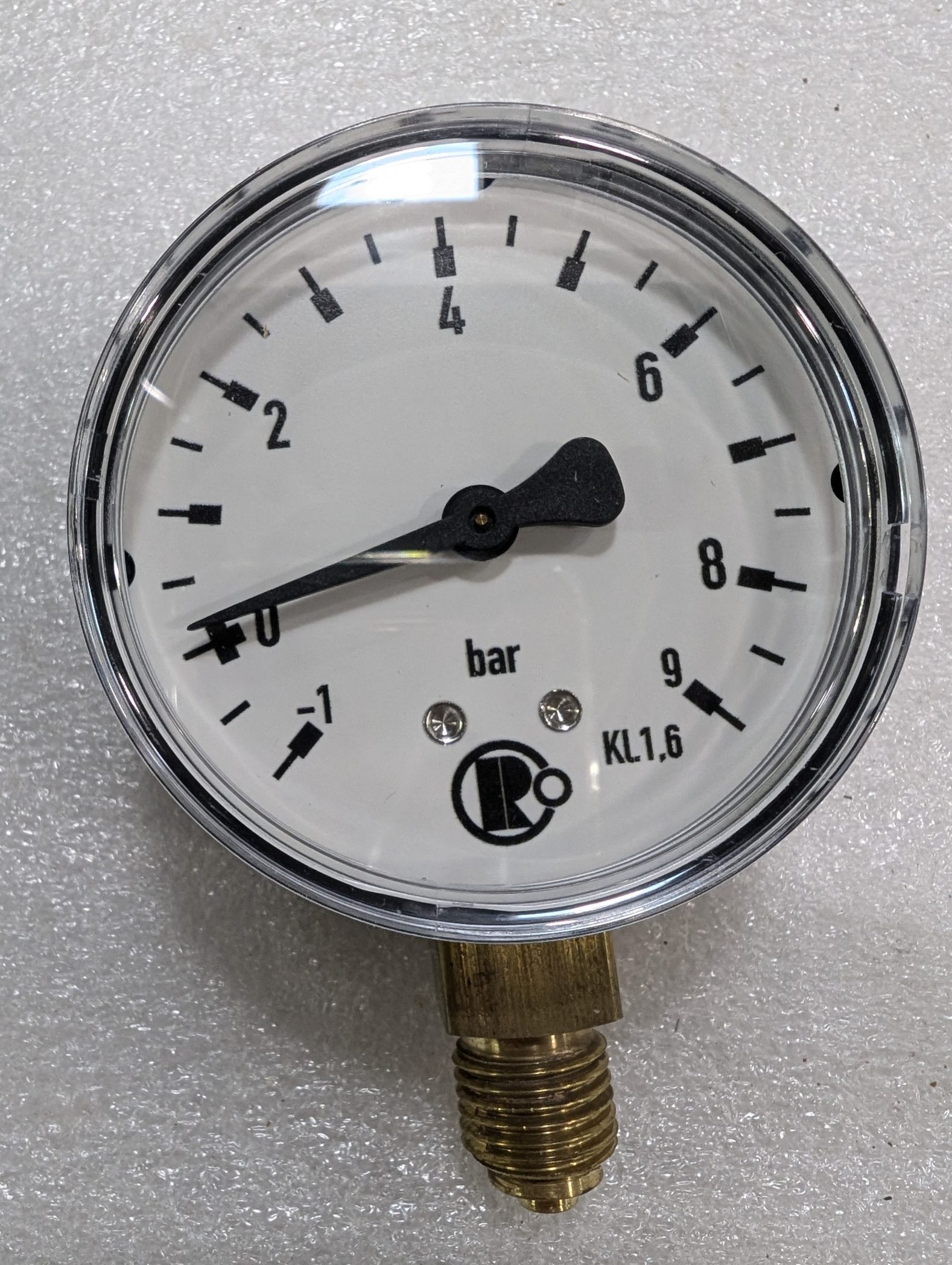

Riegler Pressure Gauges with a KL 1.6 accuracy class and a quarter-inch (G 1/4) thread are highly versatile Bourdon-tube analog instruments designed primarily for monitoring compressed air, non-aggressive gases, and low-viscosity fluids. The designation “KL 1.6” (or Cl. 1.6) indicates the Accuracy Class, which permits a maximum error of ±1.6% of the full-scale value.
Because Riegler manufactures this exact footprint across several variants (such as the budget-friendly “pressure line” series, plastic housings, or heavy-duty glycerine-filled housings), the generic technical specifications shared across the standard G 1/4 lineup are detailed below:
| Property |
Standard Specification |
| Accuracy Class |
KL 1.6 (±1.6% maximum error of full scale) |
| Thread Connection |
G 1/4 ET (1/4 inch BSPP / Male Thread) |
| Connection Type |
Radial bottom or rear centric (depending on specific model variant) |
| Nominal Diameter (Ø) |
Most commonly 63 mm (also available in 50 mm) |
| Measurement Principle |
Bourdon-tube pressure gauge |
| Measuring Ranges |
Ranging anywhere from -1 to 0 bar up to 0 to 40 bar (or higher) |
| Scale Types |
Single scale (bar) or Dual scale (bar/psi) |
