Specifications:

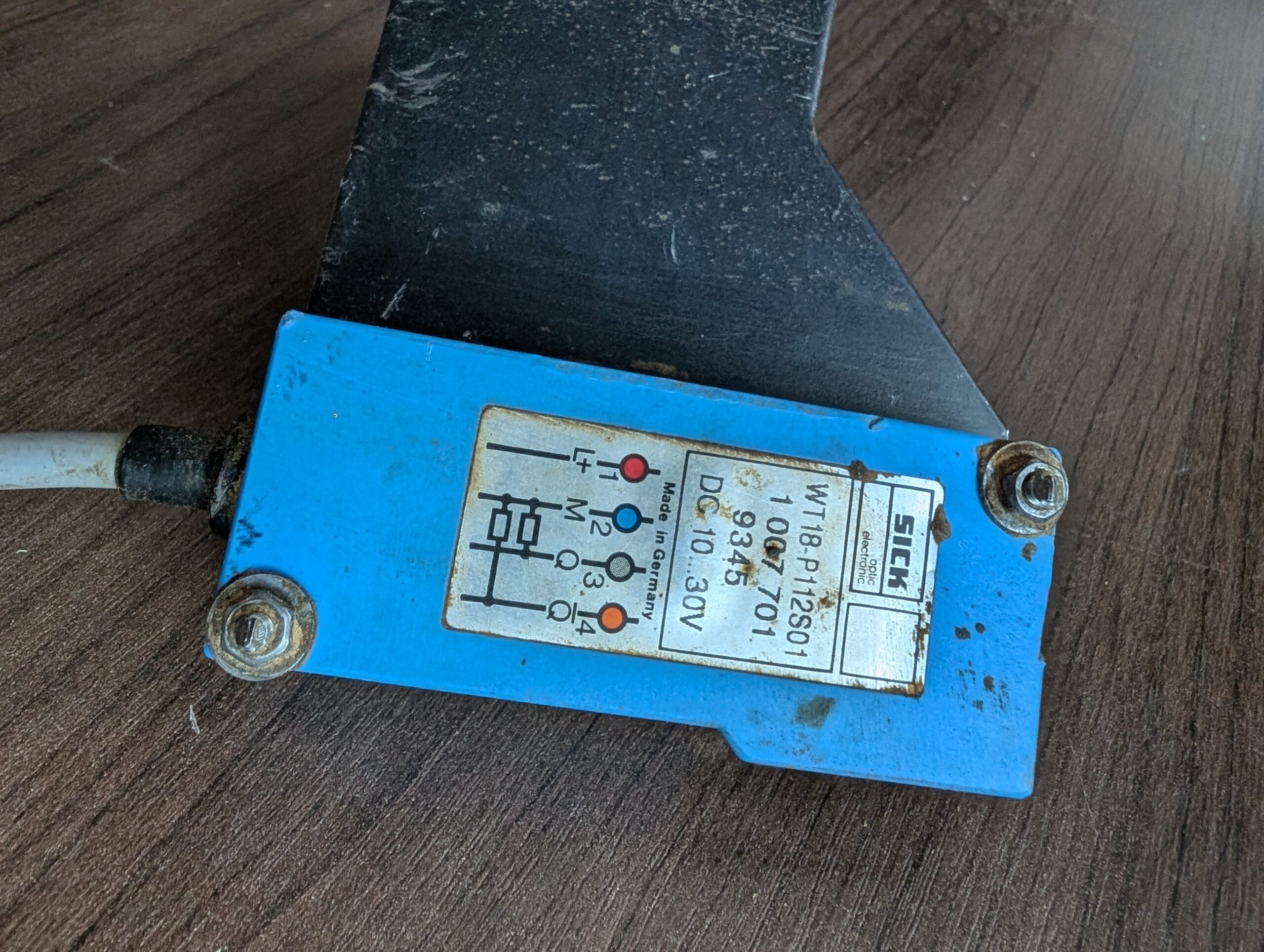

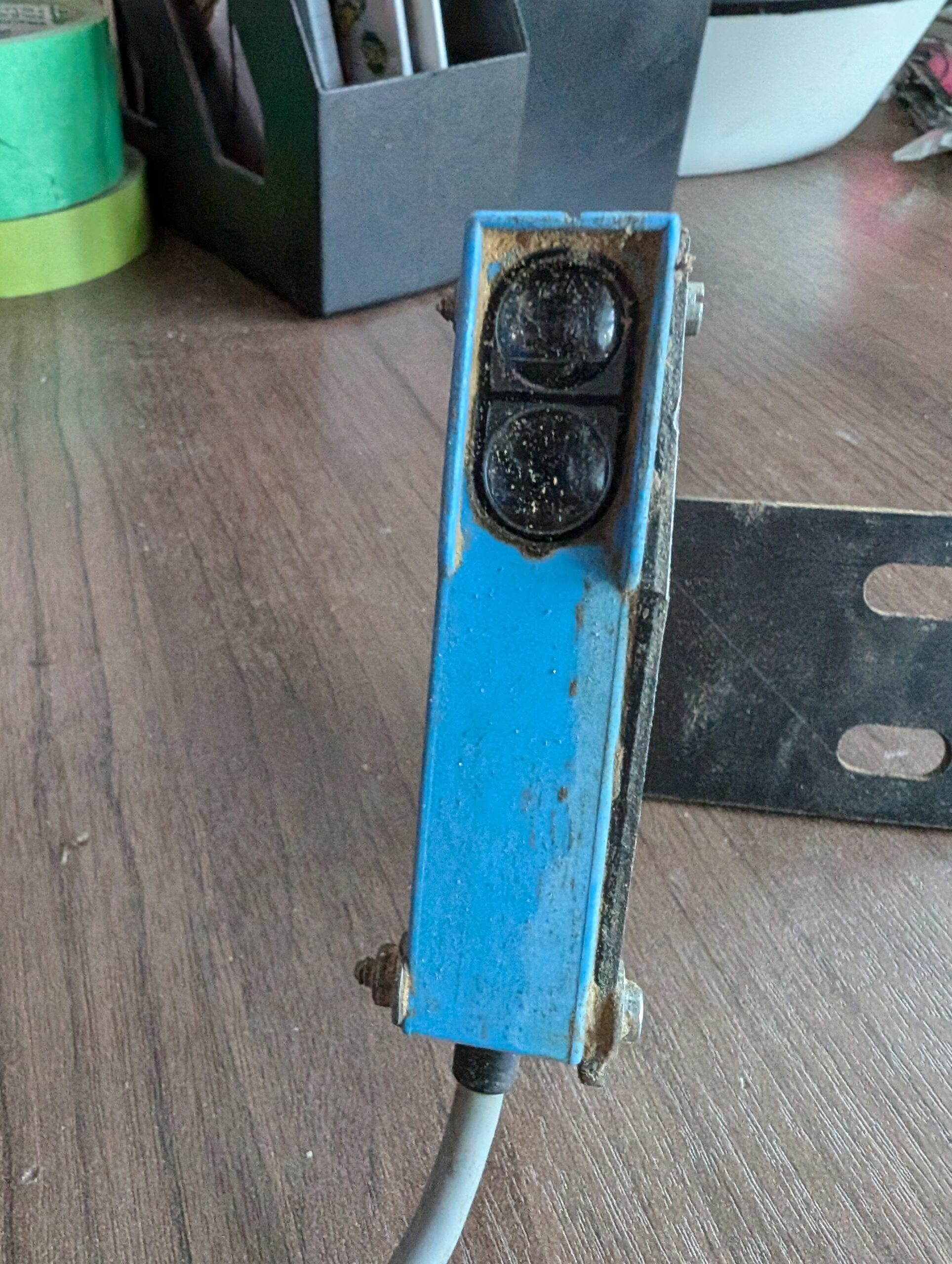

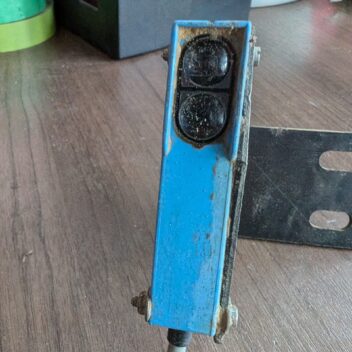

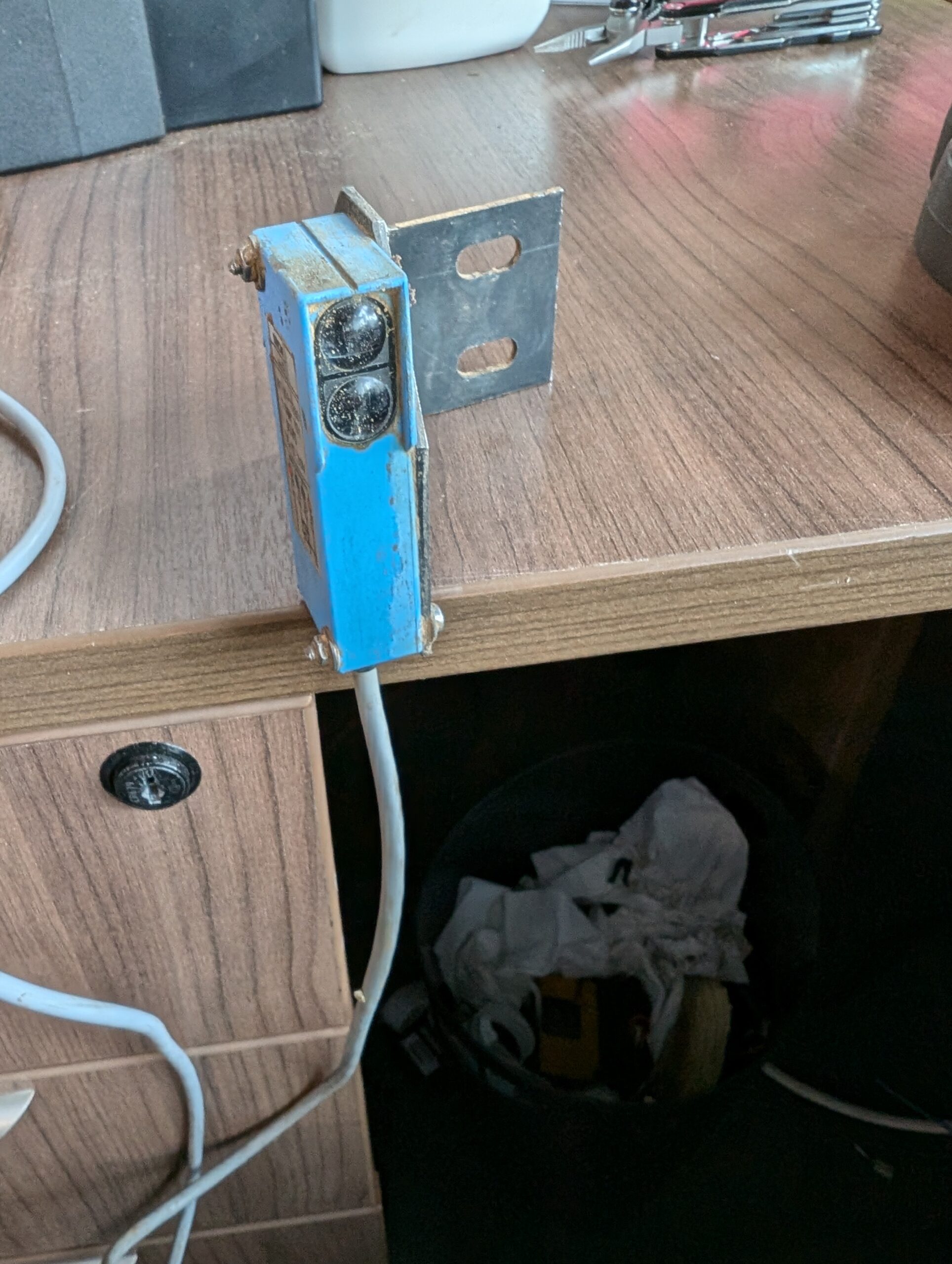

The SICK WT18-2P112S01 (often referenced as part of the WT18 series) is a discontinued diffuse-reflective photoelectric sensor featuring a PNP output configuration.
- Sensor Type: Photoelectric (Diffuse-reflective proximity switch)
- Sensing Range: 50 mm to 700 mm
- Output Configuration: PNP
- Supply Voltage: 10 to 30 VDC
- Max. Operating Current: 0.1 A
- Switching Frequency: Up to 700 Hz
- Response Time: < 0.0007 s (0.7 ms)
- Connection Type: Cable (2-meter lead length, 4-wire)
- Operating Temperature: -40°C to 60°C
- Body Material: ABS plastic
- Dimensions: 17 mm x 75 mm x 32.5 mm
