Siemens 3RV1021-1KA10 Motor Protection Circuit Breaker
SKU: 120-136
CAD $
168.73

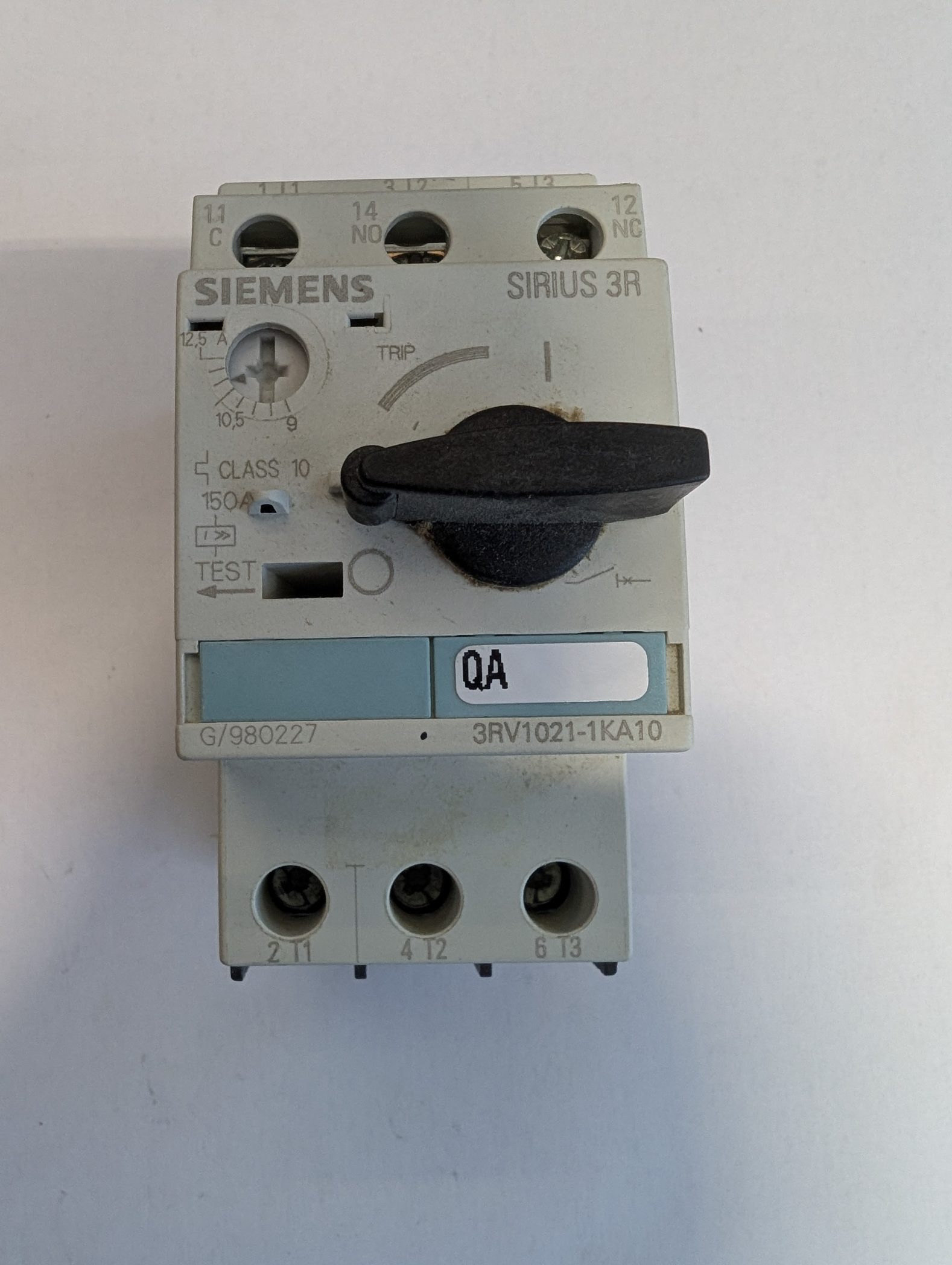

Siemens 3RV1021-1KA10 Motor Protection Circuit Breaker
Add to cart
Contact Us
Description
More Info
Ship Estimate
The
Siemens 3RV1021-1KA10
is a
size S0
SIRIUS 3RV1
motor protection circuit breaker rated for 9 to 12.5A
.
Device Type:
Motor protection circuit breaker / manual motor starter
Frame Size:
S0
Number of Poles:
3-pole
Thermal Overload Adjustment Range:
9.0 to 12.5 A
Trip Class:
Class 10
Instantaneous Short-Circuit Release:
163 A
Rated Operational Voltage:
Up to 690 V AC (50/60 Hz)
Operational Power:
5.5 kW at 400V AC
Terminal Type:
Screw terminals
Mounting:
35mm DIN rail or screw mounting
Weight
0.36 lbs
Dimensions
5 × 5 × 5 in
