SKU: 120-218 CAD $684.95

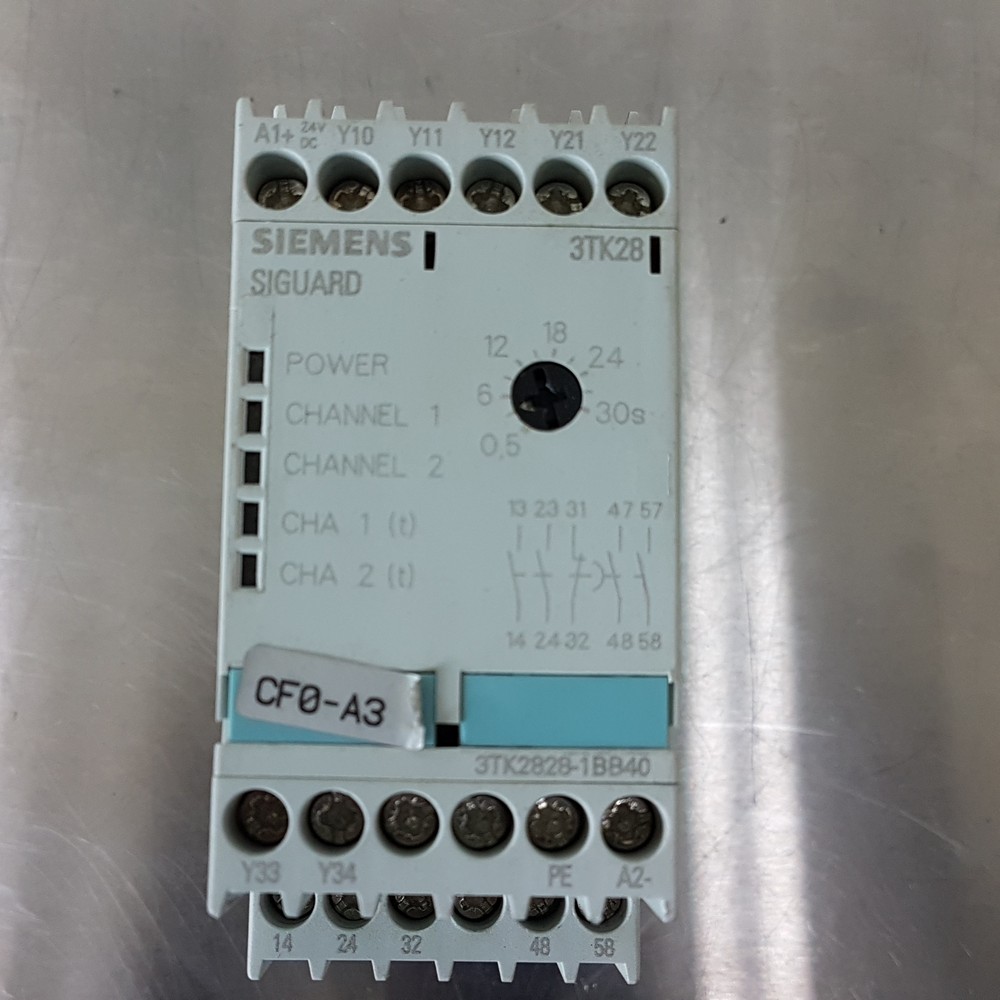

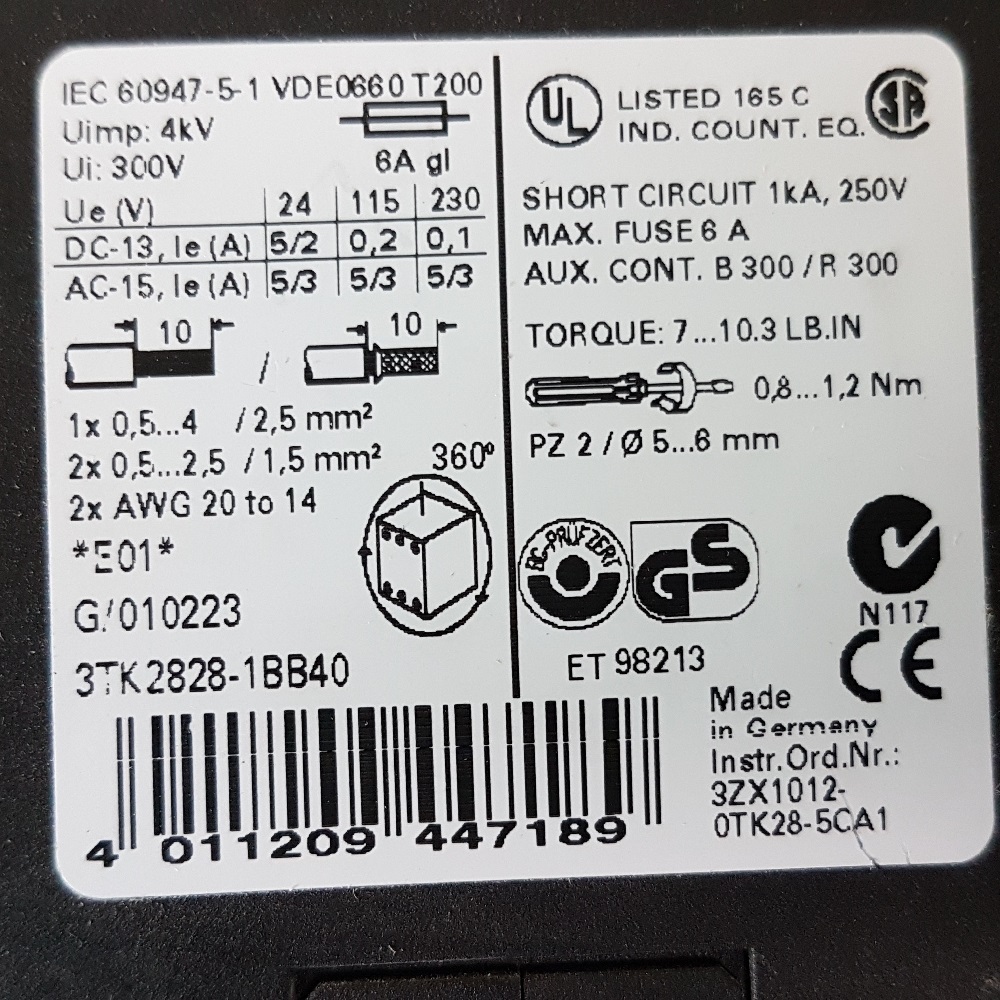

Siemens 3TK2828-1BB40 Safety Relay

Used Siemens 3TK2828-1BB40 Safety Relay

Used Siemens 3TK2828-1BB40 Safety Relay

Used Siemens 3TK2828-1BB40 Safety Relay

Specifications:

The Siemens Siemens SiePortal 3TK2828-1BB40 is a discontinued Siemens SiePortal SIRIUS safety relay featuring a 45 mm width, screw terminals, 2 instantaneous NO, and 2 delayed NO safety contacts (0.5–30 s adjustable delay). It operates on 24 V DC and supports applications up to SIL 3 / Ple.

Technical Specifications

Brand/Series: Siemens SIRIUS

Operating Voltage: 24 V DC

Enclosure Width: 45 mm

Instantaneous Outputs: 2 NO (Normally Open)

Delayed Outputs: 2 NO (0.5 to 30 seconds delay)

Signaling/Safety Circuits: 1 NC

Terminal Type: Screw terminals

Safety Integrity: Up to SIL 3, PL e

Make An Offer
