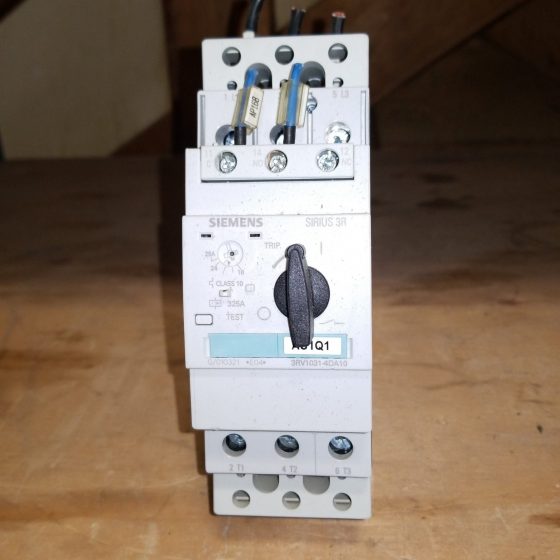

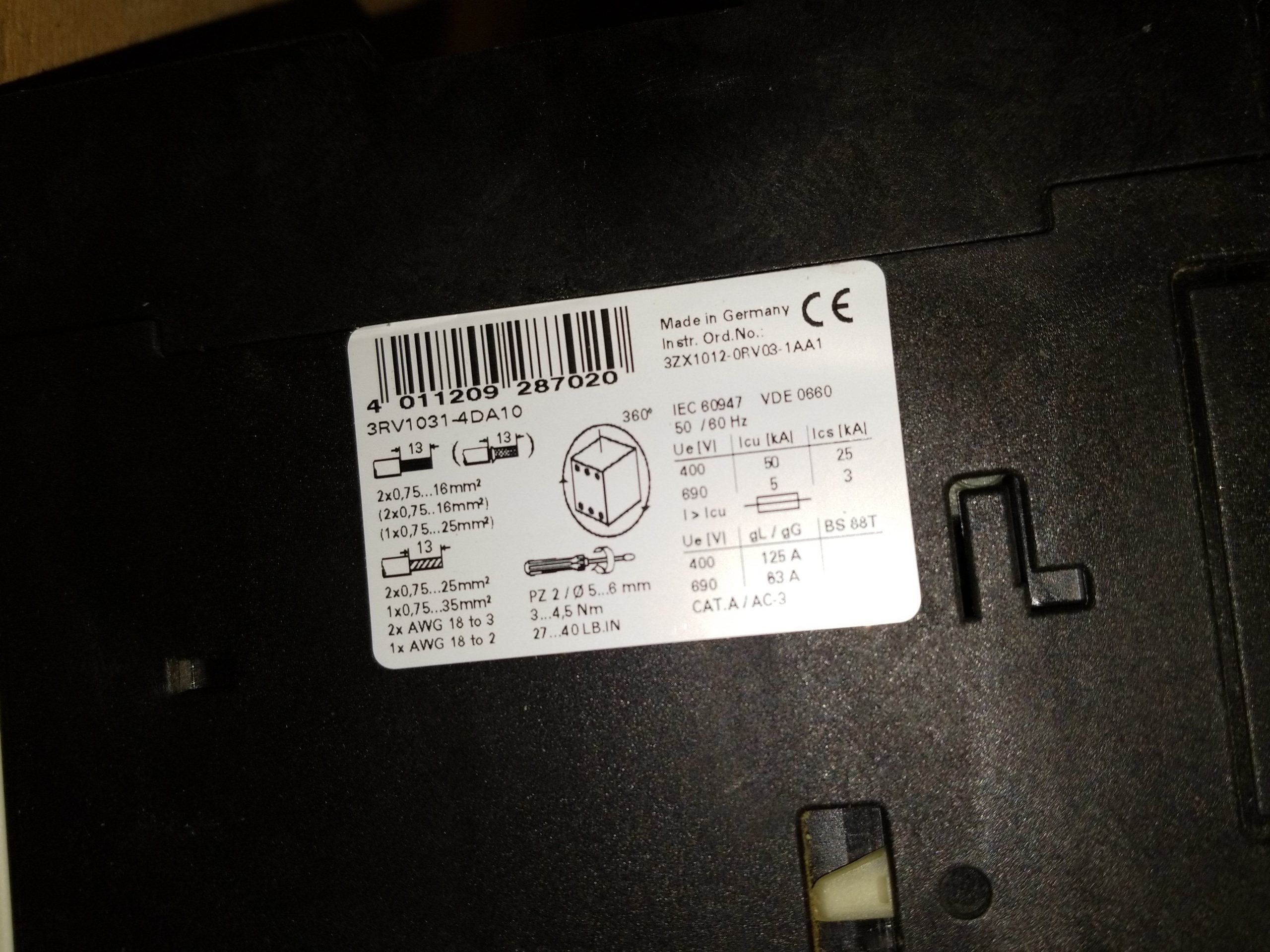

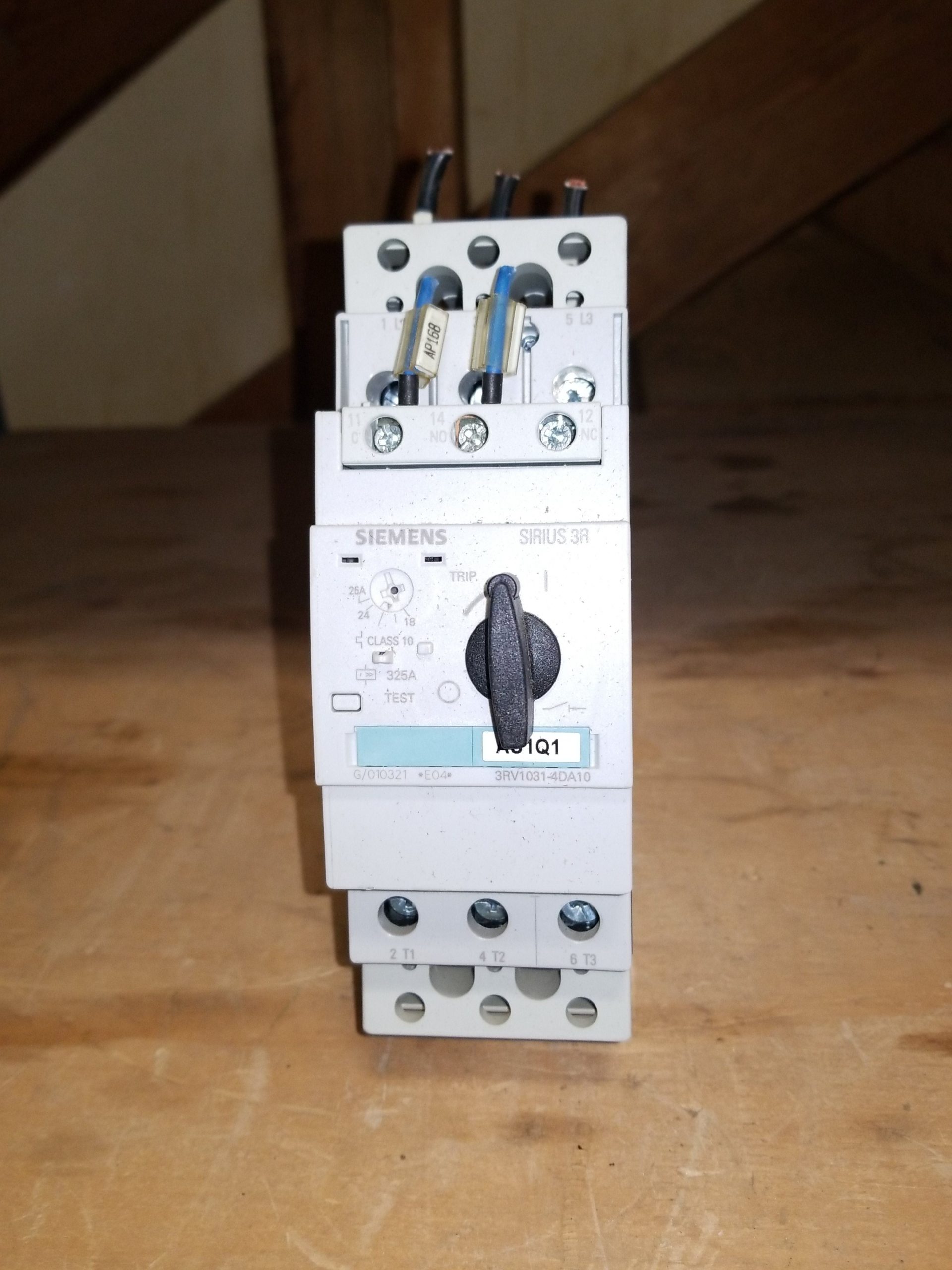

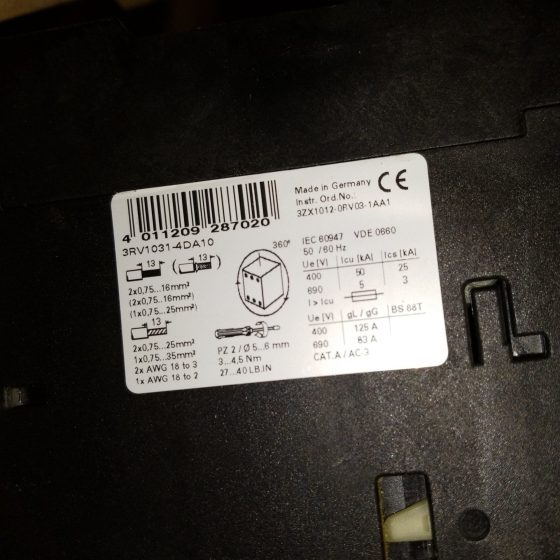

Siemens motor controller 3RV1031-4Da10

Specifications:

• The Siemens 3RV1031-4DA10 is a 3-pole size S2 manual motor protector designed for motor overload and short-circuit protection with a current setting range of 18 to 25 amps.
  • Manufacturer: Siemens
  • Series: SIRIUS 3R
  • Number of Poles: 3
  • Frame Size: S2
  • Trip Class: Class 10
  • Current Adjustment Range: 18 A to 25 A
  • Short-Circuit Release: 325 A
  • Max Operating Voltage: 690 V AC
  • Terminal Type: Screw terminal
  • Protection Class: IP20 [1, 2]
  Three-Phase Horsepower Ratings
  • 200 to 208 V: 7.5 HP
  • 230 V: 10 HP
  • 460 V: 20 HP
  • 575 V: 25 HP [1]
