Specifications:

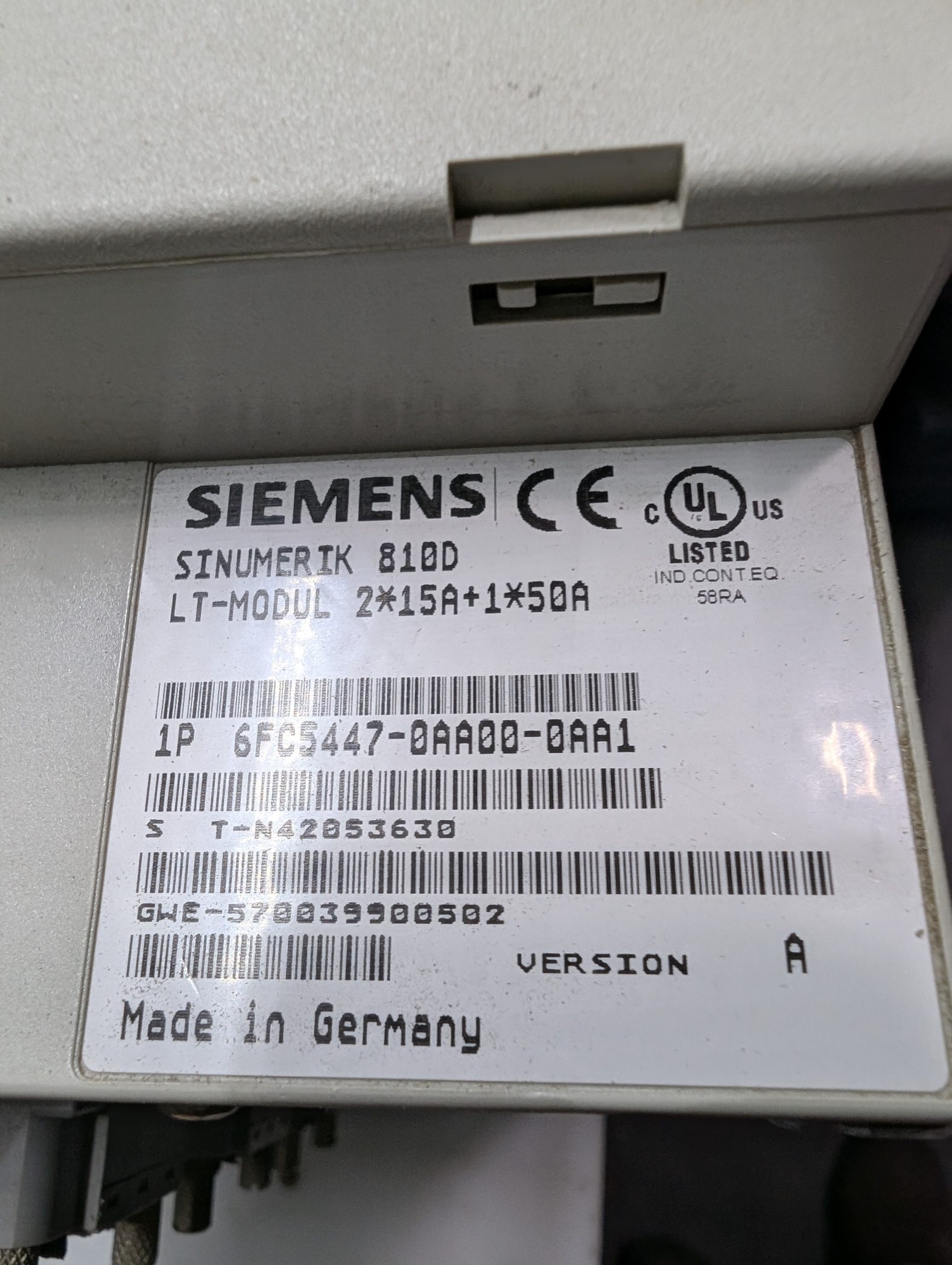

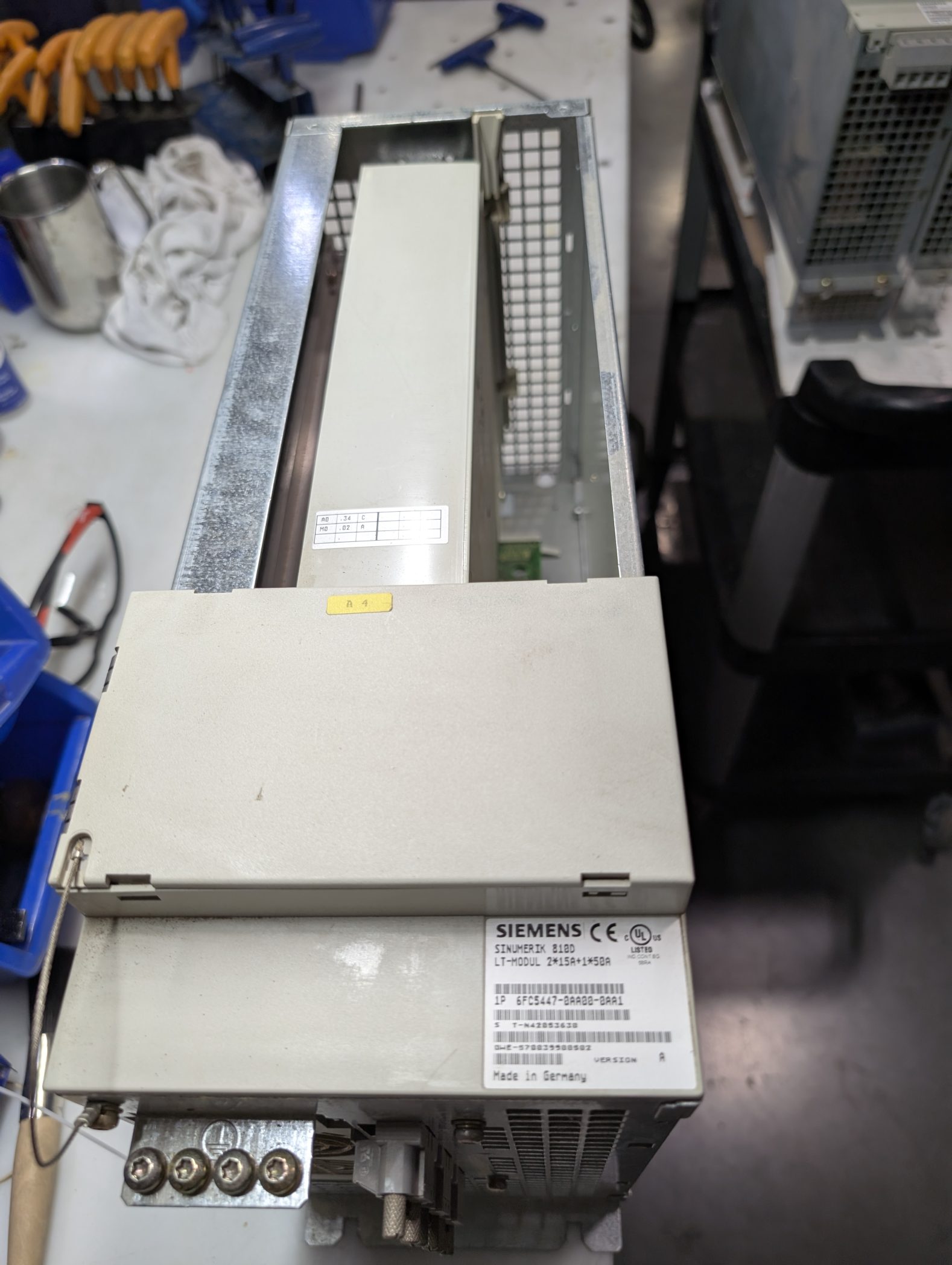

The Siemens Sinumerik 810D Power Section / CCU Housing Module (Part No. 6FC5447-0AA00-0AA0 or updated variant -0AA01 / -0AA1) is an integrated drive and control chassis for CNC machinery. It features 3 built-in power circuits combining two smaller feed-drive channels and a high-current channel for either heavy feed axes or a main spindle.
Core Technical Specifications
- Manufacturer: Siemens [1]
- Product Family: SINUMERIK 810D / SIMODRIVE-based internal power section
- MLFB Part Numbers:
6FC5447-0AA00-0AA0, 6FC5447-0AA00-0AA1
- Integrated Power Circuits:
- 2 Channels: Rated for feed drives
- 1 Channel: Rated for heavy feed drive or main spindle operation
- Module Weight: Approx. 10.5 kg (23 lbs)
- Cooling: Internal chassis cooling configurations depending on exact backplane setup
