Specifications:

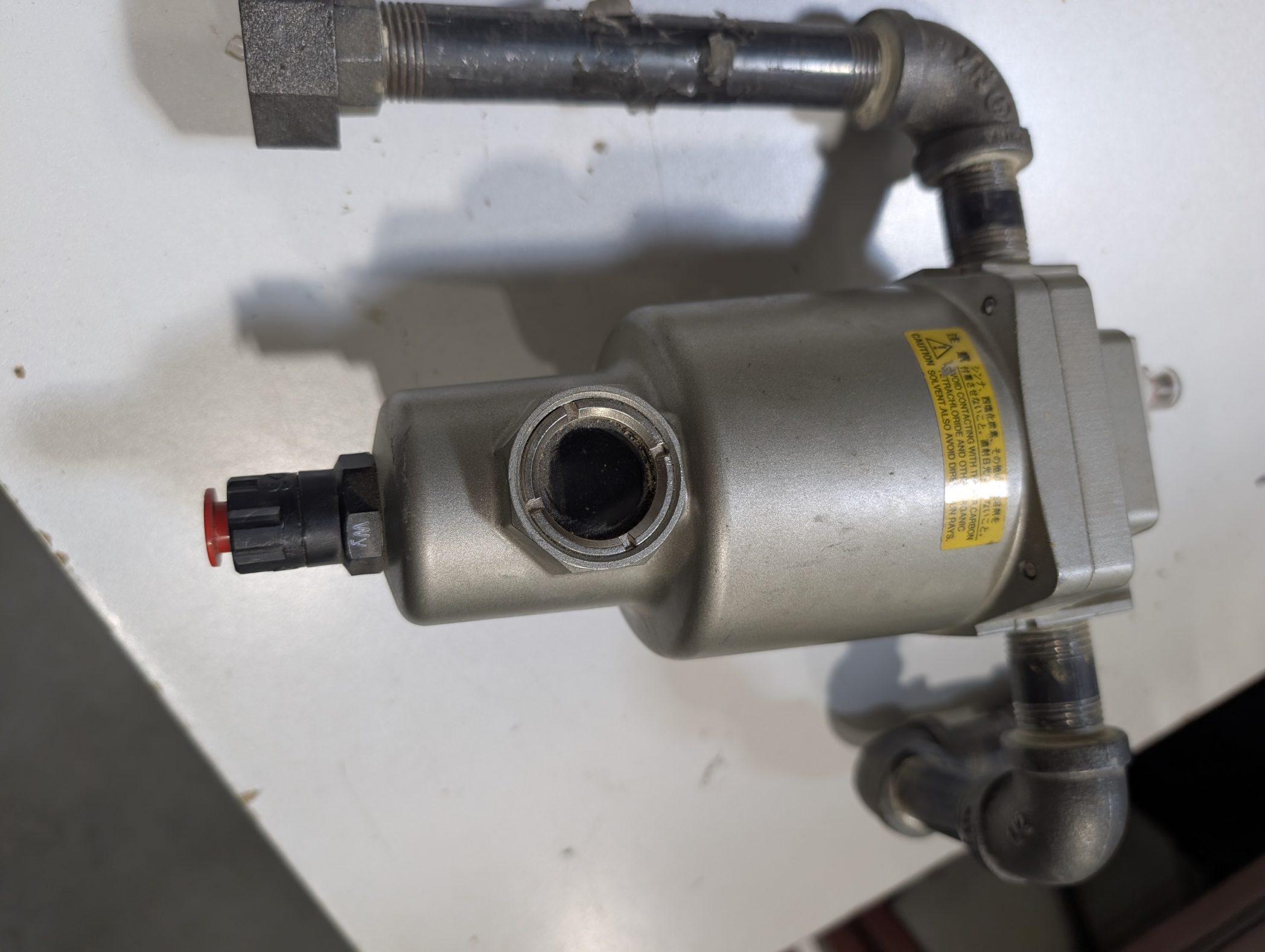

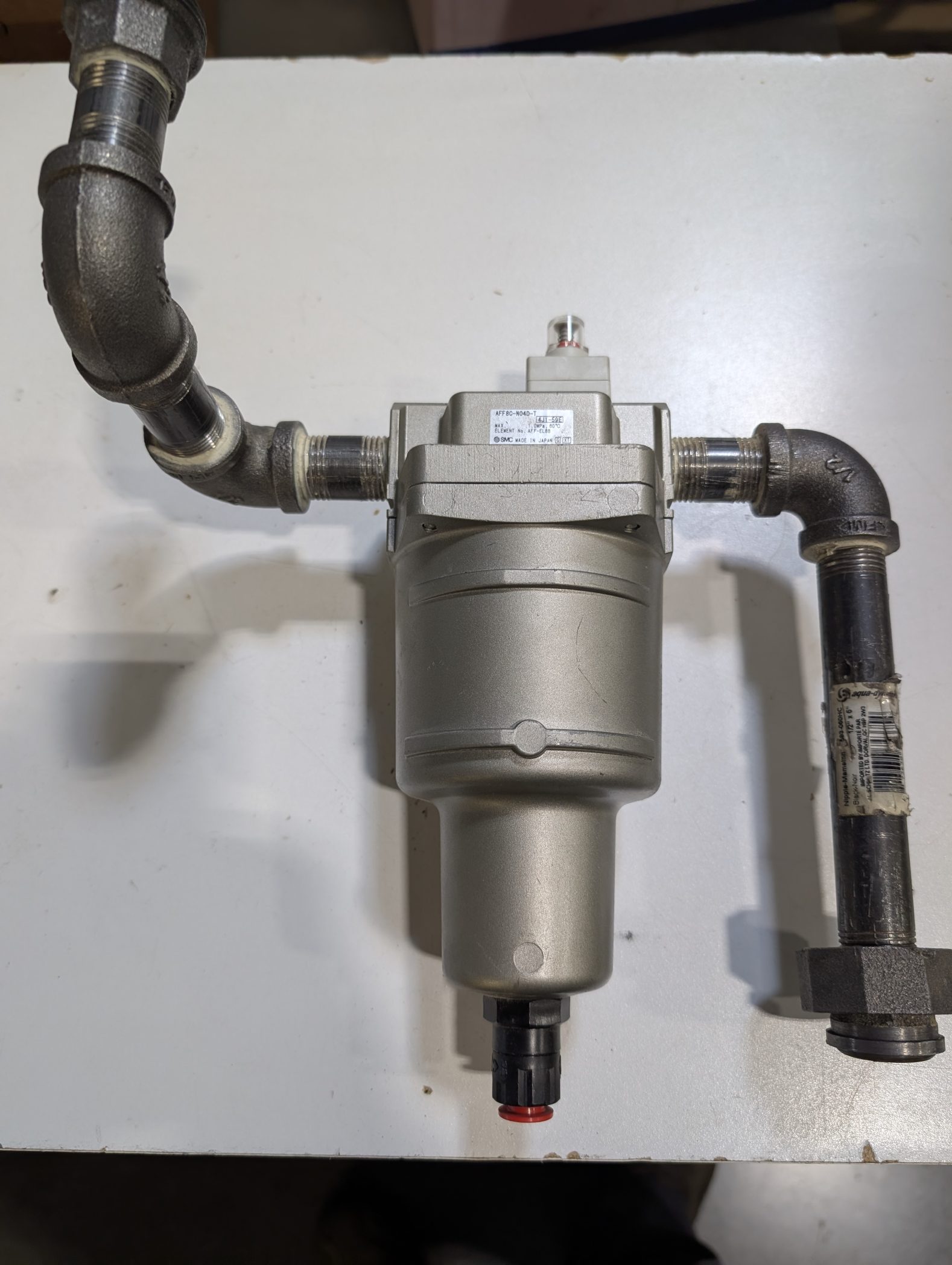

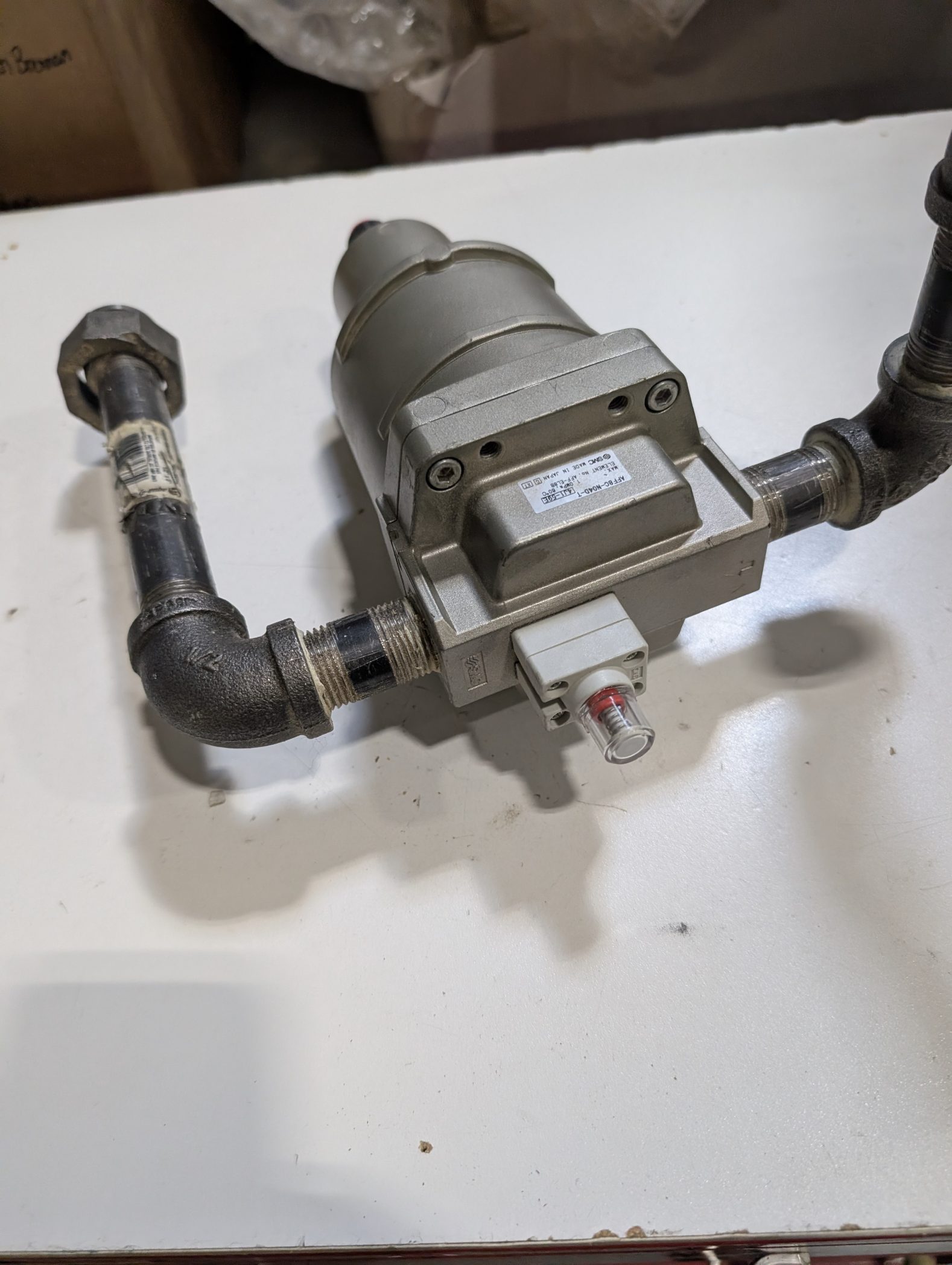

The SMC AFF8C-N04D-T is a 1/2″ NPT main line compressed air filter with a 53 SCFM capacity and a normally open automatic drain.

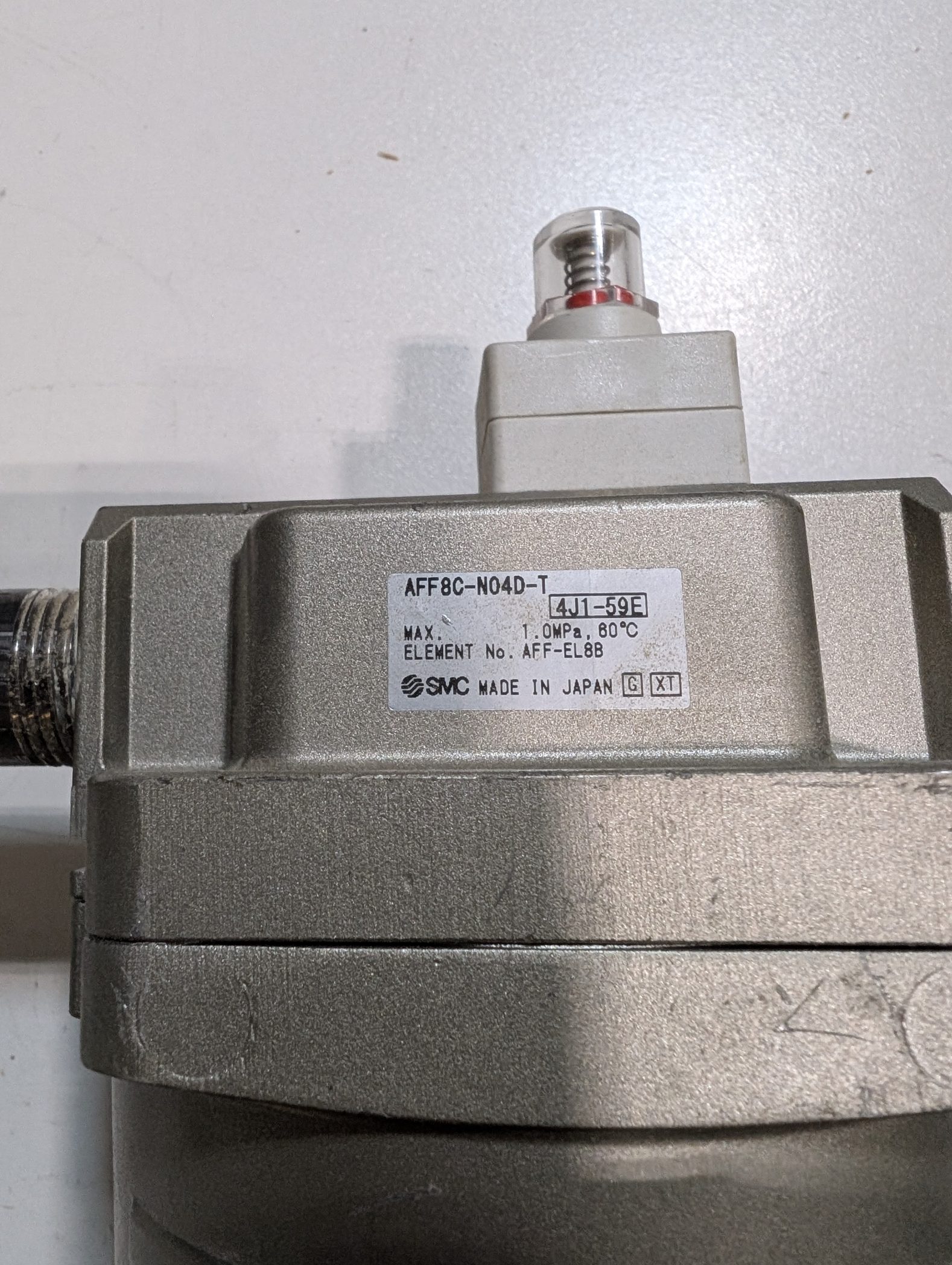

- Brand & Model: SMC Corporation AFF8C-N04D-T
- Filter Type: Main line coarse filter / water separator (3-micron rating)
- Port Size: 1/2″ NPT female threads
- Air Flow Capacity: 53 SCFM (1,500 L/min), recommended for up to a 10 HP (7.5 kW) compressor
- Drain Type: Automatic, Normally Open (N.O.)
- Max Operating Pressure: 145 psi (1.0 MPa)
- Features: Includes a service indicator to monitor element condition and a robust metal bowl structure
