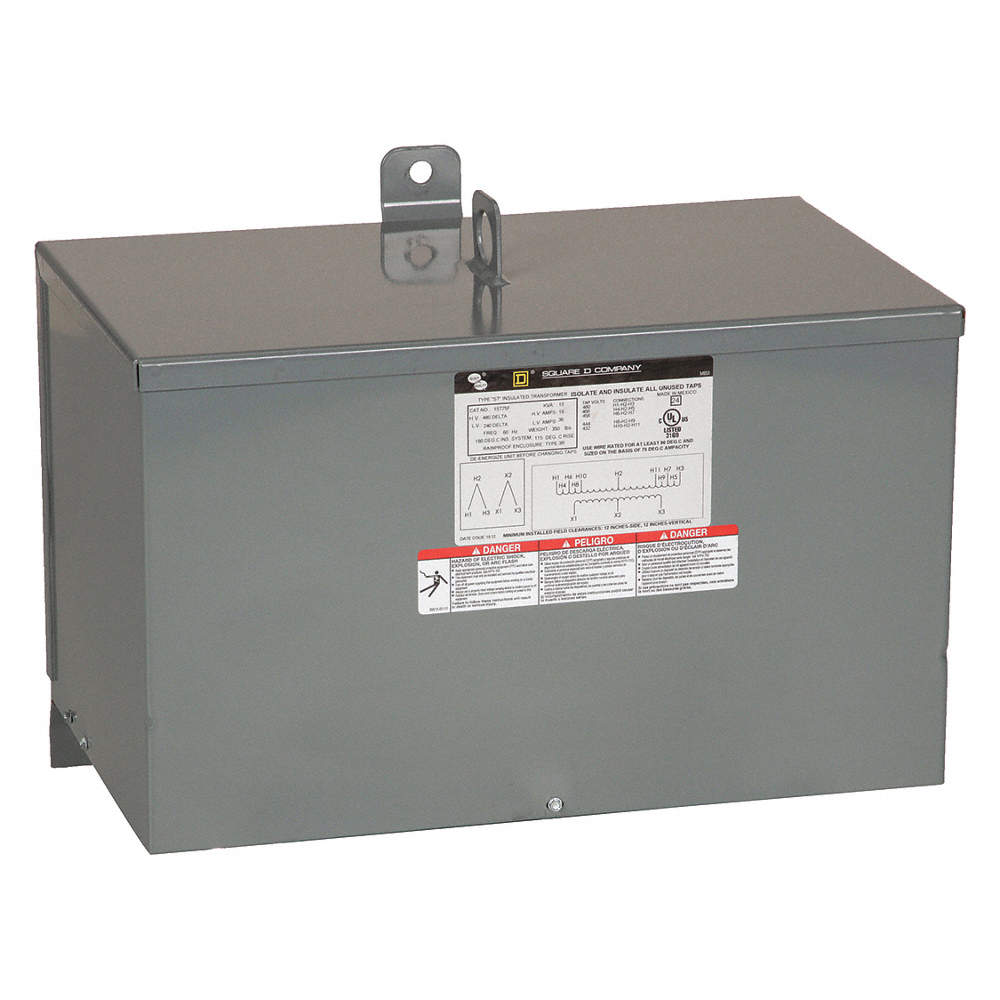

The Schneider Electric Square D 6T5F Dry-Type Transformer is a 6 kVA, 3-phase step-down unit. It features a 480V Delta primary voltage, a 240V Delta secondary voltage, copper windings, and a wall-mountable NEMA 3R enclosure.
Catalog Number: Square D 6T5F
Power Rating: 6 kVA (3-phase, 60 Hz)
Primary Voltage: 480V AC Delta
Secondary Voltage: 240V AC Delta
Winding Material: Copper
Enclosure: NEMA 3R (Indoor/Outdoor rated, IP54)
Dimensions: 14.75 in (W) x 9 in (D) x 13.5 in (H)
Temperature Rise: 115 °C (180 °C insulation class)
