    SKU: 108-171 CAD $385.00

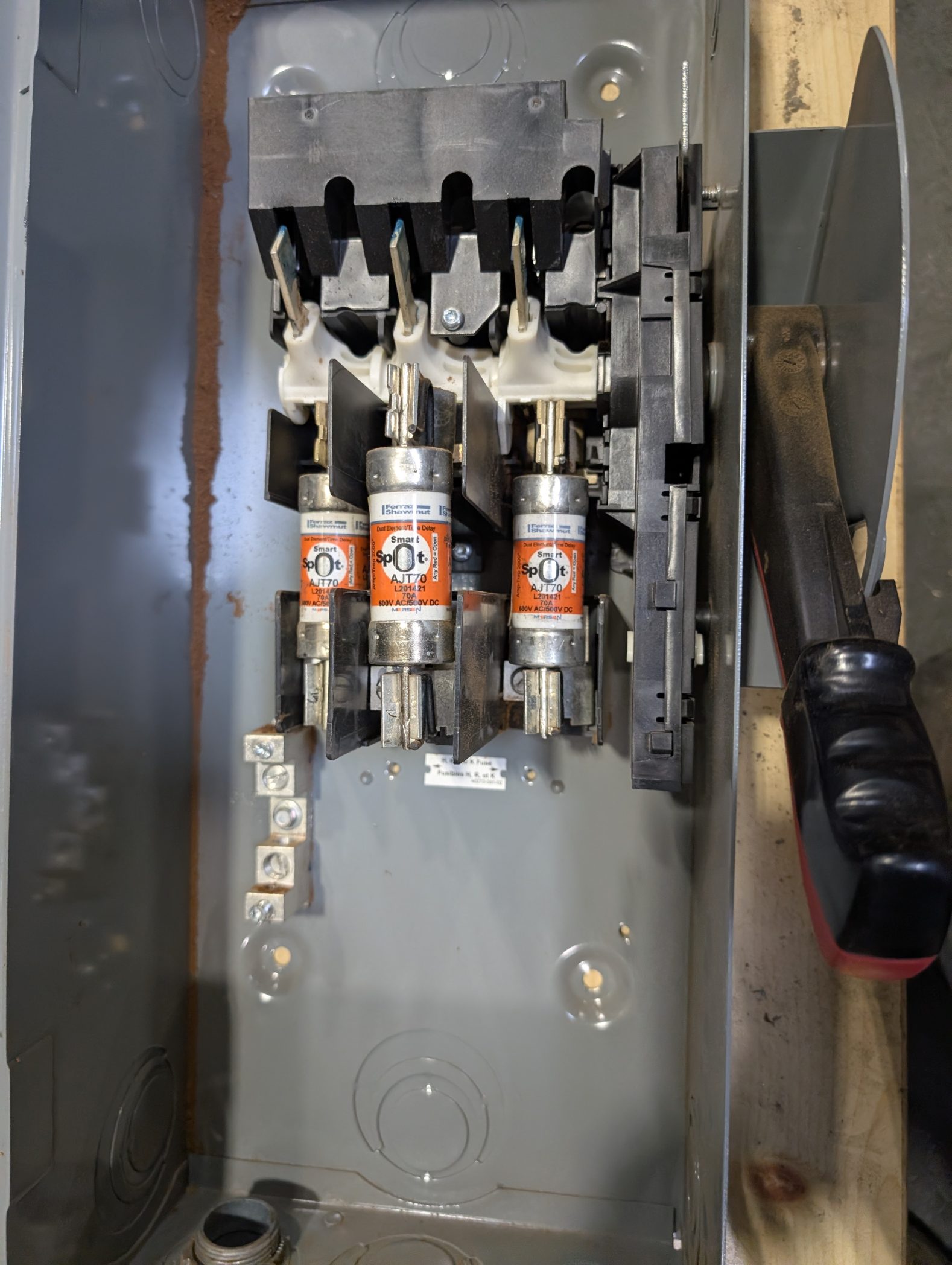

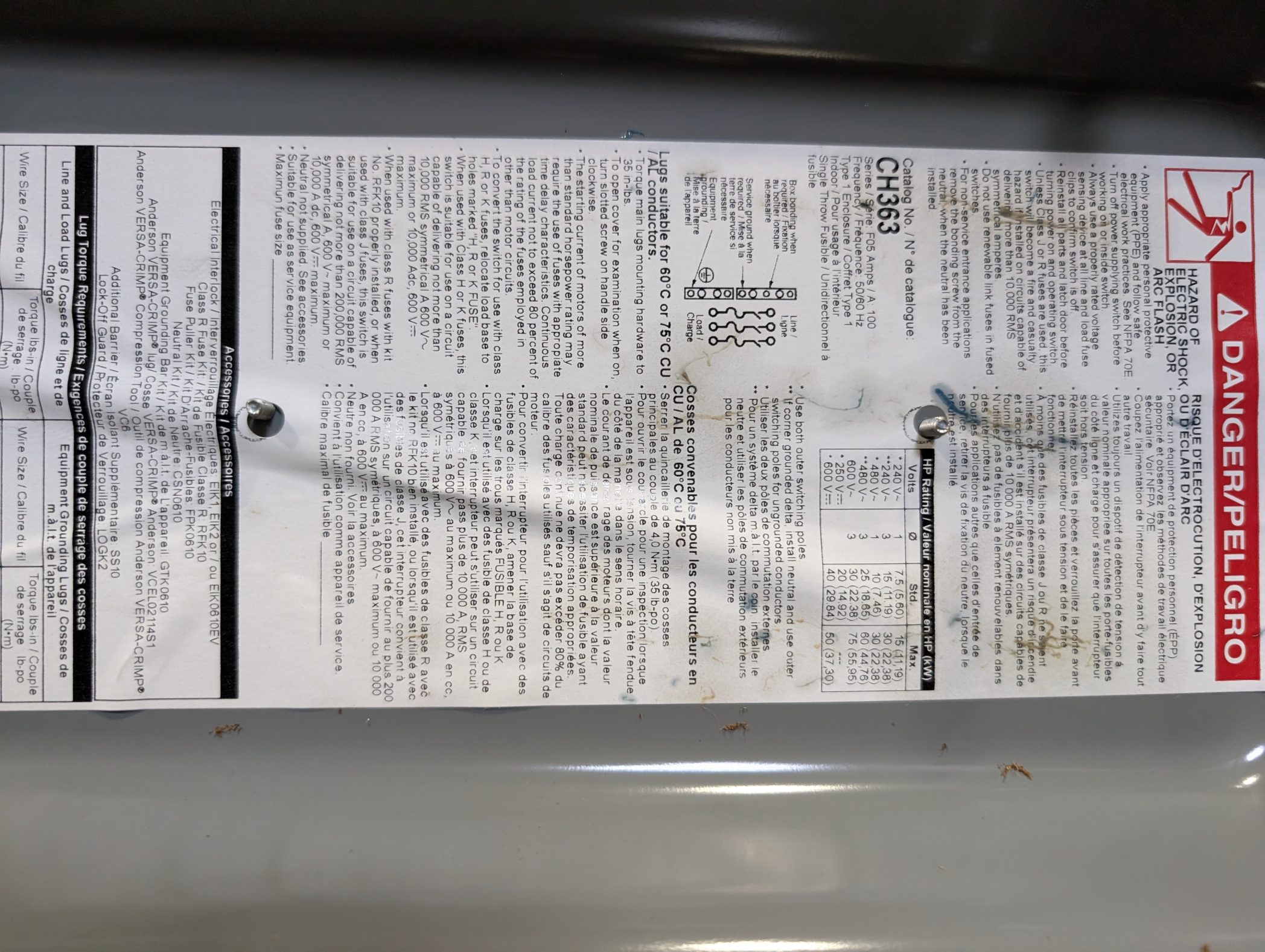

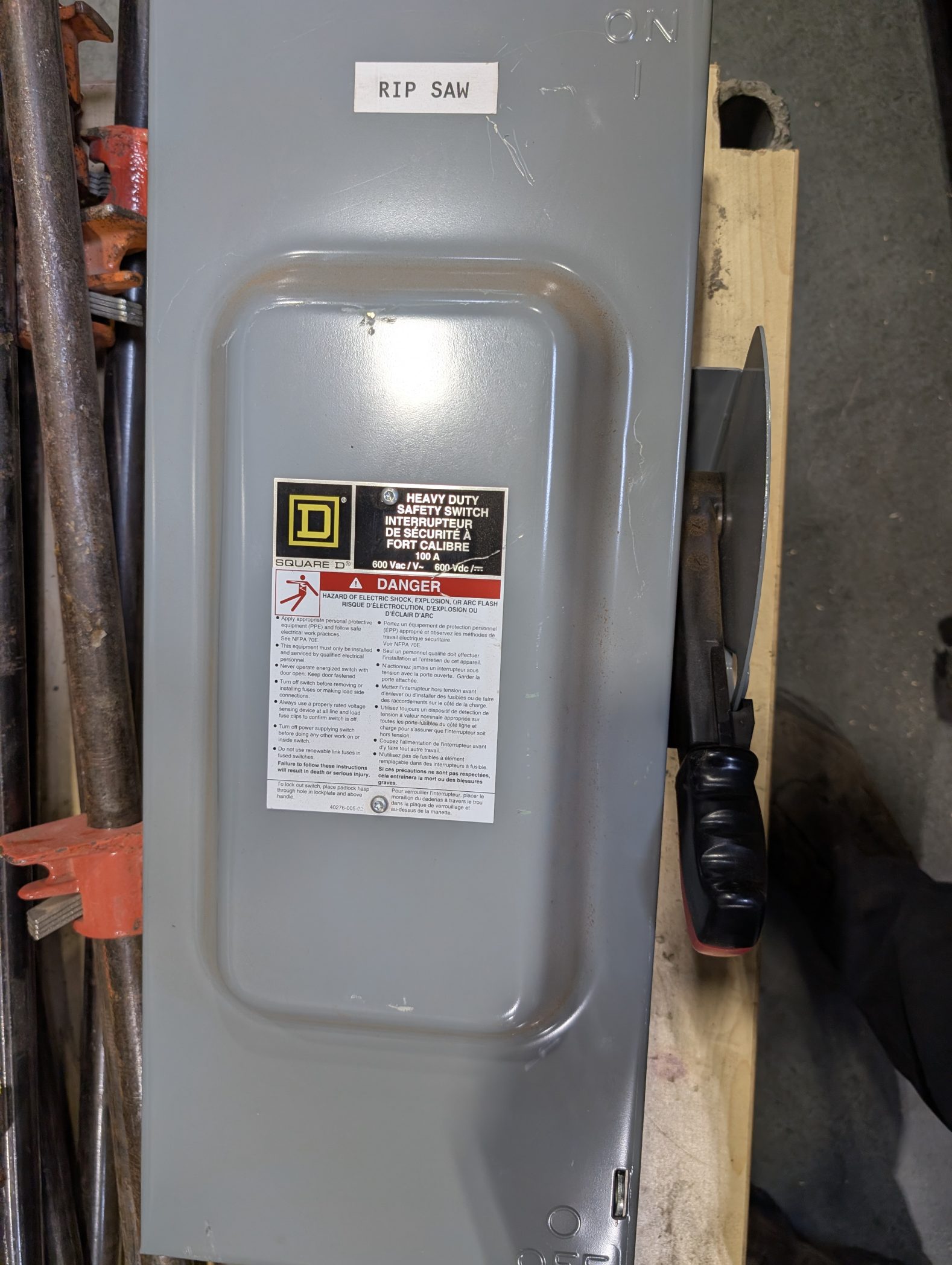

    Square D CH363 HD Safety Switch 100A

    Used Square D CH363 HD Safety Switch 100A
    Used Square D CH363 HD Safety Switch 100A Used Square D CH363 HD Safety Switch 100A Used Square D CH363 HD Safety Switch 100A

    Specifications:

    The Square D CH363 is a 100-amp, 3-pole heavy-duty fusible safety switch rated for up to 600 VAC/VDC.

    • Catalog Number: CH363

    • Current Rating: 100 Amps

    • Voltage Rating: 600 VAC / 600 VDC

    • Number of Poles: 3 Poles (3-wire design, no neutral installed by default)

    • Horsepower Rating: 75 HP

    • Enclosure Type: NEMA 1 (General purpose, indoor steel enclosure)

    • Fuse Provision: Fusible

    • Short Circuit Current Rating (SCCR): 10kA (standard with Class H/K fuses) up to 200kA AIC (with Class R or J fuses)

    • Dimensions: Approximately 10.5 inches wide x 6.38 inches deep x 21.25 inches high

    • Weight: Roughly 17.56 lbs (8.16 kg)

    • Certifications: UL Listed, CSA Lifecycle Status: Discontinued by the manufacturer .

    Make An Offer
