Specifications:

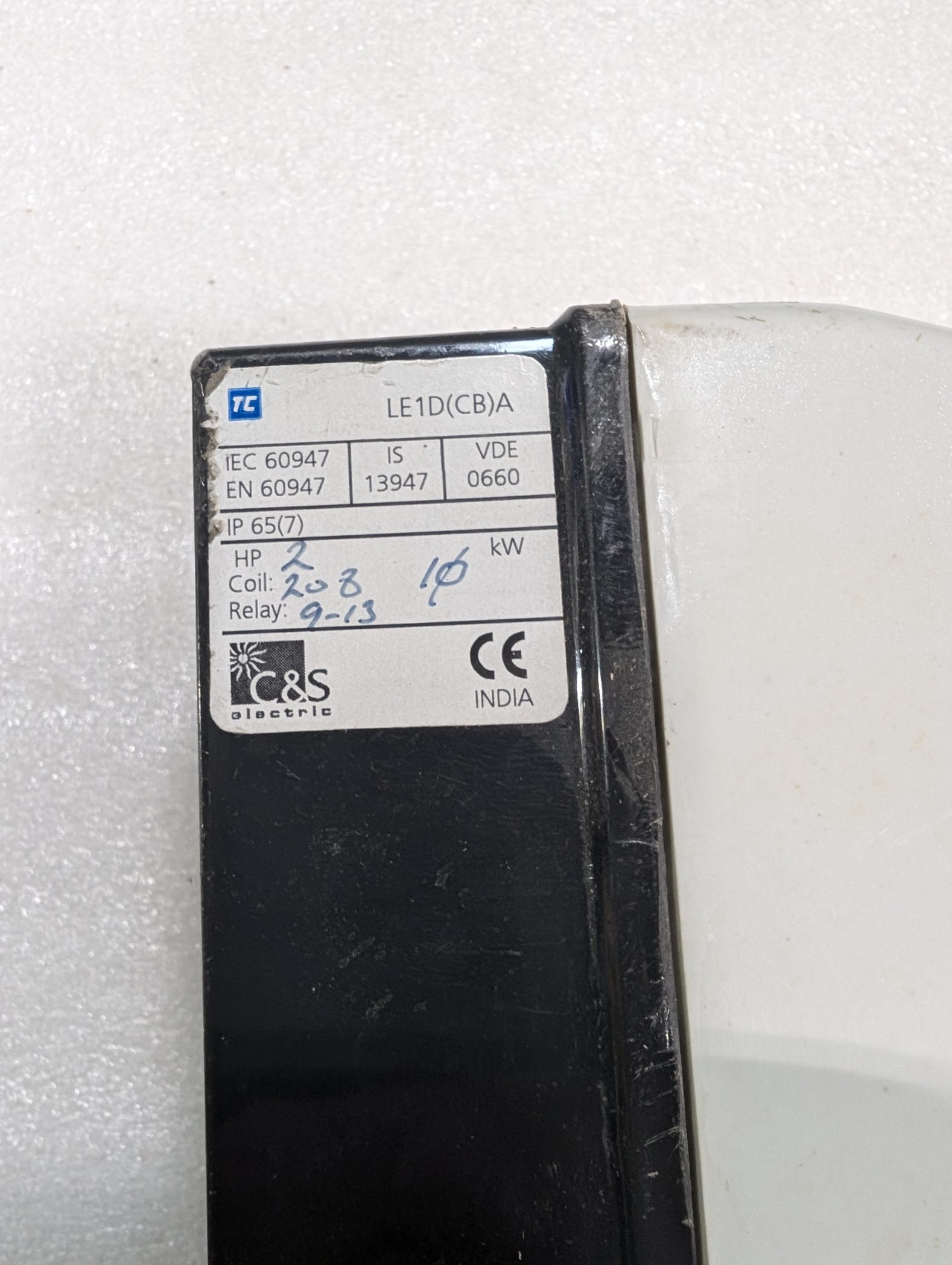

The TC (Telemecanique / Schneider Electric standard compatibility) Motor Starter Switch Box LE1D(CB)A is a generic or aftermarket Direct-On-Line (DOL) magnetic motor starter enclosed combination unit. The code “LE1D(CB)A” or LE1D…A commonly denotes an enclosed DOL starter configuration utilizing a built-in LC1D series contactor, designed for reliable standard and heavy-duty motor control.
- Starter Type: Direct-On-Line (DOL), non-reversing.

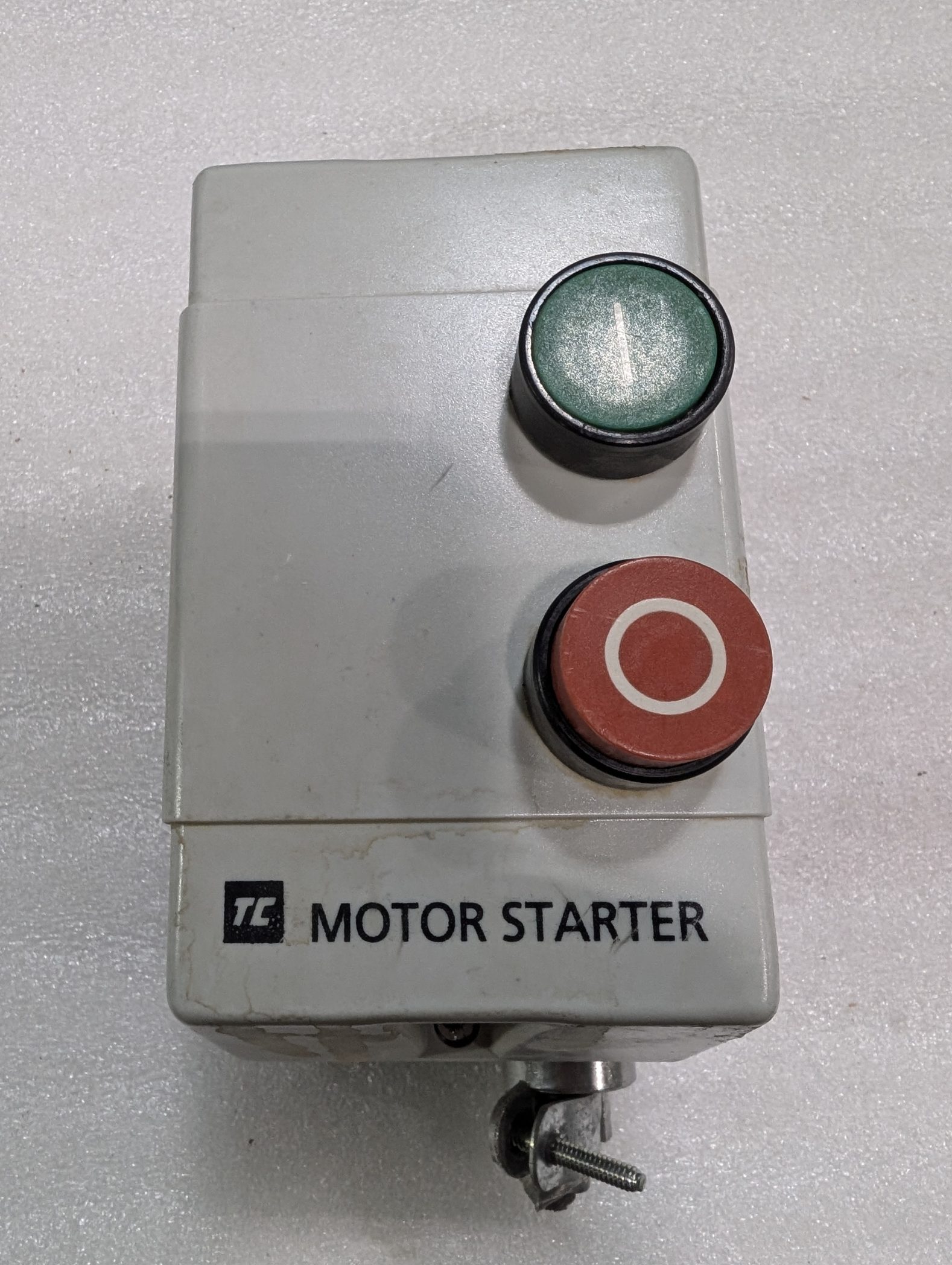

- Control Functionality: Standard ON/OFF manual pushbuttons on the cover (Green “I” for Start / Red “O” for Stop and Thermal Overload Reset).
- Operating Voltage Rating (\(U_{e}\)): Typically operational up to 690V AC (widely deployed in 220V, 380V, 400V, and 415V 3-phase applications).
- Electrical Life: Highly durable, rated for 2 million+ electrical operations.
- Frequency: 50/60 Hz compatible.
- Poles: 3-Pole main power circuit
