Telemecanique GV2-M06 Motor Circuit Breaker Control With GV2-AN11 Aux. Switch
SKU: 120-120
CAD $
104.53
Telemecanique GV2-M06 Motor Circuit Breaker Control With GV2-AN11 Aux. Switch
Add to cart
Contact Us
Description
Ship Estimate
Specifications:
The

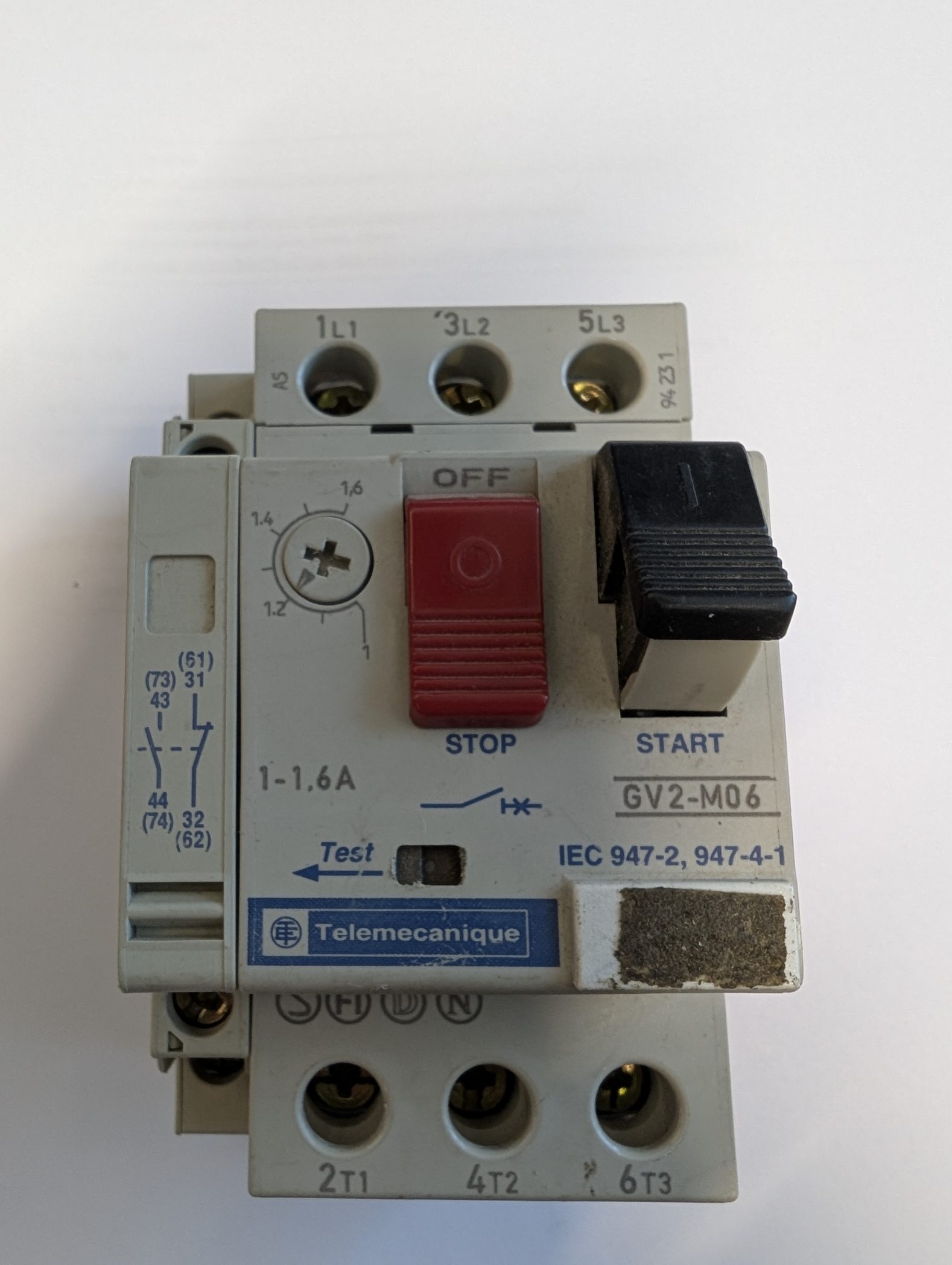

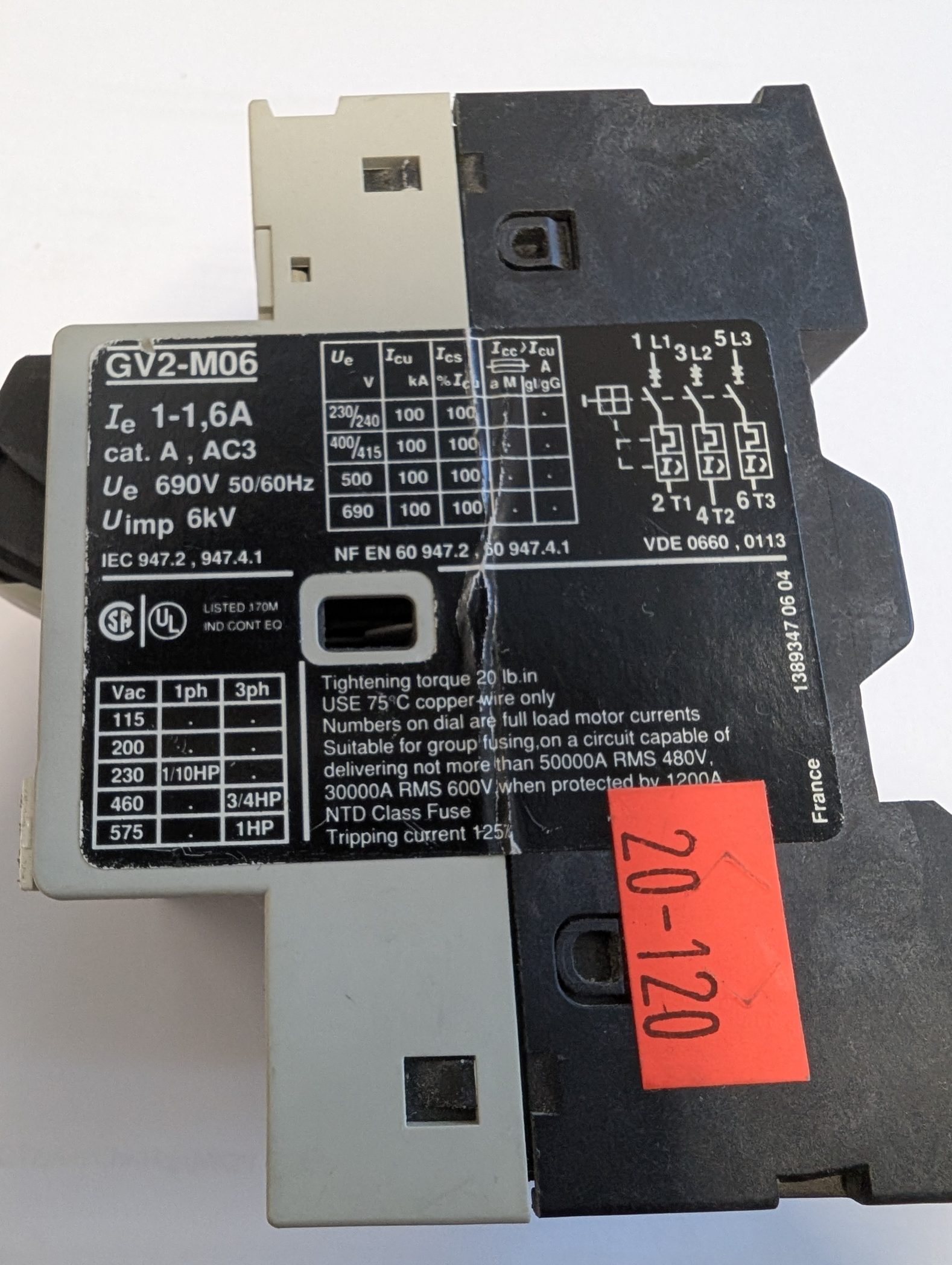

Schneider Electric / Telemecanique GV2-M06 motor circuit breaker
paired with the
GV2-AN11 auxiliary contact
is a 3-pole thermal-magnetic manual motor starter rated for 1 to 1.6A and up to 690V AC
.
Poles:
3-Pole (3P)
Current Adjustment Range:
1 to 1.6 Amps
Rated Operational Voltage:
Up to 690 V AC (50/60 Hz)
Trip Technology:
Thermal-magnetic (provides overload and short-circuit protection)
Control Type:
Pushbutton (“1” and “0” operation, lockable in “0”)
Mounting:
35 mm DIN rail or panel mount
Approximate Dimensions:
90 x 45 x 77 mm

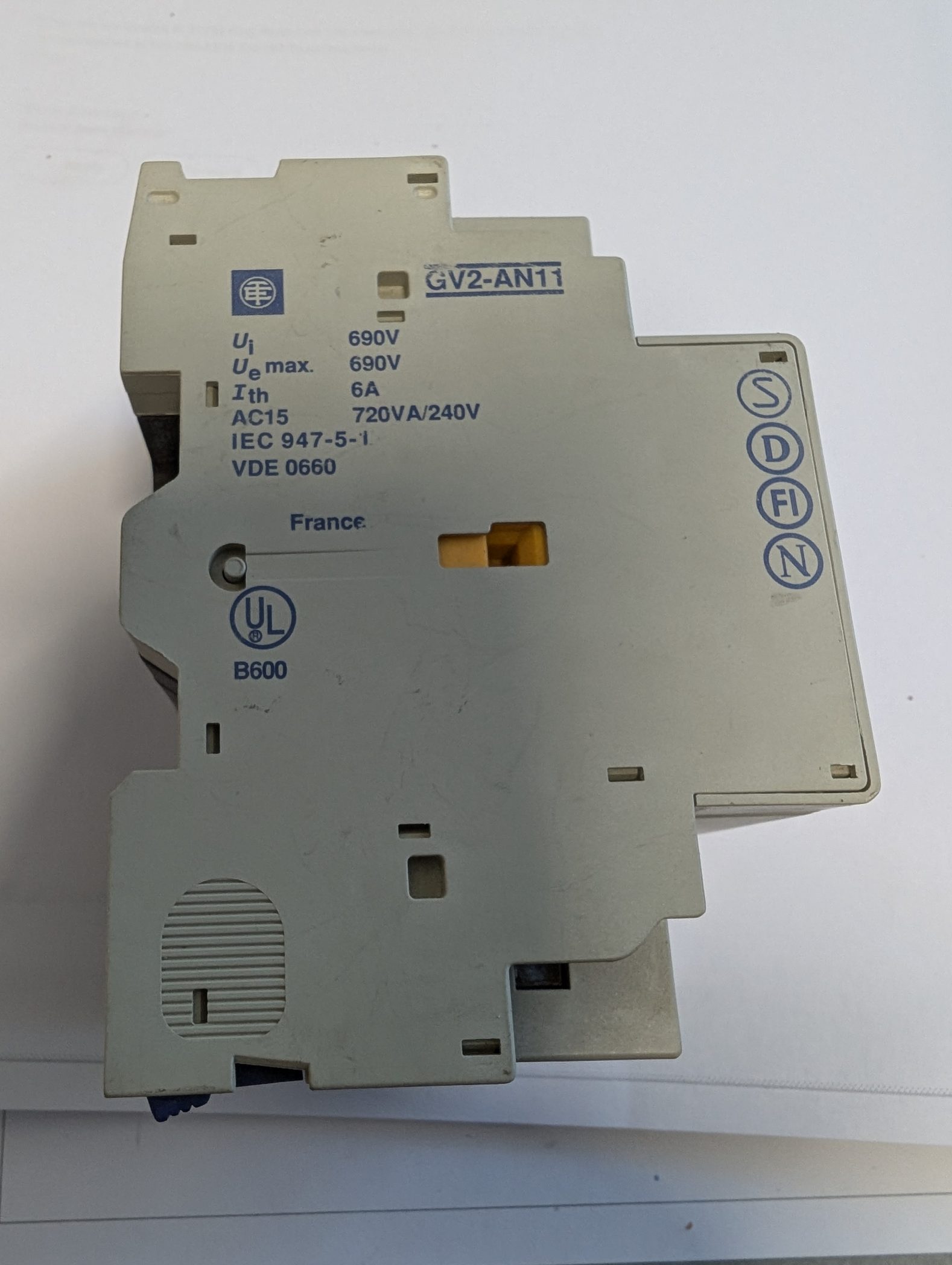

GV2-AN11 Auxiliary Contact Specs
Mounting Type:
Side mount
Contact Configuration:
1 N.O. / 1 N.C. (Normal Open / Normal Closed)
Contact Rating:
5 Amps, up to 600V AC
