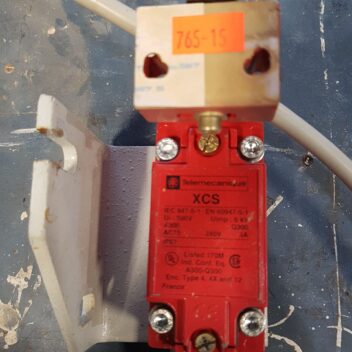

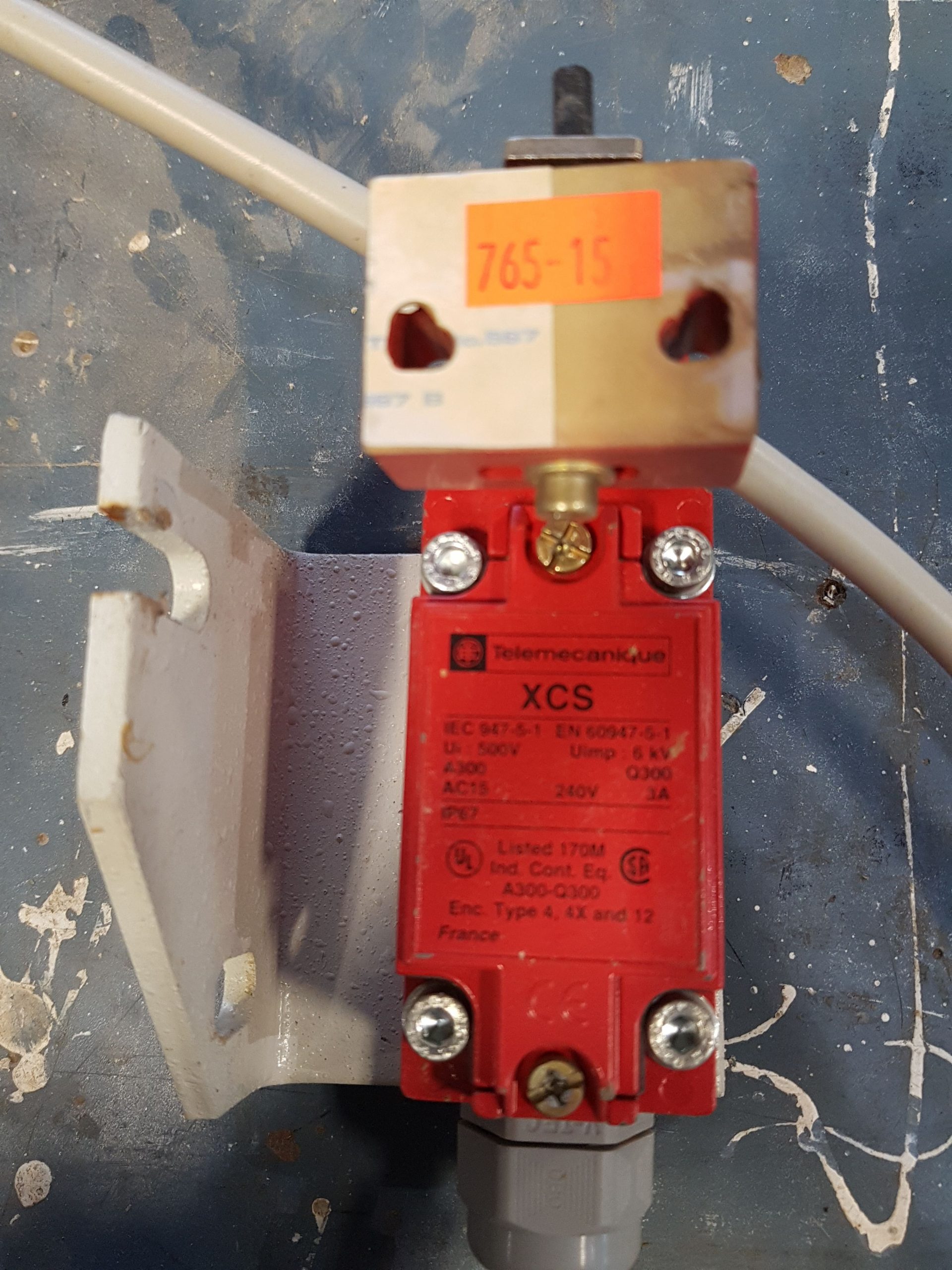

Telemecanique XCS-A501 Key Operated Safety Switch

Specifications:

• The Telemecanique XCSA501 is an industrial-grade key-operated safety interlock switch designed for monitoring guard doors.
  • Product Series: Preventa XCS (XCSA)
  • Body Material: Zamak (robust metal alloy)
  • Head Type: Key-operated turret head (rotatable in 90° steps, 8 key entry positions)
  • Dimensions: 114 mm x 44 mm x 40 mm (4.49″ H x 1.73″ D x 1.57″ W)
  • Weight: 0.47 kg
  • Protection Rating: IP67 (watertight, dust-tight)
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Mechanical Durability: Up to 1,000,000 cycles
  • Actuation Force / Speed: Minimum 20 N for positive opening; max speed 0.5 m/s
