Specifications:

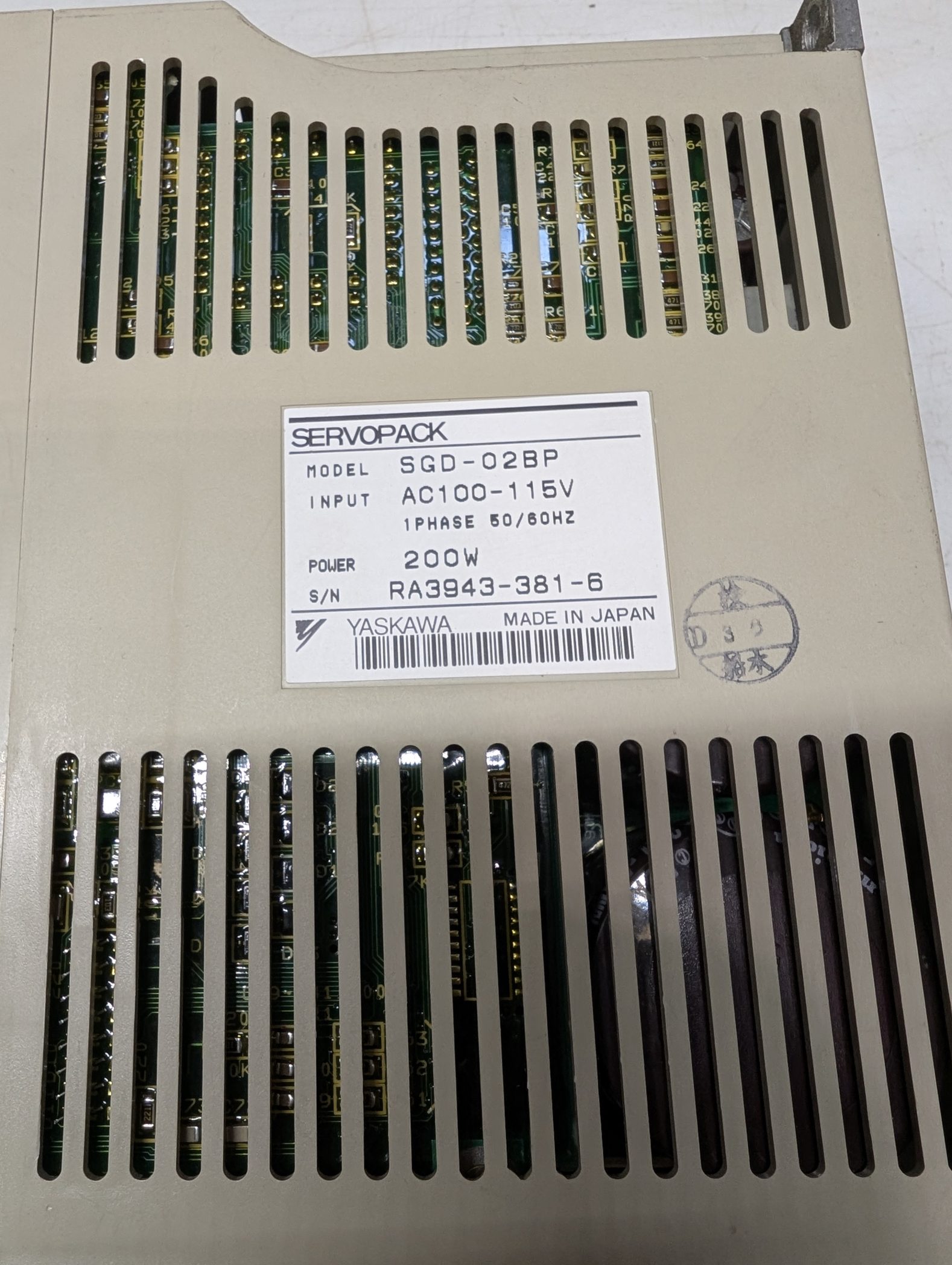

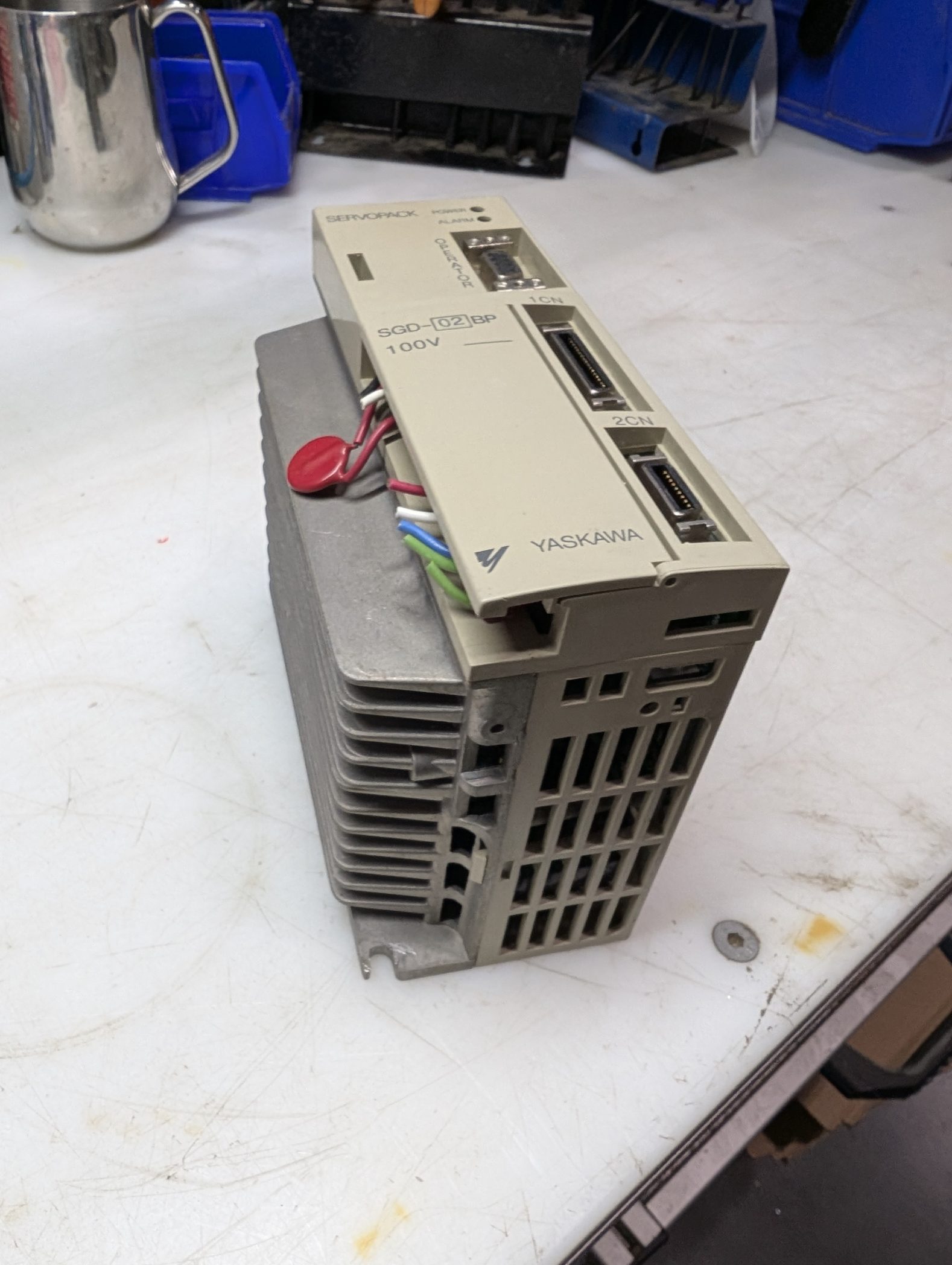

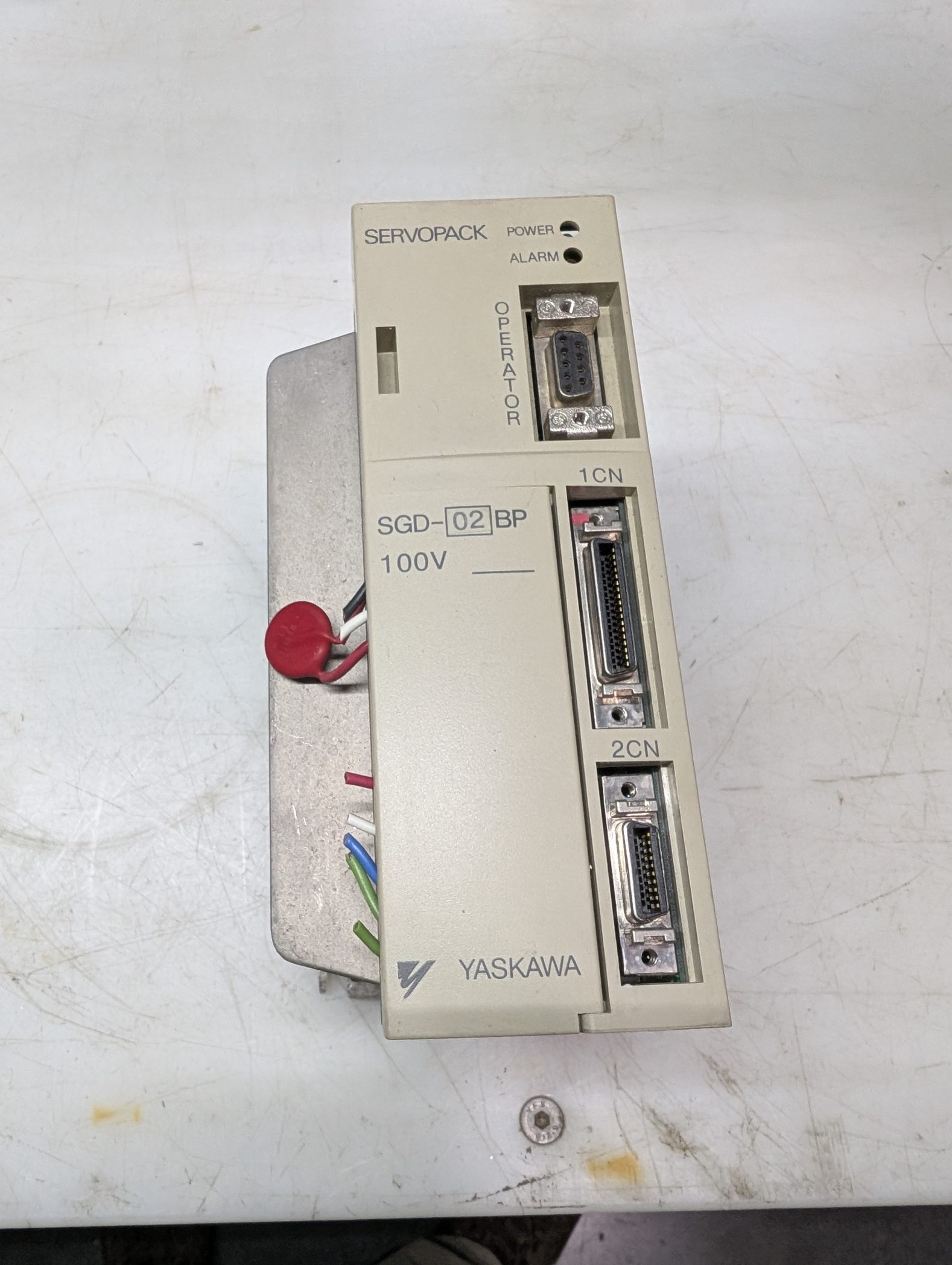

The Yaskawa SGD-02BP is an older, compact AC servo amplifier (Servopack) from Yaskawa’s classic Sigma series. It runs on a 100-115V single-phase power supply, drives 200W servo motors, and handles an input current of 8.0 amps.
Core Technical Specifications.
- Brand/Series: Yaskawa Sigma Series Servopack
- Motor Capacity: 200W (0.27 HP)
- Input Power: 100–115 VAC, 50/60 Hz, single-phase, 8.0 A
- Output Power: 0–115 V max, 200W, 2.7 A
- Application: Precise industrial motion control and small robotics
