Specifications:

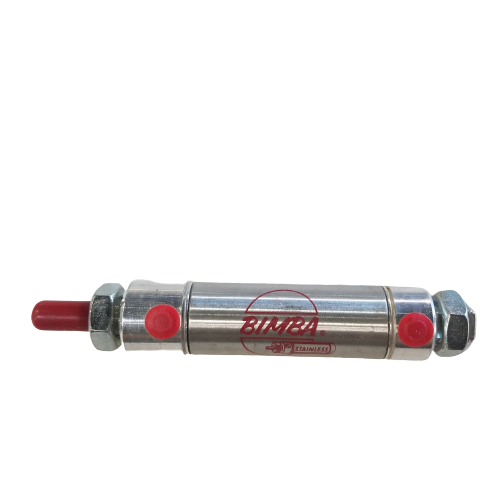

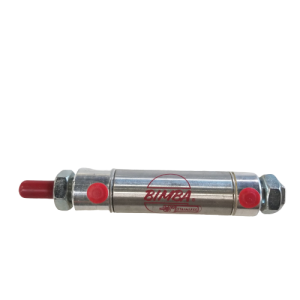

The Bimba 122-DP is a 1-1/4 inch bore, 2-inch stroke double-acting pivot (air-return) pneumatic air cylinder from the IMI Bimba Original Line.
- Brand/Series: IMI Bimba Original Line (12 Series)
- Action Type: Double-acting pivot (air-return)
- Mounting Style: Rear pivot or double end mounting
- Pneumatic Ports: 2 x 1/8″ NPT threaded ports (both ends)
- Piston Rod: Standard blackened carbon steel rod with 7/16-20 UNF-2A male threads
- Mounting Nut: 3/4-16 threaded mounting nut (both ends)
- Temperature Range: -20°F to +200°F (-28°C to +93°C)
- Lubrication: Permanent grease lubricant (no added lubrication required during service)
- Design: Non-repairable, standard round rod style
