Specifications:

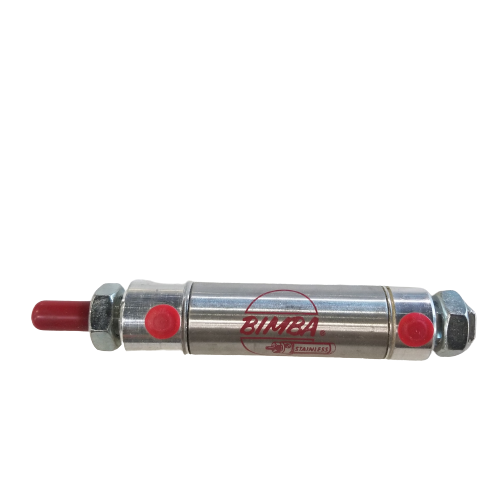

The Bimba 092-DX is a 1-1/16-inch bore, double-acting pneumatic air cylinder from the Original Line series featuring a 2-inch stroke.
- Bore Size: 1-1/16″ (1.0625″)
- Cylinder Type: Double-acting (air return / double end mount)
- Mounting Style: Universal pivot or double-end mounting
- Ports: 2 x 1/8″ NPT threaded pneumatic ports (both ends)
- Piston Rod: Stainless steel with 5/16-24 UNF-2A male threads
- Mounting Nut: 5/8-18 threaded mounting nut on ends
- Temperature Range: -20°F to 200°F (-28°C to 93°C)
- Design/Lubrication: Non-repairable with permanent grease lubricant
