    SKU: 130-374 CAD $300.00

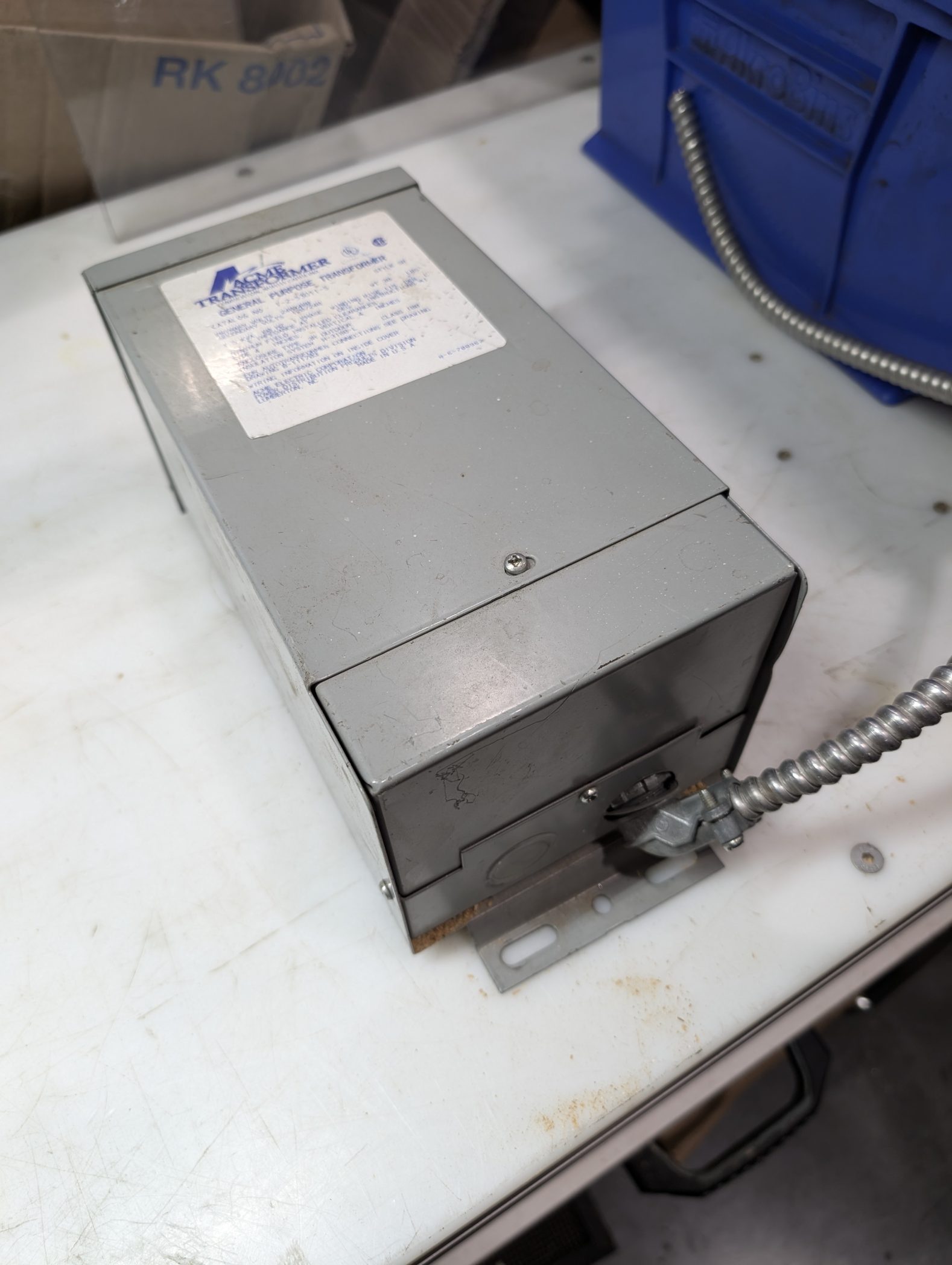

    Acme T-2-53011-S Style 1.5 KVA SR 240×280 Sec. 120-240 1-Phase Transformer

    Used Acme T-2-53011-S Style 1.5 KVA SR 240x280 Sec. 120-240 1-Phase Transformer
    Used Acme T-2-53011-S Style 1.5 KVA SR 240x280 Sec. 120-240 1-Phase Transformer Used Acme T-2-53011-S Style 1.5 KVA SR 240x280 Sec. 120-240 1-Phase Transformer

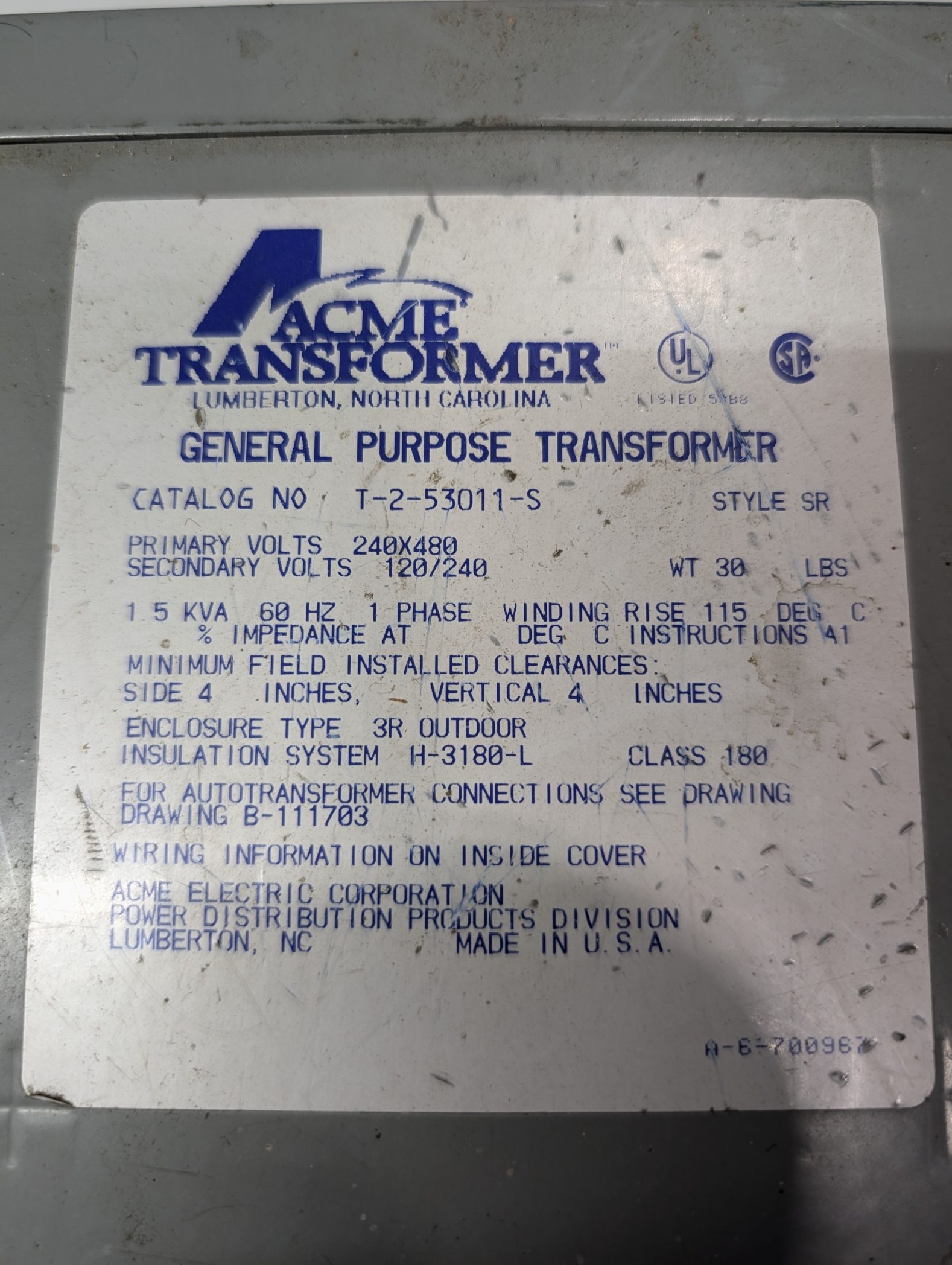

    Specifications:

    The Acme Electric T253011S (T-2-53011-S) Dry-Type Distribution Transformer is a 1.5 kVA single-phase encapsulated transformer designed for industrial and commercial step-down power applications.
    • Manufacturer / Brand: Acme Electric (Hubbell)
    • Part Number / Style: T253011S (T-2-53011-S)
    • Power Rating: 1.5 kVA (1,500 VA)
    • Number of Phases: 1-Phase
    • Frequency: 60 Hz
    • Primary Voltage (Input): 240 x 480 VAC (or 240×280 / configurable tap structure)
    • Secondary Voltage (Output): 120 / 240 VAC
    • Winding Material: Copper
    • Enclosure Type: NEMA 3R (suitable for indoor or outdoor use)
    • Mounting Type: Wall mount
    • Insulation Class: Class H (180°C insulation system)
    • Temperature Rise: 115°C
    • Dimensions: 11.62 in (H) x 5.50 in (W) x 5.13 in (D)
    • Approximate Weight: ~27.5 to 30 lbs
    • Approvals & Standards: UL 506 listed, CSA C22.2 No. 47 approved
