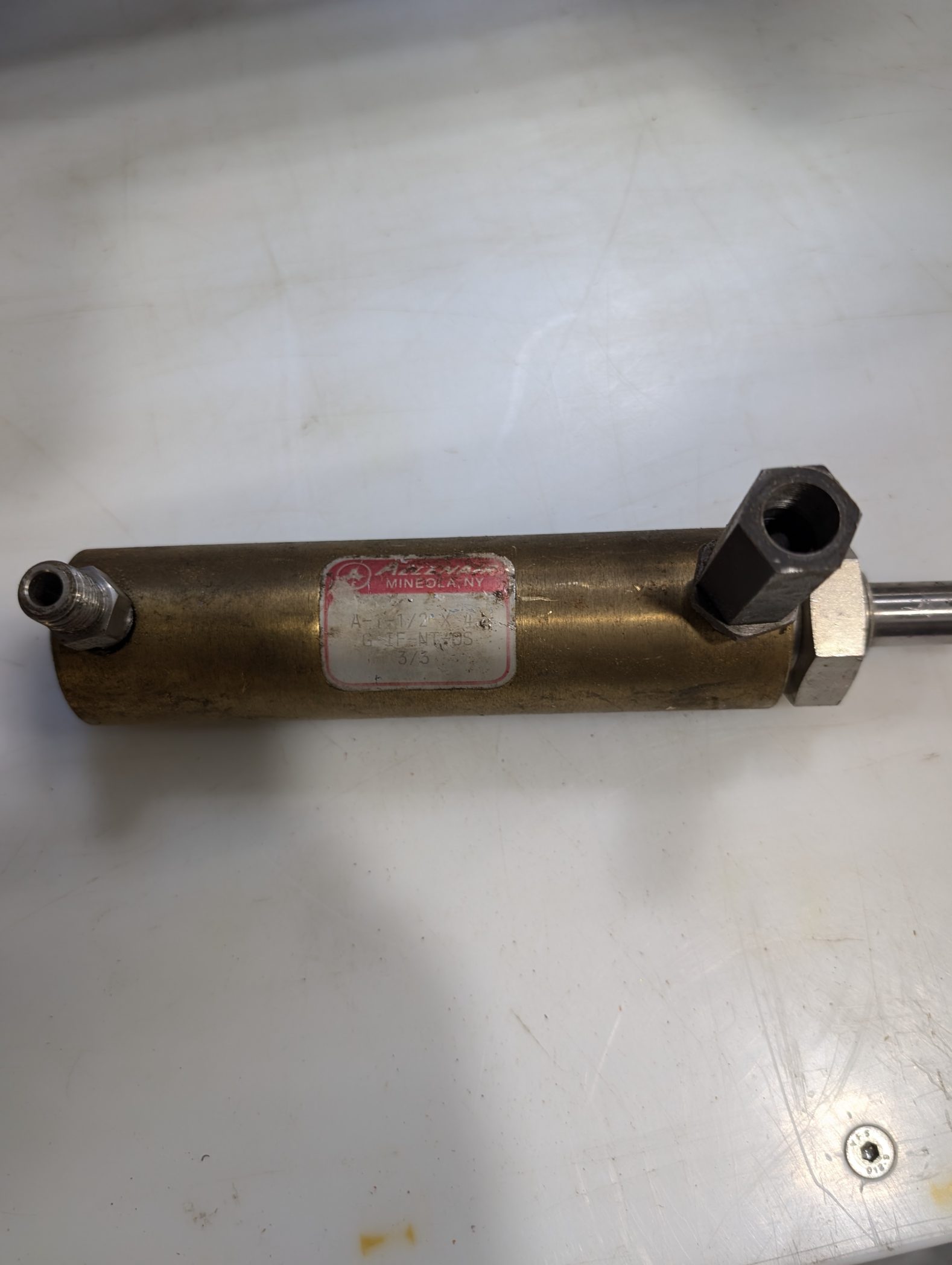

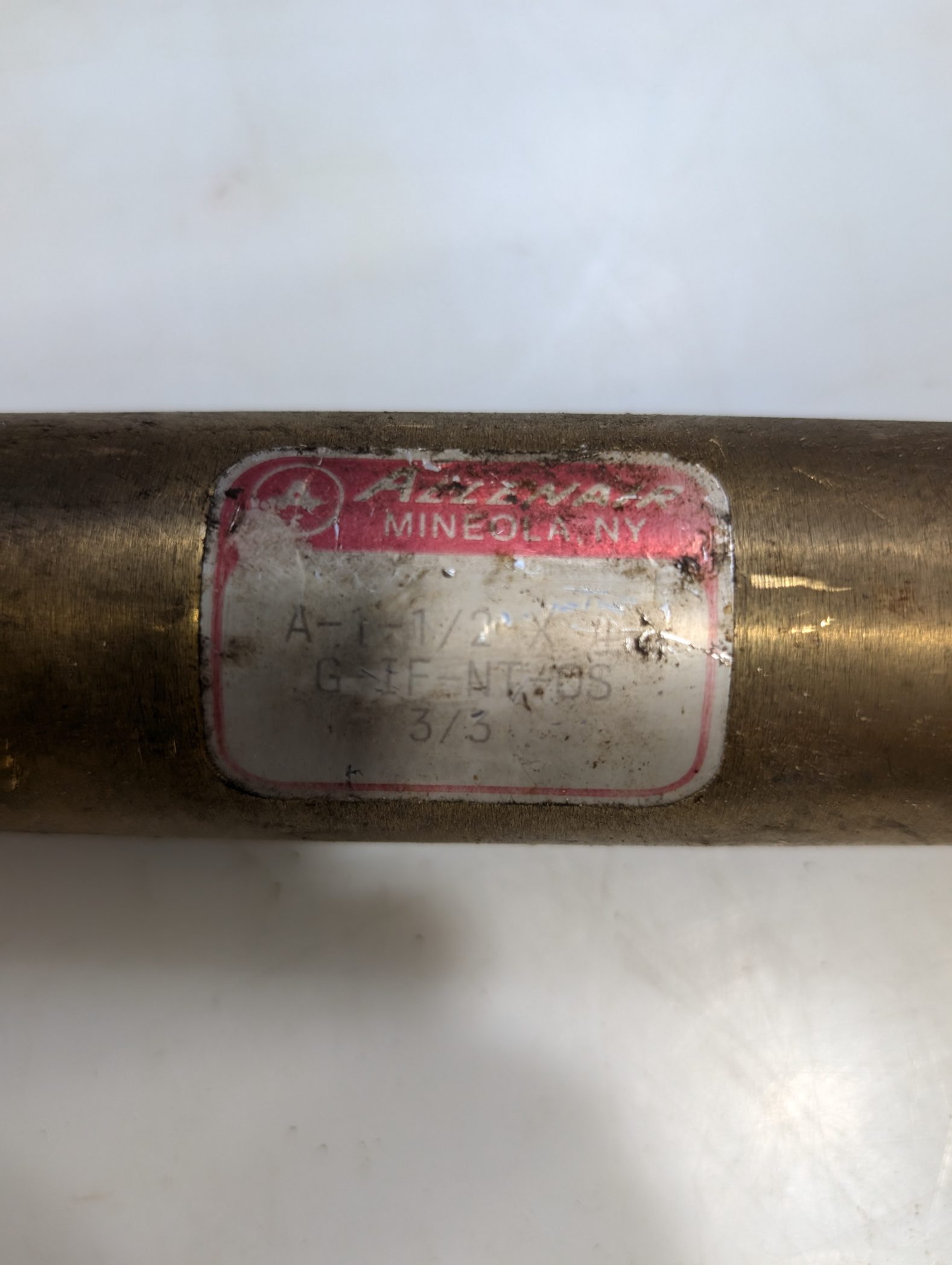

An Allenair pneumatic cylinder with the G-IF-NT-OS designation combines a specific mounting style, port/thread option, and an oversized rod configuration from Allenair.
G Option: Typically denotes specific port location or thread modifications (such as non-standard or designated port/mounting modifications per Allenair Catalog Cylinders).
IF Option: Intermediate flange or specific integrated mounting feature.
NT (No Tang): Built without the rear tang mounting section (shortened overall length calculated by the standard dimension minus the tang size).
OS (Oversized Rod): Features a larger diameter piston rod than standard to provide higher column loading strength and resistance to buckling under heavy push loads.
Pressure Rating: Standard pneumatic operation up to 150 PSI.
Standard Seals: Nitrile/Buna-N rated for -40°F to +250°F (Optional Viton/Fluorocarbon available for high temperatures up to +350°F)
