Specifications:

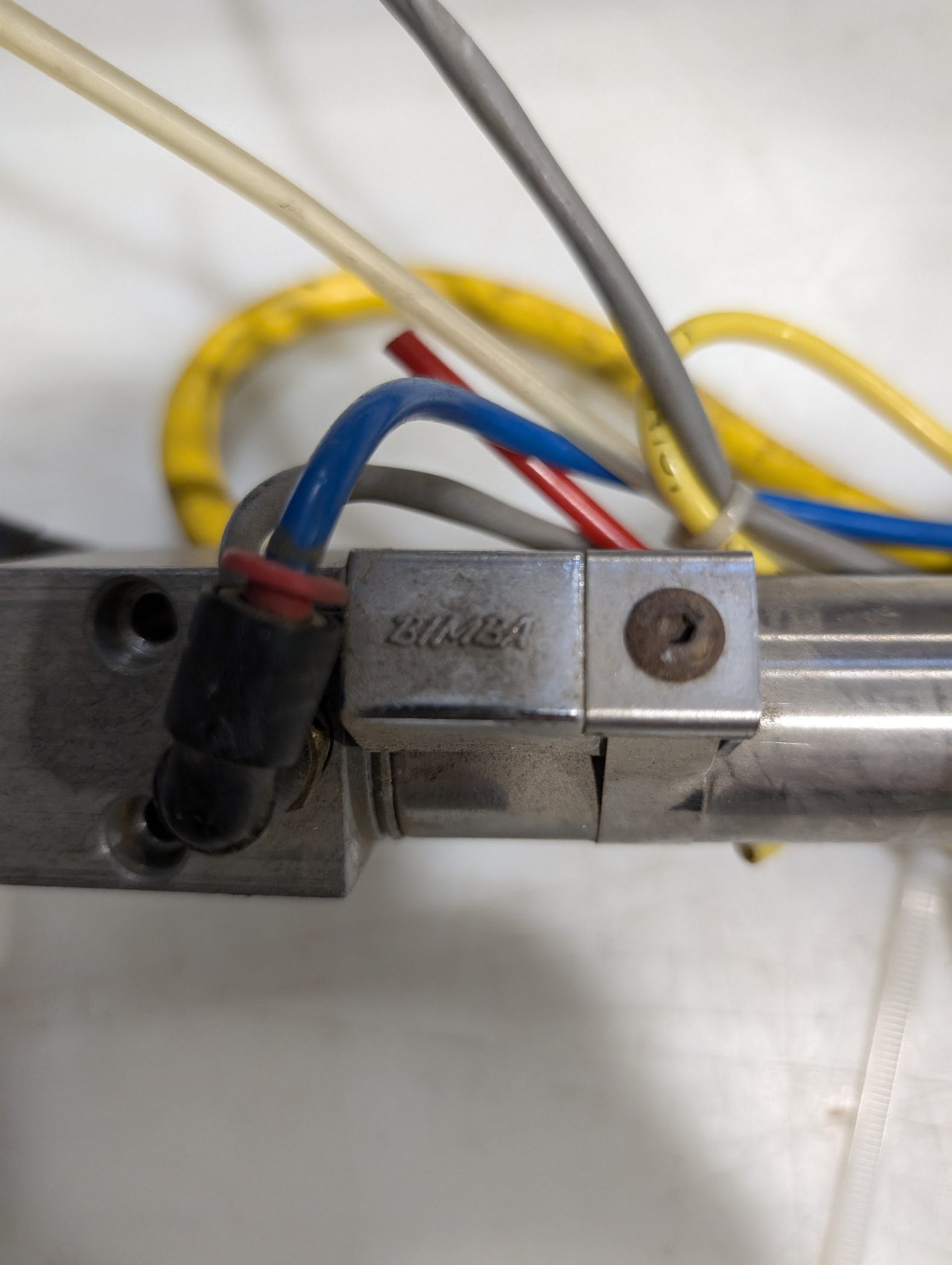

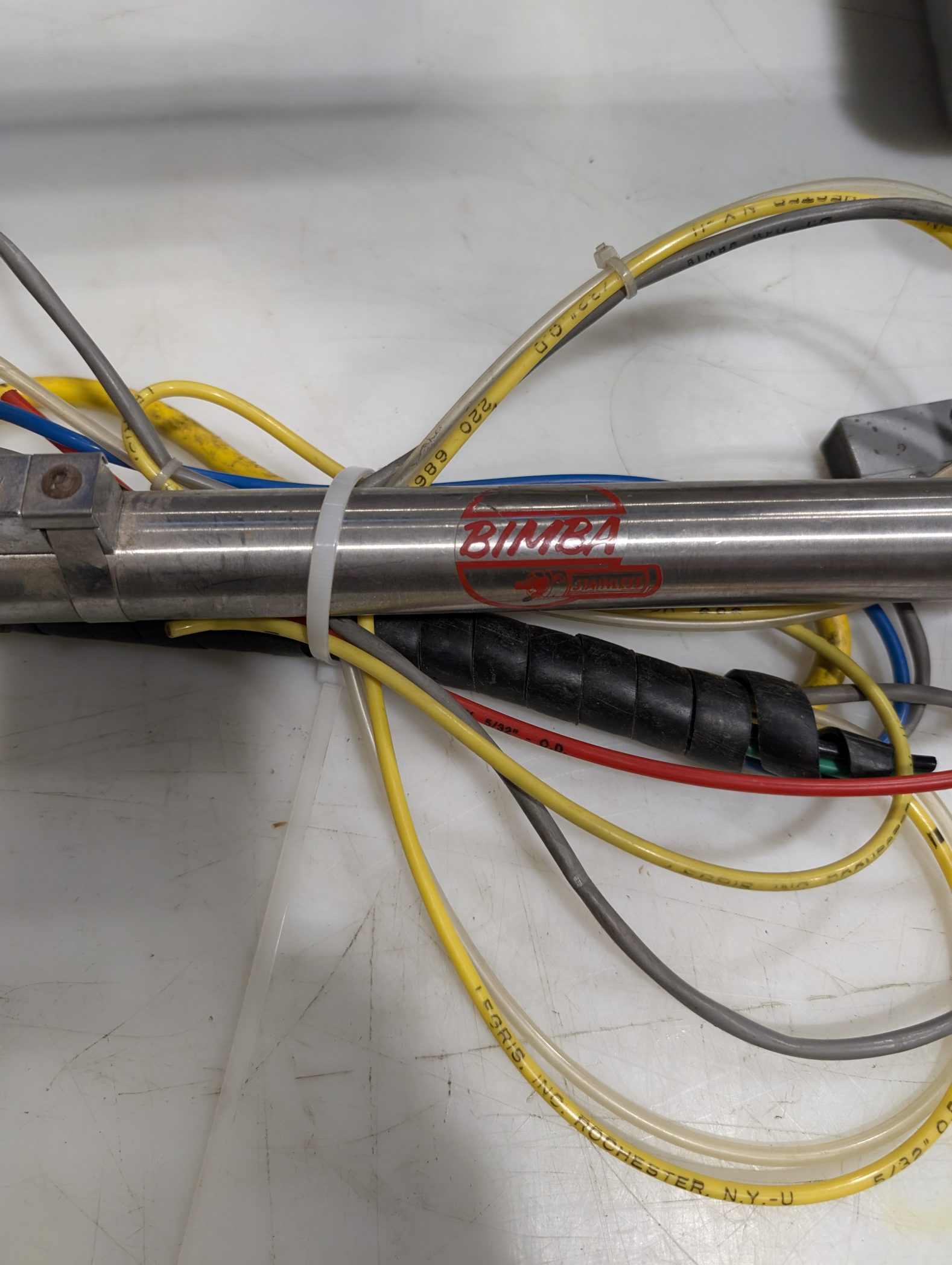

The Bimba D32100-A-8 designation typically corresponds to a custom or legacy configuration within Bimba’s pneumatic actuator lineup
- Series Type: Pneumatic Air Cylinder / Linear Actuator
- Bore Size (“32”): 32 mm (approximately 1-1/4″)
- Stroke Length (“100”): 100 mm (approximately 3.94″)
- Mounting / Options (“A”): Standard or specific designated modification/mounting code in Bimba’s numbering system.
- Stroke / Special (“-8”): Dash number referencing specific stroke adjustments, custom rod extensions, or port variations unique to the build order.
- Body Material: PTFE-impregnated hard anodized aluminum body with a stainless steel piston rod.
- Operation: Double-acting
-

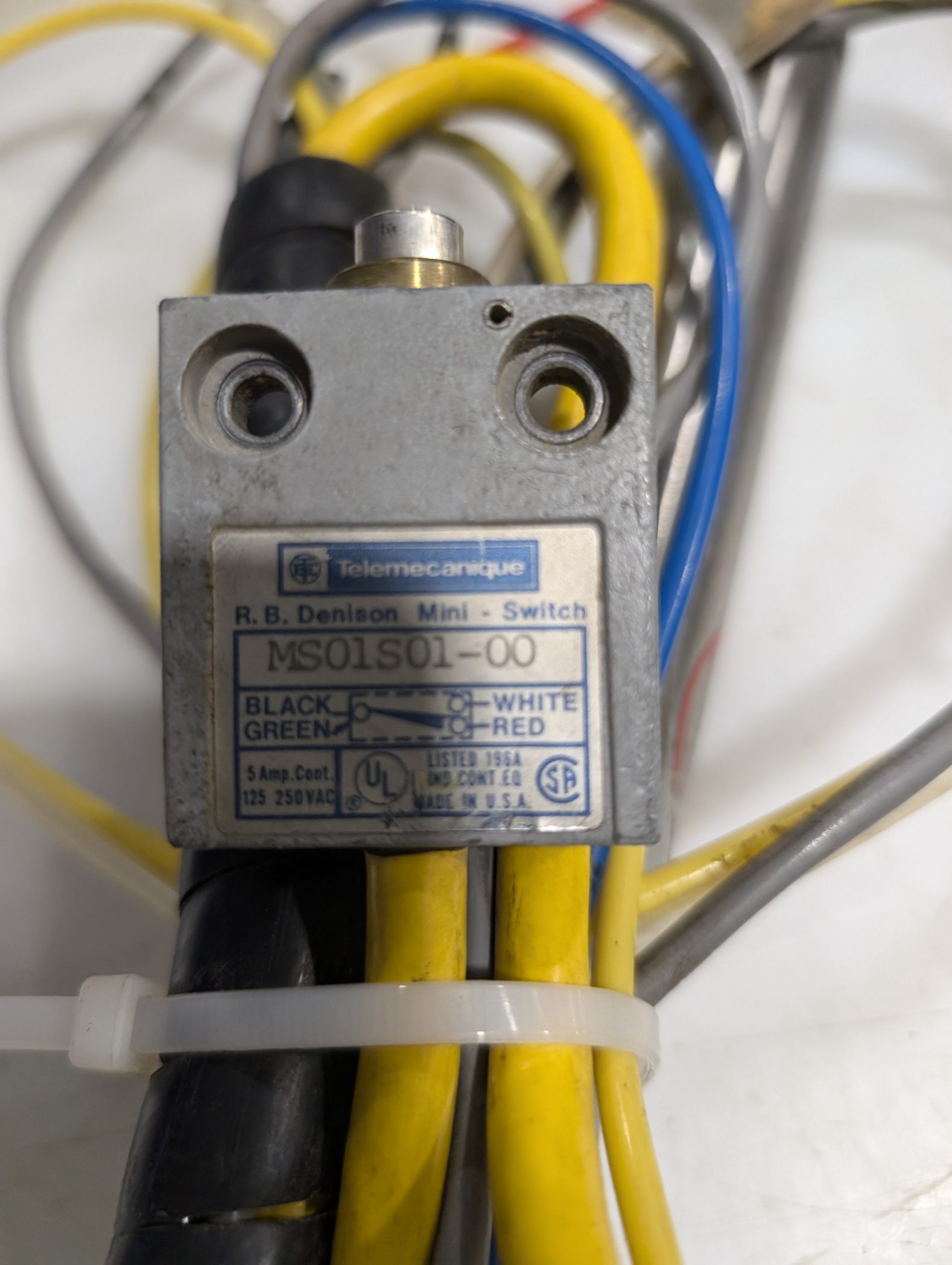

- Device Type: General Purpose Miniature Limit Switch
- Actuator Style: Top push plunger
- Contact Configuration: SPDT (1NO – 1NC)
- Electrical Ratings: 240 VAC at 10 A (or up to 5 A @ 300V / 28 VDC)
- Connection Type: Factory pre-wired 3 ft (18 AWG) 4-wire yellow SJTO cable
- Operating Force (Max): 80 ozf (ounces-force)
- Enclosure / IP Ratings: NEMA 1, 2, 4, 6, 6P, 12, 13; IP67
- Certifications: CE, CSA, UL
