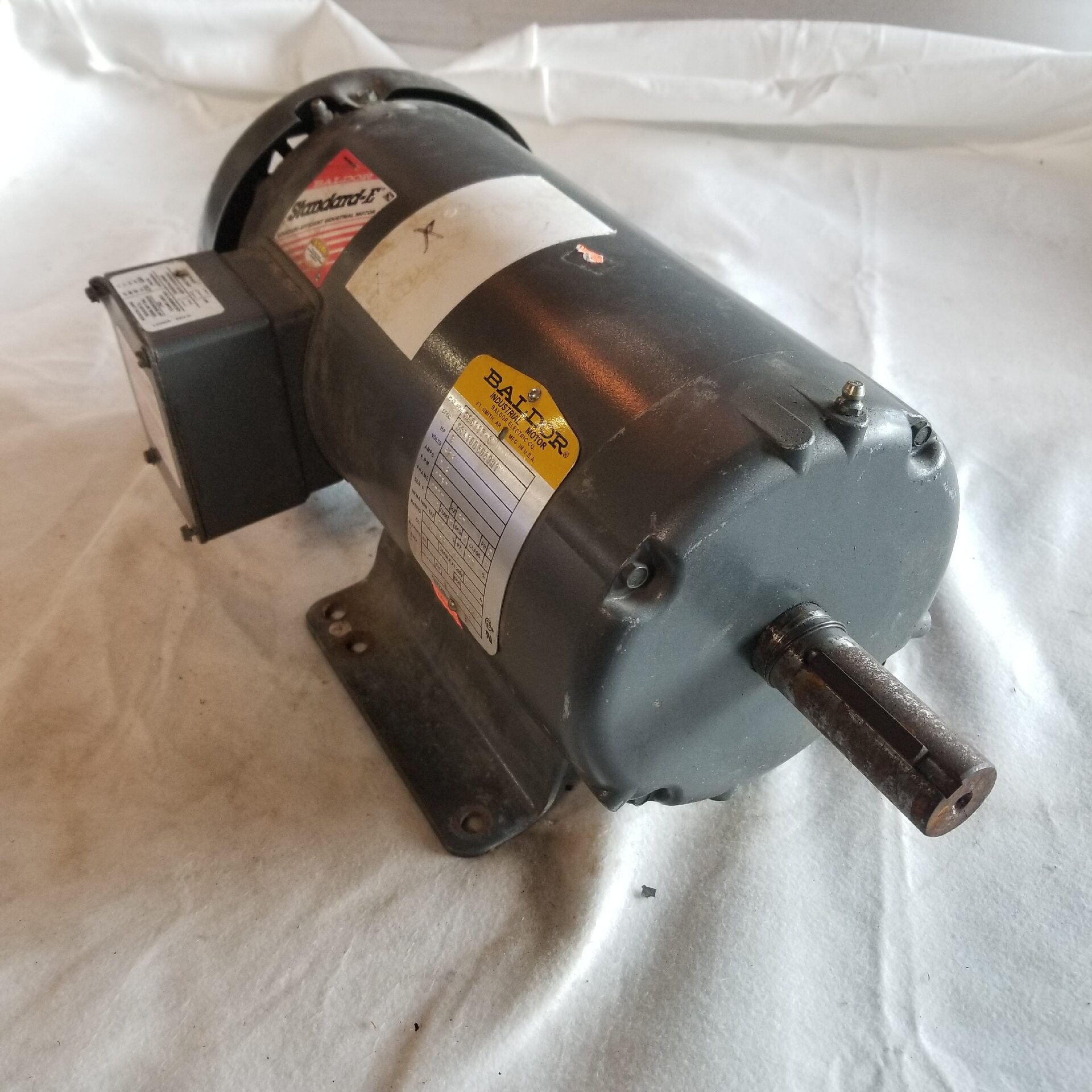

The Baldor H3611T-5 (commonly associated with the
EM3611T-5 575-volt catalog series) is a
heavy-duty industrial electric motor built for high-efficiency, continuous-duty performance.

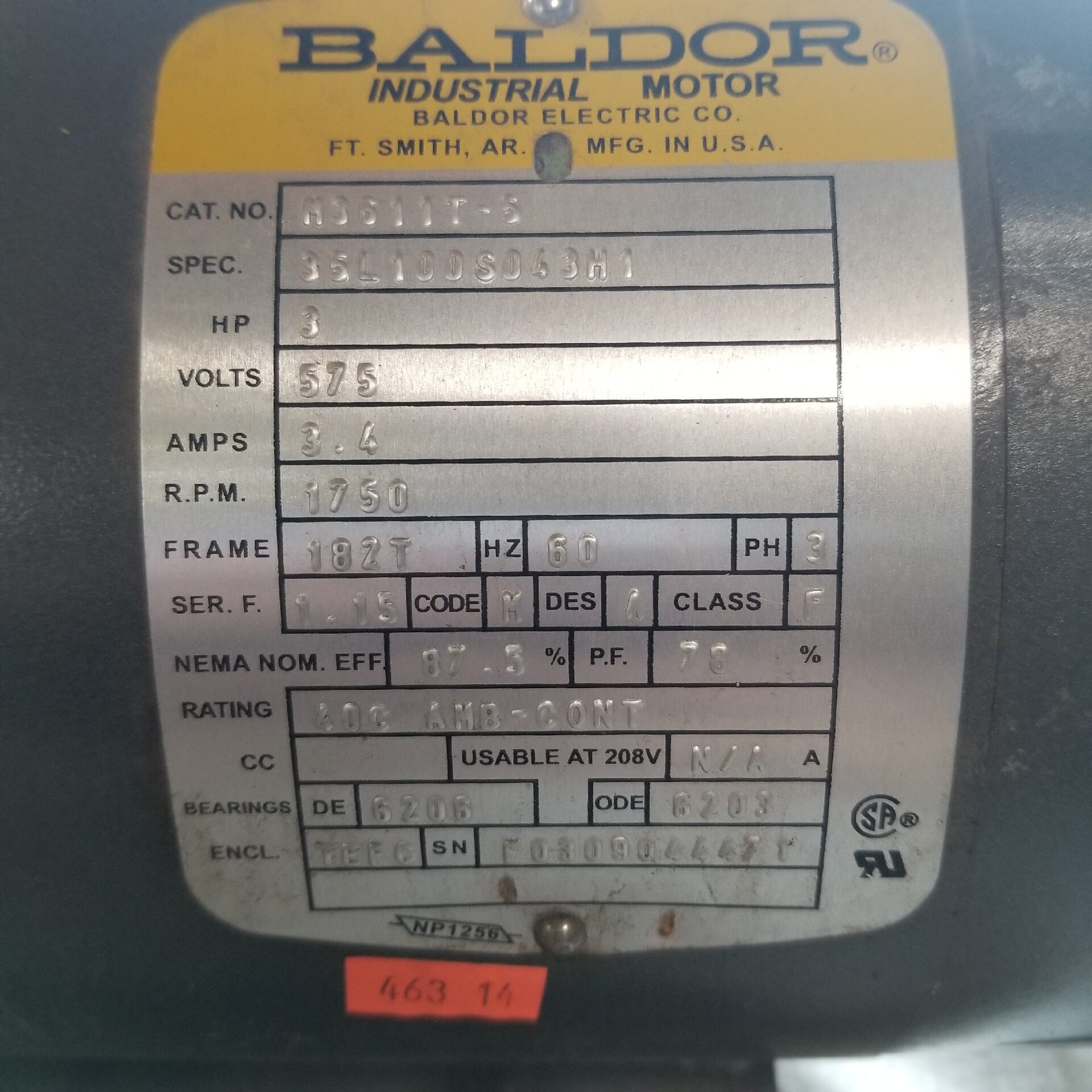

Key Specifications (EM3611T-5 / H3611T-5 Series)
- Speed: 1760 RPM (synchronous speed 1800 RPM)
- Voltage: 575 V @ 60 Hz (3-phase)
- Full Load Amps (FLA): 3.3 A (high voltage 575V)
- Enclosure Type: TEFC (Totally Enclosed Fan-Cooled)
- Efficiency: 89.5% at 100% load (NEMA Premium efficiency)
- Insulation Class: Class F
- Power Factor: 75% at full load
- Torque Ratings:
- Locked-Rotor Torque: 23 lb-ft
- Pull-Up Torque: 19.5 lb-ft
- Breakdown Torque: 33.9 lb-ft
- Overall Length: 16.55 inches
- Applications: Ideal for industrial machinery, pumps, blowers, compressors, and ventilation systems
