SKU: 1055-34 CAD $3,500.00

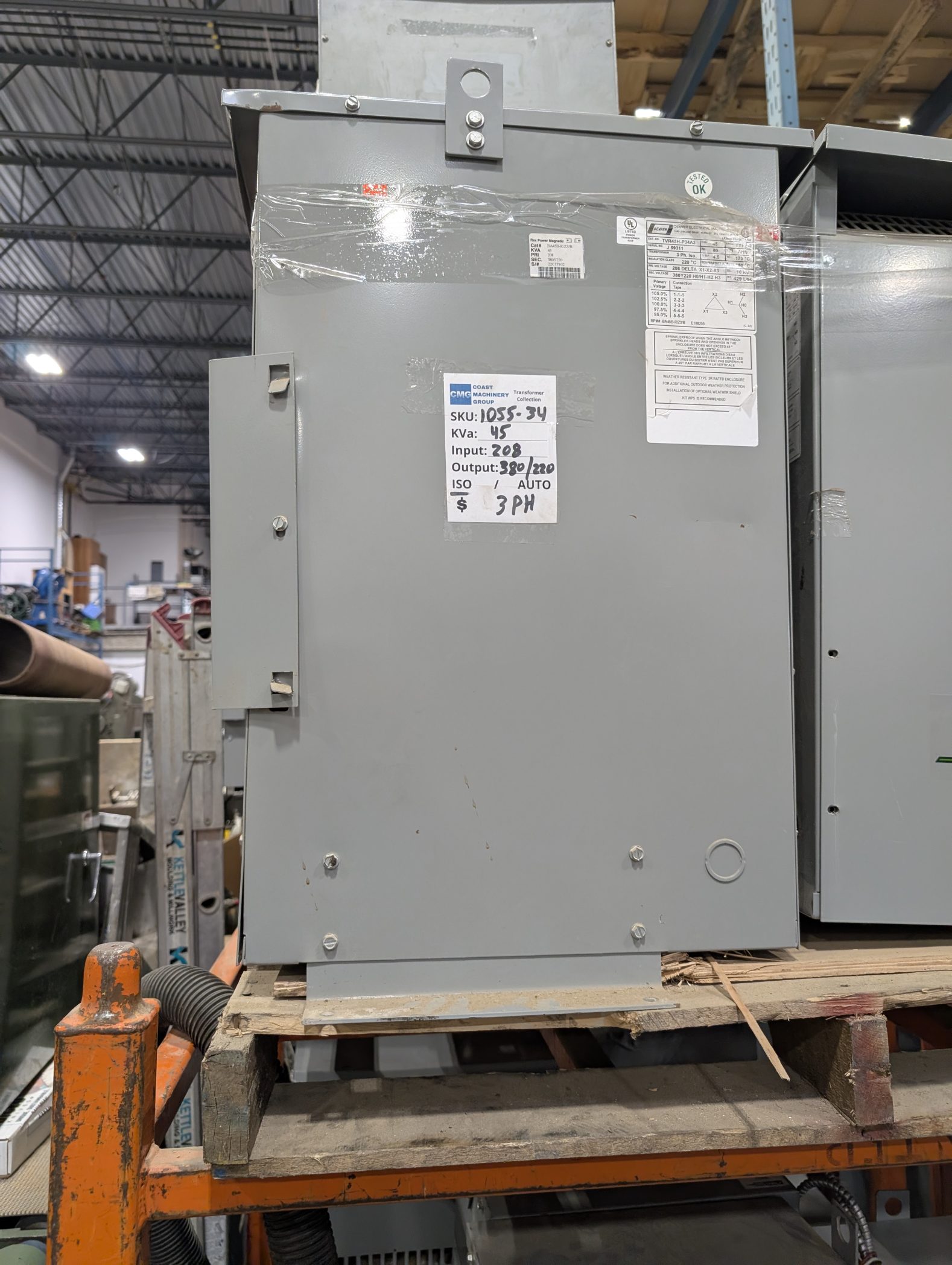

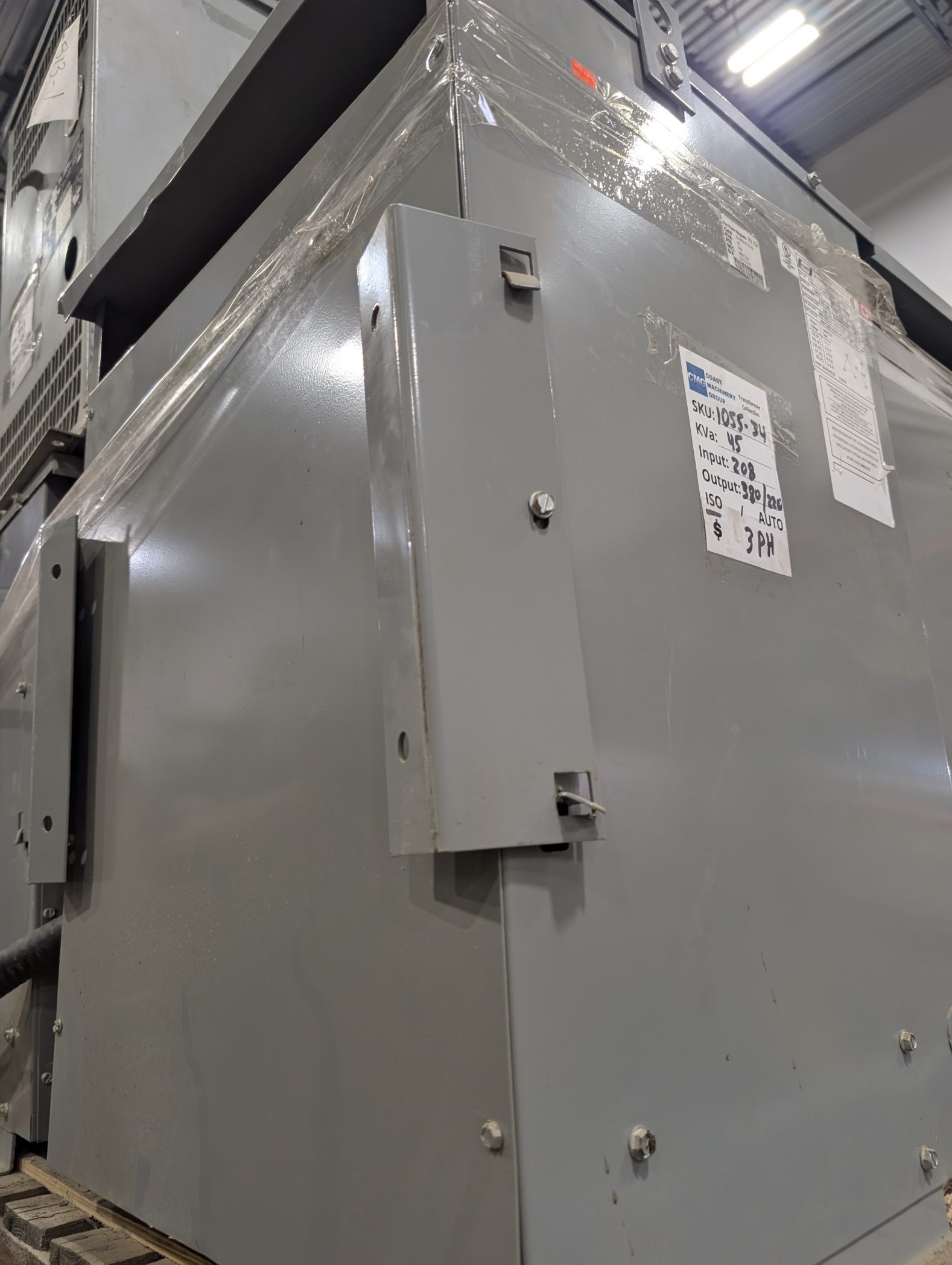

Beaver TVR45H-P34A3 Transformer 45KVA

Used Beaver TVR45H-P34A3 Transformer 45KVA

Used Beaver TVR45H-P34A3 Transformer 45KVA

Used Beaver TVR45H-P34A3 Transformer 45KVA

Used Beaver TVR45H-P34A3 Transformer 45KVA

Used Beaver TVR45H-P34A3 Transformer 45KVA

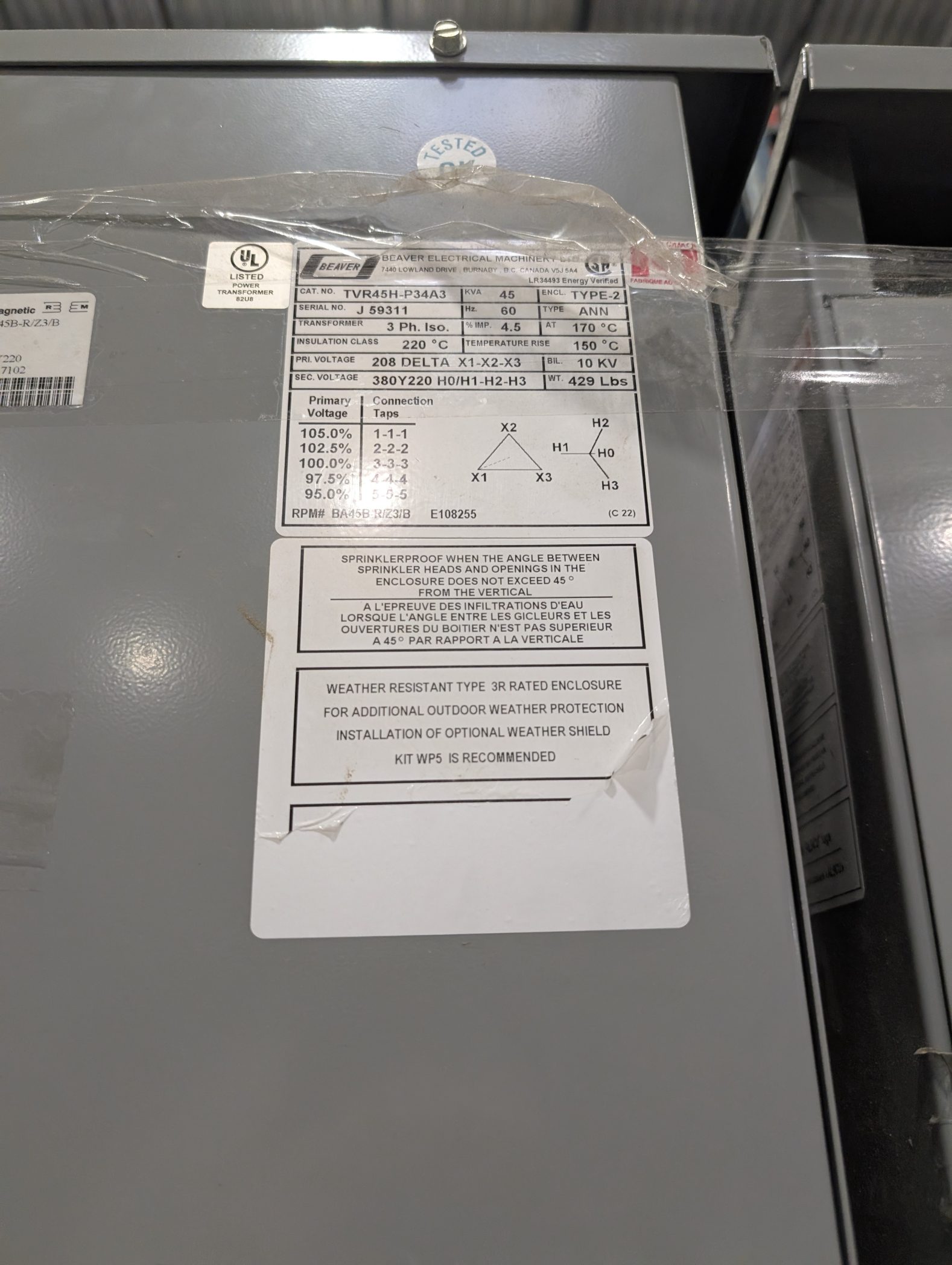

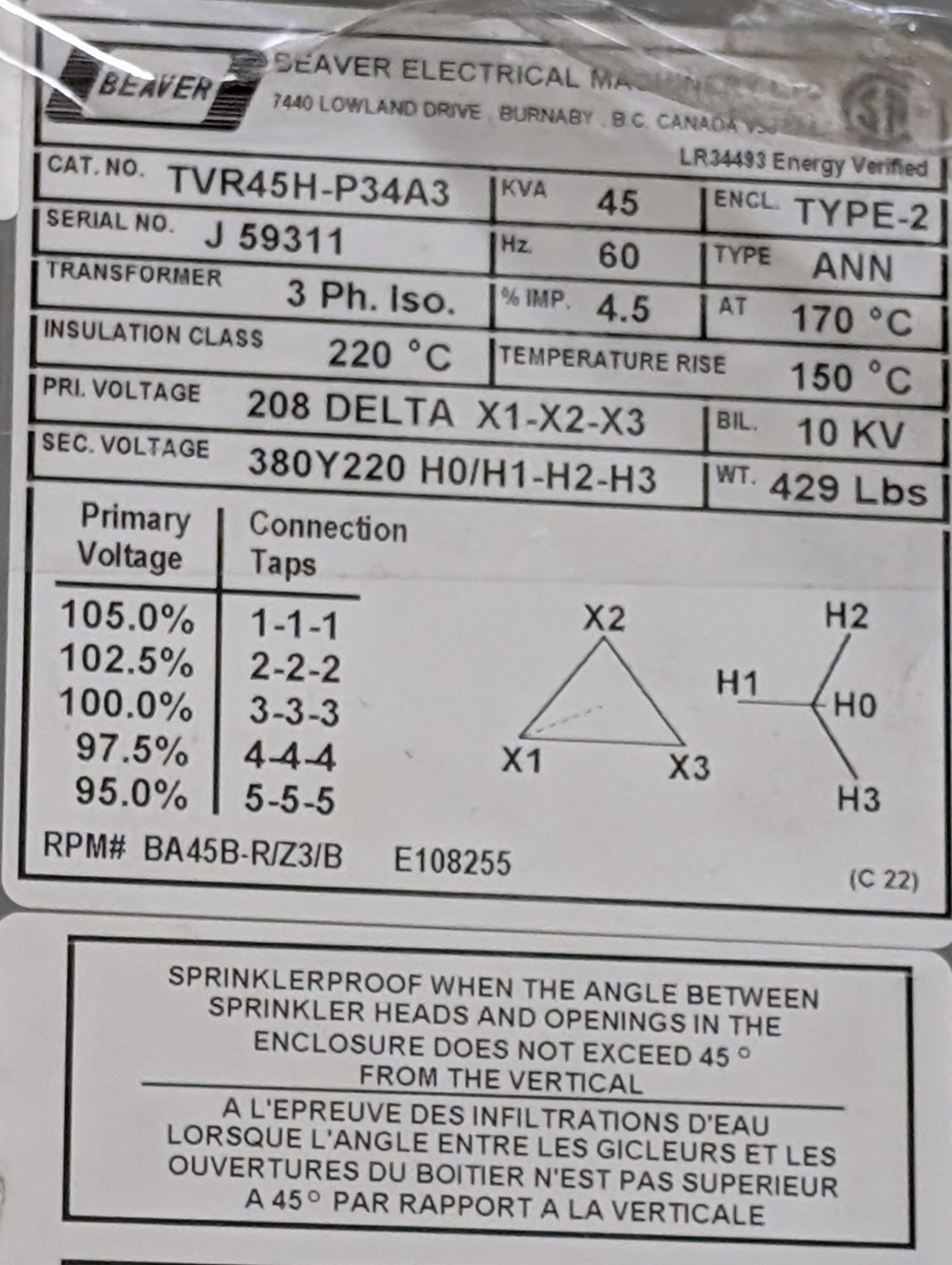

Specifications:

The Beaver Electrical TVR45H-P34A3 is a 45 kVA 3-phase dry-type isolation transformer

Electrical Specifications

Rating (kVA): 45 kVA

Primary Voltage: 208V Δ (3-phase)

Secondary Voltage: 380Y / 220V (3-phase 4-wire)

Frequency: 60 Hz

Number of Phases: 3-phase

Impedance: 5.0% – 6.0%

Efficiency: 97.7% at 35% load (meets NRCan 2019 / DOE 2016 standards)

BIL (Basic Impulse Insulation Level): 10 kV

Physical & Construction Details

Type: Dry-type, floor or wall-mount, isolation transformer

Winding Material: Aluminum

Enclosure Type: NEMA 2 (NEMA 3R compatible with an optional kit)

Insulation Class: 220°C

Temperature Rise: 150°C

Weight: 360 lbs (approx. 163 kg)

Approvals / Certifications: UL, CSA

Make An Offer
