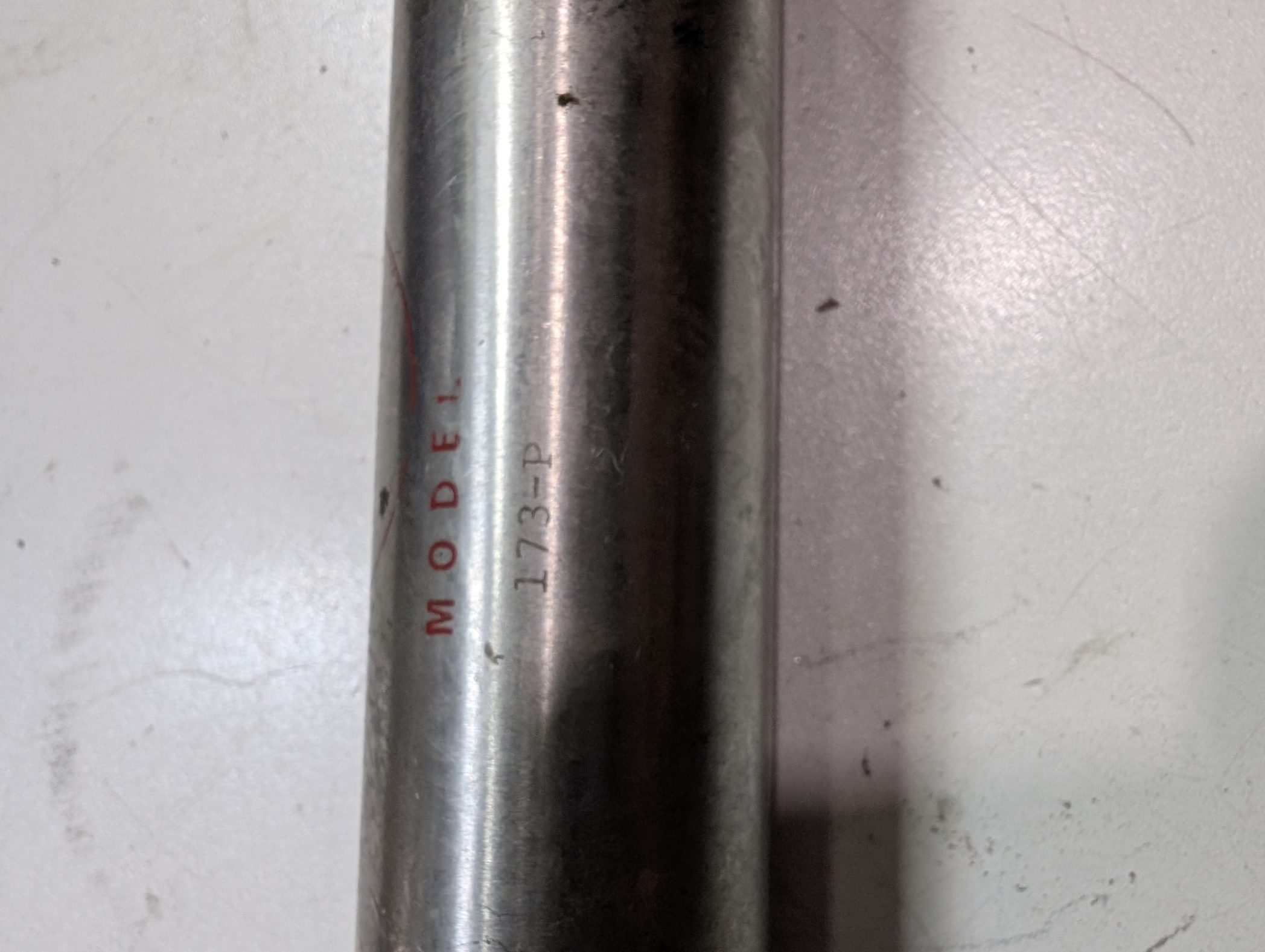

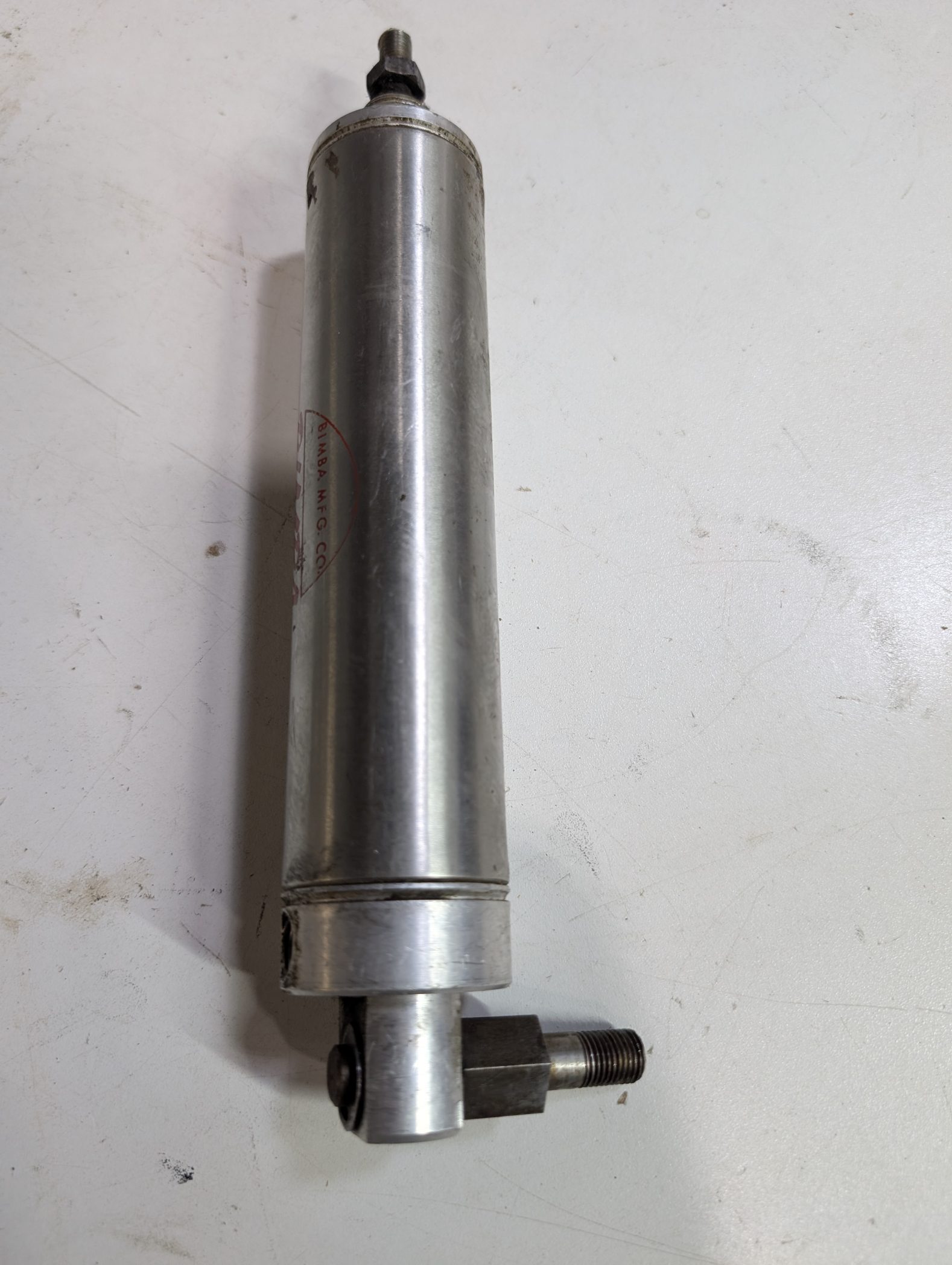

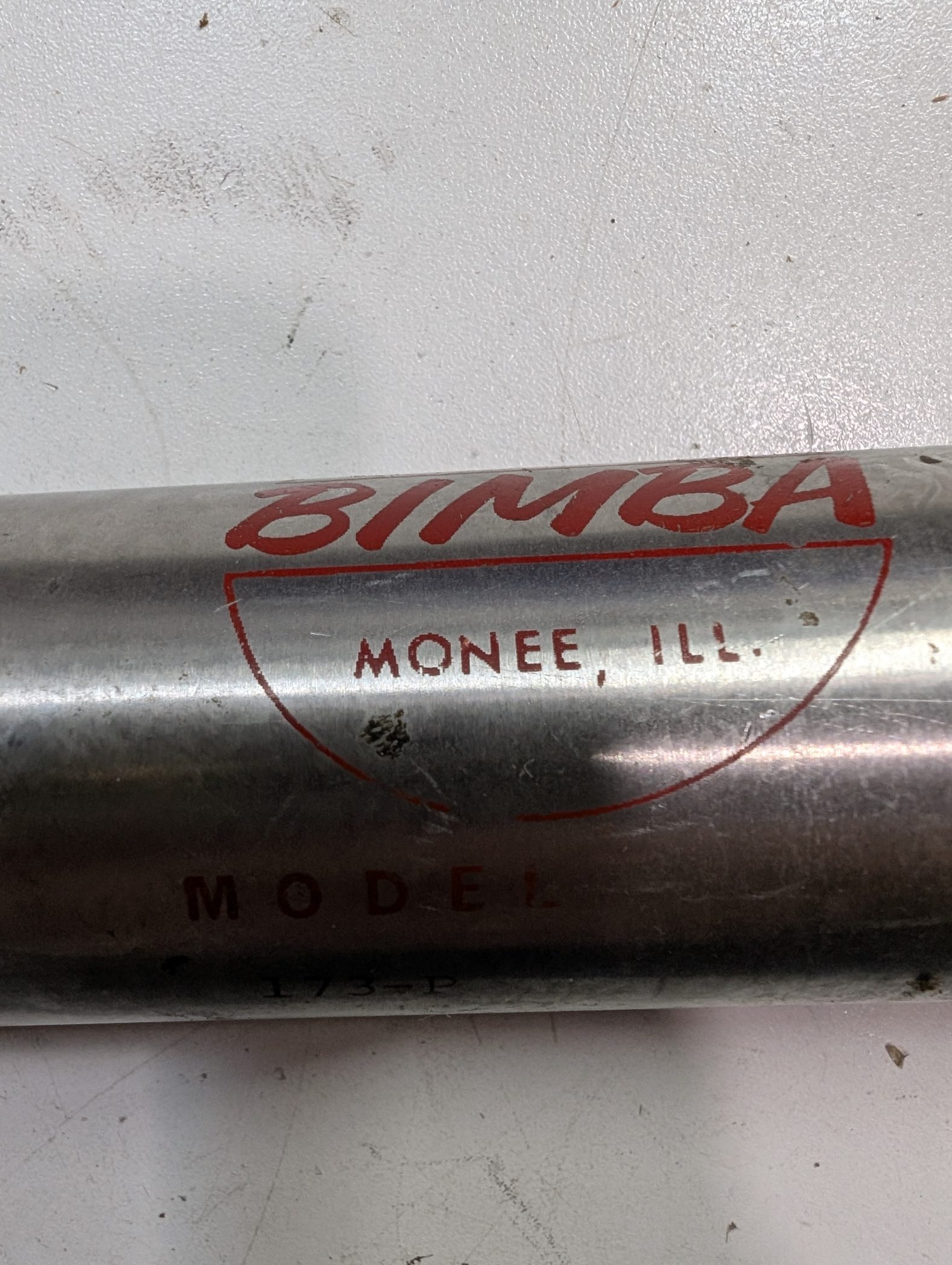

The Bimba 173-P is a 1.10 lb single-acting, spring-return pneumatic air cylinder from the Bimba Original Line featuring a 1-1/2 inch bore and a 3-inch stroke.
Bore Size: 1-1/2 in
Stroke Length: 3.000 in
Operation: Single acting, spring return
Mounting Style: Rear pivot mount
Port Size: 1/8″ NPT threaded pneumatic port
Rod Thread: 7/16-20 UNF-2A (male)
Temperature Range: -20°F to 200°F (-28°C to 93°C)
Spring Force: 7 lb (relaxed) / 14 lb (compressed)
Cushioning: None
Design/Lubrication: Non-repairable with permanent grease lubricant
