SKU: 108-93 CAD $25.00

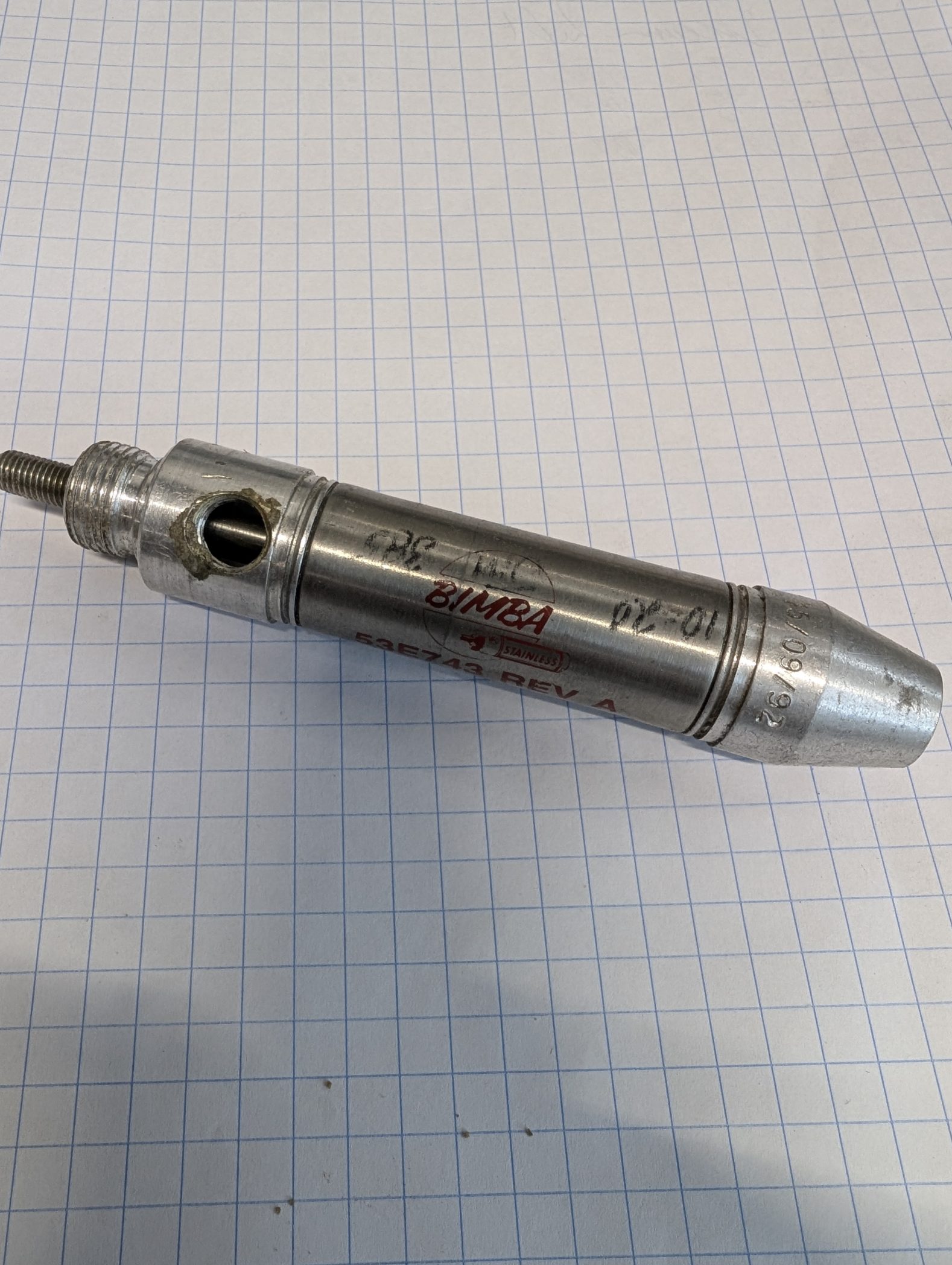

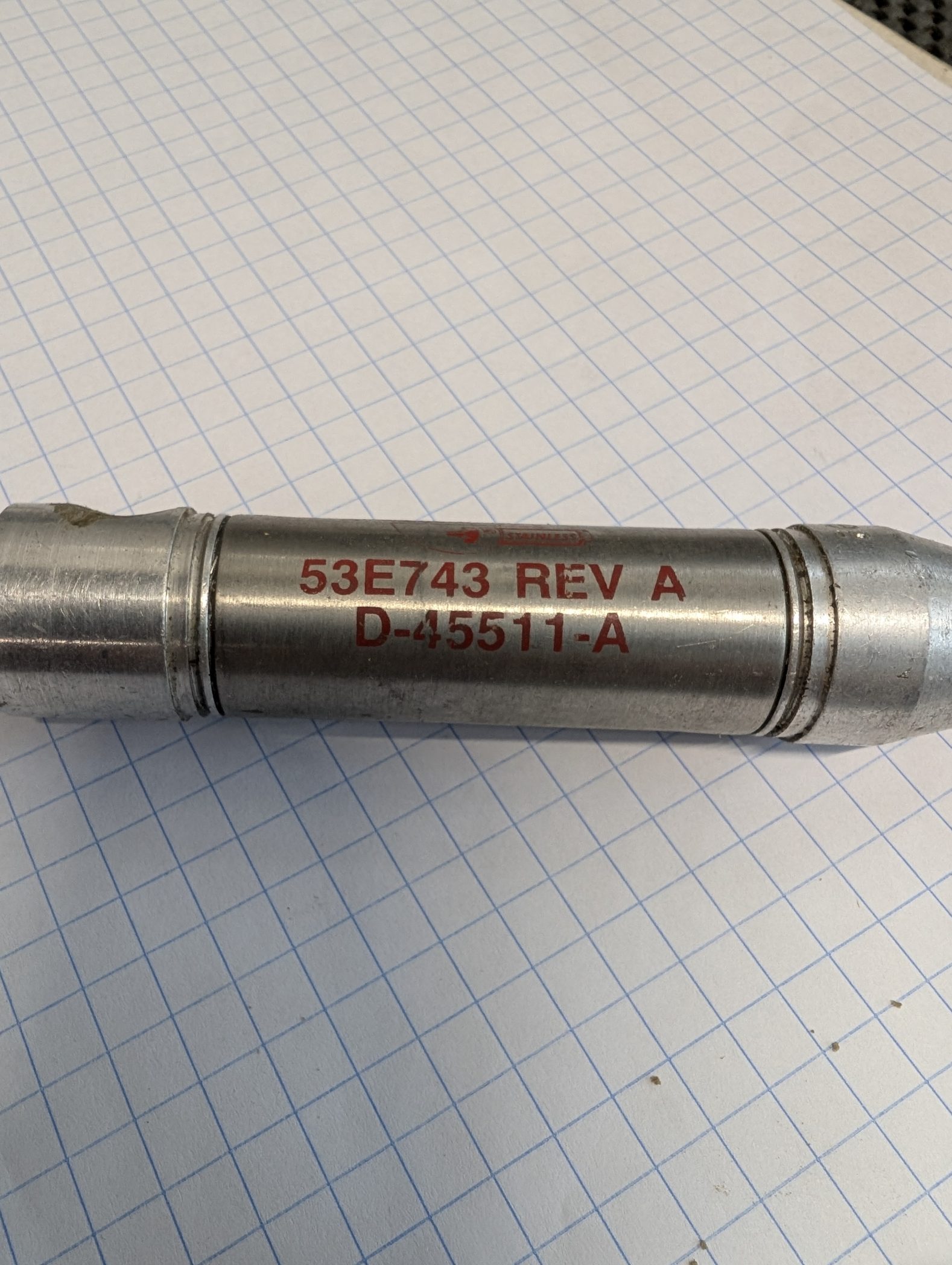

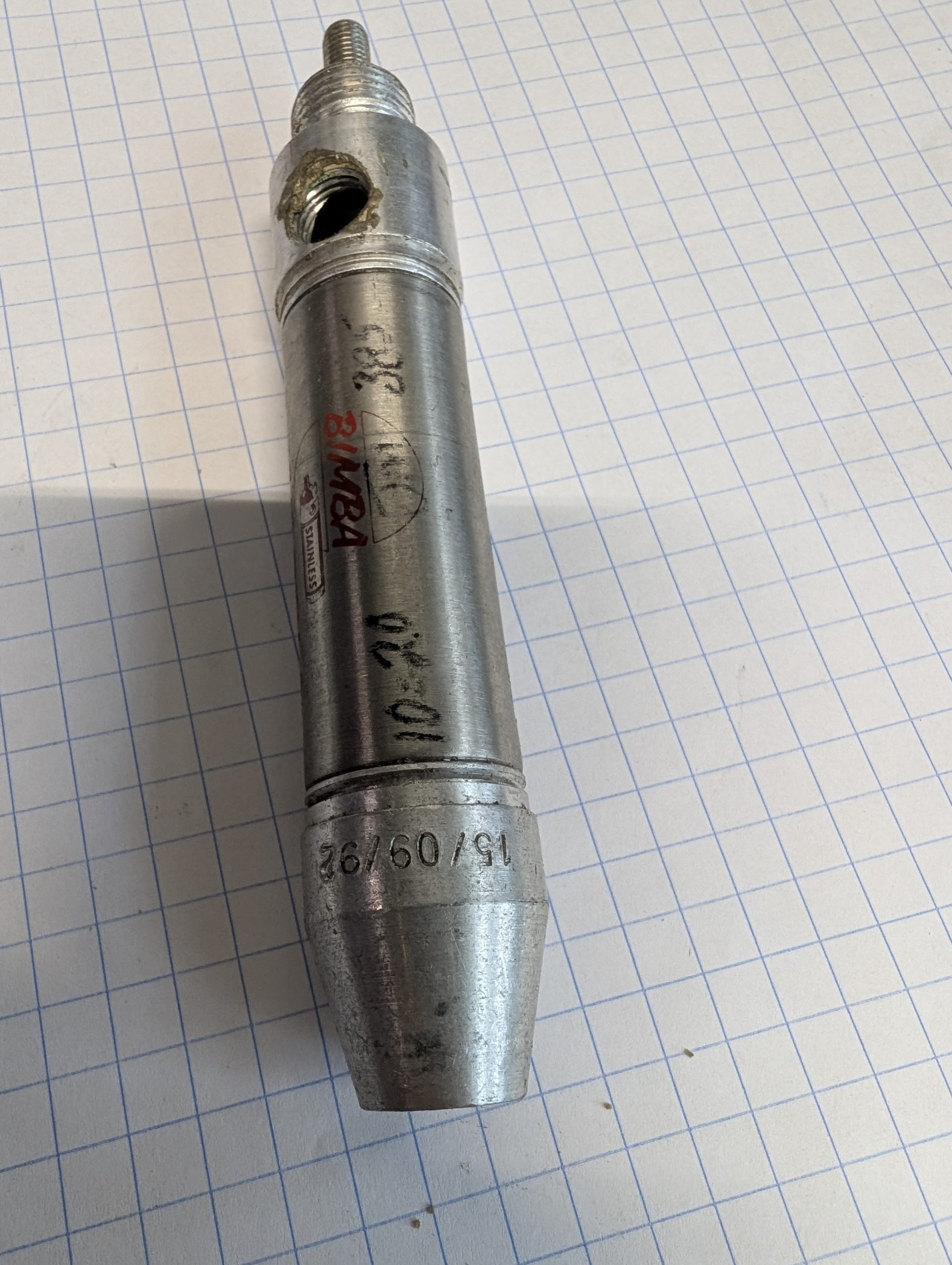

Bimba 53E743 Rev A Pneumatic Cylinder D45511-A

Used Bimba 53E743 Rev A Pneumatic Cylinder D45511-A

Used Bimba 53E743 Rev A Pneumatic Cylinder D45511-A

Used Bimba 53E743 Rev A Pneumatic Cylinder D45511-A

Used Bimba 53E743 Rev A Pneumatic Cylinder D45511-A

Specifications:

The Bimba 53E743 (Revision A, Drawing/Part Number D45511-A) is a double-acting pneumatic stainless steel air cylinder. Below are the technical specifications for this component:

Action Type: Double-acting (extend port in base, retract port in rod end)

Bore Diameter: 3/4″

Stroke Length: 3/4″

Piston Rod Diameter: 1/4″

Maximum Pressure: 250 PSI

Port Size: 1/8″ NPT

Retracted Length: 5″ (measured from the rod end to the base end)

Shipping Weight: 1.0 lb

Mounting Dimensions

Rod End Mounting: Threaded 1/4″-28 x 1/2″ long

Nose Mounting: Threaded 5/8″-18

Base Style: Flat base end with a 0.81″ Outer Diameter (O.D.

Make An Offer
