Specifications:

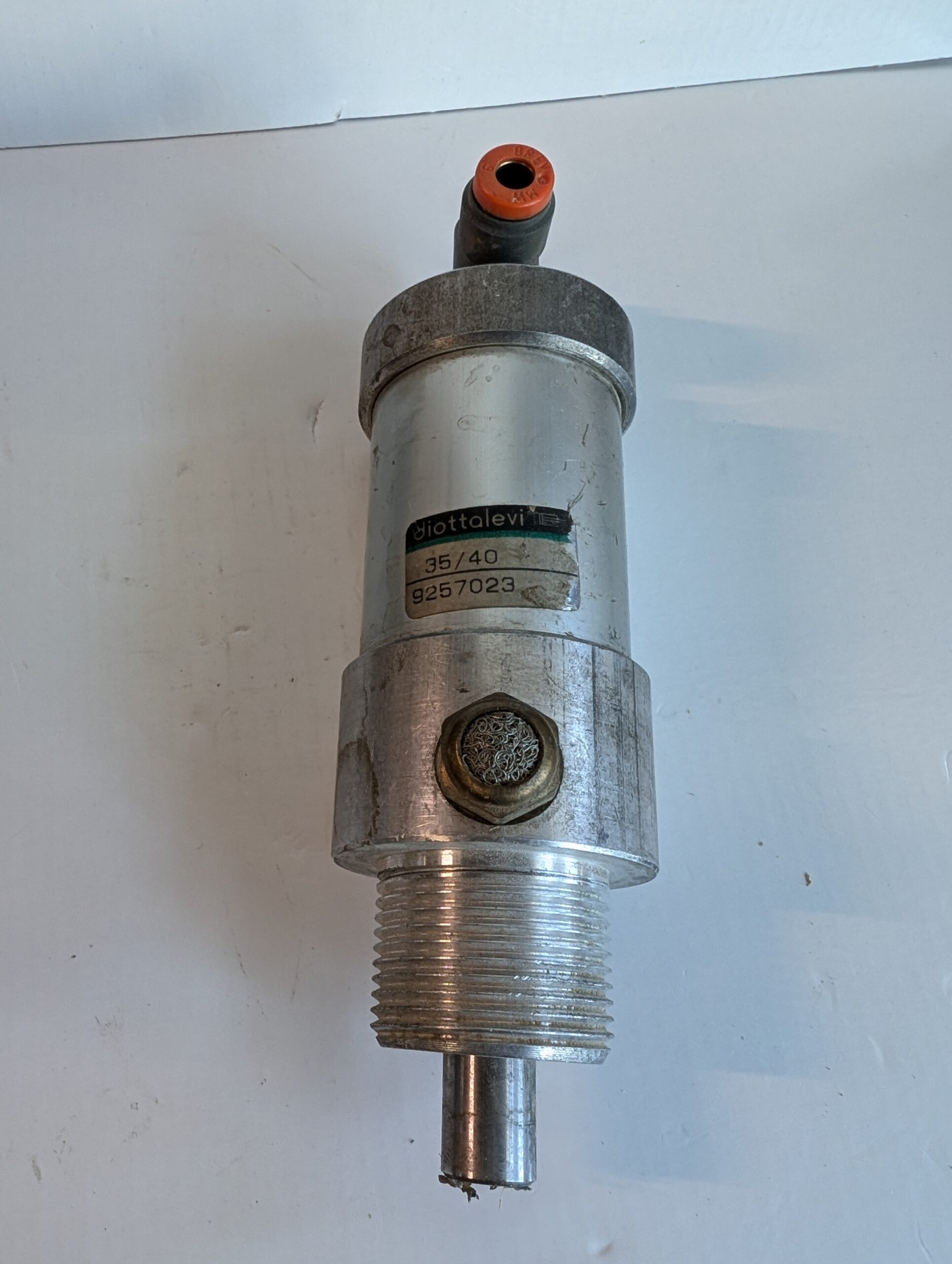

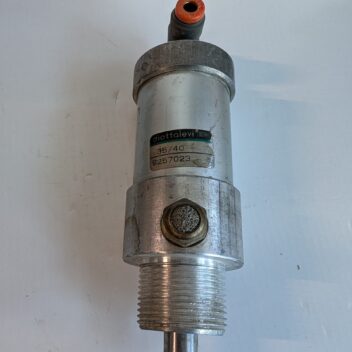

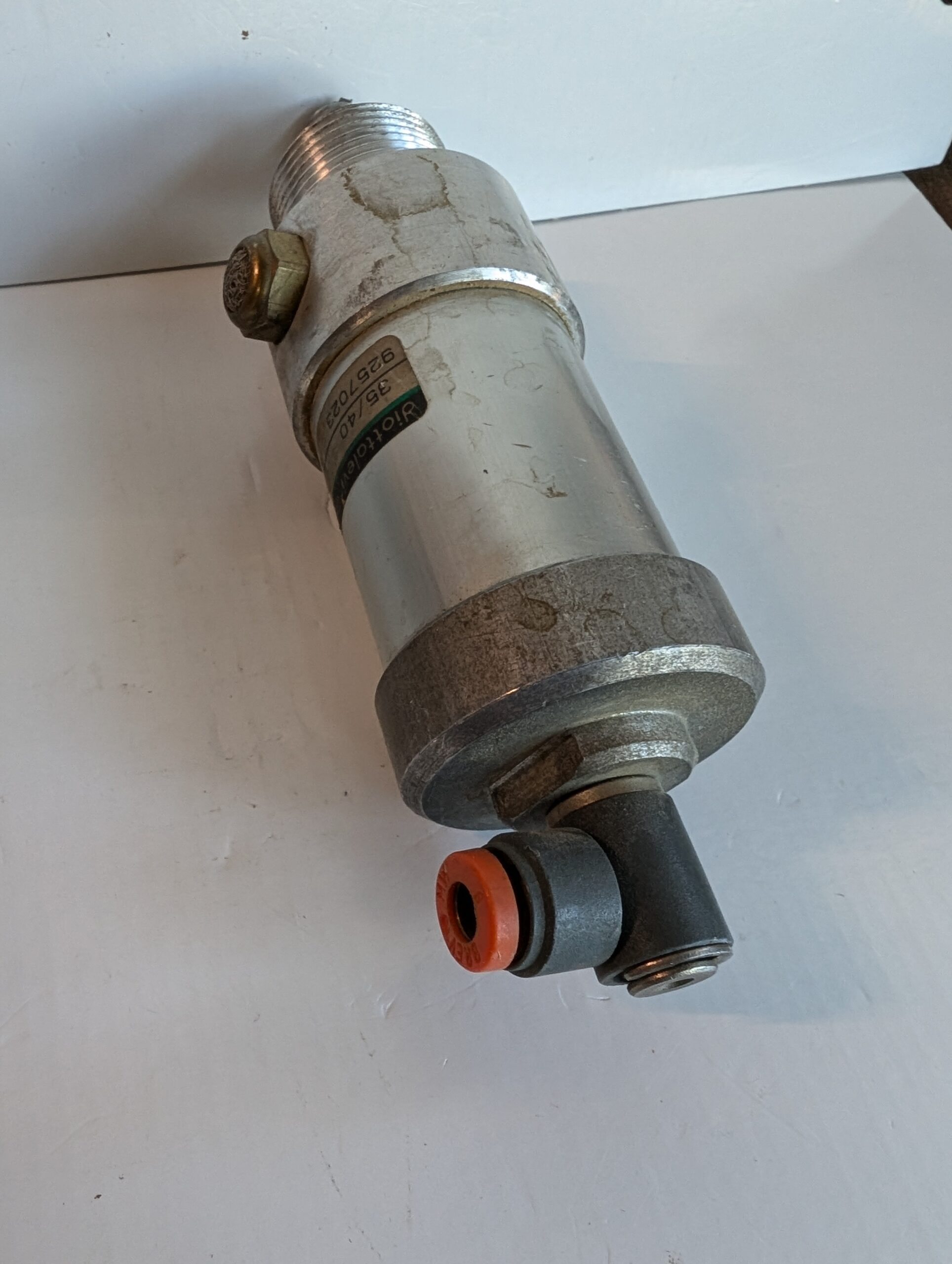

A Diottalevi 35/40 pneumatic cylinder typically designates a
35 mm bore and 40 mm stroke configuration from their standard industrial pneumatic lines
- Bore Size: 35 mm (internal diameter of the cylinder barrel)
- Stroke Length: 40 mm (travel distance of the piston rod)
- Maximum Working Pressure: Up to 12 bar for Series 300 (filtered or lubricated air)
- Operating Temperature: 0°C to 80°C (down to -20°C with dry air)
- Materials: Aluminium alloy end covers and piston, hard-oxidised aluminium inner/outer tube, and a chromed C45 steel piston rod.
- Seals: NBR or VITON seals with a sintered bronze guide bushing
