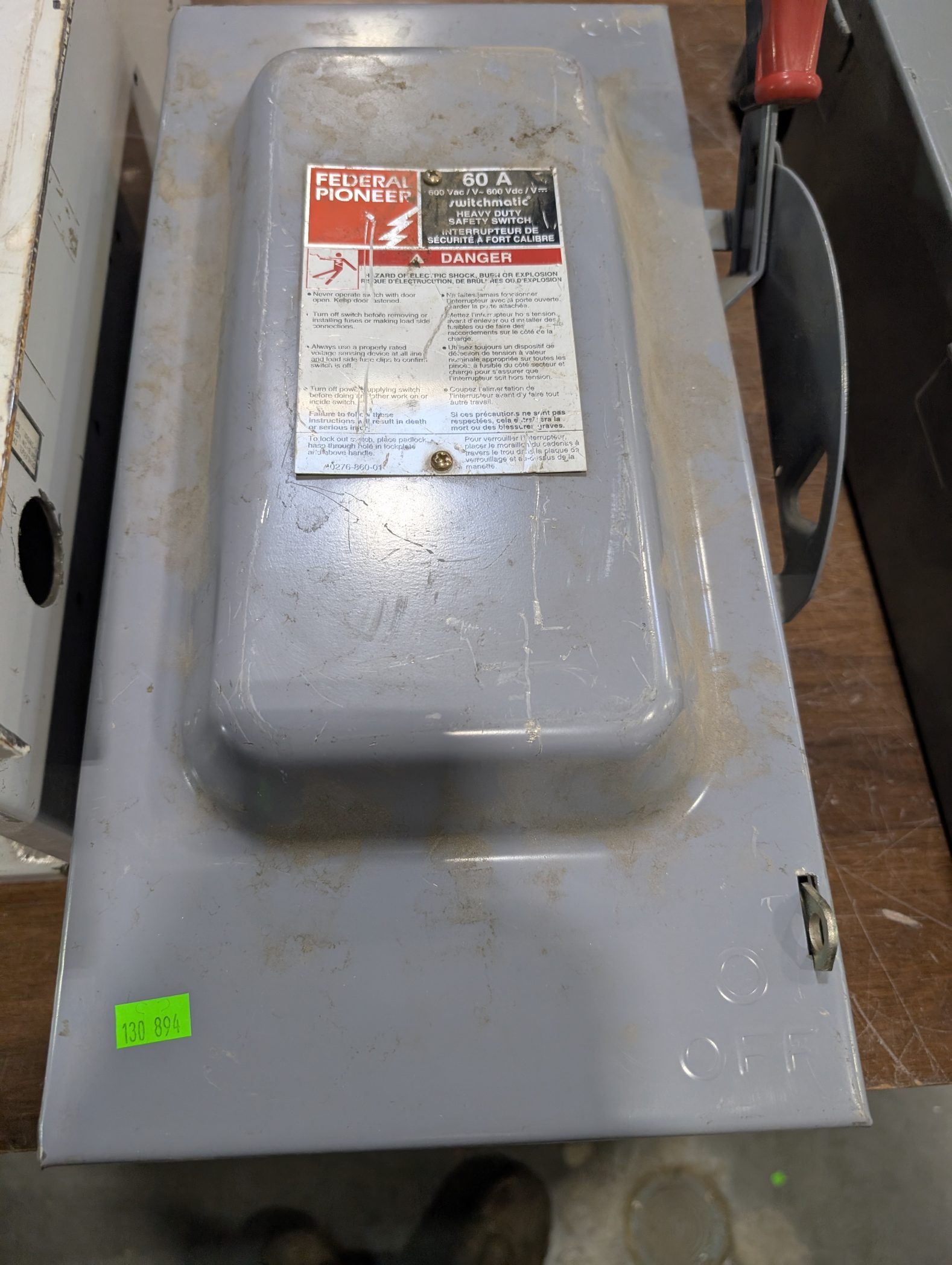

Brand/Manufacturer: Federal Pioneer (Schneider Electric)
Amperage Rating: 60 A
Voltage Rating: Up to 600 VAC / VDC
Number of Poles: 3-Pole (3-Phase compatible)
Frequency: 50/60 Hz
Model Variations & Enclosures
C5636 / 1636: Typically configured as a heavy-duty, indoor-rated (NEMA Type 1) enclosed safety switch.
RCD5636: Configured as a weatherproof, rainproof (NEMA Type 3R) non-fusible outdoor disconnect, often built with a durable steel or stainless enclosure.
Fusible vs. Non-Fusible: Series models like the 1636 can be fusible (supporting class J or standard cartridge fuses for overcurrent protection), whereas models like the RCD5636 are typically non-fusible disconnects meant for separate upstream protection.
Mechanism: Quick-make, quick-break operating handle to minimize arcing and wear.
Horsepower Ratings: Varies by configuration, handling up to high-capacity 3-phase motor loads (historically rated up to 50 HP at 600V for heavy-duty 1636 series units).
Safety Interlocks: Mechanical door interlock that prevents opening the enclosure while the switch is in the “ON” position
